Transporto priemonė: MB-TRAC 700; VIN numerio dalis: 440171

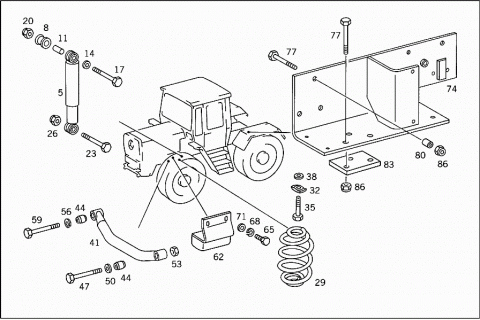

Grupė: 32 SPRINGS AND SUSPENSION - 050 FRONT SPRINGS AND REAR AXLE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0053231100 | SHOCK ABSORBER |
| BOGE | ||
| 008 | A 0003233144 | RUBBER BUFFER |
| Repalced by: A 0003238085 | ||
| 008 | A 0003238085 | RUBBER MOUNTING |
| 008 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 008 | A 0003233144 | RUBBER BUFFER |
| TO 005 323 11 00 | ||
| Repalced by: A 0003238085 | ||
| 008 | A 0003238085 | RUBBER MOUNTING |
| TO 005 323 11 00 | ||
| 008 | A 0003234485 | RUBBER MOUNTING |
| 011 | A 0003231550 | BUSHING |
| 005 323 11 00 | ||
| 011 | A 0003234050 | BUSHING |
| 014 | A 4403170250 | BUSHING |
| SHOCK ABSORBER TO FRAME | ||
| 017 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 017 | N 000960020078 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| 020 | N 000936020010 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 023 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 023 | N 308765020012 | SCREW |
| SHOCK ABSORBER TO AXLE | ||
| M 20X1.5X90 | ||
| 026 | N 913004020004 | NUT |
| Repalced by: N 913023020000 | ||
| 026 | N 913023020000 | NUT |
| Repalced by: N 913023020001 | ||
| 026 | N 913023020001 | NUT |
| SHOCK ABSORBER TO AXLE | ||
| 029 | A 4063210004 | FRONT SPRING |
| 032 | A 4403223409 | PLATE |
| FRONT SPRING TO FRAME | ||
| 035 | N 000961014050 | SCREW |
| Repalced by: N 910105014013 | ||
| 035 | N 910105014013 | SCREW |
| FRONT SPRING TO FRAME | ||
| M 14X1.5X35 | ||
| 038 | N 006796014100 | CONICAL SPRING WASHER |
| FRONT SPRING TO FRAME | ||
| 041 | A 4403300407 | TRANSVERSE CONTROL ARM |
| 044 | A 0019880510 | RUBBER MOUNTING |
| TRANSVERSE CONTROL ARM | ||
| 047 | N 000960014180 | SCREW |
| Repalced by: N 910105014020 | ||
| 047 | N 910105014020 | HEXAGON HEAD BOLT |
| CONTROL ARM TO FRAME | ||
| M14X1.5X110 | ||
| 050 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 050 | N 000125015019 | WASHER |
| CONTROL ARM TO FRAME | ||
| 053 | N 308673014002 | NUT |
| CONTROL ARM TO FRAME | ||
| 056 | A 4409900047 | LOCK WASHER |
| CONTROL ARM TO FRONT AXLE | ||
| 059 | N 914125014209 | SCREW |
| CONTROL ARM TO FRONT AXLE | ||
| 062 | A 4413220144 | RUBBER BUFFER |
| 065 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 065 | N 304017008027 | SCREW |
| STOP BUFFER TO FRAME | ||
| M 8X30 | ||
| 068 | N 912004008102 | LOCK WASHER |
| STOP BUFFER TO FRAME | ||
| 071 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 071 | N 000125008443 | WASHER |
| STOP BUFFER TO FRAME | ||
| 074 | A 4403200235 | PLATE |
| LEFT | ||
| 074 | A 4403200335 | PLATE |
| RIGHT | ||
| 077 | N 000960016237 | SCREW |
| Repalced by: N 910105016005 | ||
| 077 | N 910105016005 | SCREW |
| PLATE TO FRAME | ||
| M 16X1.5X60 | ||
| 077 | N 910105016005 | SCREW |
| PLATE TO REAR AXLE | ||
| M 16X1.5X60 | ||
| 080 | A 4403220150 | BUSHING |
| PLATE TO FRAME | ||
| 080 | A 4403220150 | BUSHING |
| PLATE TO REAR AXLE | ||
| 083 | A 4403250054 | PLATE |
| PLATE TO REAR AXLE | ||
| 086 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 086 | N 910113016001 | NUT |
| PLATE TO FRAME | ||
| 086 | N 910113016001 | NUT |
| PLATE TO REAR AXLE | ||
