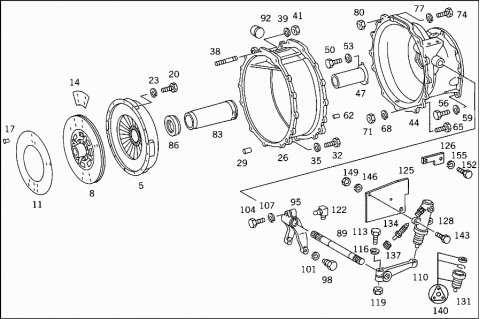

Transporto priemonė: MB-TRAC 900 TURBO; VIN numerio dalis: 440173
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0032500604 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0022507004 | ||
| 005 | A 0022507004 | CLUTCH PRESSURE PLATE |
| A 0082504303 | CLUTCH DISC | |
| Repalced by: A 0092505603 | ||
| 008 | A 0092505603 | CLUTCH DISC |
| Repalced by: A 0122503603 | ||
| 008 | A 0122503603 | CLUTCH DISC |
| ASBESTOS-FREE | ||
| F&S | ||
| 008 | A 0092505503 | CLUTCH DISC |
| ASBESTOS-FREE | ||
| F&S | ||
| A 0012523410 | CLUTCH LINING | |
| Repalced by: A 0012527410 | ||
| 011 | A 0012527410 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| BERAL K208/1B | ||
| 014 | A 0002524919 | LEAF SPRING |
| TO 009 250 55 03,009 250 56 03 | ||
| A 0002521275 | RIVET | |
| Repalced by: A 0002524375 | ||
| 017 | A 0002524375 | RIVET |
| 5X5,TO 009 250 55 03,009 250 56 03 | ||
| 017 | A 0002523975 | RIVET |
| TO 009 250 55 03,009 250 56 03 | ||
| A 0002521475 | RIVET | |
| Repalced by: A 0002523875 | ||
| 017 | A 0002523875 | RIVET |
| 5X6,TO 009 250 55 03,009 250 56 03 | ||
| 020 | N 000933008316 | SCREW |
| Repalced by: A 0089907401 | ||
| 020 | A 0089907401 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| M 8X18 | ||
| 023 | N 912004008102 | LOCK WASHER |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 026 | A 4412510001 | BELL HOUSING |
| 029 | N 000007012203 | CYLINDRICAL PIN |
| INTERMEDIATE HOUSING TO CRANKCASE | ||
| 032 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 032 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 032 | N 000000000428 | HEXAGON HEAD BOLT |
| INTERMEDIATE HOUSING TO CRANKCASE | ||
| M10X35 | ||
| 035 | N 912004010102 | LOCK WASHER |
| INTERMEDIATE HOUSING TO CRANKCASE | ||
| 038 | N 000939012029 | STUD BOLT |
| INTERMEDIATE HOUSING TO CRANKCASE | ||
| 039 | N 912004012100 | LOCK WASHER |
| INTERMEDIATE HOUSING TO CRANKCASE | ||
| 041 | N 000934012021 | NUT |
| Repalced by: N 913023012004 | ||
| 041 | N 913023012004 | NUT |
| INTERMEDIATE HOUSING TO CRANKCASE | ||
| 044 | A 4412510101 | BELL HOUSING |
| 047 | A 4402540316 | GUIDE |
| 050 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 050 | N 304017008034 | SCREW |
| GUIDE TO BELL HOUSING | ||
| M 8X25 | ||
| 053 | N 912004008102 | LOCK WASHER |
| GUIDE TO BELL HOUSING | ||
| 056 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 056 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 056 | N 000000000428 | HEXAGON HEAD BOLT |
| BELL HOUSING TO TRANSMISSION | ||
| M10X35 | ||
| 059 | N 912004010102 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| 062 | N 000007012203 | CYLINDRICAL PIN |
| BELL HOUSING TO INTERMEDIATE HOUSING | ||
| 065 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 065 | N 910105010001 | HEXAGON HEAD BOLT |
| BELL HOUSING TO INTERMEDIATE HOUSING | ||
| M10X30 | ||
| 065 | N 000933010094 | SCREW |
| Repalced by: N 910105010011 | ||
| 065 | N 910105010011 | HEXAGON HEAD BOLT |
| BELL HOUSING TO INTERMEDIATE HOUSING | ||
| 065 | N 304017010023 | SCREW |
| 068 | N 912004010102 | LOCK WASHER |
| BELL HOUSING TO INTERMEDIATE HOUSING | ||
| 071 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 071 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 071 | N 913023010002 | NUT |
| BELL HOUSING TO INTERMEDIATE HOUSING | ||
| 074 | N 000933012102 | SCREW |
| Repalced by: N 304017012018 | ||
| 074 | N 304017012018 | SCREW |
| BELL HOUSING TO INTERMEDIATE HOUSING | ||
| M 12X50 | ||
| 077 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO INTERMEDIATE HOUSING | ||
| 080 | N 000934012021 | NUT |
| Repalced by: N 913023012004 | ||
| 080 | N 913023012004 | NUT |
| BELL HOUSING TO INTERMEDIATE HOUSING | ||
| 083 | A 4412540210 | RELEASE COLLAR |
| A 0009819627 | ANGULAR CONTACT BEARING | |
| Repalced by: A 0019812927 | ||
| A 0019812927 | ANGULAR CONTACT BEARING | |
| Repalced by: A 0019813327 | ||
| 086 | A 0019813327 | ANGULAR CONTACT BEARING |
| RELEASE BEARING | ||
| 089 | A 4412530001 | CLUTCH SHAFT |
| 092 | N 915042007001 | PLUG |
| TO LOCK P.T.O. SHAFT COUPLING ACTUATION SHAFT IN INTERMEDIATE HOUSING | ||
| 092 | N 915042025003 | PLUG |
| TO LOCK P.T.O. SHAFT COUPLING ACTUATION SHAFT IN INTERMEDIATE HOUSING | ||
| 095 | A 4402540008 | RELEASE LEVER |
| 098 | A 4069900115 | SCREW |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 101 | N 912004006102 | LOCK WASHER |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 104 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 104 | N 304017008027 | SCREW |
| RELEASE LEVER TO CLUTCH SHAFT | ||
| M 8X30 | ||
| 107 | N 912004008102 | LOCK WASHER |
| RELEASE LEVER TO CLUTCH SHAFT | ||
| 110 | A 4412540025 | LEVER |
| 113 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 113 | N 304017008042 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| M 8X45 | ||
| 116 | N 912004008102 | LOCK WASHER |
| LEVER TO RELEASE SHAFT | ||
| 119 | N 304032008006 | NUT |
| LEVER TO RELEASE SHAFT | ||
| 122 | N 071412008302 | GREASE NIPPLE |
| BELL HOUSING | ||
| 125 | A 4412540140 | BRACKET |
| CLUTCH SLAVE CYLINDER | ||
| 126 | A 4412620242 | PLATE |
| CLUTCH SLAVE CYLINDER | ||
| 128 | A 0012958707 | SLAVE CYLINDER |
| 131 | A 0002954583 | BOOT |
| 134 | A 3075530107 | VALVE |
| BLEEDER VALVE | ||
| 137 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 137 | A 0004210887 | PROTECTIVE CAP |
| 140 | A 0002904767 | SEAL RING |
| REPAIR KIT | ||
| 143 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 143 | N 304017008027 | SCREW |
| CLUTCH SLAVE CYLINDER TO BELL HOUSING | ||
| M 8X30 | ||
| 146 | N 912004008102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BELL HOUSING | ||
| 149 | N 304032008006 | NUT |
| CLUTCH SLAVE CYLINDER TO BELL HOUSING | ||
| 152 | N 000933012077 | SCREW |
| BRACKET TO SPECIAL P.T.O. COVER | ||
| M 12X35 | ||
| 155 | N 912004012100 | LOCK WASHER |
| BRACKET TO SPECIAL P.T.O. COVER | ||
