Transporto priemonė: 1013; VIN numerio dalis: 380004
Grupė: 41 PROPELLER SHAFT

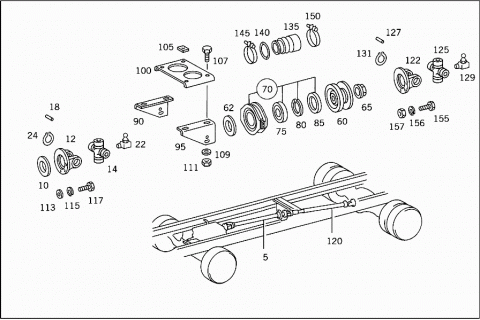

41268

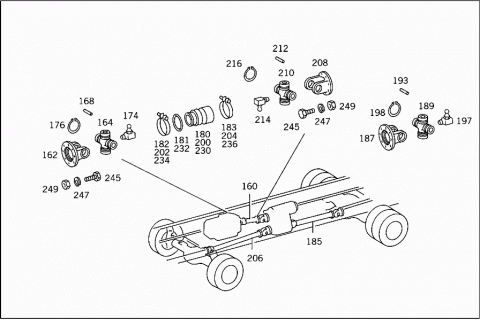

41269
# Kodas Pavadinimas
005 A 3814100904 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
846 MM
005 A 3814100904 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
846 MM
005 A 3814101304 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
720 MM
005 A 3814100404 PROPELLER SHAFT
Repalced by: A 6744101004
005 A 6744101004 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1583 MM
005 A 3814101104 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1449 MM
005 A 3814101104 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1449 MM
005 A 3814101504 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1845 MM
005 A 3814102904 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1477 MM
010 A 3814130261 PROTECTIVE CAP
OUTSIDE
010 A 3814130461 PROTECTIVE CAP
OUTSIDE
012 A 3814110011 DRIVE FLANGE
Repalced by: A 3524110011
012 A 3524110011 DRIVE FLANGE
012 A 3814110811 DRIVE FLANGE
014 A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
014 A 6174100031 UNIVERSAL JOINT CROSS
Repalced by: A 0004104031
014 A 0004104031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3224100542 BEARING BUSHING
018 A 0009815087 NEEDLE
Repalced by: A 3189810287
018 A 3189810287 NEEDLE
SET = 132 PIECES
A 3224110080 GASKET
A 3124111233 EXPANSION PLUG
022 N 071412008302 GREASE NIPPLE
024 A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
024 A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
024 A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
024 A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
024 A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
024 A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
024 N 000472042001 LOCK RING
AS REQUIRED
1.750 MM
024 A 0059949941 LOCK
AS REQUIRED
1.875 MM
024 A 0069940441 LOCK
AS REQUIRED
2.000 MM
060 A 3814100030 CENTERING FLANGE
060 A 3814100130 CENTERING FLANGE
Repalced by: A 3814110145
060 A 3814110145 FLANGE
062 A 3814130261 PROTECTIVE CAP
OUTSIDE
062 A 3814130461 PROTECTIVE CAP
OUTSIDE
065 A 3529900150 NUT
FOLLOWER FLANGE TO PROPELLER SHAFT
A 3832820262 THRUST WASHER
FOLLOWER FLANGE TO PROPELLER SHAFT
A 3839900019 SCREW
FOLLOWER FLANGE TO PROPELLER SHAFT
070 A 3814100222 INTERMEDIATE BEARING
Repalced by: A 3814101222
070 A 3814101222 INTERMEDIATE BEARING
Repalced by: A 3814101522
070 A 3814101522 INTERMEDIATE BEARING
PROPELLER SHAFT
075 A 0019818625 BALL BEARING
080 A 0019948141 LOCK
085 A 3814130161 PROTECTIVE CAP
INSIDE
090 A 3854130442 BRACKET
LEFT
090 A 3834130042 BRACKET
LEFT
090 A 3834130042 BRACKET
LEFT
090 A 3854134442 BRACKET
LEFT
090 A 3854131042 BRACKET
LEFT
090 A 3854133542 BRACKET
LEFT
090 A 3854130442 BRACKET
LEFT,PROPELLER SHAFT BEARING I
090 A 3854130242 BRACKET
LEFT,PROPELLER SHAFT BEARING II
095 A 3854130642 BRACKET
RIGHT
095 A 3854130642 BRACKET
RIGHT
095 A 3854130642 BRACKET
RIGHT,PROPELLER SHAFT BEARING I
095 A 3834130142 BRACKET
RIGHT
095 A 3834130142 BRACKET
RIGHT
095 A 3854134542 BRACKET
RIGHT
095 A 3854131142 BRACKET
RIGHT
095 A 3854133642 BRACKET
RIGHT
095 A 3854130342 BRACKET
RIGHT
095 A 3834130342 BRACKET
RIGHT,PROPELLER SHAFT BEARING II
100 A 3854130011 REINFORCEMENT
BRACKET TO CROSS MEMBER
105 A 3854130111 REINFORCEMENT
BRACKET TO CROSS MEMBER
107 N 000960010006 SCREW
BRACKET TO CROSS MEMBER
109 N 007349010003 WASHER
Repalced by: N 007349010007
109 N 007349010007 WASHER
BRACKET TO CROSS MEMBER
111 N 913002010010 NUT
BRACKET TO CROSS MEMBER
113 N 007349010003 WASHER
Repalced by: N 007349010007
113 N 007349010007 WASHER
FRONT PROPELLER SHAFT TO BRACKET
115 N 912004010102 LOCK WASHER
FRONT PROPELLER SHAFT TO BRACKET
117 N 000931010282 SCREW
FRONT PROPELLER SHAFT TO BRACKET
M 10X40
117 N 000933010105 SCREW
FRONT PROPELLER SHAFT TO BRACKET
M 10X25
A 3874130211 REINFORCEMENT
Repalced by: A 3874130111
A 3874130111 REINFORCEMENT
STRUT TO BRACKET
N 000961010015 SCREW
REINFORCEMENT TO BRACKET
N 912004010102 LOCK WASHER
REINFORCEMENT TO BRACKET
N 000934010010 NUT
REINFORCEMENT TO BRACKET
120 A 3814101602 PROPELLER SHAFT
Repalced by: A 6744102102
120 A 6744102102 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1151 MM
120 A 3804100602 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1319 MM
120 A 3814102202 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1294 MM
120 A 3814100202 PROPELLER SHAFT
Repalced by: A 6744100202
120 A 6744100202 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1575 MM
120 A 3814104102 PROPELLER SHAFT
Repalced by: A 6744103902
120 A 6744103902 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1524 MM
120 A 3814102102 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1142 MM
120 A 3814100902 PROPELLER SHAFT
Repalced by: A 3184100702
120 A 3184100702 PROPELLER SHAFT
Repalced by: A 6744101802
120 A 6744101802 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1720 MM
120 A 3014100202 PROPELLER SHAFT
Repalced by: A 6744102902
120 A 6744102902 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1099 MM
120 A 6744102902 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1099 MM
120 A 3814105002 PROPELLER SHAFT
Repalced by: A 6744100702
120 A 6744100702 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1029 MM
122 A 3814110011 DRIVE FLANGE
Repalced by: A 3524110011
122 A 3524110011 DRIVE FLANGE
122 A 3814110811 DRIVE FLANGE
125 A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
125 A 6174100031 UNIVERSAL JOINT CROSS
Repalced by: A 0004104031
125 A 0004104031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
127 A 0009815087 NEEDLE
Repalced by: A 3189810287
127 A 3189810287 NEEDLE
SET = 132 PIECES
129 N 071412008302 GREASE NIPPLE
131 A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
131 A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
131 A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
131 A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
131 A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
131 A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
131 A 0039944541 LOCK
Repalced by: A 0039944441
131 A 0039944441 LOCK
Repalced by: A 0059949441
131 A 0059949441 LOCK
Repalced by: N 000472042001
131 N 000472042001 LOCK RING
AS REQUIRED
1.750 MM
131 A 0039945041 LOCK
Repalced by: A 0059949941
131 A 0059949941 LOCK
AS REQUIRED
1.875 MM
131 A 0059941041 LOCK
Repalced by: A 0069940441
131 A 0069940441 LOCK
AS REQUIRED
2.000 MM
135 A 3524100080 BOOT
135 A 3524100080 BOOT
135 A 3814100080 BOOT
Repalced by: A 3814100180
135 A 3814100180 BOOT
135 A 3814100180 BOOT
140 A 3214110053 WIRE RING
145 N 916002078100 CLAMP
78 MM
150 N 916002098100 CLAMP
98 MM
155 A 3529900401 SCREW
Repalced by: A 3529904701
155 A 3529904701 SCREW
Repalced by: A 0079901001
155 A 0079901001 SCREW
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
156 N 912004010102 LOCK WASHER
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
157 N 000934010010 NUT
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
160 A 3814103302 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
670 MM
162 A 3524110011 DRIVE FLANGE
164 A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3224100542 BEARING BUSHING
168 A 0009815087 NEEDLE
Repalced by: A 3189810287
168 A 3189810287 NEEDLE
SET = 132 PIECES
A 3224110080 GASKET
A 3124111233 EXPANSION PLUG
174 N 071412008302 GREASE NIPPLE
176 A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
176 A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
176 A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
176 A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
176 A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
176 A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
180 A 3814100080 BOOT
Repalced by: A 3814100180
180 A 3814100180 BOOT
181 A 3214110053 WIRE RING
181 A 3214110053 WIRE RING
182 N 916002078100 CLAMP
78 MM
183 N 916002098100 CLAMP
98 MM
185 A 3814100602 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
900 MM
185 A 3814104502 PROPELLER SHAFT
Repalced by: A 6744103202
185 A 6744103202 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
924 MM
185 A 3814108102 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
794 MM
185 A 3814100802 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
1290 MM
185 A 3814106602 PROPELLER SHAFT
Repalced by: A 3814107202
185 A 3814107202 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
1314 MM
185 A 3814100102 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
1190 MM
185 A 3804101102 PROPELLER SHAFT
Repalced by: A 6744100002
185 A 6744100002 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
1623 MM
185 A 3814103502 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
1500 MM
187 A 3814110011 DRIVE FLANGE
Repalced by: A 3524110011
187 A 3524110011 DRIVE FLANGE
187 A 3814110811 DRIVE FLANGE
189 A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
189 A 6174100031 UNIVERSAL JOINT CROSS
Repalced by: A 0004104031
189 A 0004104031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3224100542 BEARING BUSHING
193 A 0009815087 NEEDLE
Repalced by: A 3189810287
193 A 3189810287 NEEDLE
SET = 132 PIECES
A 3224110080 GASKET
A 3124111233 EXPANSION PLUG
197 N 071412008302 GREASE NIPPLE
198 A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
198 A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
198 A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
198 A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
198 A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
198 A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
198 N 000472042001 LOCK RING
AS REQUIRED
1.750 MM
198 A 0059949941 LOCK
AS REQUIRED
1.875 MM
198 A 0059941041 LOCK
Repalced by: A 0069940441
198 A 0069940441 LOCK
AS REQUIRED
2.000 MM
200 A 3814100080 BOOT
Repalced by: A 3814100180
200 A 3814100180 BOOT
200 A 3814100080 BOOT
Repalced by: A 3814100180
200 A 3814100180 BOOT
200 A 3524100080 BOOT
200 A 3524100080 BOOT
200 A 3524100080 BOOT
A 0004110097 BOOT
202 N 916002078100 CLAMP
78 MM
204 N 916002098100 CLAMP
98 MM
206 A 3814100702 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
1150 MM
208 A 3814110011 DRIVE FLANGE
Repalced by: A 3524110011
208 A 3524110011 DRIVE FLANGE
210 A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3224100542 BEARING BUSHING
212 A 0009815087 NEEDLE
Repalced by: A 3189810287
212 A 3189810287 NEEDLE
SET = 132 PIECES
A 3224110080 GASKET
A 3124111233 EXPANSION PLUG
214 N 071412008302 GREASE NIPPLE
216 A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
216 A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
216 A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
216 A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
216 A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
216 A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
230 A 3814100080 BOOT
Repalced by: A 3814100180
230 A 3814100180 BOOT
232 A 3214110053 WIRE RING
232 A 3214110053 WIRE RING
234 N 916002078100 CLAMP
78 MM
236 N 916002098100 CLAMP
98 MM
245 A 3529900401 SCREW
Repalced by: A 3529904701
245 A 3529904701 SCREW
Repalced by: A 0079901001
245 A 0079901001 SCREW
PROPELLER SHAFT TO TRANSMISSION, TRANSFER CASE AND AXLES
247 N 912004010102 LOCK WASHER
PROPELLER SHAFT TO TRANSMISSION, TRANSFER CASE AND AXLES
249 N 000934010010 NUT
PROPELLER SHAFT TO TRANSMISSION, TRANSFER CASE AND AXLES
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
