Transporto priemonė: 1017; VIN numerio dalis: 380013

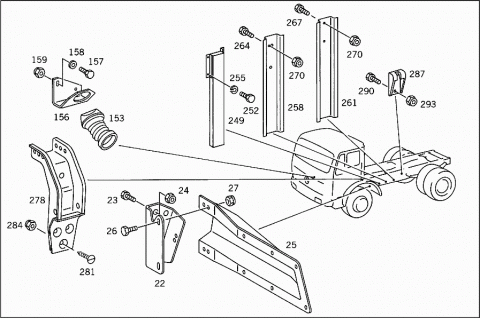

Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3815200033 | SUPPORT |
| Repalced by: A 3815201433 | ||
| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| 005 | A 3815200333 | SUPPORT |
| Repalced by: A 3815202333 | ||
| 005 | A 3815202333 | SUPPORT |
| EXPANSION TANK | ||
| 008 | N 000961012122 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 009 | N 000961012106 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 009 | N 000961012122 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 009 | N 308676012010 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 009 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 009 | N 308676012012 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 009 | N 000961012151 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 010 | N 000125013008 | WASHER |
| 010 | N 009021013200 | WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 011 | N 912004012100 | LOCK WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 012 | N 910113012002 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 012 | N 910113012002 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 015 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 015 | A 6575210140 | BRACKET |
| FENDER | ||
| 020 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 020 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 020 | A 6575200033 | SUPPORT |
| FENDER | ||
| 021 | A 3815200026 | FENDER STAY |
| SUPPLIED LOOSE | ||
| 021 | A 3815200026 | FENDER STAY |
| SUPPLIED LOOSE | ||
| 022 | A 3875211640 | BRACKET |
| LEFT FENDER | ||
| 022 | A 3875211740 | BRACKET |
| RIGHT FENDER | ||
| 023 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 023 | N 308676014020 | SCREW |
| BRACKET TO FRAME | ||
| 024 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 024 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 025 | A 3875212040 | BRACKET |
| LEFT FENDER | ||
| 025 | A 3875212140 | BRACKET |
| RIGHT FENDER | ||
| 026 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 026 | N 308676012012 | SCREW |
| BRACKET TO BRACKET | ||
| 027 | N 910113012002 | NUT |
| BRACKET TO BRACKET | ||
| 028 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 028 | N 000961014054 | SCREW |
| BRACKET TO FRAME | ||
| 029 | A 3609901840 | WASHER |
| BRACKET TO FRAME | ||
| 030 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 030 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 031 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 031 | N 304017008034 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 031 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 031 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 031 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 031 | N 910143008005 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X40 | ||
| 031 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 031 | N 304017008018 | SCREW |
| FENDER BRACKET TO SIDE MEMBER | ||
| 031 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 031 | N 304017008018 | SCREW |
| FENDER BRACKET TO SIDE MEMBER | ||
| 031 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 031 | N 304017008027 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 031 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 031 | N 304017008021 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 032 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 032 | A 6312670276 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 032 | N 000433008406 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 034 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 034 | N 913004008001 | NUT |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 040 | N 000933008145 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 040 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 040 | N 304017008027 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X30 | ||
| 042 | N 912004008102 | LOCK WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||

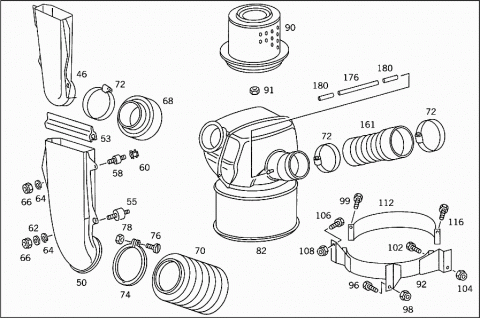

| 046 | A 3875200201 | AIR INTAKE PIPE |
| 046 | A 3875200201 | AIR INTAKE PIPE |
| 046 | A 3875200201 | AIR INTAKE PIPE |
| 046 | A 3875200301 | AIR INTAKE PIPE |
| 046 | A 3875200301 | AIR INTAKE PIPE |
| 046 | A 3875200301 | AIR INTAKE PIPE |
| 050 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 050 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 050 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 050 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 050 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 050 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 053 | A 3875280076 | BINDING RAIL |
| 055 | A 3879880011 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 055 | A 3879880011 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 058 | A 3879880111 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| A 0009906091 | NUT RETAINER | |
| Repalced by: A 0019901791 | ||
| 060 | A 0019901791 | NUT RETAINER |
| AIR INTAKE PIPE TO CAB | ||
| 062 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 062 | N 000125008443 | WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 064 | N 912004008102 | LOCK WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 066 | N 304032008006 | NUT |
| AIR INTAKE PIPE TO CAB | ||
| 068 | A 3855280391 | BOOT |
| 070 | A 3815280191 | BOOT |
| 072 | A 0029972790 | LOOM TIE |
| BOOT TO AIR INTAKE PIPE | ||
| 074 | A 3815280443 | CLAMP |
| BOOT TO AIR INTAKE PIPE | ||
| 076 | N 000084004425 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 078 | N 000934004006 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 082 | A 0080946402 | AIR CLEANER |
| Repalced by: A 0090945302 | ||
| 082 | A 0090945302 | AIR CLEANER |
| 082 | A 0080946502 | AIR CLEANER |
| Repalced by: A 0090945402 | ||
| 082 | A 0090945402 | AIR CLEANER |
| 082 | A 0090945702 | AIR CLEANER |
| 082 | A 0080946602 | AIR CLEANER |
| Repalced by: A 0090945502 | ||
| 082 | A 0090945502 | AIR CLEANER |
| 082 | A 0080946702 | AIR CLEANER |
| Repalced by: A 0090945602 | ||
| 082 | A 0090945602 | AIR CLEANER |
| 082 | A 0090945802 | AIR CLEANER |
| 090 | A 0010949304 | FILTER ELEMENT |
| 091 | A 0000940772 | NUT |
| Repalced by: N 913002010001 | ||
| 091 | N 913002010001 | NUT |
| 092 | A 3855200633 | SUPPORT |
| Repalced by: A 6505200333 | ||
| 092 | A 6505200333 | SUPPORT |
| AIR CLEANER | ||
| 092 | A 3855200733 | SUPPORT |
| Repalced by: A 6505200433 | ||
| 092 | A 6505200433 | SUPPORT |
| AIR CLEANER | ||
| 096 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 096 | N 308676014020 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 098 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 098 | N 910113014001 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 099 | N 000961012151 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 102 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 102 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 104 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 106 | N 000933010128 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 108 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 108 | N 910113010000 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 112 | A 3855280421 | STRAP |
| 116 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 116 | N 304017008021 | SCREW |
| STRAP WITH AIR CLEANER TO SUPPORT | ||

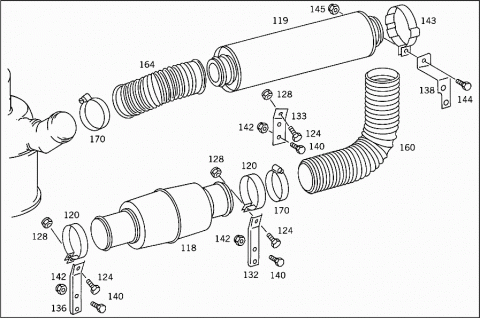

| 118 | A 0080944902 | MUFFLER |
| 119 | A 3520900104 | AIR CLEANER |
| 120 | A 3049951235 | CLAMP |
| MUFFLER TO BRACKET | ||
| 124 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 124 | N 304017008034 | SCREW |
| MUFFLER TO BRACKET | ||
| 124 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 124 | N 304017008021 | SCREW |
| MUFFLER TO BRACKET | ||
| 128 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 128 | N 913004008001 | NUT |
| MUFFLER TO BRACKET | ||
| A 3815281940 | BRACKET | |
| MUFFLER TO SIDE MEMBER | ||
| 132 | A 3815282340 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| A 3815284440 | BRACKET | |
| Repalced by: A 3815202041 | ||
| 133 | A 3815202041 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 136 | A 3815282040 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 138 | A 3815283740 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 140 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 140 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 142 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 142 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 143 | A 3815200167 | STRAP |
| Repalced by: A 6155200067 | ||
| 143 | A 6155200067 | STRAP |
| 144 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 144 | N 304017010002 | SCREW |
| 145 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 145 | N 910113010000 | NUT |

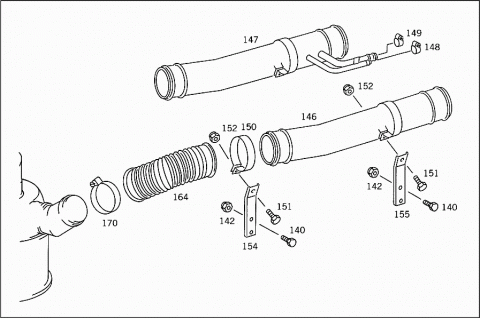

| 146 | A 3835200101 | AIR INTAKE PIPE |
| 147 | A 3835200201 | AIR INTAKE PIPE |
| 148 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 148 | N 000000000667 | CLAMP |
| INTAKE PIPE TO AIR COMPRESSOR | ||
| 149 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 149 | N 000000000668 | CLAMP |
| ENGINE BREATHING | ||
| 150 | A 3049951235 | CLAMP |
| AIR INTAKE PIPE TO BRACKET | ||
| 151 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 151 | N 304017008034 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| 152 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 152 | N 913004008001 | NUT |
| AIR INTAKE PIPE TO BRACKET | ||
| 153 | A 3835280182 | HOSE |
| BRACKET TO SIDE MEMBER | ||
| A 3835280240 | BRACKET | |
| FRONT | ||
| 154 | A 3835280540 | BRACKET |
| AIR INTAKE PIPE,LEFT FRONT | ||
| 155 | A 3835280340 | BRACKET |
| AIR INTAKE PIPE,LEFT REAR | ||
| 156 | A 3835280440 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 157 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 157 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 157 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 157 | N 304017008021 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 158 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 158 | N 000125008443 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 159 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 159 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 159 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 160 | A 3835280008 | AIR INTAKE PIPE |
| Repalced by: A 6155280482 | ||
| 160 | A 6155280482 | HOSE |
| FROM AIR INTAKE PIPE TO INTAKE FITTING | ||
| 160 | A 3835280608 | AIR INTAKE PIPE |
| FROM MUFFLER TO INTAKE FITTING | ||
| 160 | A 3835280282 | HOSE |
| FROM MUFFLER TO INTAKE FITTING | ||
| 161 | A 3855280008 | AIR INTAKE PIPE |
| Repalced by: A 6215280182 | ||
| 161 | A 6215280182 | HOSE |
| FROM AIR CLEANER TO MUFFLER | ||
| 161 | A 3835280308 | AIR INTAKE PIPE |
| Repalced by: A 6215280282 | ||
| 161 | A 6215280282 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 164 | A 3830940008 | ACCORDION TUBE |
| FROM AIR CLEANER TO MUFFLER | ||
| 164 | A 3830940008 | ACCORDION TUBE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 170 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 170 | A 0059971490 | LOOM TIE |
| HOSE TO PICO AIR CLEANER | ||
| 170 | N 916017090000 | CLAMP |
| HOSE TO PICO AIR CLEANER | ||
| 170 | N 916017090000 | CLAMP |
| HOSE TO PICO AIR CLEANER | ||
| 170 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 170 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 170 | A 0059972990 | CLAMP |
| HOSE TO PICO AIR CLEANER | ||
| 176 | A 0109977082 | HOSE |
| 180 | N 073379006203 | HOSE |
| 186 | A 3835240529 | COVER |
| ENGINE COVERING | ||
| 188 | N 007981005306 | SHEET METAL SCREW |
| COVER PLATE TO CAB REAR PANEL | ||
| 190 | A 3875240084 | SHIM |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| OIL REFILLING | ||
| 195 | A 4010101664 | OIL FILLER NECK |
| 200 | A 4010101564 | OIL FILLER NECK |
| THREADED | ||
| 204 | A 3520100168 | CAP |
| Repalced by: A 0000180702 | ||
| 204 | A 0000180702 | CAP |
| 204 | A 1020180302 | CAP |
| OIL REFILLING | ||
| 204 | A 1020180402 | CAP |
| OIL REFILLING | ||
| 205 | A 3520100468 | CAP |
| THREADED | ||
| 207 | A 0000180180 | GASKET |
| Repalced by: A 1020180080 | ||
| 207 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 207 | A 1020180380 | GASKET |
| 208 | A 3520180180 | GASKET |
| TO 352 010 01 68 | ||
| 210 | A 3520181082 | HOSE |
| OIL REFILLING | ||
| 210 | A 4010180682 | HOSE |
| OIL REFILLING | ||
| 215 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 215 | N 000000000671 | CLAMP |
| 225 | A 4010182540 | BRACKET |
| FRONT | ||
| 230 | A 4010182840 | BRACKET |
| REAR | ||
| 235 | A 4010182940 | BRACKET |
| 240 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 240 | N 304017006020 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 242 | N 000125006421 | WASHER |
| OIL FILLER NECK TO BRACKET | ||
| 244 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 244 | N 913004006001 | NUT |
| OIL FILLER NECK TO BRACKET | ||
| 245 | N 000933010105 | SCREW |
| BRACKET MOUNTING | ||
| 246 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 246 | N 910113010000 | NUT |
| BRACKET MOUNTING | ||
| 249 | A 3815200130 | SUPPORT |
| ROCKER PANEL | ||
| 249 | A 3815200230 | SUPPORT |
| ROCKER PANEL | ||
| 252 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 252 | N 308676012012 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 252 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 255 | N 912004012100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 258 | A 3815230015 | SUPPORT |
| ROCKER PANEL | ||
| 261 | A 3815230115 | SUPPORT |
| CONSOLE TO SIDE MEMBER | ||
| 264 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 264 | N 304017012020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 267 | N 000933012077 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 270 | N 913002012004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 278 | A 3818900031 | CONSOLE |
| FUEL TANK | ||
| 281 | N 000961014100 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 281 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 281 | N 308676014020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 284 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 284 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 287 | A 3828910014 | BRACKET |
| CONSOLE TO SIDE MEMBER | ||
| 290 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 290 | N 304017012020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 290 | N 000933012077 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 293 | N 913002012004 | NUT |
| BRACKET TO SIDE MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
