Transporto priemonė: 1017; VIN numerio dalis: 380013

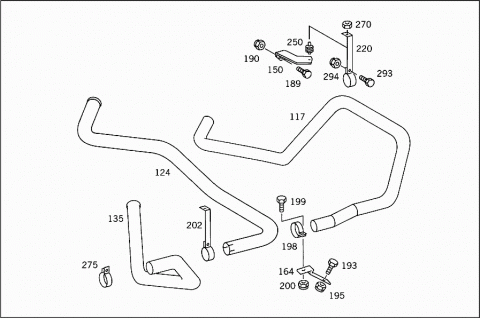

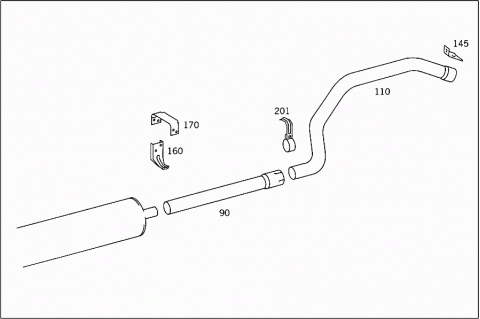

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3814900119 | EXHAUST PIPE |
| Repalced by: A 3814900319 | ||
| 005 | A 3814900319 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3814900319 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3814900319 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3834900619 | EXHAUST PIPE |
| FRONT | ||
| 010 | A 3854900019 | EXHAUST PIPE |
| FRONT LEFT | ||
| 019 | A 3854900119 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 021 | A 3834922530 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 023 | A 3834901030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 025 | A 3024900080 | FLANGE GASKET |
| Repalced by: A 4424920080 | ||
| 025 | A 4424920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 029 | N 000931012132 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 033 | N 000934012021 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3524920907 | CONNECTOR | |
| Repalced by: A 3024920509 | ||
| 038 | A 3024920509 | CONNECTOR |
| FRONT | ||
| 038 | A 3024920509 | CONNECTOR |
| FRONT | ||
| 038 | A 3024920509 | CONNECTOR |
| FRONT | ||
| 045 | A 3834920107 | CONNECTOR |
| Repalced by: A 3834920007 | ||
| 045 | A 3834920007 | CONNECTOR |
| FRONT LEFT AND RIGHT | ||
| 055 | A 3814920101 | FRONT EXHAUST PIPE |
| 055 | A 3814920101 | FRONT EXHAUST PIPE |
| 055 | A 3814920101 | FRONT EXHAUST PIPE |
| 055 | A 3814920501 | FRONT EXHAUST PIPE |
| 058 | A 3834923401 | FRONT EXHAUST PIPE |
| 060 | A 3814920601 | FRONT EXHAUST PIPE |
| FRONT LEFT | ||
| 070 | A 3814920701 | FRONT EXHAUST PIPE |
| FRONT RIGHT | ||
| 070 | A 3814920801 | FRONT EXHAUST PIPE |
| FRONT RIGHT | ||
| 080 | A 3834900201 | EXHAUST MUFFLER |
| 085 | A 3834900301 | EXHAUST MUFFLER |
| A 3604921807 | CONNECTOR | |
| Repalced by: A 3604921907 | ||
| 090 | A 3604921907 | CONNECTOR |
| REAR | ||
| 090 | A 3604921907 | CONNECTOR |
| REAR | ||
| 090 | A 3604921907 | CONNECTOR |
| REAR | ||
| 100 | A 3814924206 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 100 | A 3814924206 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 110 | A 3814924704 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 110 | A 3814924704 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 110 | A 3814924604 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 110 | A 3814924604 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 112 | A 3834926204 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 115 | A 3814920504 | REAR EXHAUST PIPE |
| Repalced by: A 3814926304 | ||
| 115 | A 3814926304 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 115 | A 3814926304 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 115 | A 3814925204 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 115 | A 3834925204 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 115 | A 3814926504 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 117 | A 3814926004 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| A 3814920304 | REAR EXHAUST PIPE | |
| Repalced by: A 3814926804 | ||
| 124 | A 3814926804 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| A 3814924304 | REAR EXHAUST PIPE | |
| Repalced by: A 3814926504 | ||
| A 3814924404 | REAR EXHAUST PIPE | |
| Repalced by: A 3814927004 | ||
| 124 | A 3814927004 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 130 | A 3814922504 | REAR EXHAUST PIPE |
| Repalced by: A 3814922704 | ||
| 130 | A 3814922604 | REAR EXHAUST PIPE |
| Repalced by: A 3814922704 | ||
| 130 | A 3814922404 | REAR EXHAUST PIPE |
| Repalced by: A 3814922704 | ||
| 130 | A 3814922704 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 135 | A 3814925504 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 140 | A 3834921516 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 140 | A 3834921516 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 145 | A 3834921716 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 150 | A 3814910516 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 150 | A 3814920316 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 150 | A 3814920316 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 150 | A 3814920316 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 152 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 152 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 152 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 154 | A 3834922616 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 156 | A 3834920116 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 156 | A 3834920216 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 156 | A 3854920416 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 160 | A 3814910416 | SUPPORT |
| EXHAUST | ||
| 160 | A 3814910416 | SUPPORT |
| EXHAUST | ||
| 160 | A 3814910416 | SUPPORT |
| EXHAUST | ||
| 164 | A 3814922016 | SUPPORT |
| EXHAUST | ||
| 164 | A 3834921916 | SUPPORT |
| EXHAUST | ||
| 170 | A 3834910016 | SUPPORT |
| EXHAUST | ||
| 170 | A 3834910016 | SUPPORT |
| EXHAUST | ||
| 175 | A 3834921616 | SUPPORT |
| EXHAUST | ||
| 175 | A 3834921616 | SUPPORT |
| EXHAUST | ||
| 180 | A 3834923016 | SUPPORT |
| EXHAUST | ||
| 180 | A 3834923016 | SUPPORT |
| EXHAUST | ||
| 184 | A 3834900040 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 188 | A 3834920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 189 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 189 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 189 | N 304017008034 | SCREW |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| 190 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 190 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 190 | N 913004008001 | NUT |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| 192 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 192 | N 304017012020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 192 | N 304017012020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 193 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| 193 | N 000933010157 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X28 | ||
| 193 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 193 | N 304017010002 | SCREW |
| REAR CROSS MEMBER | ||
| M 10X30 | ||
| 194 | N 913002012004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 194 | N 913002012004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 195 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 195 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 195 | N 910113010000 | NUT |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| 196 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 196 | N 304017008034 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 197 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 197 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 198 | A 3834920440 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 199 | N 000933010157 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X28 | ||
| 200 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 200 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| A 3834923741 | BRACKET | |
| EXHAUST PIPE | ||
| 201 | A 3834921041 | BRACKET |
| EXHAUST PIPE | ||
| 202 | A 3834928441 | BRACKET |
| Repalced by: A 3834927941 | ||
| 202 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 202 | A 3834926641 | BRACKET |
| EXHAUST PIPE | ||
| 204 | A 3814921941 | BRACKET |
| EXHAUST PIPE | ||
| 206 | A 3814922241 | BRACKET |
| EXHAUST PIPE | ||
| 206 | A 3834921841 | BRACKET |
| Repalced by: A 3814923841 | ||
| 206 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 206 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 206 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 208 | A 3834927741 | BRACKET |
| EXHAUST PIPE | ||
| 210 | A 3814922641 | BRACKET |
| Repalced by: A 3834927941 | ||
| 210 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 210 | A 3834923341 | BRACKET |
| Repalced by: A 3834927941 | ||
| 210 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 210 | A 3834928441 | BRACKET |
| Repalced by: A 3834927941 | ||
| 210 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 220 | A 3834921741 | BRACKET |
| Repalced by: A 3834927941 | ||
| 220 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 220 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 220 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 220 | A 3834921641 | BRACKET |
| Repalced by: A 3834927941 | ||
| 220 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 220 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 222 | A 3814920041 | BRACKET |
| EXHAUST PIPE | ||
| 222 | A 3814920041 | BRACKET |
| EXHAUST PIPE | ||
| 222 | A 3834921241 | BRACKET |
| EXHAUST PIPE | ||
| 222 | A 3834921241 | BRACKET |
| EXHAUST PIPE | ||
| 224 | A 3834923241 | BRACKET |
| Repalced by: A 3834923441 | ||
| 224 | A 3834923441 | BRACKET |
| EXHAUST PIPE | ||
| 224 | A 3834923441 | BRACKET |
| EXHAUST PIPE | ||
| 224 | A 3834925141 | BRACKET |
| Repalced by: A 3834923441 | ||
| 224 | A 3834923441 | BRACKET |
| EXHAUST PIPE | ||
| 224 | A 3834923441 | BRACKET |
| EXHAUST PIPE | ||
| 228 | A 3834921341 | BRACKET |
| EXHAUST PIPE | ||
| 228 | A 3834921941 | BRACKET |
| EXHAUST PIPE | ||
| 228 | A 3834923841 | BRACKET |
| EXHAUST PIPE | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 230 | A 3814921641 | BRACKET |
| Repalced by: A 3834927941 | ||
| 230 | A 3834923541 | BRACKET |
| Repalced by: A 3834927941 | ||
| 230 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 230 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 250 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 250 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 250 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 250 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 260 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 260 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 260 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 264 | N 000933010128 | SCREW |
| BRACKET TO SUPPORT | ||
| M 10X20 | ||
| 264 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 264 | N 304017008034 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X25 | ||
| 270 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 270 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| 272 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 272 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 275 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE | ||
| 275 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE | ||
| 275 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE | ||
| 275 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE | ||
| 290 | N 071555065501 | CLAMP |
| REAR EXHAUST PIPE | ||
| 292 | N 071555078502 | CLAMP |
| 293 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 293 | N 304017008034 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X25 | ||
| 294 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 294 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 295 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X28 | ||
| 296 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 296 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 300 | A 3814900130 | PROTECTIVE PLATE |
| AT MUFFLER | ||
| 300 | A 3814900230 | PROTECTIVE PLATE |
| AT MUFFLER | ||
| 305 | N 900288240101 | CLAMP |
| AT MUFFLER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
