Transporto priemonė: 1017; VIN numerio dalis: 380013
Grupė: 29 PEDAL ASSEMBLY
26586
26587

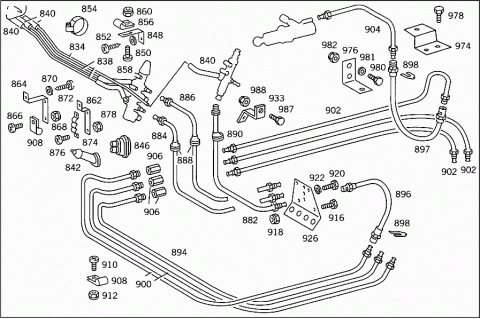

26588

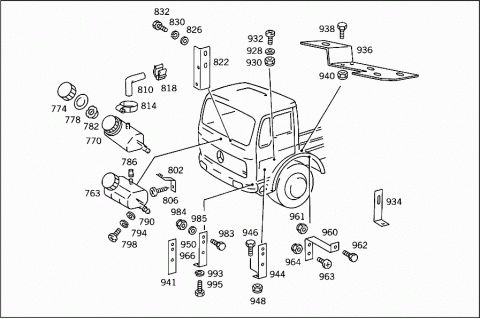

26589
26590
# Kodas Pavadinimas
007 A 3812900519 BEARING BRACKET
Repalced by: A 3812901319
007 A 3812901319 BEARING BRACKET
Repalced by: A 3812901219
007 A 3812901219 BEARING BRACKET
CLUTCH
014 N 000939008083 STUD BOLT
BEARING BRACKET TO CAB
M 8X20
014 N 000939008136 STUD BOLT
BEARING BRACKET TO CAB
M 8X30
021 N 000125008418 WASHER
Repalced by: N 000125008443
021 N 000125008443 WASHER
BEARING BRACKET TO CAB
028 N 913004008004 NUT
Repalced by: N 913004008001
028 N 913004008001 NUT
BEARING BRACKET TO CAB
035 A 3812910186 STOP
AT PEDAL ASSEMBLY BEARING BRACKET
042 N 000471016001 LOCK RING
Repalced by: A 0079942041
042 A 0079942041 LOCK
STOP TO BEARING BRACKET
049 A 3812900616 PEDAL
Repalced by: A 3812901016
049 A 3812900916 PEDAL
Repalced by: A 3812901016
049 A 3812901016 PEDAL
Repalced by: A 6202900216
049 A 6202900416 PEDAL
Repalced by: A 6202900216
049 A 6202900216 PEDAL
CLUTCH
056 A 3812910274 PIN
CLUTCH PEDAL
063 N 913004008004 NUT
Repalced by: N 913004008001
063 N 913004008001 NUT
CLUTCH PEDAL
070 A 3812910053 SPACER TUBE
CLUTCH PEDAL
077 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
077 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
077 A 0119813410 NEEDLE BEARING
CLUTCH PEDAL
084 A 1102910182 PAD
Repalced by: A 1072910182
084 A 1072910182 PAD
CLUTCH PEDAL
091 A 3819930310 SPRING
Repalced by: A 3819930710
091 A 3819930510 SPRING
Repalced by: A 3819930710
091 A 3819930710 SPRING
CLUTCH PEDAL RESET
098 A 3812940507 PIVOT PIN
CLUTCH PEDAL TO BEARING BRACKET
098 A 3812940707 PIVOT PIN
CLUTCH PEDAL TO BEARING BRACKET
105 A 3812910073 LOCK
CLUTCH PEDAL TO BEARING BRACKET
112 N 000933006102 SCREW
LOCK TO BEARING BRACKET
M 6X15
119 N 912004006102 LOCK WASHER
LOCK TO BEARING BRACKET
126 N 000471020001 LOCK RING
CLUTCH PEDAL TO BEARING BRACKET
126 N 000471020001 LOCK RING
CLUTCH PEDAL TO BEARING BRACKET
133 A 1112910491 SPRING RETAINER
DEAD CENTER SPRING,TOP
140 A 1102900633 BRACKET
Repalced by: A 3092910091
140 A 1102950150 BUSHING
Repalced by: A 3092910091
140 A 1072910091 SPRING RETAINER
Repalced by: A 3092910091
140 A 3092910091 SPRING RETAINER
BOTTOM
147 A 3819930201 SPRING
(DEAD CENTER SPRING)
23.2 MM
147 A 1109930501 SPRING
(DEAD CENTER SPRING)
35 MM
A 3812910133 ROD
Repalced by: A 3812910233
A 3812910233 ROD
OVER-CENTER ACTING SPRING
A 3812910333 ROD
OVER-CENTER ACTING SPRING
154 A 0009816431 JOINT BEARING
ROD TO CLUTCH PEDAL
161 A 0059814410 NEEDLE BEARING
ROD TO CLUTCH PEDAL
161 A 0059813810 NEEDLE BEARING
ROD TO CLUTCH PEDAL
161 A 0089811210 NEEDLE BEARING
ROD TO CLUTCH PEDAL
161 A 0139818210 NEEDLE BEARING
ROD TO CLUTCH PEDAL
168 N 000936010010 NUT
SPRING TO PUSH ROD
A 3812910474 PIN
PUSH ROD TO PEDAL
A 3812910574 PIN
PUSH ROD TO PEDAL
175 N 000433008406 WASHER
PUSH ROD TO PEDAL
182 N 006799006003 LOCK PLATE
PUSH ROD TO PEDAL
189 A 3802900193 REPAIR KIT
DEAD CENTER SPRING
196 A 0002956806 MASTER CYLINDER
Repalced by: A 0012952906
196 A 0012952906 MASTER CYLINDER
Repalced by: A 0012956006
196 A 0012956006 MASTER CYLINDER
CLUTCH;LESS DE-AERATION
A 0002953283 BOOT
203 A 0004310265 VALVE
Repalced by: A 3075530107
203 A 3075530107 VALVE
BREATHER
TO 000 295 68 06
210 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
210 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
210 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
210 A 0004210887 PROTECTIVE CAP
CLUTCH MASTER CYLINDER
TO 000 295 68 06
217 A 0002950836 INTERMEDIATE PIECE
CLUTCH MASTER CYLINDER
224 A 0009974235 PLUG
Repalced by: A 0009971186
224 A 0009971186 PLUG
231 A 0005863529 REPAIR KIT
Repalced by: A 0002903412
231 A 0002903412 REPAIR KIT
TO MASTER CYLINDER HAVING ALUMINUM PISTON
TO 000 295 68 06,001 295 29 06
231 A 0002904667 REPAIR KIT
TO MASTER CYLINDER HAVING SYNTHETIC PISTON
TO 001 295 60 06
238 N 912004006102 LOCK WASHER
CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET
245 N 000931006191 SCREW
CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET
252 A 3812950033 ROD
(PISTON ROD)
259 N 000439008211 NUT
Repalced by: N 304035008001
259 N 304035008001 NUT
YOKE TO ROD
266 A 0009961045 ARTICULATION PIECE
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
266 A 0009961145 ARTICULATION PIECE
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
273 A 0059814410 NEEDLE BEARING
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
273 A 0059813810 NEEDLE BEARING
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
273 A 0089811210 NEEDLE BEARING
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
273 A 0139818210 NEEDLE BEARING
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
280 N 000433008406 WASHER
PISTON ROD TO LEVER
287 N 006799006003 LOCK PLATE
PISTON ROD TO LEVER
294 A 3812900619 BEARING BRACKET
Repalced by: A 3812901419
294 A 3812901419 BEARING BRACKET
BRAKE
301 A 3812900419 BEARING BRACKET
Repalced by: A 3812901519
301 A 3812901519 BEARING BRACKET
BRAKE
301 A 3812901519 BEARING BRACKET
BRAKE
308 A 3812920030 STOP
BEARING BRACKET
315 A 3819970786 PLUG
BEARING BRACKET TO CAB
322 N 000939008083 STUD BOLT
BEARING BRACKET
329 N 000125008418 WASHER
Repalced by: N 000125008443
329 N 000125008443 WASHER
BEARING BRACKET
336 N 913004008004 NUT
Repalced by: N 913004008001
336 N 913004008001 NUT
BEARING BRACKET
343 A 3812900518 PEDAL
Repalced by: A 3812900618
343 A 3812900618 PEDAL
BRAKE
350 A 3812900318 PEDAL
BRAKE
350 A 3812900318 PEDAL
BRAKE
357 A 3812910053 SPACER TUBE
BRAKE PEDAL
364 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
364 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
364 A 0119813410 NEEDLE BEARING
BRAKE PEDAL
371 A 1102910182 PAD
Repalced by: A 1072910182
371 A 1072910182 PAD
BRAKE PEDAL
378 A 3815400084 LEVER
Repalced by: A 3815450144
378 A 3815450144 LEVER
STOP LIGHT SWITCH
385 N 000931008228 SCREW
Repalced by: N 000933008134
385 N 000933008134 SCREW
LEVER TO PEDAL
M 8X80
385 N 000931008231 SCREW
LEVER TO BRAKE PEDAL
M 8X72
385 N 000931008244 SCREW
LEVER TO BRAKE PEDAL
M 8X45
385 N 000931008244 SCREW
LEVER TO BRAKE PEDAL
M 8X45
392 N 913004008004 NUT
Repalced by: N 913004008001
392 N 913004008001 NUT
LEVER TO BRAKE PEDAL
399 N 000933006127 SCREW
STOP LIGHT SWITCH STOP
406 N 000934006007 NUT
STOP LIGHT SWITCH STOP
413 A 3812940507 PIVOT PIN
BRAKE PEDAL TO BEARING BRACKET
413 A 3812940507 PIVOT PIN
BRAKE PEDAL TO BEARING BRACKET
413 A 3812940507 PIVOT PIN
BRAKE PEDAL TO BEARING BRACKET
413 A 3812940707 PIVOT PIN
BRAKE PEDAL TO BEARING BRACKET
413 A 3812940707 PIVOT PIN
BRAKE PEDAL TO BEARING BRACKET
420 N 000471020001 LOCK RING
BRAKE PEDAL TO BEARING BRACKET
420 N 000471020001 LOCK RING
BRAKE PEDAL TO BEARING BRACKET
427 A 3819930210 SPRING
BRAKE PEDAL TO BEARING BRACKET
427 A 3819930210 SPRING
BRAKE PEDAL TO BEARING BRACKET
434 A 3812910073 LOCK
BRAKE PEDAL TO BEARING BRACKET
434 A 3812910073 LOCK
BRAKE PEDAL TO BEARING BRACKET
441 N 000933006102 SCREW
LOCK TO BEARING BRACKET
448 N 912004006102 LOCK WASHER
LOCK TO BEARING BRACKET
455 A 0002958706 MASTER CYLINDER
BRAKE
455 A 0002958706 MASTER CYLINDER
BRAKE
A 0002952783 BOOT
Repalced by: A 0005864729
462 A 0002950050 BUSHING
Repalced by: A 0004310950
462 A 0004310950 BUSHING
462 A 0004310950 BUSHING
469 A 0002950536 INTERMEDIATE PIECE
45 DEGREES
469 A 0002950536 INTERMEDIATE PIECE
45 DEGREES
476 A 0002950636 INTERMEDIATE PIECE
80 DEGREES
476 A 0002950636 INTERMEDIATE PIECE
80 DEGREES
483 A 0035424717 SENDER UNIT
Repalced by: A 0005455509
483 A 0005455509 SWITCH
STOP LIGHT
483 A 0005455509 SWITCH
STOP LIGHT
490 A 0004310265 VALVE
Repalced by: A 3075530107
490 A 3075530107 VALVE
BREATHER
490 A 3075530107 VALVE
BREATHER
497 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
497 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
497 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
497 A 0004210887 PROTECTIVE CAP
497 A 0004210887 PROTECTIVE CAP
504 A 0005864729 REPAIR KIT
BRAKE PEDAL MASTER CYLINDER
504 A 0005864729 REPAIR KIT
BRAKE PEDAL MASTER CYLINDER
511 N 912004006102 LOCK WASHER
MASTER CYLINDER TO BEARING BRACKET
511 N 912004006102 LOCK WASHER
MASTER CYLINDER TO BEARING BRACKET
518 N 000931006191 SCREW
MASTER CYLINDER TO BEARING BRACKET
518 N 000931006191 SCREW
MASTER CYLINDER TO BEARING BRACKET
525 A 0009961601 YOKE
525 A 0009961601 YOKE
532 A 3812950133 ROD
(PISTON ROD)
532 A 3812950133 ROD
(PISTON ROD)
539 N 000439008211 NUT
Repalced by: N 304035008001
539 N 304035008001 NUT
YOKE TO ROD
539 N 304035008001 NUT
YOKE TO ROD
546 A 3529910007 PIN
PISTON ROD TO LEVER
546 A 3529910007 PIN
PISTON ROD TO LEVER
553 N 000433010505 WASHER
Repalced by: N 000433010510
553 N 000433010510 WASHER
PISTON ROD TO LEVER
553 N 000433010510 WASHER
PISTON ROD TO LEVER
560 N 000094003219 COTTER PIN
PISTON ROD TO LEVER
560 N 000094003219 COTTER PIN
PISTON ROD TO LEVER
567 A 3812900128 LEVER
BRAKE
574 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
574 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
574 A 0119813410 NEEDLE BEARING
LEVER
581 A 0089978046 SEAL RING
Repalced by: A 0069979147
581 A 0069979147 SEAL RING
LEVER
588 N 000433021002 WASHER
LEVER TO SHAFT
595 N 000471020001 LOCK RING
LEVER TO SHAFT
602 A 3812901039 ROD
FROM ADJUSTMENT NUT TO REVERSING LEVER
609 N 900331008419 PULL ROD
FROM BRAKE PEDAL TO ADJUSTING NUT
616 A 3812901239 ROD
FROM BRAKE PEDAL TO ADJUSTING NUT
623 A 3812920033 NUT
ADJUSTMENT
630 N 000934008035 NUT
L.H. THREAD
637 N 304032008006 NUT
644 A 3529910007 PIN
ROD TO BRAKE PEDAL AND TO LEVER
651 N 000433010505 WASHER
Repalced by: N 000433010510
651 N 000433010510 WASHER
ROD TO BRAKE PEDAL AND TO LEVER
658 N 000094003219 COTTER PIN
ROD TO BRAKE PEDAL AND TO LEVER
665 A 3812920097 BOOT
CAB FLOOR
672 A 3812900285 CABLE
Repalced by: A 3812900385
672 A 3812900385 CABLE
AT BRAKE VALVE
679 A 3819910607 PIN
CABLE TO LEVER
686 N 000433008406 WASHER
CABLE TO LEVER
693 N 000094002059 COTTER PIN
CABLE TO LEVER
700 A 3819970681 GROMMET
CABLE TO BRACKET
707 A 3812920040 BRACKET
CABLE
714 N 000933010105 SCREW
BRACKET TO SIDE MEMBER
714 N 000933010105 SCREW
BRACKET TO SIDE MEMBER
714 N 000933010157 SCREW
BRACKET TO SIDE MEMBER
721 N 000125010518 WASHER
Repalced by: N 000125010532
721 N 000125010532 WASHER
BRACKET TO SIDE MEMBER
728 N 913004010008 NUT
Repalced by: N 910113010000
728 N 910113010000 NUT
BRACKET TO SIDE MEMBER
735 A 3529910007 PIN
CABLE TO LEVER
742 N 000433010505 WASHER
Repalced by: N 000433010510
742 N 000433010510 WASHER
CABLE TO LEVER
749 N 000094003219 COTTER PIN
CABLE TO LEVER
756 A 3812920440 BRACKET
CABLE GUIDE TO BEARING BRACKET
763 A 0002951715 RESERVOIR
RESERVOIR
763 A 0002951615 RESERVOIR
RESERVOIR
770 A 0002951915 RESERVOIR
RESERVOIR
A 0002950016 LOCKING CAP
Repalced by: A 0002951715
A 0002950016 LOCKING CAP
Repalced by: A 0002951615
774 A 0002950016 LOCKING CAP
Repalced by: A 0002951915
774 A 0002950116 LOCKING CAP
778 A 0002950260 SEAL RING
Repalced by: A 0009972940
778 A 0009972940 SEAL RING
782 A 0002950123 STRAINER
Repalced by: A 0004314334
782 A 0004314334 STRAINER
786 A 0002950520 VALVE
Repalced by: A 0009885435
786 A 0009885435 CAP
BREATHER
790 N 009021006205 WASHER
Repalced by: N 009021006208
790 N 009021006208 WASHER
BRACKET TO RESERVOIR
794 N 912004006102 LOCK WASHER
BRACKET TO RESERVOIR
798 N 000000001147 SCREW
BRACKET TO RESERVOIR
M 6X20
802 A 3872900033 BRACKET
Repalced by: A 3872900433
802 A 3872900433 BRACKET
RESERVOIR
806 N 007981005306 SHEET METAL SCREW
RESERVOIR TO CAB
810 A 0029975982 HOSE
RESERVOIR DE-AERATION
814 N 900288009003 CLAMP
RESERVOIR DE-AERATION
818 A 0009881678 CLIP
RESERVOIR DE-AERATION
822 A 3872930041 ANGLE
WIPER MOTOR BRACKET
826 N 009021006205 WASHER
Repalced by: N 009021006208
826 N 009021006208 WASHER
ANGLE TO WIPER MOTOR BRACKET
830 N 912004006102 LOCK WASHER
ANGLE TO WIPER MOTOR BRACKET
832 N 000000001147 SCREW
ANGLE TO WIPER MOTOR BRACKET
M 6X20
834 A 0089971282 HOSE
Repalced by: A 0009978952
834 A 3872950313 PIPE
700 MM
834 A 3872950313 PIPE
FROM CLUTCH MASTER CYLINDER TO RESERVOIR
700 MM
834 A 3872950313 PIPE
FROM BRAKE MASTER CYLINDER TO RESERVOIR
700 MM
836 A 3872950813 PIPE
FROM CLUTCH MASTER CYLINDER TO RESERVOIR
320 MM
838 A 3872950713 PIPE
Repalced by: A 3872950413
838 A 3872950513 PIPE
Repalced by: A 3872950413
838 A 3872950413 PIPE
550 MM
838 A 3872950413 PIPE
FROM BRAKE MASTER CYLINDER TO RESERVOIR
550 MM
838 A 3872950413 PIPE
FROM BRAKE MASTER CYLINDER TO RESERVOIR
550 MM
840 A 0119976782 HOSE
Repalced by: A 0009978952
840 A 0079974282 HOSE
Repalced by: A 0009978952
840 A 0009978952 HOSE
LINES FROM MASTER CYLINDER TO RESERVOIR
842 A 3819970781 GROMMET
CLUTCH LINE THRU CAB WINDOW SILL
844 A 6209970281 GROMMET
CLUTCH LINE THRU CAB WINDOW SILL
846 A 3819971081 GROMMET
Repalced by: A 3819970581
846 A 3819970581 GROMMET
BRAKE LINE THRU CAB WINDOW SILL
846 A 3819970581 GROMMET
BRAKE LINE THRU CAB WINDOW SILL
848 A 3812950440 BRACKET
HYDRAULIC LINE TO CAB
848 A 3812950440 BRACKET
HYDRAULIC LINE TO CAB
850 N 000125006421 WASHER
BRACKET TO CAB
852 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
854 N 900288015000 CLAMP
LINES FROM MASTER CYLINDER TO RESERVOIR
856 A 3609950301 CLAMP
HYDRAULIC LINE TO BRACKET
858 N 000000001147 SCREW
HYDRAULIC LINE TO BRACKET
M 6X20
860 N 913004006002 NUT
Repalced by: N 913004006001
860 N 913004006001 NUT
HYDRAULIC LINE TO BRACKET
862 A 3872950140 BRACKET
WIPER MOTOR
862 A 3872950140 BRACKET
WIPER MOTOR
862 A 3872950340 BRACKET
HYDRAULIC LINE TO CAB
864 A 3872950640 BRACKET
HYDRAULIC LINE TO CAB
866 N 000000001147 SCREW
BRACKET TO WIPER MOTOR
M 6X20
866 N 000000001147 SCREW
BRACKET TO WIPER MOTOR
M 6X20
868 N 913004006002 NUT
Repalced by: N 913004006001
868 N 913004006001 NUT
BRACKET TO WIPER MOTOR
868 N 913004006001 NUT
BRACKET TO WIPER MOTOR
870 N 000125006421 WASHER
BRACKET TO WIPER MOTOR
870 N 000125006421 WASHER
BRACKET TO CAB
870 N 000125006421 WASHER
BRACKET TO WIPER MOTOR
872 N 007981005306 SHEET METAL SCREW
BRACKET TO WIPER MOTOR
872 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
872 N 007981005306 SHEET METAL SCREW
BRACKET TO WIPER MOTOR
874 A 3879950007 CLAMP
HYDRAULIC LINE TO BRACKET
874 A 3879950007 CLAMP
HYDRAULIC LINE TO BRACKET
876 N 000000001147 SCREW
HYDRAULIC LINE TO BRACKET
M 6X20
878 N 913004006002 NUT
Repalced by: N 913004006001
878 N 913004006001 NUT
HYDRAULIC LINE TO BRACKET
880 A 3812908613 LINE
Repalced by: A 3812902113
880 A 3812902113 LINE
Repalced by: A 3812901614
880 A 3812901614 LINE
550 MM
880 A 3812901614 LINE
FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE
550 MM
880 A 3812901614 LINE
FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE
550 MM
882 A 3812900414 LINE
Repalced by: A 3812901714
882 A 3812901714 LINE
Repalced by: A 3812903214
882 A 3812903214 LINE
FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE
570 MM
884 A 3812902013 LINE
Repalced by: A 3812900913
884 A 3812900913 LINE
Repalced by: A 3812901814
884 A 3812901814 LINE
700 MM
884 A 3812901814 LINE
FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE
700 MM
884 A 3812901814 LINE
FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE
700 MM
884 A 3812901814 LINE
700 MM
886 A 3812900813 LINE
Repalced by: A 3812901914
886 A 3812901914 LINE
FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE
800 MM
888 A 3819970881 GROMMET
888 A 3819970881 GROMMET
888 A 3819970881 GROMMET
A 3819971781 GROMMET
Repalced by: A 3149970581
890 A 3149970581 GROMMET
892 A 3812906013 LINE
Repalced by: A 3812902513
892 A 3812902513 LINE
Repalced by: A 3812902214
892 A 3812902214 LINE
2000 MM
892 A 3812902214 LINE
FROM HYDRAULIC HOSE TO CLUTCH CONNECTOR
2000 MM
892 A 3812902214 LINE
2000 MM
892 A 3812902214 LINE
FROM HYDRAULIC HOSE TO BRAKE CONNECTOR
2000 MM
892 A 3812902214 LINE
FROM CONNECTOR TO CLUTCH SLAVE CYLINDER
2000 MM
894 A 3812902314 LINE
FROM HYDRAULIC HOSE TO BRAKE CONNECTOR
2500 MM
896 A 0002951435 HOSE
555 MM
896 A 0002951435 HOSE
FROM LINE AT CLUCTH MASTER CYLINDER TO LINE AT CONNECTOR
555 MM
896 A 0002951435 HOSE
FROM LINE AT BRAKE MASTER CYLINDER TO LINE AT CONNECTOR
555 MM
896 A 0002951435 HOSE
555 MM
897 A 0002951835 HOSE
CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT ENGINE
350 MM
897 A 0002951835 HOSE
CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT ENGINE
350 MM
898 A 0004280473 BRACKET
Repalced by: A 6525040038
898 A 6525040038 MOUNTING PLATE
CLUTCH HOSE TO BRACKET
898 A 6525040038 MOUNTING PLATE
CLUTCH HOSE TO BRACKET
900 A 3812900213 LINE
Repalced by: A 3812905613
900 A 3812905613 LINE
Repalced by: A 6202901113
900 A 6202901113 LINE
Repalced by: A 3812902114
900 A 3812902114 LINE
1500 MM
900 A 3812902114 LINE
FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
1500 MM
900 A 3812902114 LINE
1500 MM
900 A 3812902114 LINE
FROM HYDRAULIC HOSE TO BRAKE CONNECTOR
1500 MM
900 A 3812906413 LINE
Repalced by: A 3812902314
900 A 3812902314 LINE
FROM HYDRAULIC HOSE TO BRAKE CONNECTOR
2500 MM
902 A 3812902613 LINE
Repalced by: A 3812902713
902 A 3812902713 LINE
Repalced by: A 3812902014
902 A 3812905713 LINE
Repalced by: A 3812902014
902 A 2812902014 LINE
1100 MM
902 A 2812902014 LINE
FROM HYDRAULIC HOSE TO BRAKE CONNECTOR
1100 MM
902 A 2812902014 LINE
FROM CONNECTOR TO CLUTCH SLAVE CYLINDER
1100 MM
902 A 2812902014 LINE
1100 MM
902 A 3812906813 LINE
Repalced by: A 3812906413
902 A 3812906413 LINE
Repalced by: A 3812902314
902 A 3812902314 LINE
2500 MM
902 A 3812902314 LINE
FROM CONNECTOR TO BRAKE SLAVE CYLINDER
2500 MM
902 A 3812902314 LINE
2500 MM
904 A 3812902113 LINE
Repalced by: A 3812901614
904 A 3812901614 LINE
FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
550 MM
906 A 0002950736 INTERMEDIATE PIECE
BRAKE AND CLUTCH LINES
906 A 0002950736 INTERMEDIATE PIECE
BRAKE AND CLUTCH LINES
906 A 0002950736 INTERMEDIATE PIECE
BRAKE AND CLUTCH LINES
908 A 3609950201 CLAMP
Repalced by: A 3604300143
908 A 3604300143 CLAMP
Repalced by: N 916016008200
908 N 916016008200 CLAMP
HYDRAULIC LINE TO BRACKET
908 N 916016008200 CLAMP
HYDRAULIC LINE TO BRACKET
908 N 916016008200 CLAMP
HYDRAULIC LINE TO BRACKET
910 N 000000001147 SCREW
HYDRAULIC LINE TO BRACKET
M 6X20
912 N 913004006002 NUT
Repalced by: N 913004006001
912 N 913004006001 NUT
HYDRAULIC LINE TO BRACKET
914 A 3872940040 BRACKET
FROM CLUTCH MASTER CYLINDER LINE TO HYDRAULIC HOSE
916 N 000000001147 SCREW
BRACKET TO BRACKET
M 6X20
918 N 913004006002 NUT
Repalced by: N 913004006001
918 N 913004006001 NUT
BRACKET TO BRACKET
920 N 000933006102 SCREW
BRACKET TO BRACKET
920 N 000933006102 SCREW
BRACKET TO BRACKET
922 N 912004006102 LOCK WASHER
BRACKET TO BRACKET
922 N 912004006102 LOCK WASHER
BRACKET TO BRACKET
924 N 007981005306 SHEET METAL SCREW
RESERVOIR TO CAB
926 A 3852951940 BRACKET
Repalced by: A 3852952140
926 A 3852952140 BRACKET
FROM CLUTCH MASTER CYLINDER LINE TO HYDRAULIC HOSE
926 A 3852952140 BRACKET
FROM CLUTCH MASTER CYLINDER LINE TO HYDRAULIC HOSE
A 3872950540 BRACKET
CAB FLOOR
928 N 000125006421 WASHER
BRACKET TO CAB FLOOR
930 N 913004006002 NUT
Repalced by: N 913004006001
930 N 913004006001 NUT
BRACKET TO CAB FLOOR
932 N 000000001147 SCREW
BRACKET TO CAB FLOOR
M 6X20
933 A 3852951040 BRACKET
CLUTCH HOSE;WITH CONSOLE AND BUMPER STRUT TO FRAME
933 A 3852951040 BRACKET
CLUTCH HOSE;WITH CONSOLE AND BUMPER STRUT TO FRAME
934 A 3464295540 BRACKET
Repalced by: A 3464296040
934 A 3464296040 BRACKET
CLUTCH HOSE;WITH CONSOLE AND BUMPER STRUT TO FRAME
936 A 3852951340 BRACKET
CLUTCH AND BRAKE HOSES
936 A 3852951340 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
936 A 3852951340 BRACKET
CLUTCH AND BRAKE HOSES
936 A 3852951840 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
936 A 3852951140 BRACKET
Repalced by: A 3852953340
936 A 3852953340 BRACKET
CLUTCH AND BRAKE HOSES
936 A 3852953340 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
936 A 3852951240 BRACKET
CLUTCH AND BRAKE HOSES
936 A 3852951240 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
938 N 000933006102 SCREW
CLUTCH AND BRAKE HOSES
940 N 913004006002 NUT
Repalced by: N 913004006001
940 N 913004006001 NUT
CLUTCH AND BRAKE HOSES
941 A 3872950440 BRACKET
Repalced by: A 3124761535
941 A 3124761535 BRACKET
LINE TO BUMPER STRUT
942 A 3852952640 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
942 A 3852953240 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
942 A 3812952040 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
942 A 3852952840 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
942 A 3812951740 BRACKET
Repalced by: A 3812952340
942 A 3812952340 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
942 A 3812952140 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
944 A 3044293040 BRACKET
Repalced by: A 3604292940
944 A 3604292940 BRACKET
LINE TO BUMPER STRUT
946 N 000933008147 SCREW
Repalced by: N 304017008021
946 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
948 N 913004008004 NUT
Repalced by: N 913004008001
948 N 913004008001 NUT
BRACKET TO BUMPER STRUT
950 A 3872950240 BRACKET
LINE TO FRONT CROSS MEMBER
952 A 3812952440 BRACKET
WITH STABILIZER ROD TO FRAME
954 N 000933010105 SCREW
BRACKET TO FRAME
954 N 000933010105 SCREW
BRACKET TO BUMPER STRUT
955 N 000433010505 WASHER
Repalced by: N 000433010510
955 N 000433010510 WASHER
BRACKET TO BUMPER STRUT
956 N 913004010008 NUT
Repalced by: N 910113010000
956 N 910113010000 NUT
BRACKET TO FRAME
956 N 910113010000 NUT
BRACKET TO BUMPER STRUT
958 A 3464296440 BRACKET
WITH STABILIZER ROD TO FRAME
958 A 3464296440 BRACKET
WITH STABILIZER ROD TO FRAME
960 A 3852952440 BRACKET
BRACKET TO SIDE MEMBER
960 A 3852952440 BRACKET
BRACKET TO SIDE MEMBER
961 N 913004010008 NUT
Repalced by: N 910113010000
961 N 910113010000 NUT
BRACKET TO FRAME
962 N 000933010105 SCREW
BRACKET TO FRAME
963 N 000000001147 SCREW
BRACKET TO FRAME
M 6X20
963 N 000000001147 SCREW
BRACKET TO FRAME
M 6X20
964 N 913004006002 NUT
Repalced by: N 913004006001
964 N 913004006001 NUT
BRACKET TO FRAME
964 N 913004006001 NUT
BRACKET TO FRAME
966 A 3525420440 BRACKET
Repalced by: A 3525422840
966 A 3525422840 BRACKET
AT SIDE MEMBER
966 A 3164290040 BRACKET
LINE TO SIDE MEMBER
A 3852950640 BRACKET
LINE TO ENGINE FRONT CROSS MEMBER
970 A 3812951940 BRACKET
Repalced by: A 3464296040
970 A 3464296040 BRACKET
WITH ENGINE REAR CROSS MEMBER TO RUBBER-MOUNTING CONSOLE
970 A 3464296040 BRACKET
WITH ENGINE REAR CROSS MEMBER TO RUBBER-MOUNTING CONSOLE
970 A 3464296040 BRACKET
WITH ENGINE REAR CROSS MEMBER TO RUBBER-MOUNTING CONSOLE
972 A 3812951340 BRACKET
HYDRAULIC LINE UNDER COUPLING MOUTH CROSS MEMBER
972 A 3812951340 BRACKET
HYDRAULIC LINE UNDER COUPLING MOUTH CROSS MEMBER
972 A 3852952940 BRACKET
HYDRAULIC LINE UNDER COUPLING MOUTH CROSS MEMBER
974 A 3852951440 BRACKET
HYDRAULIC HOSE TO BRACKET
974 A 3852952340 BRACKET
HYDRAULIC HOSE TO BRACKET
A 3852950940 BRACKET
WITH ENGINE REAR CROSS MEMBER TO RUBBER-MOUNTING CONSOLE
976 A 3852950840 BRACKET
Repalced by: A 3354292440
976 A 3354292440 BRACKET
AT TRANSMISSION
976 A 3354292440 BRACKET
AT TRANSMISSION
978 N 000933010157 SCREW
BRACKET TO SIDE MEMBER
980 N 000933006102 SCREW
LINE TO BRACKET
981 N 000125006421 WASHER
LINE TO BRACKET
982 N 000934006007 NUT
LINE TO BRACKET
983 N 000933008212 SCREW
Repalced by: N 304017008016
983 N 304017008016 SCREW
LINE TO BRACKET
983 N 000933008147 SCREW
Repalced by: N 304017008021
983 N 304017008021 SCREW
BRACKET UNDER CROSS MEMBER
984 N 913004008004 NUT
Repalced by: N 913004008001
984 N 913004008001 NUT
BRACKET UNDER CROSS MEMBER
985 N 000125008418 WASHER
Repalced by: N 000125008443
985 N 000125008443 WASHER
LINE TO BRACKET
987 N 000933010105 SCREW
WITH STABILIZER ROD TO FRAME
988 N 913004010008 NUT
Repalced by: N 910113010000
988 N 910113010000 NUT
WITH STABILIZER ROD TO FRAME
990 N 000961012052 SCREW
Repalced by: N 308676012012
990 N 308676012012 SCREW
BRACKET TO FRAME
991 N 910113012002 NUT
BRACKET TO FRAME
993 N 912004018101 LOCK WASHER
BRACKET TO TRANSMISSION
993 N 912004018101 LOCK WASHER
BRACKET TO TRANSMISSION
995 N 000961018038 SCREW
BRACKET TO TRANSMISSION
995 N 000961018038 SCREW
BRACKET TO TRANSMISSION
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
