Transporto priemonė: 1017; VIN numerio dalis: 380013

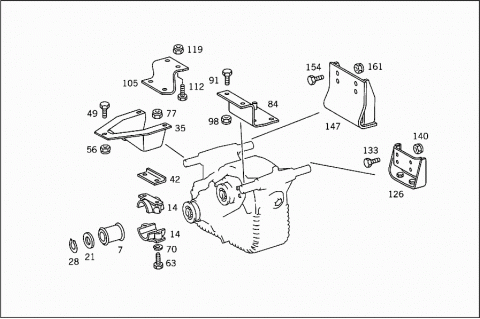

Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL: | ||
| 750.2 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL: | ||
| 750.5 | ||
| 007 | A 3222850082 | RUBBER MOUNTING |
| TRANSFER CASE TO CROSS MEMBER | ||
| 014 | A 3122801386 | BEARING |
| TRANSFER CASE TO CROSS MEMBER | ||
| 021 | A 3229901940 | WASHER |
| Repalced by: A 3129902840 | ||
| 021 | A 3129902840 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 028 | A 0009947941 | LOCK |
| BRACKET TO CROSS MEMBER | ||
| 035 | A 3812850340 | BRACKET |
| BRACKET TO CROSS MEMBER | ||
| 042 | A 3812850084 | SHIM |
| BRACKET TO CROSS MEMBER | ||
| 049 | N 000960012221 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 12X80 | ||
| 056 | N 910113012002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 063 | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 063 | N 000961012208 | SCREW |
| BEARING TO BRACKET | ||
| M 12X75 | ||
| 063 | N 000960012184 | SCREW |
| BEARING TO BRACKET | ||
| M 12X85 | ||
| 070 | N 912004012100 | LOCK WASHER |
| BEARING TO BRACKET | ||
| 077 | N 913002012004 | NUT |
| BEARING TO BRACKET | ||
| 084 | A 3802800285 | SUPPORT |
| FRONT LEFT | ||
| 091 | N 000961010037 | SCREW |
| FRONT LEFT | ||
| 098 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 098 | N 910113010002 | NUT |
| FRONT LEFT | ||
| A 3802850640 | BRACKET | |
| FRONT RIGHT | ||
| 105 | A 3802850540 | BRACKET |
| FRONT RIGHT | ||
| 112 | N 000961010037 | SCREW |
| FRONT RIGHT | ||
| 119 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 119 | N 910113010002 | NUT |
| FRONT RIGHT | ||
| 126 | A 3802800385 | SUPPORT |
| REAR LEFT | ||
| 133 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 133 | N 308676012012 | SCREW |
| CROSS MEMBER TO STAY | ||
| 140 | N 913002012004 | NUT |
| CROSS MEMBER TO STAY | ||
| 147 | A 3802800185 | SUPPORT |
| REAR RIGHT | ||
| 154 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 154 | N 308676012012 | SCREW |
| REAR LEFT AND RIGHT | ||
| 161 | N 913002012004 | NUT |
| REAR LEFT AND RIGHT | ||
| 168 | A 3802851540 | BRACKET |
| AT CROSS MEMBER | ||
| 175 | N 000961010037 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 182 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 182 | N 910113010002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 189 | A 3803120027 | CROSS MEMBER |
| TRANSFER CASE | ||
| 196 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 196 | N 308676012012 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 203 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 203 | N 910113012003 | NUT |
| CROSS MEMBER TO FRAME | ||
| 210 | A 3802851340 | BRACKET |
| LEFT | ||
| 217 | A 3802851440 | BRACKET |
| RIGHT | ||
| 224 | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 224 | N 000961012208 | SCREW |
| TRANSFER CASE TO CROSS MEMBER | ||
| 231 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 231 | N 910113012003 | NUT |
| TRANSFER CASE TO CROSS MEMBER | ||
| 238 | A 3802851240 | BRACKET |
| FRONT RIGHT | ||
| 245 | N 000961010037 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 252 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 252 | N 910113010002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 259 | A 3802851640 | BRACKET |
| REAR RIGHT | ||
| 266 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 266 | N 308676012012 | SCREW |
| TRANSFER CASE TO CROSS MEMBER | ||
| 273 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 273 | N 910113012003 | NUT |
| TRANSFER CASE TO CROSS MEMBER | ||
| 280 | A 0019975936 | VALVE |
| DIFFERENTIAL LOCK | ||
| BOSCH | ||
| 280 | A 0019976936 | VALVE |
| DIFFERENTIAL LOCK | ||
| WABCO | ||
| 280 | A 0019977936 | VALVE |
| DIFFERENTIAL LOCK | ||
| BOSCH | ||
| 280 | A 0019979136 | VALVE |
| DIFFERENTIAL LOCK | ||
| WABCO | ||
| 287 | A 0025860943 | REPAIR KIT |
| DIFFERENTIAL LOCK | ||
| TO 001 997 69 36,001 997 91 36 | ||
| 294 | A 0019976136 | VALVE |
| TRANSFER CASE SHIFT | ||
| WABCO | ||
| 294 | A 0019975036 | VALVE |
| TRANSFER CASE SHIFT | ||
| BOSCH | ||
| 294 | A 0039975936 | VALVE |
| TRANSFER CASE SHIFT | ||
| KNORR | ||
| 294 | A 0039976036 | VALVE |
| TRANSFER CASE SHIFT | ||
| VOSS | ||
| 301 | A 0049937501 | SPRING |
| TO 001 997 61 36 | ||
| 308 | A 0069972648 | SEAL RING |
| TO 001 97 61 36 | ||
| 308 | A 0039979640 | SEAL RING |
| TO 001 997 61 36 | ||
| 322 | A 0009970577 | HANDLE |
| VALVE | ||
| 329 | A 6239900040 | WASHER |
| VALVE | ||
| 336 | A 3839900051 | NUT |
| VALVE | ||
| 343 | A 3855844324 | UNIT IDENTIFICATION PLATE |
| LONGITUDINAL DIFFERENTIAL LOCK | ||
| 350 | A 3855841124 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855844124 | ||
| 350 | A 3855844124 | UNIT IDENTIFICATION PLATE |
| TRANSFER CASE | ||
| 357 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 357 | N 007603010110 | SEAL RING |
| VALVE | ||
| 357 | N 007603010110 | SEAL RING |
| VALVE | ||
| 364 | N 915036006202 | HOLLOW SCREW |
| VALVE | ||
| 371 | N 007603012405 | SEAL RING |
| DISTRIBUTOR | ||
| 378 | N 915039008202 | HOLLOW SCREW FITTING |
| DISTRIBUTOR | ||
| 378 | N 915047008202 | HOLLOW SCREW |
| DISTRIBUTOR | ||
| 392 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 392 | A 0009872627 | PLASTIC PIPE |
| FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 399 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 406 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004015 | ||
| 406 | N 915052004015 | BANJO UNION |
| TRANSFER CASE CYLINDER | ||
| 406 | N 915052004016 | BANJO UNION |
| TRANSFER CASE CYLINDER | ||
| 413 | N 915017006100 | UNION NUT |
| TRANSFER CASE CYLINDER | ||
| 420 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 420 | A 0019901667 | SEAL CONE |
| TRANSFER CASE CYLINDER | ||
| 427 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 427 | N 915062004000 | SLEEVE |
| TRANSFER CASE CYLINDER | ||
| 441 | A 3609902340 | WASHER |
| COMPRESSED AIR LINE TO FRAME | ||
| 448 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 448 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 455 | N 007603012110 | SEAL RING |
| TRANSFER CASE CYLINDER | ||
| 462 | A 0019972872 | FITTING |
| Repalced by: A 0039979072 | ||
| 462 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 462 | A 0029906071 | FITTING |
| TRANSFER CASE CYLINDER | ||
| 462 | N 915039008202 | HOLLOW SCREW FITTING |
| TRANSFER CASE CYLINDER | ||
| 469 | A 0009903563 | HOLLOW SCREW |
| Repalced by: N 915047008100 | ||
| 469 | N 915047008100 | HOLLOW SCREW |
| TRANSFER CASE CYLINDER | ||
| 469 | N 915036008202 | HOLLOW SCREW |
| TRANSFER CASE CYLINDER | ||
| 476 | N 007603012405 | SEAL RING |
| TRANSFER CASE CYLINDER | ||
