Transporto priemonė: 1017; VIN numerio dalis: 380013
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.0 | ||
| N 000933014014 | SCREW | |
| TRANSMISSION TO BELL HOUSING | ||
| N 912004014100 | LOCK WASHER | |
| TRANSMISSION TO BELL HOUSING | ||

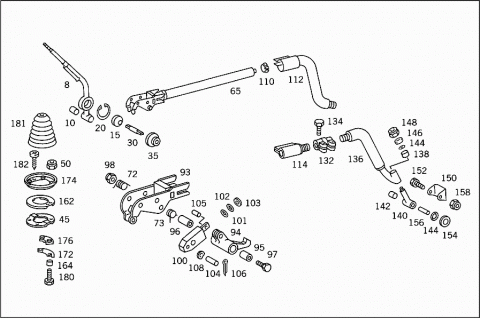

| 005 | A 3852605139 | SHIFT LEVER |
| Repalced by: A 3852605539 | ||
| 005 | A 3852605539 | SHIFT LEVER |
| 008 | A 3852607439 | SHIFT LEVER |
| Repalced by: A 3852607039 | ||
| 008 | A 3852607039 | SHIFT LEVER |
| 008 | A 3852606839 | SHIFT LEVER |
| 008 | A 3852606939 | SHIFT LEVER |
| 010 | A 3359920203 | BUSHING |
| 015 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 015 | A 0019813931 | JOINT BEARING |
| 015 | A 0009814531 | JOINT BEARING |
| 020 | N 000472042001 | LOCK RING |
| SHIFT LEVER | ||
| 030 | A 3852681474 | PIN |
| SHIFT LEVER | ||
| 035 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 035 | A 6202680196 | BOOT |
| SHIFT LEVER | ||
| 040 | A 3892605262 | BRACKET |
| SHIFT LEVER TO CAB FLOOR,BOTTOM | ||
| 045 | A 3892680440 | BRACKET |
| SHIFT LEVER TO CAB FLOOR,BOTTOM | ||
| 050 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 050 | N 913004008001 | NUT |
| BRACKET TO CAB | ||
| 055 | A 3222600040 | HANDLE |
| SHIFT LEVER | ||
| 060 | N 000936010010 | NUT |
| SHIFT LEVER | ||
| 063 | A 3852606033 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 065 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 065 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 065 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 066 | A 3852607033 | SHIFTING ROD |
| (TELESCOPIC TUBE) | ||
| 066 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 066 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 068 | A 3852600689 | PULL ROD |
| 070 | A 3859930901 | SPRING |
| MECHANICAL RELAESE | ||
| 072 | A 3859930120 | SPRING |
| HYDRAULIC RELEASE | ||
| 072 | A 3859930120 | SPRING |
| HYDRAULIC RELEASE | ||
| 073 | A 3859930020 | SPRING |
| HYDRAULIC RELEASE | ||
| 073 | A 3859930020 | SPRING |
| HYDRAULIC RELEASE | ||
| 088 | A 0009978648 | SEAL RING |
| PAWL TO ROD END | ||
| 17.20 MM | ||
| 090 | A 0039970448 | SEAL RING |
| PULL ROD | ||
| 8.30 MM | ||
| 091 | A 0009978748 | SEAL RING |
| 30.20 MM | ||
| 092 | A 3852680423 | YOKE |
| MECHANICAL RELAESE | ||
| 093 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 093 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 094 | A 3852600187 | PAWL |
| MECHANICAL RELAESE | ||
| 094 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 094 | A 6202600087 | PAWL |
| HYDRAULIC RELEASE | ||
| 094 | A 6202600087 | PAWL |
| HYDRAULIC RELEASE | ||
| 095 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| 095 | A 6209920003 | BUSHING |
| PAWL TO ROD END | ||
| A 6202680150 | BUSHING | |
| PAWL TO ROD END | ||
| 096 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 097 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 097 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 098 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 098 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 100 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WESTINGHOUSE | ||
| 100 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WESTINGHOUSE | ||
| 100 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| 101 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| 101 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| 102 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| 102 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| 103 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 103 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 104 | N 001443008204 | PIN |
| 104 | N 001444008234 | PIN |
| SHIFTING TUBE | ||
| 104 | N 001444008234 | PIN |
| SHIFTING TUBE | ||
| 105 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 105 | N 001444008235 | PIN |
| SHIFTING TUBE | ||
| 105 | N 001444008235 | PIN |
| SHIFTING TUBE | ||
| 106 | N 000094002059 | COTTER PIN |
| SHIFTING TUBE | ||
| 106 | N 000094002059 | COTTER PIN |
| SHIFTING TUBE | ||
| 108 | N 900055008002 | SPRING WASHER |
| SHIFTING TUBE | ||
| 108 | N 900055008002 | SPRING WASHER |
| SHIFTING TUBE | ||
| 110 | A 3852680776 | WASHER |
| SHIFTING TUBE | ||
| 110 | A 3852680776 | WASHER |
| SHIFTING TUBE | ||
| 111 | A 3812602233 | SHIFTING ROD |
| BRACKET TO CAB | ||
| 111 | A 3802600233 | SHIFTING ROD |
| BRACKET TO CAB | ||
| 112 | A 3812603033 | SHIFTING ROD |
| BRACKET TO CAB | ||
| 114 | A 3852602062 | BRACKET |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 115 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 116 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 117 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 117 | A 0019909404 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| M 10X75 | ||
| 118 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 118 | N 910113010000 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 119 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 120 | A 3219900601 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 120 | A 3219900601 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 120 | N 000933008145 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| M 8X18 | ||
| 121 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 122 | N 304032008006 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| 124 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 126 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 126 | N 910113010000 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 128 | A 3812680028 | CONNECTOR |
| Repalced by: A 3812680128 | ||
| 128 | A 3812680128 | CONNECTOR |
| SHIFTING TUBE | ||
| 130 | A 3832680089 | JOINT |
| Repalced by: A 3832680489 | ||
| 130 | A 3832680489 | JOINT |
| 130 | A 3832680489 | JOINT |
| 130 | A 3832680289 | JOINT |
| 130 | A 3832680289 | JOINT |
| 130 | A 3832680589 | JOINT |
| 130 | A 3832680589 | JOINT |
| 132 | A 3852680188 | CLAMPING PIECE |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 134 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 134 | N 304017010047 | SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| M 10X35 | ||
| 136 | A 3812603533 | SHIFTING ROD |
| REAR | ||
| 138 | A 3359920203 | BUSHING |
| 140 | A 3852600075 | CONNECTOR |
| JOINT TO SHIFTING TUBE | ||
| 142 | A 3359920203 | BUSHING |
| 144 | A 0009978648 | SEAL RING |
| SHIFTING TUBE | ||
| 146 | A 3859900740 | WASHER |
| JOINT TO SHIFTING TUBE | ||
| 148 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 148 | N 910113010000 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 150 | A 3852681423 | YOKE |
| SHIFTING TUBE | ||
| 152 | N 000931010274 | SCREW |
| Repalced by: N 304014010004 | ||
| 152 | N 304014010004 | SCREW |
| YOKE TO SHIFT LEVER | ||
| M 10X90 | ||
| 154 | A 3859901740 | WASHER |
| Repalced by: A 4039900040 | ||
| 154 | A 4039900040 | WASHER |
| YOKE TO SHIFT LEVER | ||
| 156 | A 3852680153 | SPACER TUBE |
| YOKE TO SHIFT LEVER | ||
| 158 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 158 | N 910113010000 | NUT |
| YOKE TO SHIFT LEVER | ||
| A 3852680083 | COVERING | |
| CONNECTOR | ||
| A 3852680183 | COVERING | |
| CONNECTOR | ||
| 160 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 160 | N 304017010047 | SCREW |
| CONNECTOR | ||
| M 10X35 | ||
| 162 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER | ||
| 164 | A 3892680525 | TUBE |
| SHIFT LEVER | ||
| 168 | A 3852600562 | BRACKET |
| SHIFT LEVER | ||
| 170 | A 3852600962 | BRACKET |
| SHIFT LEVER | ||
| 172 | A 3852681640 | BRACKET |
| SHIFT LEVER | ||
| 174 | A 3852601962 | BRACKET |
| SHIFT LEVER | ||
| 176 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER | ||
| 178 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 178 | N 913004008001 | NUT |
| SHIFT LEVER | ||
| 180 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 180 | N 304017008018 | SCREW |
| SHIFT LEVER | ||
| M 8X35 | ||
| 181 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| 182 | N 007981003214 | SHEET METAL SCREW |
| SHIFT LEVER | ||
| A 3859970086 | PLUG | |
| SHIFT LEVER | ||
| 187 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 187 | A 0009872627 | PLASTIC PIPE |
| FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 188 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 188 | A 0039979172 | FITTING |
| VALVE TO SHIFTING CYLINDER | ||
| 188 | A 0039979172 | FITTING |
| FROM DISTRIBUTOR TO VALVE | ||
| 192 | N 915017006100 | UNION NUT |
| LINE CONNECTIONS | ||
| 194 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 194 | A 0019901667 | SEAL CONE |
| LINE CONNECTIONS | ||
| 196 | A 0009920105 | BUSHING |
| 196 | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 197 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 198 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004015 | ||
| 198 | N 915052004015 | BANJO UNION |
| LINE CONNECTIONS | ||
| 200 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 202 | N 915039008202 | HOLLOW SCREW FITTING |
| LINE CONNECTIONS | ||
| 204 | N 915052004016 | BANJO UNION |
| LINE CONNECTIONS | ||
| 206 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 206 | N 007603010110 | SEAL RING |
| LINE CONNECTIONS | ||
| 208 | N 915036006202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 220 | A 0019976136 | VALVE |
| P.T.O. CONTROL | ||
| WESTINGHOUSE | ||
| 220 | A 0019975036 | VALVE |
| P.T.O. CONTROL | ||
| BOSCH | ||
| 220 | A 0039975936 | VALVE |
| P.T.O. CONTROL | ||
| KNORR | ||
| 220 | A 0039976036 | VALVE |
| P.T.O. CONTROL | ||
| VOSS | ||
| 221 | A 0049937501 | SPRING |
| TO 001 997 61 36 | ||
| 222 | A 0069972648 | SEAL RING |
| TO 001 997 61 36 | ||
| 223 | A 0039979640 | SEAL RING |
| TO 001 997 61 36 | ||
| 224 | A 3859901640 | WASHER |
| OPERATING VALVE | ||
| 226 | A 3839900051 | NUT |
| OPERATING VALVE | ||
| 228 | A 3609900170 | T-FITTING |
| LINE CONNECTIONS | ||
| 230 | A 0004290827 | THRUST RING |
| LINE CONNECTIONS | ||
| 232 | A 0019875046 | SEALING CORD |
| LINE CONNECTIONS | ||
| 234 | N 080705012003 | NUT |
| LINE CONNECTIONS | ||
| 236 | A 3839970372 | FITTING |
| Repalced by: N 915039008100 | ||
| 236 | N 915039008202 | HOLLOW SCREW FITTING |
| LINE CONNECTIONS | ||
| 240 | A 0005456009 | SWITCH |
| P.T.O. | ||
| 242 | A 3855841524 | SYMBOL PLATE |
| P.T.O. | ||
| 248 | A 3522000704 | IMPELLER |
| Repalced by: A 3522000804 | ||
| 248 | A 3522000804 | IMPELLER |
| Repalced by: A 3522000904 | ||
| 248 | A 3522000904 | IMPELLER |
| FAN | ||
| 250 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 250 | N 304017008027 | SCREW |
| FAN TO FAN DRIVE | ||
| M 8X30 | ||
| 252 | N 912004008102 | LOCK WASHER |
| P.T.O. | ||
| 254 | N 304032008006 | NUT |
| P.T.O. | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
