Transporto priemonė: 1017; VIN numerio dalis: 380013

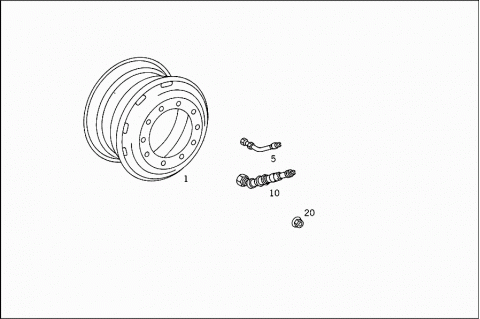

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3814000902 | DISC WHEEL |
| Repalced by: A 0004017005 | ||
| 001 | A 0004017005 | RIM |
| 6.00X22.5 | ||
| 001 | A 0004017005 | RIM |
| 6.00X22.5 | ||
| 001 | A 0004017005 | RIM |
| 6.00X22.5 | ||
| 001 | A 0004018405 | RIM |
| 6.00X22.5 | ||
| 001 | A 0004018405 | RIM |
| 6.00X22.5 | ||
| 001 | A 0004018405 | RIM |
| 6.00X22.5 | ||
| 001 | A 0004019405 | RIM |
| 6.00X22.5 | ||
| 001 | A 0004019405 | RIM |
| 6.00X22.5 | ||
| 001 | A 0004019405 | RIM |
| 6.00X22.5 | ||
| 001 | A 3834000602 | DISC WHEEL |
| Repalced by: A 0004017305 | ||
| 001 | A 0004017305 | RIM |
| 7.50X22.5 | ||
| 001 | A 0004017305 | RIM |
| 7.50X22.5 | ||
| 001 | A 0004018605 | RIM |
| Repalced by: A 0004014602 | ||
| 001 | A 0004014602 | DISC WHEEL |
| 7.50X22.5 | ||
| 001 | A 0004014602 | DISC WHEEL |
| 7.50X22.5 | ||
| 001 | A 0004019705 | RIM |
| 7.50X22.5 | ||
| 001 | A 0004019705 | RIM |
| 7.50X22.5 | ||
| 005 | A 0004017113 | VALVE |
| 27 DEGREES | ||
| A 0004010272 | NUT | |
| VALVE TO DISC WHEEL | ||
| 010 | A 3854010013 | VALVE |
| EXTENSION | ||
| 010 | A 3854010113 | VALVE |
| EXTENSION | ||
| N 007757008600 | VALVE CAP | |
| 020 | A 3854000124 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 020 | A 6174000024 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 020 | A 0004010672 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||

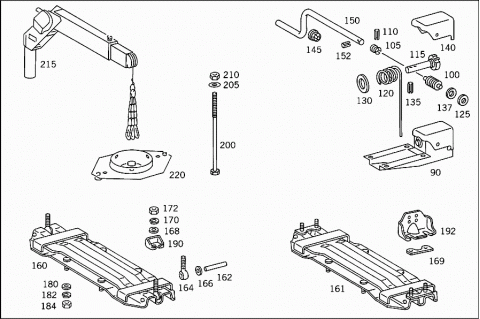

| 090 | A 3814001739 | BRACKET |
| Repalced by: A 3814001639 | ||
| 090 | A 3814001639 | SPARE WHEEL HOIST |
| 100 | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 100 | A 6204030085 | WORM |
| 105 | A 3814030250 | BUSHING |
| 110 | N 001481006027 | CLAMPING SLEEVE |
| BUSHING TO WORM | ||
| 115 | A 3814030183 | STOP GEAR |
| Repalced by: A 6204030483 | ||
| 115 | A 6204030483 | STOP GEAR |
| 120 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 120 | N 083334008000 | WIRE CABLE |
| SPARE WHEEL HOIST | ||
| 2700 MM | ||
| 125 | A 3819900340 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 125 | A 6179900540 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 130 | A 3819900140 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 135 | N 001481008038 | CLAMPING SLEEVE |
| Repalced by: N 308752008000 | ||
| 135 | N 308752008000 | CLAMPING PIN |
| WORM AND SHAFT TO BRACKET | ||
| 137 | N 002093031201 | DISC SPRING |
| WORM AND SHAFT TO BRACKET | ||
| 140 | A 3814030044 | COVER PLATE |
| SPARE WHEEL HOIST | ||
| 145 | A 3814030150 | BUSHING |
| AT SIDE MEMBER | ||
| 150 | A 3814030045 | CRANK |
| SPARE WHEEL HOIST | ||
| 152 | N 001481006027 | CLAMPING SLEEVE |
| CRANK TO BUSHING | ||
| N 000933010128 | SCREW | |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 160 | A 3814002039 | BRACKET |
| SPARE WHEEL | ||
| 161 | A 3814002239 | BRACKET |
| Repalced by: A 3814002639 | ||
| 161 | A 3814002639 | BRACKET |
| SPARE WHEEL | ||
| 162 | A 3634030074 | PIN |
| SPARE WHEEL CARRIER TO FRAME | ||
| 162 | A 3874030074 | PIN |
| SPARE WHEEL CARRIER TO FRAME | ||
| 164 | N 000444016322 | EYEBOLT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 164 | N 000444016104 | EYEBOLT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 164 | A 3859900023 | SCREW |
| Repalced by: A 6519900023 | ||
| 164 | A 6519900023 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 166 | N 000433017004 | WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 168 | N 007349017002 | WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 169 | A 3874030319 | BASE BLOCK |
| SPARE WHEEL CARRIER TO FRAME | ||
| 170 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 170 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 172 | N 000934016012 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 172 | N 000934016012 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 172 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 172 | N 308673016001 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000094004023 | COTTER PIN | |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000094004023 | COTTER PIN | |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 007346004016 | CLAMPING SLEEVE | |
| SPARE WHEEL CARRIER TO FRAME | ||
| 180 | N 007349017002 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 180 | N 007349019002 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 180 | N 007349021001 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 182 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 182 | N 912004018101 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 182 | N 912004020100 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 184 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 184 | N 308673016001 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 184 | N 000934018006 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 184 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 184 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 184 | N 308674020000 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 190 | A 3354031301 | SUPPORT |
| SPARE WHEEL CARRIER | ||
| 192 | A 3874030701 | SUPPORT |
| SPARE WHEEL CARRIER | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| SUPPORT TO FRAME | ||
| N 000961014100 | SCREW | |
| SUPPORT TO FRAME | ||
| N 910113012002 | NUT | |
| SUPPORT TO FRAME | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| SUPPORT TO FRAME | ||
| N 910005012080 | RIVET | |
| SUPPORT TO FRAME | ||
| 200 | A 3529900702 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 205 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 210 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
| 215 | A 3524003339 | SPARE WHEEL HOIST |
| A 0004030090 | CHAIN | |
| A 0004030036 | CABLE | |
| A 0004030012 | COVERING | |
| 220 | A 3464005339 | BRACKET |
| Repalced by: A 6554000049 | ||
| 220 | A 6554000049 | PLATE |
| SPARE WHEEL | ||
