Transporto priemonė: 1017 AS; VIN numerio dalis: 380151
Grupė: 42 BRAKES
43480
43968
43205
43481
43482
43483
43484
43485
43486
43487
43488
43489
44460
44461
44462
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
730.8
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
730.0
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
731.3
T YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
744.3
010 N 074298022203 DOUBLE FITTING
AIR COMPRESSOR CONNECTION
010 N 074298022203 DOUBLE FITTING
AIR COMPRESSOR CONNECTION
010 N 074298022203 DOUBLE FITTING
AIR COMPRESSOR CONNECTION
010 N 074313018201 FITTING
AIR COMPRESSOR CONNECTION
014 N 007603022102 SEAL RING
AIR COMPRESSOR CONNECTION
014 N 007603022102 SEAL RING
AIR COMPRESSOR CONNECTION
014 N 007603026104 SEAL RING
AIR COMPRESSOR CONNECTION
014 N 007603026104 SEAL RING
AIR COMPRESSOR CONNECTION
016 A 0004294338 ELBOW FITTING
AIR COMPRESSOR CONNECTION
017 N 074305026202 NUT
AIR COMPRESSOR CONNECTION
018 A 0004290527 THRUST RING
AIR COMPRESSOR CONNECTION
019 A 0039973848 SEAL RING
AIR COMPRESSOR CONNECTION
020 A 0004291401 LINE
15 MM
020 A 0004291401 LINE
AIR COMPRESSOR,FOUR-CIRCUIT PROTECTIVE VALVE,PRESSURE REGULATOR,AIR RESERVOIR
15 MM
025 N 915018015000 UNION NUT
TO LINE
027 N 003861015004 GLAND
TO LINE
029 N 915065015101 THRUST RING
TO LINE
031 N 915045012100 SEAL RING
Repalced by: N 007603012121
031 N 007603012121 SEAL RING
TO LINE
035 A 0029901271 ELBOW FITTING
LINE TO SIDE MEMBER
035 N 003941015101 FITTING
LINE TO SIDE MEMBER
036 A 0009902370 T-FITTING
COMPRESSED AIR LINE
037 N 074305022202 NUT
LINE TO SIDE MEMBER
038 A 3859901540 WASHER
LINE TO SIDE MEMBER
040 A 0004292101 LINE
12 MM
040 A 0004292101 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
12 MM
045 N 003870012014 UNION NUT
FOR LINES
047 N 003861012007 GLAND
Repalced by: A 0019901967
047 A 0019901967 SEAL CONE
FOR LINES
050 A 0109975982 HOSE
Repalced by: A 0009872827
050 A 0009872827 PLASTIC PIPE
9X12 MM
050 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
050 A 0009872827 PLASTIC PIPE
CHECK VALVE,SPRING LOAD ACCUMULATOR BRAKE CYLINDER
9X12 MM
051 A 0049971772 FITTING
Repalced by: A 0029906171
051 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
052 N 040621013200 INSULATING HOSE
BLACK
11.4X13 MM
053 N 915017012100 UNION NUT
FOR HOSE
054 N 003861012007 GLAND
Repalced by: A 0019901967
054 A 0019901967 SEAL CONE
FOR HOSE
056 N 915062009000 SLEEVE
FOR HOSE
060 N 915052009009 BANJO UNION
FOR HOSE
065 N 074317012300 FITTING
COMPRESSED AIR LINE
070 A 0089979082 HOSE
6X8 MM
070 A 0089979082 HOSE
HAND BRAKE VALVE,4-CIRCUIT PROTECTIVE VALVE,RELAY VALVE,CHECK VALVE
6X8 MM
072 N 040621010200 INSULATING HOSE
BLACK
10 MM
072 N 040621008207 INSULATING HOSE
FOR HOSE
6X8 MM
072 N 040621008206 INSULATING HOSE
FOR HOSE
6X8 MM
072 N 040621008210 INSULATING HOSE
FOR HOSE
6X8 MM
080 N 915017008100 UNION NUT
FOR HOSE
082 N 003861008005 GLAND
FOR HOSE
084 N 915062006000 SLEEVE
COMPRESSED AIR LINE
086 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
088 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
088 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
092 N 915059006002 FITTING
COMPRESSED AIR LINE
095 A 0089976082 HOSE
Repalced by: A 0009872627
095 A 0009872627 PLASTIC PIPE
BLACK
4X6 MM
095 A 0009872627 PLASTIC PIPE
PRESSURE GAUGE,FOUR-CIRCUIT PROTECTIVE VALVE,AIR CLEANER
4X6 MM
095 A 0009872627 PLASTIC PIPE
FROM T-FITTING TO RIGHT REAR BRAKE CYLINDER
4X6 MM
097 N 040621006203 INSULATING HOSE
FOR HOSE
4X6 MM
100 N 915017006100 UNION NUT
FOR HOSE
102 N 003861006007 GLAND
Repalced by: A 0019901667
102 A 0019901667 SEAL CONE
FOR HOSE
104 N 915062004000 SLEEVE
FOR HOSE
4X6 MM
106 A 0019978490 LOOM TIE
COMPRESSED AIR LINE
107 A 3229971581 GROMMET
COMPRESSED AIR LINE
108 A 3874292740 BRACKET
PRESSURE GAUGE LINE TO BRACKET
A 3874291540 BRACKET
PRESSURE GAUGE LINE TO BRACKET
110 N 007985006193 SCREW
Repalced by: N 000000001146
110 N 000000001146 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 6X16
111 N 913004006002 NUT
Repalced by: N 913004006001
111 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
112 A 3604280243 ANGLE
MOUNTING USED FOR COMPRESSED AIR LINES
112 A 3604280243 ANGLE
MOUNTING USED FOR COMPRESSED AIR LINES
113 N 304014008004 SCREW
Repalced by: N 304014008001
113 N 304014008001 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 8X70
113 N 000933008153 SCREW
Repalced by: N 304017008034
113 N 304017008034 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 8X25
114 N 000125008418 WASHER
Repalced by: N 000125008443
114 N 000125008443 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
115 N 913004008004 NUT
Repalced by: N 913004008001
115 N 913004008001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
115 N 913004008001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
116 A 3609952001 CLAMP
Repalced by: A 6739950001
116 A 6739950001 CLAMP
COMPRESSED AIR LINE TO FRAME
117 N 007985006145 SCREW
Repalced by: N 007985006581
117 N 007985006581 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X20
118 N 913004006002 NUT
Repalced by: N 913004006001
118 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
119 A 3854311840 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
119 A 3854311840 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
120 A 3604293140 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
121 N 000000001147 SCREW
COMPRESSED AIR LINE TO FRAME
M 6X20
121 N 007985006145 SCREW
Repalced by: N 007985006581
121 N 007985006581 SCREW
COMPRESSED AIR LINE TO FRAME
M 6X20
122 N 912004006102 LOCK WASHER
COMPRESSED AIR LINE TO FRAME
123 N 913004006002 NUT
Repalced by: N 913004006001
123 N 913004006001 NUT
COMPRESSED AIR LINE TO FRAME
123 N 913004006001 NUT
COMPRESSED AIR LINE TO FRAME
123 N 913004006001 NUT
AIR COMPRESSOR CONNECTION
A 6164290040 BRACKET
COMPRESSED AIR LINE TO FRAME
N 000961014050 SCREW
Repalced by: N 308676014020
N 308676014020 SCREW
BRACKET TO SIDE MEMBER
M 14X1.5X35
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
BRACKET TO SIDE MEMBER
127 A 3874291140 BRACKET
COMPRESSED AIR LINE TO FIRE WALL
128 N 000933008147 SCREW
Repalced by: N 304017008021
128 N 304017008021 SCREW
COMPRESSED AIR LINE TO BRACKET
M 8X20
129 N 913004008004 NUT
Repalced by: N 913004008001
129 N 913004008001 NUT
COMPRESSED AIR LINE TO BRACKET
130 A 3874292540 BRACKET
BUMPER,LEFT
A 3874292640 BRACKET
BUMPER,RIGHT
131 N 000933008145 SCREW
COMPRESSED AIR LINE TO BRACKET
M 8X18
132 N 913004008004 NUT
Repalced by: N 913004008001
132 N 913004008001 NUT
COMPRESSED AIR LINE TO BRACKET
133 A 3274925419 BRACKET
Repalced by: A 6205240340
133 A 6205240340 BRACKET
PLASTIC LINE TO FRONT CROSS MEMBER
134 N 000933008153 SCREW
Repalced by: N 304017008034
134 N 304017008034 SCREW
LINE TO CROSS MEMBER
M 8X25
135 N 913004008004 NUT
Repalced by: N 913004008001
135 N 913004008001 NUT
LINE TO CROSS MEMBER
136 N 000125008418 WASHER
Repalced by: N 000125008443
136 N 000125008443 WASHER
LINE TO CROSS MEMBER
137 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
137 A 0004290286 PROTECTIVE TUBE
PLASTIC LINE TO FRONT CROSS MEMBER
138 A 3854200644 PROTECTIVE PLATE
Repalced by: A 3854201544
138 A 3854201544 PROTECTIVE PLATE
HEAT INSULATION; PLASTIC LINES; ON THE LEFT
138 A 3854200744 PROTECTIVE PLATE
Repalced by: A 3854201444
138 A 3854201444 PROTECTIVE PLATE
HEAT INSULATION;PLASTIC LINES;ON THE RIGHT
139 N 000933008153 SCREW
Repalced by: N 304017008034
139 N 304017008034 SCREW
HEAT SHIELD TO SIDE MEMBER
140 N 000125008418 WASHER
Repalced by: N 000125008443
140 N 000125008443 WASHER
HEAT SHIELD TO SIDE MEMBER
141 N 913004008004 NUT
Repalced by: N 913004008001
141 N 913004008001 NUT
HEAT SHIELD TO SIDE MEMBER
142 A 0004294137 DISTRIBUTOR
AT CAB FLOOR
142 A 0004294037 DISTRIBUTOR
AT CAB FLOOR
143 N 000125006421 WASHER
DISTRIBUTOR TO CAB
144 N 000931006041 SCREW
DISTRIBUTOR TO CAB
145 N 913004006002 NUT
Repalced by: N 913004006001
145 N 913004006001 NUT
DISTRIBUTOR TO CAB
146 A 6204295240 BRACKET
AT CAB FLOOR
147 N 913004006002 NUT
Repalced by: N 913004006001
147 N 913004006001 NUT
AT CAB FLOOR
148 A 0019972572 FITTING
AT DISTRIBUTOR
148 N 915036012203 HOLLOW SCREW
AT DISTRIBUTOR
149 N 915039008202 HOLLOW SCREW FITTING
DISTRIBUTOR,CONNECTIONS:
"1,2,3"
149 N 915047008202 HOLLOW SCREW
DISTRIBUTOR,CONNECTION:
"1"
150 N 007603016401 SEAL RING
AT DISTRIBUTOR
151 N 007603012405 SEAL RING
AT DISTRIBUTOR
152 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
152 N 000908012009 SCREW PLUG
AT DISTRIBUTOR
153 A 3854290540 BRACKET
COMPRESSED AIR LINE
154 N 000933008153 SCREW
Repalced by: N 304017008034
154 N 304017008034 SCREW
BRACKET TO FRAME SIDE MEMBER
155 N 913004008004 NUT
Repalced by: N 913004008001
155 N 913004008001 NUT
BRACKET TO FRAME SIDE MEMBER

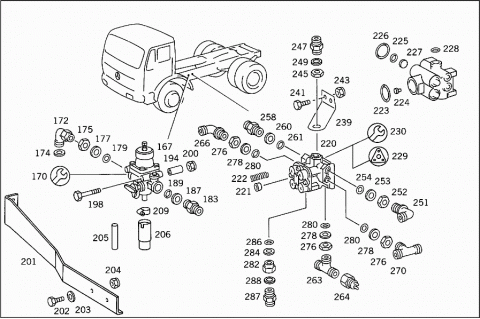

167 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
167 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
167 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
167 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
167 A 0024314906 PRESSURE REGULATOR
WABCO
167 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
167 A 0024314306 PRESSURE REGULATOR
BOSCH
167 A 0024318306 PRESSURE REGULATOR
KNORR
170 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
170 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
170 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
170 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
170 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
170 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
170 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
170 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
170 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
170 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
170 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
170 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
170 A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
172 N 074301022203 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
172 N 074301022203 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
172 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
172 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
174 A 3859901540 WASHER
PRESSURE REGULATOR,CONNECTION "1"
175 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
177 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
179 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "1"
183 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION "2.1"
183 A 0019972372 FITTING
PRESSURE REGULATOR,CONNECTION "2.1"
187 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "2.1"
187 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "2.1"
189 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "2.1"
194 A 3854310153 SPACER TUBE
Repalced by: A 4409910040
194 A 4409910040 SPACER TUBE
PRESSURE REGULATOR TO BATTERY SUPPORT
194 A 3809910040 SPACER TUBE
PRESSURE REGULATOR TO BATTERY SUPPORT
198 N 000931008281 SCREW
PRESSURE REGULATOR TO BATTERY SUPPORT
M 8X105
198 N 000931008209 SCREW
PRESSURE REGULATOR TO BATTERY SUPPORT
M 8X95
200 N 913004008004 NUT
Repalced by: N 913004008001
200 N 913004008001 NUT
PRESSURE REGULATOR TO BATTERY SUPPORT
201 A 3814311240 BRACKET
PRESSURE REGULATOR
202 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
203 N 000125008418 WASHER
Repalced by: N 000125008443
203 N 000125008443 WASHER
PRESSURE REGULATOR TO BRACKET
204 N 913004008004 NUT
Repalced by: N 913004008001
204 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
205 A 0004310173 BREATHER PIPE
PRESSURE REGULATOR TO BATTERY SUPPORT
206 A 0004300170 MUFFLER
PRESSURE REGULATOR,CONNECTION "3"
206 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION "3"
209 N 916026020001 CLAMP
Repalced by: N 000000000667
209 N 000000000667 CLAMP
PRESSURE REGULATOR TO BATTERY SUPPORT
209 N 916017032000 CLAMP
Repalced by: N 000000000670
209 N 000000000670 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
209 N 916026016001 CLAMP
Repalced by: A 0059970190
209 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION "3"
A 0004310151 SPACER RING
PRESSURE REGULATOR,CONNECTION "3"

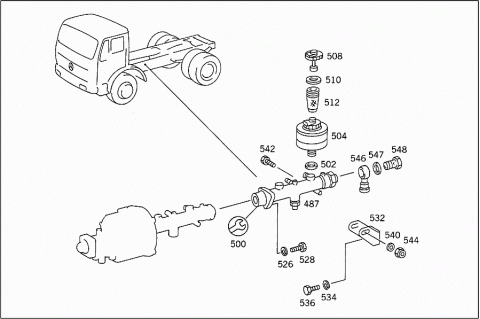

A 0004312515 ANTI-FREEZE DEVICE
Repalced by: A 0004312615
A 0004312615 ANTI-FREEZE DEVICE
A 0004316787 PROTECTIVE CAP
A 0004321107 VALVE
ANTI-FREEZE DEVICE DRAIN
A 0004314476 WASHER
ANTI-FREEZE DEVICE DRAIN
A 0009890679 WICK
PARTS KIT
A 0004312156 SCREW PLUG
WITH DIPSTICK
A 0025861143 REPAIR KIT
TO 000 431 25 15,000 431 26 15
T YYYYYYYYYYYY PART NAME MISSING
WABCO 432 199 015 0,432 199 030 0
N 074301022203 ELBOW FITTING
ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
N 074305022202 NUT
ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
A 0004290227 THRUST RING
ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
A 0009870446 SEALING CORD
ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
A 0019972172 FITTING
ANTI-FREEZE DEVICE,CONNECTION:
"2"
N 007603022102 SEAL RING
ANTI-FREEZE DEVICE,CONNECTION:
"2"
A 0004290227 THRUST RING
ANTI-FREEZE DEVICE,CONNECTION:
"2"
A 0009870446 SEALING CORD
ANTI-FREEZE DEVICE,CONNECTION:
"2"
220 A 0014313806 VALVE
Repalced by: A 0024310406
220 A 0024310406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
220 A 0014313506 VALVE
Repalced by: A 0014318406
220 A 0014318406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
220 A 0014314706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
220 A 0014316806 VALVE
Repalced by: A 0024312906
220 A 0024312906 VALVE
Repalced by: A 0024319306
220 A 0024319306 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
221 A 0014310986 CUP
TO 002 431 04 06,BOSCH
222 A 0009935205 SPRING
TO 002 431 04 06,BOSCH
223 A 0014311860 SEAL RING
TO 001 431 68 06,34X2.3 MM,GRAU
224 A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001
225 A 0099972448 SEAL RING
TO 001 431 68 06,19.3X2.4MM GRAU37001
226 A 0059973248 SEAL RING
TO 001 431 68 06,25.3X2.4 MM,GRAU
227 A 0004313188 VALVE SEAT
TO 001 431 68 06,GRAU 37001,GRAU
228 A 0009971548 SEAL RING
TO 001 431 68 06,GRAU 19001,15X2 MM
229 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,BOSCH
229 A 0015868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
230 A 0015863842 REPAIR KIT
TO 001 431 35 06,KNORR
230 A 0034300881 REPAIR KIT
TO 002 431 93 06 GRAU 74001
230 A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
230 A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210
230 A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR

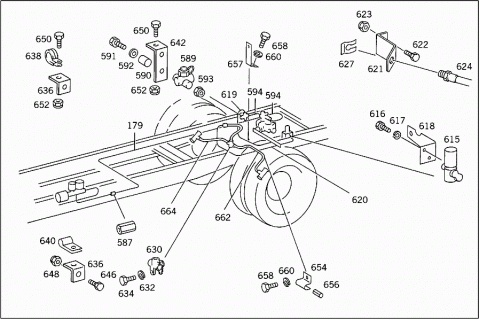

239 A 3854312240 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
239 A 3854313440 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
241 N 000933008147 SCREW
Repalced by: N 304017008021
241 N 304017008021 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
243 N 913004008004 NUT
Repalced by: N 913004008001
243 N 913004008001 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
245 N 074305022202 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
247 A 0019972372 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
249 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
251 N 074301022203 ELBOW FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
251 N 074301022203 ELBOW FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
251 A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
251 A 0004294638 ELBOW FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
252 N 074305022202 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
253 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
253 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
254 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
254 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
258 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
258 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
260 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
260 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
260 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
261 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
263 A 0009904670 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
264 A 0005455414 SWITCH
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
266 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "2.1,2.2"
266 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "2.1,2.2"
266 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE
266 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "1.1,1.2,2.3"
270 A 0009905070 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
270 A 0009905070 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
270 A 0009904570 T-FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
270 A 0019901570 T-FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
270 A 0019902771 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
270 A 0004294238 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE
276 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE
278 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE
280 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE
282 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
282 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
284 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
284 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
284 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
286 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
287 N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
287 N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
T YYYYYYYYYYYY PART NAME MISSING
.
26
288 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
288 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"

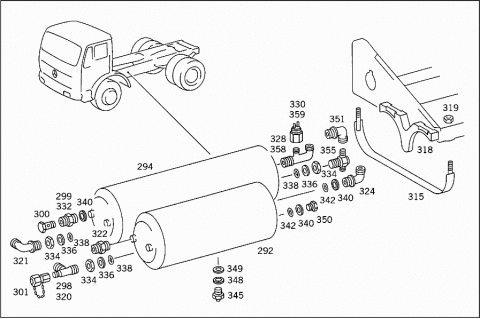

292 A 0004322601 RESERVOIR
Repalced by: A 0034321801
292 A 0034321801 RESERVOIR
30 L
292 A 0004325801 RESERVOIR
5L/10L/5L
292 A 0004327801 RESERVOIR
Repalced by: A 0034320901
292 A 0034320901 RESERVOIR
10L
294 A 0004325301 RESERVOIR
30/10 L.
294 A 0004326101 RESERVOIR
Repalced by: A 0034323001
A 0034323001 RESERVOIR
22.50 L
294 A 0004327501 RESERVOIR
Repalced by: A 0014328901
A 0014328901 RESERVOIR
5L/25L
A 0004325801 RESERVOIR
5L/10L/5L
A 0034320901 RESERVOIR
10L
298 A 0019901070 T-FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
299 A 0019979572 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
300 N 074305022202 HOLLOW SCREW
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
301 A 0004312031 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
301 A 0004314531 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
301 A 0004314831 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
301 A 0004316131 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0009979486 PLUG
A 3814320040 BRACKET
AIR RESERVOIR
A 3814320140 BRACKET
AIR RESERVOIR
A 6154320440 BRACKET
AIR RESERVOIR
A 3814320019 BASE
BRACKET TO SIDE MEMBER
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
BRACKET TO SIDE MEMBER
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
BRACKET TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO SIDE MEMBER
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRACKET TO SIDE MEMBER
315 A 3854300140 STRAP
RESERVOIR TO SUPPORT
315 A 3524300040 STRAP
Repalced by: A 3354300340
315 A 3354300340 STRAP
RESERVOIR TO SUPPORT
318 A 3854320218 BASE
RESERVOIR TO SUPPORT
318 A 3354320418 BASE
RESERVOIR TO SUPPORT
319 N 000934010014 NUT
RESERVOIR TO SUPPORT
320 A 0009906770 T-FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
321 N 003952012101 FITTING
Repalced by: A 0019902771
321 A 0019902771 ELBOW FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
322 A 0019979372 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0024294244 VALVE
Repalced by: A 0034290944
A 0034290944 VALVE
Repalced by: A 0044293144
A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
A 0024296544 VALVE
Repalced by: A 0034290844
A 0034290844 VALVE
Repalced by: A 0044293244
A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
A 0024298844 VALVE
TO 003 429 08 44
A 0004290745 DIAPHRAGM
TO 003 429 08 44
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
A 0005865842 REPAIR KIT
TO 003 429 09 44
A 0015862042 REPAIR KIT
TO 002 429 42 44
324 A 0009907771 ELBOW FITTING
324 A 0009907771 ELBOW FITTING
OVERFLOW VALVE
324 A 0009907771 ELBOW FITTING
324 A 0009907771 ELBOW FITTING
AIR RESERVOIR
324 A 0009907771 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
324 A 0009904670 T-FITTING
OUTSIDE AND REAR AIR RESERVOIRS
324 A 0019903371 ELBOW FITTING
AIR RESERVOIR
328 A 0009970569 F-FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
330 A 0005455414 SWITCH
INSIDE AIR RESERVOIR, REAR CONNECTION
332 A 0029971172 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
334 N 074305022202 NUT
AIR RESERVOIR
336 A 0004290227 THRUST RING
AIR RESERVOIR
336 A 0004290227 THRUST RING
AIR RESERVOIR
338 A 0009870446 SEALING CORD
AIR RESERVOIR
338 A 0009870446 SEALING CORD
AIR RESERVOIR
340 N 007603022102 SEAL RING
AIR RESERVOIR
340 A 0004290227 THRUST RING
AIR RESERVOIR,BOTTOM CONNECTION
342 A 0009870446 SEALING CORD
AIR RESERVOIR,BOTTOM CONNECTION
345 A 0004321107 VALVE
DRAIN
345 A 0004322107 VALVE
DRAIN
345 A 0004322407 VALVE
DRAIN
345 A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
348 N 007603022102 SEAL RING
OUTSIDE AIR RESERVOIR,REAR CONNECTION
348 A 0004290227 THRUST RING
OUTSIDE AIR RESERVOIR,REAR CONNECTION
348 A 0004290227 THRUST RING
OUTSIDE AIR RESERVOIR,REAR CONNECTION
349 A 0009870446 SEALING CORD
OUTSIDE AIR RESERVOIR,REAR CONNECTION
349 A 0009870446 SEALING CORD
OUTSIDE AIR RESERVOIR,REAR CONNECTION
350 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
350 N 000908022011 SCREW PLUG
OUTSIDE AIR RESERVOIR,REAR CONNECTION
351 A 0009902171 ELBOW FITTING
351 A 0009902171 ELBOW FITTING
355 A 0024295844 VALVE
CHECK VALVE
355 A 0024295844 VALVE
CHECK VALVE
355 A 0024295944 VALVE
CHECK VALVE
355 A 0024295944 VALVE
CHECK VALVE
355 A 0024297544 VALVE
CHECK VALVE
355 A 0024297544 VALVE
CHECK VALVE
358 A 0009909370 T-FITTING
BRAKE BOOSTER ASSEMBLY
359 A 0005455414 SWITCH
BRAKE BOOSTER ASSEMBLY
360 A 3854200168 SUPPORT
Repalced by: A 3854260240
360 A 3854260240 BRACKET
DOUBLE LEVER
362 A 3854200042 BRAKE LEVER
DOUBLE LEVER
364 A 0119813410 NEEDLE BEARING
DOUBLE LEVER
366 A 0069979147 SEAL RING
DOUBLE LEVER
368 A 3802940507 PIVOT PIN
DOUBLE LEVER
368 A 3854310853 SPACER TUBE
DOUBLE LEVER
370 A 3859930010 SPRING
DOUBLE LEVER
372 N 000471020001 LOCK RING
AT BRAKE BOOSTER CONSOLE
374 N 000433021002 WASHER
AT BRAKE BOOSTER CONSOLE
376 N 000931010379 SCREW
PAWL LEVER PIVOT PIN TO OUTSIDE BEARING BRACKET
M 10X110
377 N 913004010008 NUT
Repalced by: N 910113010000
377 N 910113010000 NUT
PAWL LEVER PIVOT PIN TO OUTSIDE BEARING BRACKET
378 N 304017010025 SCREW
Repalced by: N 304017010051
378 N 304017010051 SCREW
AT BRAKE BOOSTER CONSOLE
M 10X60
380 N 000934010014 NUT
AT BRAKE BOOSTER CONSOLE
A 3819910407 PIN
N 912007010000 CLIP
382 A 3804310092 ROD
FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
384 N 001434010009 PIN
FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
386 N 000433010505 WASHER
Repalced by: N 000433010510
386 N 000433010510 WASHER
FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
387 N 000094003219 COTTER PIN
FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
388 N 000933010105 SCREW
FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
M 10X25
388 N 000933010128 SCREW
FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
M 10X20
392 N 913004010008 NUT
Repalced by: N 910113010000
392 N 910113010000 NUT
FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
394 A 3854260165 PROTECTIVE PLATE
TOP
396 A 3854260065 PROTECTIVE PLATE
BOTTOM

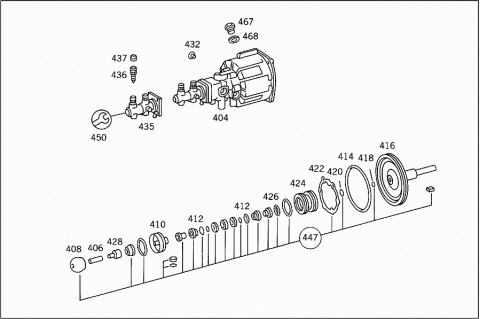

400 A 0004316914 BRAKE CYLINDER
Repalced by: A 0014317214
400 A 0004316814 BRAKE CYLINDER
Repalced by: A 0014317214
400 A 0014317214 BRAKE CYLINDER
BOSCH
404 A 0004319514 BRAKE CYLINDER
Repalced by: A 0014317514
404 A 0014310814 BRAKE CYLINDER
Repalced by: A 0014317514
404 A 0024301030 BRAKE BOOSTER ASSEMBLY
Repalced by: A 0014317514
404 A 0014314214 BRAKE CYLINDER
Repalced by: A 0014317514
404 A 0014317514 BRAKE CYLINDER
BOSCH-SCHAEFER
404 A 0014317514 BRAKE CYLINDER
BOSCH-SCHAEFER
406 A 0004311349 GUIDE BUSHING
TO 000 431 69 14,BOSCH
408 A 0004317587 PROTECTIVE CAP
TO 000 431 69 14,BOSCH
410 A 0004317283 PISTON
TO 000 431 69 14,000 431 95 14
412 A 0019979340 SEAL RING
Repalced by: A 0019975945
412 A 0019975945 SEAL RING
TO 000 431 69 14,000 431 95 14
414 A 0039979548 SEAL RING
TO 000 431 69 14,000 431 95 14
416 A 0004317483 PISTON
TO 000 431 69 14,000 431 95 14
418 A 0069975645 SEAL RING
TO 000 431 69 14,000 431 95 14
420 A 0039979348 SEAL RING
TO 000 431 69 14,000 431 95 14
422 A 0014310660 SEAL RING
TO 000 431 69 14,000 431 95 14
424 A 0004317383 PISTON
TO 000 431 69 14,000 431 95 14
426 A 0039979448 SEAL RING
TO 000 431 69 14,000 431 95 14
428 A 0004311449 GUIDE BUSHING
Repalced by: A 0004311249
428 A 0004311249 GUIDE BUSHING
TO 000 431 95 14,BOSCH-SCHAEFER
A 0039974347 SEAL RING
TO 000 431 69 14,000 431 95 14
432 A 0004318886 CUP
TO 000 431 69 14,000 431 95 14
A 0004311422 COVER
TO 001 431 72 14,BOSCH
A 0009882735 CAP
TO 001 431 72 14,BOSCH
435 A 0044205518 WHEEL BRAKE CYLINDER
Repalced by: A 0074202018
435 A 0074202018 WHEEL BRAKE CYLINDER
Repalced by: A 0044206818
435 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 002 430 10 30,001 431 42 14
435 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 75 14,BOSCH-SCHAEFER
435 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
004 420 68 18;RL,LL TO 181,183
436 A 0004310265 VALVE
Repalced by: A 3075530107
436 A 3075530107 VALVE
437 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
437 A 0004210887 PROTECTIVE CAP
A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
447 A 0025860743 REPAIR KIT
Repalced by: A 0004302108
447 A 0004302108 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 000 431 95 14,001 431 42 14,
T YYYYYYYYYYYY PART NAME MISSING
001 431 72 14,001 431 75 14
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
400
447 A 0025866543 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 08 14,002 430 10 30
447 A 0025865743 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 000 431 68 14
447 A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18
447 A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18
447 A 0005864829 REPAIR KIT
SLAVE CYLINDER
TO 004 420 55 18
450 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 20 18
456 N 912004010102 LOCK WASHER
BRAKE CYLINDER TO SUPPORT
458 N 000933010129 SCREW
Repalced by: N 304017010002
458 N 304017010002 SCREW
BRAKE CYLINDER TO SUPPORT
M 10X30
458 N 000933010094 SCREW
BRAKE CYLINDER TO SUPPORT
M 10X40
N 000931010264 SCREW
BRAKE CYLINDER TO SUPPORT
M 10X45
458 N 000931010282 SCREW
BRAKE CYLINDER TO SUPPORT
M 10X40
464 A 0005455214 SWITCH
COMPRESSED AIR CYLINDER
M 24 X 1 MM
466 N 007603010103 SEAL RING
Repalced by: N 007603010110
466 N 007603010110 SEAL RING
COMPRESSED AIR CYLINDER
467 N 007604010102 SCREW PLUG
COMPRESSED AIR CYLINDER
468 N 007603010103 SEAL RING
Repalced by: N 007603010110
468 N 007603010110 SEAL RING
COMPRESSED AIR CYLINDER
470 A 0019903371 ELBOW FITTING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
470 A 0019903371 ELBOW FITTING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
472 N 080705016003 NUT
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
472 N 080705016003 NUT
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
474 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
474 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
478 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
478 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
479 N 007603016401 SEAL RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
480 N 915036012203 HOLLOW SCREW
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
482 N 007603016401 SEAL RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
484 N 000908016001 SCREW PLUG
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
485 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
486 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
487 A 0024306901 BRAKE MASTER CYLINDER
SCHAEFER
A 0034303101 BRAKE MASTER CYLINDER
TEVES
A 0034303001 BRAKE MASTER CYLINDER
TEVES
487 A 0024307201 BRAKE MASTER CYLINDER
SCHAEFER
487 A 0034307401 BRAKE MASTER CYLINDER
SCHAEFER
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
TO 002 430 72 01,003 430 74 01,SCHAEFE
A 0004319360 SEAL RING
A 0004319260 SEAL RING
A 0004319160 SEAL RING
A 0009933705 SPRING
A 0004310871 SCREW
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
TO 002 430 72 01,003 430 74 01,SCHAEFE
500 A 0015869943 REPAIR KIT
Repalced by: A 0014300060
500 A 0014300060 REPAIR KIT
TO 002 430 72 01,SCHAEFER
500 A 0015869943 REPAIR KIT
Repalced by: A 0014300060
500 A 0014300060 REPAIR KIT
TO 003 430 74 01,SCHAEFER
500 A 0015866743 REPAIR KIT
Repalced by: A 0004309960
500 A 0004309960 REPAIR KIT
TO 002 430 69 01,SCHAEFER
502 N 007603022102 SEAL RING
BRAKE MASTER CYLINDER
504 A 0004318702 RESERVOIR
504 A 0004318702 RESERVOIR
508 A 0004315533 FILLER CAP
508 A 0004315533 FILLER CAP
A 0014310287 PROTECTIVE CAP
510 A 0039976440 SEAL RING
510 A 0039976440 SEAL RING
512 A 0004312634 STRAINER
512 A 0004312634 STRAINER
A 0004313333 FILLER CAP
A 0004313333 FILLER CAP
A 0004315802 RESERVOIR
WITH WARNING DEVICE
A 3814310640 BRACKET
EXPANSION TANK
A 3814311340 BRACKET
EXPANSION TANK
N 000933006102 SCREW
EXPANSION TANK TO BRACKET
M 6X15
N 000125006421 WASHER
EXPANSION TANK TO BRACKET
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
EXPANSION TANK TO BRACKET
N 000933010105 SCREW
EXPANSION TANK TO BRACKET
M 10X25
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
EXPANSION TANK TO BRACKET
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
EXPANSION TANK TO BRACKET
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
EXPANSION TANK TO BRACKET
M 8X15
N 912004008102 LOCK WASHER
EXPANSION TANK TO BRACKET
526 N 912004010102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
528 N 000933010129 SCREW
Repalced by: N 304017010002
528 N 304017010002 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
M 10X30
528 N 000931010258 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
M 10X55
532 A 3854300110 BRACKET
BRAKE MASTER CYLINDER
534 N 912004010102 LOCK WASHER
BRACKET TO SUPPORT
536 N 000933010128 SCREW
BRACKET TO SUPPORT
M 10X20
536 N 000933010128 SCREW
BRACKET TO SUPPORT
M 10X20
536 N 000933010105 SCREW
BRACKET TO SUPPORT
M 10X25
540 N 000125008418 WASHER
Repalced by: N 000125008443
540 N 000125008443 WASHER
MASTER CYLINDER TO BRACKET
542 N 304014008004 SCREW
Repalced by: N 304014008001
542 N 304014008001 SCREW
MASTER CYLINDER TO BRACKET
M 8X70
544 N 913004008004 NUT
Repalced by: N 913004008001
544 N 913004008001 NUT
MASTER CYLINDER TO BRACKET
546 A 0004280830 CONNECTOR
MASTER CYLINDER,CONNECTION "2.1"
546 A 0004280830 CONNECTOR
MASTER CYLINDER,CONNECTION "2.1"
546 A 0004280830 CONNECTOR
MASTER CYLINDER,CONNECTION "2.1"
546 A 0004280830 CONNECTOR
MASTER CYLINDER,CONNECTION "2.1"
546 A 0004280830 CONNECTOR
MASTER CYLINDER,CONNECTION "2.1"
547 N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION "2.1"
548 A 0004280026 HOLLOW SCREW
MASTER CYLINDER,CONNECTION "2.1"
548 A 0004280026 HOLLOW SCREW
MASTER CYLINDER,CONNECTION "2.1"
A 0009901763 HOLLOW SCREW
MASTER CYLINDER,CONNECTION "2.1"
A 0004280126 HOLLOW SCREW
MASTER CYLINDER,CONNECTION "2.1"
N 007603022102 SEAL RING
MASTER CYLINDER,CONNECTION "2.1"

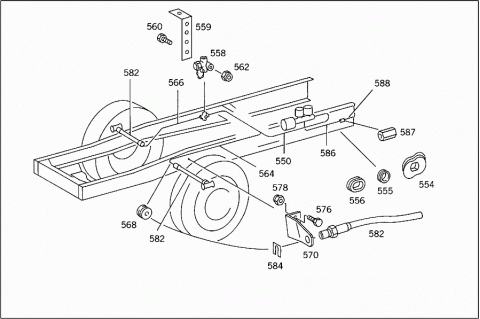

550 A 3404201529 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
900 MM
550 A 3404201529 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
900 MM
550 A 3404201529 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
900 MM
550 A 3404203329 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
1800 MM
550 A 3404200729 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
500 MM
550 A 3404201729 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
1000 MM
550 A 3404201329 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
800 MM
554 A 3879970181 GROMMET
LINE TO SIDE MEMBER
555 A 0039973481 GROMMET
LINE TO SIDE MEMBER
556 A 3859970381 GROMMET
LINE TO SIDE MEMBER
558 A 0004312231 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
558 A 0004316531 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
559 A 3604292940 BRACKET
TEST CONNECTION TO CROSS MEMBER
560 N 000933008153 SCREW
Repalced by: N 304017008034
560 N 304017008034 SCREW
TEST CONNECTION TO CROSS MEMBER
562 N 913004008004 NUT
Repalced by: N 913004008001
562 N 913004008001 NUT
TEST CONNECTION TO CROSS MEMBER
A 3404203829 LINE
NIGHT-LIGHTING
2200 MM
564 A 3404202329 LINE
FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE
1300 MM
564 A 3404202529 LINE
FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE
1400 MM
566 A 3404203129 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL
566 A 3404203929 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
2400 MM
568 A 3859970081 GROMMET
AT SIDE MEMBER
570 A 3854280240 BRACKET
LEFT BRAKE HOSE
570 A 3854280340 BRACKET
RIGHT BRAKE HOSE
570 A 3854280140 BRACKET
BRAKE HOSE,FRONT
576 N 000933008147 SCREW
Repalced by: N 304017008021
576 N 304017008021 SCREW
BRAKE HOSE TO SIDE MEMBER
M 8X20
576 N 000933008153 SCREW
Repalced by: N 304017008034
576 N 304017008034 SCREW
BRAKE HOSE TO SIDE MEMBER
M 8X25
578 N 913004008004 NUT
Repalced by: N 913004008001
578 N 913004008001 NUT
BRAKE HOSE TO SIDE MEMBER
582 A 0004288935 BRAKE HOSE
FRONT
650 MM
582 A 0014284835 BRAKE HOSE
FRONT
650 MM
582 A 0024280135 BRAKE HOSE
FRONT
700 MM
582 A 0024280235 BRAKE HOSE
FRONT
700 MM
584 A 0004280473 BRACKET
Repalced by: A 6525040038
584 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
586 A 3404201129 LINE
FROM MASTER CYLINDER, CONNECTION "2.1", TO BRAKE CIRCUIT II TEST CONNECTION,700 MM
586 A 3404201129 LINE
FROM MASTER CYLINDER TO CONNECTOR
586 A 3404201929 LINE
FROM MASTER CYLINDER TO CONNECTOR
1100 MM
586 A 3404201529 LINE
MASTER CYLINDER,CONNECTION "2.1"
900 MM
587 A 0004292736 CONNECTOR
588 A 3404204329 LINE
FROM CONNECTOR TO TEST CONNECTION
3200 MM
588 A 3404204529 LINE
FROM CONNECTOR TO TEST CONNECTION
3600 MM
588 A 3404204729 LINE
FROM CONNECTOR TO TEST CONNECTION
4000 MM
588 A 3404204829 LINE
FROM CONNECTOR TO TEST CONNECTION
4200 MM
588 A 3404205129 LINE
FROM CONNECTOR TO TEST CONNECTION
4800 MM
588 A 3404205329 LINE
FROM CONNECTOR TO TEST CONNECTION
5200 MM
589 A 0004311231 TEST CONNECTION
REAR AXLE BRAKE CIRCUIT
589 A 0004316631 TEST CONNECTION
REAR AXLE BRAKE CIRCUIT
590 A 3854310153 SPACER TUBE
Repalced by: A 4409910040
590 A 4409910040 SPACER TUBE
TEST CONNECTION TO SIDE MEMBER
590 A 3804310053 SPACER TUBE
TEST CONNECTION TO SIDE MEMBER
591 N 000931008251 SCREW
TEST CONNECTION TO SIDE MEMBER
M 8X75
591 N 000931008281 SCREW
TEST CONNECTION TO SIDE MEMBER
592 N 000125008418 WASHER
Repalced by: N 000125008443
592 N 000125008443 WASHER
TEST CONNECTION TO SIDE MEMBER
593 N 913004008004 NUT
Repalced by: N 913004008001
593 N 913004008001 NUT
TEST CONNECTION TO SIDE MEMBER
N 000933008160 SCREW
Repalced by: N 304017008040
N 304017008040 SCREW
Repalced by: N 910105008010
N 910105008010 SCREW
Repalced by: N 910143008005
N 910143008005 SCREW
TEST CONNECTION TO BRACKET
A 3604292940 BRACKET
TEST CONNECTION
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO SIDE MEMBER
594 A 3404204129 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
2800 MM
594 A 3404204329 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
3200 MM
594 A 3404204429 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
3400 MM
594 A 3404204629 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
3800 MM
594 A 3404204929 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
4400 MM
594 A 3404205129 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1"
4800 MM
594 A 3404201729 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1"
1000 MM
A 0004310518 METAL SPRING BELLOWS
Repalced by: A 0004311418
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
760
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
762
615 A 0014312512 BRAKE PRESSURE REGULATOR
(BRAKE POWER REDUCER)
615 A 0014314912 BRAKE PRESSURE REGULATOR
(BRAKE POWER REDUCER)
616 N 000933008212 SCREW
Repalced by: N 304017008016
616 N 304017008016 SCREW
BRAKE POWER REGULATOR TO BRACKET
617 N 912004008102 LOCK WASHER
BRAKE POWER REGULATOR TO BRACKET
618 A 3804310340 BRACKET
BRACKET TO REAR AXLE
619 A 3404200929 LINE
FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF
600 MM
620 A 3404202229 LINE
FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE
1250 MM
620 A 3404200729 LINE
FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE
500 MM
620 A 3404200729 LINE
FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE
500 MM
621 A 3224280140 BRACKET
BRAKE HOSE TO SIDE MEMBER
622 N 000933008147 SCREW
Repalced by: N 304017008021
622 N 304017008021 SCREW
BRACKET TO RIGHT SIDE MEMBER
623 N 913004008004 NUT
Repalced by: N 913004008001
623 N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
624 A 0014282935 BRAKE HOSE
Repalced by: A 0024280735
624 A 0024280735 BRAKE HOSE
REAR
624 A 0004289035 BRAKE HOSE
Repalced by: A 0024280935
624 A 0014284735 BRAKE HOSE
Repalced by: A 0024280935
624 A 0024280935 BRAKE HOSE
Repalced by: A 0024280135
624 A 0024280135 BRAKE HOSE
700 MM
627 A 0004280473 BRACKET
Repalced by: A 6525040038
627 A 6525040038 MOUNTING PLATE
REAR BRAKE HOSE TO BRACKET
630 A 0004312231 TEST CONNECTION
REAR AXLE
630 A 0004316531 TEST CONNECTION
REAR AXLE
632 N 912004008102 LOCK WASHER
TEST CONNECTION TO REAR AXLE
634 N 000933008147 SCREW
Repalced by: N 304017008021
634 N 304017008021 SCREW
TEST CONNECTION TO REAR AXLE
636 A 3604280243 ANGLE
BRAKE LINE MOUNTING
638 A 3604300143 CLAMP
Repalced by: N 916016008200
638 N 916016008200 CLAMP
BRAKE LINE MOUNTING
A 3814290940 BRACKET
Repalced by: A 3184923441
A 3184923441 BRACKET
BRAKE LINE MOUNTING
640 A 3609950601 CLAMP
BRAKE LINE MOUNTING
642 A 3604292940 BRACKET
TEST CONNECTION
642 A 3604292940 BRACKET
BRAKE LINE MOUNTING
A 3852670040 BRACKET
TEST CONNECTION
646 N 000933008153 SCREW
Repalced by: N 304017008034
646 N 304017008034 SCREW
BRAKE LINE MOUNTING
M 8X25
646 N 000933008147 SCREW
Repalced by: N 304017008021
646 N 304017008021 SCREW
BRAKE LINE MOUNTING
648 N 913004008004 NUT
Repalced by: N 913004008001
648 N 913004008001 NUT
BRAKE LINE MOUNTING
650 N 000933006121 SCREW
Repalced by: N 304017006020
650 N 304017006020 SCREW
BRAKE LINE MOUNTING
M 6X20
652 N 913004006002 NUT
Repalced by: N 913004006001
652 N 913004006001 NUT
BRAKE LINE MOUNTING
654 A 3129951020 CLAMP
LEFT & RIGHT BRAKE LINES TO REAR AXLE
656 A 3129973482 HOSE
LEFT & RIGHT BRAKE LINES TO REAR AXLE
657 A 3854294040 BRACKET
Repalced by: A 3812711640
657 A 3812711640 BRACKET
BRAKE LINE TO REAR AXLE
658 N 000933008212 SCREW
Repalced by: N 304017008016
658 N 304017008016 SCREW
LEFT & RIGHT BRAKE LINES TO REAR AXLE
M 8X16
660 N 912004008102 LOCK WASHER
LEFT & RIGHT BRAKE LINES TO REAR AXLE
662 A 3404201729 LINE
FROM TEST CONNECTION TO LEFT WHEEL CYLINDER
1000 MM
664 A 3404201029 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
650 MM

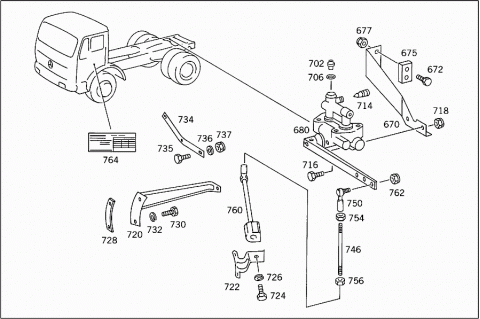

670 A 3834310340 BRACKET
Repalced by: A 3834300039
670 A 3834300039 SUPPORT
BRAKE POWER REGULATOR
672 N 000961012069 SCREW
Repalced by: N 308676012015
672 N 308676012015 SCREW
BRACKET TO RIGHT SIDE MEMBER
M 12X45
672 N 000961012107 SCREW
Repalced by: N 308676012011
672 N 308676012011 SCREW
675 A 3834310084 SHIM
BRAKE POWER REGULATOR
677 N 910113012002 NUT
BRACKET TO RIGHT SIDE MEMBER
680 A 0004314312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
680 A 0004314312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
680 A 0004317512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
680 A 0004317512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
680 A 0004314412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
A 0004312339 LEVER
TOOTHED
A 0004312339 LEVER
TOOTHED
A 0004312439 LEVER
A 0004312713 GUIDE BUSHING
A 0004316583 PISTON
A 0109975845 SEAL RING
A 0004310949 GUIDE BUSHING
A 0004318760 FELT STRIP
A 0089975646 SEAL RING
A 0004318560 SEAL RING
702 A 0004311068 VALVE PART
TO 000 431 75 12,44 12,43 12
A 0014315793 SPRING
TO 000 431 43 12,000 431 44 12,
T YYYYYYYYYYYY PART NAME MISSING
000 431 75 12
A 0004318660 SEAL RING
A 0004311049 GUIDE BUSHING
A 0029937201 SPRING
706 N 007603018101 SEAL RING
TO 000 431 43 12,000 431 44 12,
T YYYYYYYYYYYY PART NAME MISSING
000 431 75 12,
714 A 0004310465 VALVE
Repalced by: A 0004310265
714 A 0004310265 VALVE
Repalced by: A 3075530107
714 A 3075530107 VALVE
TO 000 431 43 12,000 431 44 12
T YYYYYYYYYYYY PART NAME MISSING
000 431 75 12
716 N 000931010258 SCREW
BRAKE POWER REGULATOR TO SUPPORT
718 N 913004010008 NUT
Repalced by: N 910113010000
718 N 910113010000 NUT
BRAKE POWER REGULATOR TO SUPPORT
720 A 3834310040 BRACKET
METAL SPRING BELLOWS
722 A 3814311440 BRACKET
METAL SPRING BELLOWS
724 N 000933012058 SCREW
METAL SPRING BELLOWS TO BRACKET
724 N 000961012056 SCREW
Repalced by: N 308676012038
724 N 308676012038 SCREW
METAL SPRING BELLOWS TO BRACKET
726 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
728 A 3554310384 SHIM
BRACKET TO REAR AXLE HOUSING
728 A 3554310384 SHIM
BRACKET TO REAR AXLE HOUSING
730 N 000933010157 SCREW
BRACKET TO REAR AXLE HOUSING
M 10X28
730 N 000933010157 SCREW
BRACKET TO REAR AXLE HOUSING
M 10X28
732 N 912004010102 LOCK WASHER
BRACKET TO REAR AXLE HOUSING
734 A 3604230125 WEB
LOAD-DEPENDING BRAKE
735 N 000933008147 SCREW
Repalced by: N 304017008021
735 N 304017008021 SCREW
LOAD-DEPENDING BRAKE
736 N 000125008418 WASHER
Repalced by: N 000125008443
736 N 000125008443 WASHER
LOAD-DEPENDING BRAKE
737 N 913004008004 NUT
Repalced by: N 913004008001
737 N 913004008001 NUT
LOAD-DEPENDING BRAKE
746 A 3534300692 ROD
Repalced by: N 900331008426
746 A 3814300092 ROD
Repalced by: N 900331008427
746 N 900331008427 PULL ROD
BRAKE POWER REGULATOR CONTROL
750 A 0004310667 YOKE
R.H. THREAD
750 A 0004310667 YOKE
R.H. THREAD
750 A 0004310867 YOKE
L.H. THREAD
754 N 304032008006 NUT
R.H. THREAD
754 N 304032008006 NUT
R.H. THREAD
756 N 000934008035 NUT
L.H. THREAD
A 0004310518 METAL SPRING BELLOWS
Repalced by: A 0004311418
760 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
760 A 0004311718 METAL SPRING BELLOWS
762 N 913004008004 NUT
Repalced by: N 913004008001
762 N 913004008001 NUT
ROD TO BRAKE POWER REGULATOR
764 A 3805840221 GUIDE SIGN
LOAD-DEPENDING BRAKE
764 A 3805840421 GUIDE SIGN
LOAD-DEPENDING BRAKE
764 A 3805840421 GUIDE SIGN
LOAD-DEPENDING BRAKE
764 A 3805840421 GUIDE SIGN
LOAD-DEPENDING BRAKE
764 A 3805842701 TYPE PLATE
LOAD-DEPENDING BRAKE
764 A 3805840521 GUIDE SIGN
LOAD-DEPENDING BRAKE
764 A 3805840321 GUIDE SIGN
LOAD-DEPENDING BRAKE
764 A 3805841321 GUIDE SIGN
LOAD-DEPENDING BRAKE
764 A 3805841421 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
A 0014292044 VALVE
Repalced by: A 0034291644
780 A 0034291644 VALVE
RELAY VALVE
BOSCH
780 A 0024290744 VALVE
Repalced by: A 0034295344
780 A 0034295344 VALVE
RELAY VALVE
KNORR
780 A 0014299144 VALVE
RELAY VALVE
GRAU
780 A 0014296844 VALVE
RELAY VALVE
WABCO
781 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
782 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
783 A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
784 A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
785 A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
786 A 0014311980 GASKET
Repalced by: A 0004311980
786 A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44,GRAU
788 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
788 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
788 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
788 A 0015862742 REPAIR KIT
TO 001 429 20 44,BOSCH
788 A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
790 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
790 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH;UP TO 03.82
790 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH;FROM 04.82
792 A 3554320140 BRACKET
RELAY VALVE
794 N 000125008418 WASHER
Repalced by: N 000125008443
794 N 000125008443 WASHER
RELAY VALVE TO BRACKET
796 N 913004008004 NUT
Repalced by: N 913004008001
796 N 913004008001 NUT
RELAY VALVE TO BRACKET
798 N 000933010128 SCREW
BRACKET TO CROSS MEMBER
800 N 913004010008 NUT
Repalced by: N 910113010000
800 N 910113010000 NUT
BRACKET TO CROSS MEMBER
804 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION "1"
806 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION "1"
808 A 0009905168 FITTING
RELAY VALVE,CONNECTION "1"
810 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "1"
812 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "1"
814 A 0005455414 SWITCH
RELAY VALVE,CONNECTION "2"
816 A 0009904770 T-FITTING
RELAY VALVE,CONNECTION "2",RIGHT
818 N 080705016003 NUT
RELAY VALVE,CONNECTION "2",RIGHT
820 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",RIGHT
824 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",RIGHT
826 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
828 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
829 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",LEFT
830 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
831 A 0019903371 ELBOW FITTING
RELAY VALVE,CONNECTION "4"
832 N 080705016003 NUT
RELAY VALVE,CONNECTION "4"
833 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "4"
834 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "4"
836 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "4"
838 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "4"
840 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
840 A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
840 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
840 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
848 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
848 A 0004305760 REPAIR KIT
TO 000 430 55 81,WABCO
848 A 0005868143 REPAIR KIT
Repalced by: A 0004305860
848 A 0004305860 REPAIR KIT
TO 000 430 56 81,WABCO
848 A 0025866243 REPAIR KIT
Repalced by: A 0034303881
848 A 0034303881 REPAIR KIT
TO 000 430 66 81,000 430 67 81,KNORR
853 N 000965006003 SCREW
HAND BRAKE VALVE TO CAB
M 6X25
853 N 000965006040 SCREW
HAND BRAKE VALVE TO CAB
M 6X30
858 A 3874310684 SHIM
HAND BRAKE VALVE TO CAB
860 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
860 N 915036010108 HOLLOW SCREW
LINE TO HAND BRAKE VALVE
862 N 007603014405 SEAL RING
LINE TO HAND BRAKE VALVE
864 A 0004315014 BRAKE CYLINDER
Repalced by: A 0014316514
864 A 0014316514 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR
866 A 0004318786 CUP
TO 000 431 50 14
866 A 0014311786 CUP
TO 001 431 65 14
A 0004318186 CUP
Repalced by: A 0015864342
A 0004310649 SLIDE
TO 000 431 50 14
872 A 0015864342 REPAIR KIT
Repalced by: A 0034201724
872 A 0034201724 REPAIR KIT
TO 001 431 65 14
A 0004318614 BRAKE CYLINDER
Repalced by: A 0004312414
A 0004312414 BRAKE CYLINDER
PARKING BRAKE
BOSCH
A 0004317614 BRAKE CYLINDER
PARKING BRAKE
KNORR
A 0004317986 CUP
Repalced by: A 0004319286
A 0004319286 CUP
TO 000 431 24 14,BOSCH
A 0014310860 SEAL RING
TO 000 431 86 14,BOSCH
A 0004317583 PISTON
TO 000 431 86 14,BOSCH
A 0014310886 CUP
Repalced by: A 0014311186
A 0014311186 CUP
TO 000 431 24 14,BOSCH
A 0014310760 SEAL RING
TO 000 431 86 14,BOSCH
A 0004310649 SLIDE
TO 000 431 24 14,BOSCH
A 0049971148 SEAL RING
TO 000 431 86 14,BOSCH
A 0089977948 SEAL RING
TO 000 431 24 14,BOSCH
A 0049971740 SEAL RING
TO 000 431 24 14,BOSCH
A 0004313034 STRAINER
TO 000 431 86 14,BOSCH
A 0004319086 CUP
Repalced by: A 0004318587
A 0004318587 PROTECTIVE CAP
TO 000 431 86 14,BOSCH
A 0004318186 CUP
Repalced by: A 0015864342
A 0004319586 CUP
TO 000 431 76 14,KNORR
A 0004310736 FILTER BOTTOM
TO 000 431 24 14,BOSCH
877 A 0015864342 REPAIR KIT
Repalced by: A 0034201724
877 A 0034201724 REPAIR KIT
TO 000 431 24 14,BOSCH
877 A 0014301660 REPAIR KIT
TO 000 431 76 14,KNORR
890 A 0019903371 ELBOW FITTING
SPRING LOAD ACCUMULATOR CYLINDER
892 A 0009904770 T-FITTING
SPRING LOAD ACCUMULATOR CYLINDER
894 A 0004312031 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
VOSS
894 A 0004314531 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
SCHAEFER
894 A 0004314831 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
WABCO
894 A 0004316131 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
WIRA
A 0009979486 PLUG
896 N 080705016003 NUT
SPRING LOAD ACCUMULATOR CYLINDER
898 A 0004290927 THRUST RING
SPRING LOAD ACCUMULATOR CYLINDER
902 A 0029971640 SEAL RING
Repalced by: A 0009971548
902 A 0009971548 SEAL RING
SPRING LOAD ACCUMULATOR CYLINDER
904 A 3804310040 BRACKET
SPRING LOAD ACCUMULATOR
906 N 000933012053 SCREW
BRAKE CYLINDER TO FRONT BRACKET
M 12X30
908 N 910113012002 NUT
BRAKE CYLINDER TO FRONT BRACKET
910 N 000933012097 SCREW
BRACKET TO RIGHT SIDE MEMBER
M 12X35
A 3604302311 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
A 3604302311 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
A 3854300611 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
A 3854300611 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
N 000933010105 SCREW
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
A 3859900140 WASHER
Repalced by: A 3859900540
A 3859900540 WASHER
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
920 A 3804200080 BRAKE INTERMEDIATE SHAFT
920 A 3854200080 BRAKE INTERMEDIATE SHAFT
924 A 3274270058 SEAL HOLDER
BEARING BRACKET TO FRONT CROSS MEMBER
926 A 3279970040 SEAL RING
BEARING BRACKET TO FRONT CROSS MEMBER
928 A 3854200178 BEARING BRACKET
BRAKE INTERMEDIATE SHAFT
A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860242
932 N 000470052000 EXPANSION PLUG
934 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
936 N 000933010145 SCREW
BEARING BRACKET TO FRONT CROSS MEMBER
M 10X35
938 N 913004010008 NUT
Repalced by: N 910113010000
938 N 910113010000 NUT
BEARING BRACKET TO FRONT CROSS MEMBER
940 A 3604200474 ROD
FRONT
942 A 3859960034 NUT
944 N 000934012020 NUT
946 N 000934012021 NUT
950 A 3584200074 ROD
REAR
952 A 3529910207 PIN
PULL ROD TO BRAKE INTERMEDIATE SHAFT
954 N 000433013005 WASHER
Repalced by: N 000433013010
954 N 000433013010 WASHER
PULL ROD TO BRAKE INTERMEDIATE SHAFT
956 N 900055012001 SPRING WASHER
PULL ROD TO BRAKE INTERMEDIATE SHAFT
958 N 000094003210 COTTER PIN
PULL ROD TO BRAKE INTERMEDIATE SHAFT
960 A 3529910107 PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
962 N 000433013005 WASHER
Repalced by: N 000433013010
962 N 000433013010 WASHER
PULL ROD TO BRAKE LEVER,REAR AXLE
964 N 000094003210 COTTER PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
