Transporto priemonė: 1017 LS; VIN numerio dalis: 380251
Grupė: 42 BRAKES
43880
43882
43883
43885
43886
43887
43888
43889
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
730.8
X XXXXXXXXXXXX PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
744.5

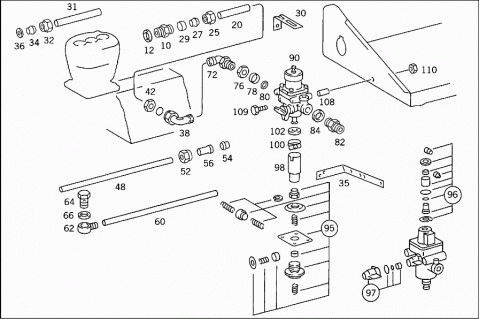

010 N 074313018201 FITTING
AIR COMPRESSOR CONNECTION
012 N 007603026104 SEAL RING
020 A 0004291401 LINE
15 MM
025 N 003872015100 UNION NUT
Repalced by: N 915018015000
025 N 915018015000 UNION NUT
027 N 003861015004 GLAND
029 N 915065015101 THRUST RING
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
N 000000001147 SCREW
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
030 A 3854290540 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
M 8X25
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
A 3854291840 BRACKET
Repalced by: A 3854290540
A 3854290540 BRACKET
AIR COMPRESSOR LINE
A 6164290040 BRACKET
AT LEFT SIDE MEMBER
N 000961014050 SCREW
Repalced by: N 308676014020
N 308676014020 SCREW
BRACKET TO LEFT SIDE MEMBER
M 14X1,5X35
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
BRACKET TO LEFT SIDE MEMBER
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
COMPRESSED AIR LINE TO BRACKET
N 007985006145 SCREW
Repalced by: N 007985006581
N 007985006581 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
031 A 0004292101 LINE
12 MM
032 N 915017012100 UNION NUT
034 N 003861012007 GLAND
Repalced by: A 0019901967
034 A 0019901967 SEAL CONE
035 A 3854292540 BRACKET
N 000933008150 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
AT TRIANGULAR CONTROL ARM
M 8X35
N 912004008102 LOCK WASHER
AT TRIANGULAR CONTROL ARM
A 1801550053 SPACER TUBE
AT TRIANGULAR CONTROL ARM
035H A 3934310140 BRACKET
Repalced by: A 6514310240
035H A 6514310240 BRACKET
AT TRIANGULAR CONTROL ARM
035K N 000933008147 SCREW
Repalced by: N 304017008021
035K N 304017008021 SCREW
AT TRIANGULAR CONTROL ARM
035M N 913004008004 NUT
Repalced by: N 913004008001
035M N 913004008001 NUT
AT TRIANGULAR CONTROL ARM
036 N 915045012100 SEAL RING
Repalced by: N 007603012121
036 N 007603012121 SEAL RING
N 074298022203 DOUBLE FITTING
038 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
038 A 0029901271 ELBOW FITTING
N 003941015101 FITTING
FITTING TO FRAME SIDE MEMBER
042 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
N 916027011014 HOSE
A 0004290541 FITTING
A 0029970590 LOOM TIE
Repalced by: N 916018016000
N 916017016000 CLAMP
Repalced by: N 000000000666
N 000000000666 CLAMP
048 A 0109975982 HOSE
Repalced by: A 0009872827
048 A 0009872827 PLASTIC PIPE
9 X 12 MM
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
N 040621013200 INSULATING HOSE
BLACK
13 X 0,8 MM
052 N 003870012104 UNION NUT
Repalced by: N 915017012100
052 N 915017012100 UNION NUT
054 N 003861012007 GLAND
Repalced by: A 0019901967
054 A 0019901967 SEAL CONE
056 A 0009921505 BUSHING
Repalced by: N 915062009000
056 N 915062009000 SLEEVE
N 915052009009 BANJO UNION
060 A 0089979082 HOSE
6 X 8 MM
A 0007630043 SLEEVE
Repalced by: N 915062006000
N 915062006000 SLEEVE
N 915052006014 BANJO UNION
A 0009906688 BANJO UNION
Repalced by: N 915052006013
N 915052006013 BANJO UNION
062 N 915052006021 BANJO UNION
A 0019976772 FITTING
Repalced by: N 915059006000
N 915059006002 FITTING
N 003870008101 UNION NUT
Repalced by: N 915017008100
N 915017008100 UNION NUT
N 003861008005 GLAND
064 N 915011008103 HOLLOW SCREW
Repalced by: N 915036010100
064 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
064 N 915036010108 HOLLOW SCREW
066 N 007603014405 SEAL RING
N 040621008200 INSULATING HOSE
N 040621007200 INSULATING HOSE
3/2-WAY VALVE;CONNECTION "1"
7MM
A 0089976082 HOSE
Repalced by: A 0009872627
A 0009872627 PLASTIC PIPE
BLACK
6 X 4 MM
N 915017006100 UNION NUT
N 003861006007 GLAND
Repalced by: A 0019901667
A 0019901667 SEAL CONE
A 0009903888 BANJO UNION
Repalced by: N 915052004006
N 915052004015 BANJO UNION
A 0009920105 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE
A 0019978390 LOOM TIE
COMPRESSED AIR LINE MOUNTING
A 0019978490 LOOM TIE
COMPRESSED AIR LINE MOUNTING
A 3229971581 GROMMET
A 3833020091 GROMMET
COMPRESSED AIR LINE MOUNTING
A 6204295240 BRACKET
AT CAB FLOOR
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AT CAB FLOOR
A 3874292740 BRACKET
PRESSURE GAUGE LINE TO BRACKET
A 3874291540 BRACKET
PRESSURE GAUGE LINE TO BRACKET
072 N 074301022203 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
076 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
078 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
080 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "1"
082 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION "2.1"
"2.1"
084 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "2.1"
"2.1"
A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "2.1"
A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "2.1"
090 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
090 A 0024314906 PRESSURE REGULATOR
WABCO
A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
090 A 0024314306 PRESSURE REGULATOR
BOSCH
090 A 0024318306 PRESSURE REGULATOR
KNORR
A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
095 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
095 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
A 0015868543 REPAIR KIT
Repalced by: A 0004301407
A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
096 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
096 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH. 0 481 039 201
097 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
097 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH. 0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
098 A 0004300170 MUFFLER
PRESSURE REGULATOR,CONNECTION "3"
A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION "3"
100 N 916017032000 CLAMP
Repalced by: N 000000000670
100 N 000000000670 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
100 N 916026016001 CLAMP
Repalced by: A 0059970190
100 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION "3"
100 N 916026020001 CLAMP
Repalced by: N 000000000667
100 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
102 A 0004310151 SPACER RING
PRESSURE REGULATOR,CONNECTION "3"
108 A 3809910040 SPACER TUBE
PRESSURE REGULATOR TO SUPPORT
109 N 000931008271 SCREW
PRESSURE REGULATOR TO SUPPORT
110 N 913004008004 NUT
Repalced by: N 913004008001
110 N 913004008001 NUT
PRESSURE REGULATOR TO SUPPORT
A 0014313506 VALVE
Repalced by: A 0014318406
A 0014318406 VALVE
KNORR
115 A 0014313806 VALVE
Repalced by: A 0024310406
115 A 0024310406 VALVE
BOSCH
A 0014314706 VALVE
WABCO
A 0014316806 VALVE
Repalced by: A 0024312906
A 0024312906 VALVE
Repalced by: A 0024319306
A 0024319306 VALVE
GRAU
A 0014310986 CUP
TO 002 431 04 06,BOSCH
A 0009934905 SPRING
Repalced by: A 0009935205
A 0009935205 SPRING
TO 002 431 04 06,BOSCH
A 0014311860 SEAL RING
34X2.3 MM,TO 001 431 68 06,GRAU
A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001
A 0099972448 SEAL RING
19.3X2.4 MM,TO 001 431 68 06,GRAU37001
A 0059973248 SEAL RING
25.3X2.4 MM,TO 001 431 68 06,GRAU
A 0004313188 VALVE SEAT
TO 000 431 68 06,GRAU 37001
A 0014311960 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
15X2 MM,TO 001 431 68 06,GRAU 19001
A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06,BOSCH
A 0015863842 REPAIR KIT
TO 001 431 35 06,KNORR
A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
A 0034300881 REPAIR KIT
TO 002 431 93 06,GRAU 74001
116 A 0025861743 REPAIR KIT
BOOT
TO 001 341 38 06,BOSCH
118 A 0015868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
A 0025860643 REPAIR KIT
Repalced by: A 0025862843
118 A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
118 A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210

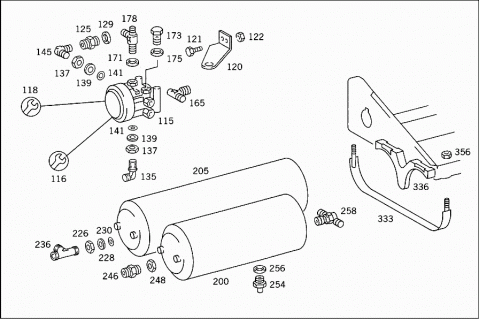

120 A 3854313440 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
121 N 000933008147 SCREW
Repalced by: N 304017008021
121 N 304017008021 SCREW
BRACKET TO SUPPORT
122 N 913004008004 NUT
Repalced by: N 913004008001
122 N 913004008001 NUT
BRACKET TO SUPPORT
N 074313016401 FITTING
Repalced by: A 0019972372
125 A 0019972372 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
129 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
N 074305022202 NUT
VALVE TO BRACKET
135 N 074315012100 FITTING
Repalced by: A 0019903371
135 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1"
137 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1"
139 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1"
A 0029971640 SEAL RING
Repalced by: A 0009971548
141 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1"
145 N 074315012100 FITTING
Repalced by: A 0019903371
145 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
165 A 0009909270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
175 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
A 0029971640 SEAL RING
Repalced by: A 0009971548
171 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
173 N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
178 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
N 007603016401 SEAL RING
LINE TO FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "24"
N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
N 915036012203 HOLLOW SCREW
LINE TO FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "24"
200 A 0004322601 RESERVOIR
Repalced by: A 0034321801
200 A 0034321801 RESERVOIR
30 L
205 A 0004325301 RESERVOIR
30/10 L.
210 A 0004322001 RESERVOIR
Repalced by: A 0034321101
210 A 0034321101 RESERVOIR
PNEUMATIC SUSPENSION
20 L
A 0009904670 T-FITTING
PNEUMATIC SUSPENSION RESERVOIR
A 0009901670 T-FITTING
PNEUMATIC SUSPENSION RESERVOIR
220 A 0019902171 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
A 0009903970 T-FITTING
Repalced by: A 0019901070
A 0019901070 T-FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
224 N 074315012101 FITTING
Repalced by: A 0009907771
224 A 0009907771 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
226 N 074305022202 NUT
INSIDE AIR RESERVOIR, REAR CONNECTION
228 A 0004290227 THRUST RING
INSIDE AIR RESERVOIR, REAR CONNECTION
230 A 0009870446 SEALING CORD
INSIDE AIR RESERVOIR, REAR CONNECTION
A 0029977272 FITTING
Repalced by: A 0049978972
A 0049978972 FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
232 A 0004312031 TEST CONNECTION
PNEUMATIC SUSPENSION RESERVOIR
VOSS
232 A 0004314831 TEST CONNECTION
PNEUMATIC SUSPENSION RESERVOIR
WABCO
232 A 0004316131 TEST CONNECTION
PNEUMATIC SUSPENSION RESERVOIR
WIRA
232 A 0004314531 TEST CONNECTION
PNEUMATIC SUSPENSION RESERVOIR
SCHAEFER
A 0004312531 TEST CONNECTION
PNEUMATIC SUSPENSION RESERVOIR
A 0004315331 TEST CONNECTION
PNEUMATIC SUSPENSION RESERVOIR
A 0009979486 PLUG
A 0005455414 SWITCH
INSIDE AIR RESERVOIR, REAR CONNECTION
236 A 0009903970 T-FITTING
Repalced by: A 0019901070
236 A 0019901070 T-FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0009902687 CROSS FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0019979572 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004312031 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
VOSS
A 0004314531 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
SCHAEFER
A 0004314831 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
WABCO
A 0004316131 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
WIRA
A 0009979486 PLUG
N 074305022202 NUT
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004290227 THRUST RING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0009870446 SEALING CORD
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
246 A 0029971172 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
248 A 0004290227 THRUST RING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0009870446 SEALING CORD
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
N 074313016401 FITTING
Repalced by: A 0019972372
250 A 0019972372 FITTING
PNEUMATIC SUSPENSION RESERVOIR
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
OUTSIDE AIR RESERVOIR,REAR CONNECTION
N 000908022011 SCREW PLUG
PNEUMATIC SUSPENSION RESERVOIR
252 N 007603022102 SEAL RING
OUTSIDE AIR RESERVOIR,REAR CONNECTION
254 A 0004321107 VALVE
DRAIN
254 A 0004322107 VALVE
DRAIN
254 A 0004322107 VALVE
DRAIN
254 A 0004322107 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
256 N 007603022102 SEAL RING
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
258 A 0024295844 VALVE
CHECK VALVE
A 0024295944 VALVE
CHECK VALVE
A 0024297544 VALVE
CHECK VALVE
260 A 0024290044 VALVE
Repalced by: A 0044293144
260 A 0044293144 VALVE
OVERFLOW VALVE
WABCO
A 0014296544 VALVE
Repalced by: A 0044293144
A 0044293144 VALVE
OVERFLOW VALVE
WABCO
A 0024297044 VALVE
Repalced by: A 0044293244
A 0044293244 VALVE
OVERFLOW VALVE
GRAU
A 0004290745 DIAPHRAGM
TO 002 429 70 44,GRAU
A 0024298844 VALVE
TO 002 429 70 44,GRAU
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
A 0015862042 REPAIR KIT
TO 001 429 65 44,WABCO
A 0015862642 REPAIR KIT
TO 002 429 00 44,BOSCH
N 074315012101 FITTING
Repalced by: A 0009907771
A 0009907771 ELBOW FITTING
OVERFLOW VALVE,CONNECTION "1"
A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION "1"
N 007603022102 SEAL RING
OVERFLOW VALVE,CONNECTION "1"
N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION "1"
N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION "1"
N 074305022202 NUT
OVERFLOW VALVE,CONNECTIONS "1,2"
A 0004290227 THRUST RING
OVERFLOW VALVE,CONNECTIONS "1,2"
A 0004290227 THRUST RING
OVERFLOW VALVE,CONNECTIONS "1,2"
A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTIONS "1,2"
A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTIONS "1,2"
A 0014292044 VALVE
Repalced by: A 0034291644
A 0034291644 VALVE
RELAY VALVE
BOSCH
A 0024290744 VALVE
Repalced by: A 0034295344
A 0034295344 VALVE
RELAY VALVE
KNORR
A 0014299144 VALVE
RELAY VALVE
GRAU
280 A 0014296844 VALVE
RELAY VALVE
WABCO
A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
A 0014311980 GASKET
Repalced by: A 0004311980
A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44,GRAU
A 0015862742 REPAIR KIT
TO 001 429 20 44,BOSCH
A 0025865642 REPAIR KIT
Repalced by: A 0004201071
A 0004201071 VALVE
GASKET KIT
003 429 16 44,BOSCH; UP TO 03.82
A 0004201271 VALVE
GASKET KIT
003 429 16 44,BOSCH; FROM 04.82
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
285 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
291 N 913004008004 NUT
Repalced by: N 913004008001
291 N 913004008001 NUT
RELAY VALVE TO CROSS MEMBER
A 0004290227 THRUST RING
RELAY VALVE,CONNECTION "1"
A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION "1"
A 0009905168 FITTING
RELAY VALVE,CONNECTION "1"
N 007603022102 SEAL RING
RELAY VALVE,CONNECTION "1"
N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "1"
N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "1"
301 A 0009905070 T-FITTING
RELAY VALVE,CONNECTION "2",RIGHT
N 080705016003 NUT
RELAY VALVE,CONNECTION "2",RIGHT
A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",RIGHT
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",RIGHT
309 A 0005455414 SWITCH
RELAY VALVE,CONNECTION "2",RIGHT
A 0029971640 SEAL RING
Repalced by: A 0009971548
N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",LEFT
A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
A 0029971640 SEAL RING
Repalced by: A 0009971548
N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "4"
N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "4"
333 A 3854300140 STRAP
AIR RESERVOIR
336 A 3854320218 BASE
AIR RESERVOIR
339 A 3524320040 BRACKET
PNEUMATIC SUSPENSION RESERVOIR
341 A 3354320418 BASE
PNEUMATIC SUSPENSION RESERVOIR
345 N 000934010014 NUT
350 A 3814320140 BRACKET
PNEUMATIC SUSPENSION RESERVOIR
352 N 000933010105 SCREW
BRACKET TO SIDE MEMBER
354 N 000933010129 SCREW
Repalced by: N 304017010002
354 N 304017010002 SCREW
BRACKET TO SIDE MEMBER
356 N 913004010008 NUT
Repalced by: N 910113010000
356 N 910113010000 NUT
BRACKET TO SIDE MEMBER

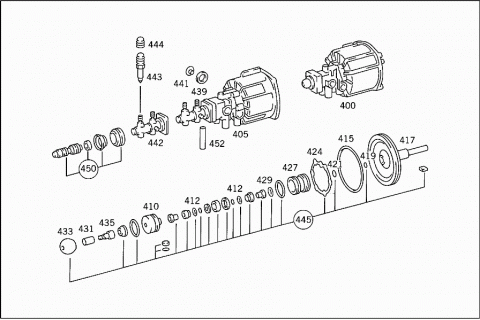

400 A 0004316914 BRAKE CYLINDER
Repalced by: A 0014317214
400 A 0014317214 BRAKE CYLINDER
BOSCH
400 A 0004316814 BRAKE CYLINDER
Repalced by: A 0014317214
405 A 0004319514 BRAKE CYLINDER
Repalced by: A 0014317514
405 A 0014310814 BRAKE CYLINDER
Repalced by: A 0014317514
405 A 0024301030 BRAKE BOOSTER ASSEMBLY
Repalced by: A 0014317514
405 A 0014314214 BRAKE CYLINDER
Repalced by: A 0014317514
405 A 0014317514 BRAKE CYLINDER
BOSCH-SCHAEFER
410 A 0004317283 PISTON
TO 000 431 69 14,000 431 95 14
412 A 0019979340 SEAL RING
Repalced by: A 0019975945
412 A 0019975945 SEAL RING
TO 000 431 69 14,000 431 95 14
415 A 0039979548 SEAL RING
TO 000 431 69 14,000 431 95 14
417 A 0004317483 PISTON
TO 000 431 69 14,000 431 95 14
419 A 0069975645 SEAL RING
TO 000 431 69 14,000 431 95 14
421 A 0039979348 SEAL RING
TO 000 431 69 14,000 431 95 14
424 A 0014310660 SEAL RING
TO 000 431 69 14,000 431 95 14
427 A 0004317383 PISTON
TO 000 431 69 14,000 431 95 14
429 A 0039979448 SEAL RING
TO 000 431 69 14,000 431 95 14
431 A 0004311349 GUIDE BUSHING
TO 000 431 69 14
433 A 0004317587 PROTECTIVE CAP
TO 000 431 69 14
A 0009882735 CAP
TO 001 431 72 41
435 A 0004311449 GUIDE BUSHING
Repalced by: A 0004311249
435 A 0004311249 GUIDE BUSHING
TO 000 431 95 14
439 A 0039974347 SEAL RING
441 A 0004318886 CUP
TO 000 431 69 14,000 431 95 14
A 0004315586 CUP
TO 000 431 84 14,000 431 68 14
A 0004311422 COVER
TO 001 431 72 14
A 0044205518 WHEEL BRAKE CYLINDER
Repalced by: A 0074202018
442 A 0074202018 WHEEL BRAKE CYLINDER
Repalced by: A 0044206818
442 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO002 430 10 30,001 431 42 14SCHAEFER,
442 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
001 431 75 14
A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
443 A 0004310265 VALVE
Repalced by: A 3075530107
443 A 3075530107 VALVE
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
444 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
444 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
444 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
444 A 0004210887 PROTECTIVE CAP
A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
445 A 0025860743 REPAIR KIT
Repalced by: A 0004302108
445 A 0004302108 REPAIR KIT
TO 000 431 69 14,000 431 95 14,
T YYYYYYYYYYYY PART NAME MISSING
001 431 42 14
445 A 0004302108 REPAIR KIT
TO 001 431 72 14
A 0025866543 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 08 14,002 430 10 30
A 0025865743 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 000 431 68 14
A 0005864829 REPAIR KIT
SLAVE CYLINDER
TO 004 420 55 18
450 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 20 18
A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18
A 0025865542 REPAIR KIT
SLAVE CYLINDER
452 A 0089979082 HOSE
BLEEDING
A 0005455214 SWITCH
PNEUMATIC SUSPENSION
M 24 X 1 MM
N 007603010103 SEAL RING
Repalced by: N 007603010110
N 007603010110 SEAL RING
PNEUMATIC SUSPENSION
455 N 000933010129 SCREW
Repalced by: N 304017010002
455 N 304017010002 SCREW
BRAKE CYLINDER TO SUPPORT
N 000933010094 SCREW
BRAKE CYLINDER TO SUPPORT
458 N 912004010102 LOCK WASHER
BRAKE CYLINDER TO SUPPORT
462 N 074315012100 FITTING
Repalced by: A 0019903371
462 A 0019903371 ELBOW FITTING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
464 N 080705016003 NUT
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
466 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
468 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
470 N 000908016001 SCREW PLUG
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
473 N 007603016401 SEAL RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
474 A 3804310092 ROD
476 N 001434010006 PIN
Repalced by: N 001434010009
476 N 001434010009 PIN
478 N 000433010505 WASHER
Repalced by: N 000433010510
478 N 000433010510 WASHER
N 000094003206 COTTER PIN
Repalced by: N 000094003019
N 000094003219 COTTER PIN
480 N 000933010105 SCREW
FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
482 N 000933010128 SCREW
FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
484 N 913004010008 NUT
Repalced by: N 910113010000
484 N 910113010000 NUT
FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
A 3854200168 SUPPORT
Repalced by: A 3854260240
486 A 3854260240 BRACKET

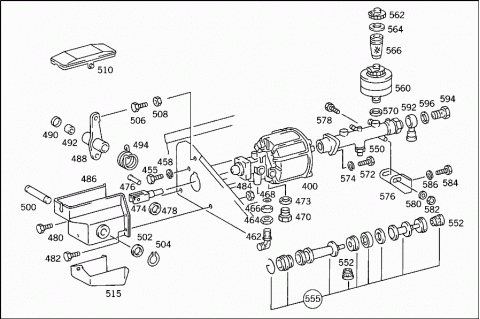

488 A 3854200042 BRAKE LEVER
490 A 0089978046 SEAL RING
Repalced by: A 0069979147
490 A 0069979147 SEAL RING
492 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
492 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
492 A 0119813410 NEEDLE BEARING
494 A 3859930010 SPRING
A 3802940507 PIVOT PIN
500 A 3854310853 SPACER TUBE
502 N 000433021002 WASHER
N 000931010379 SCREW
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
504 N 000471020001 LOCK RING
506 N 304017010025 SCREW
Repalced by: N 304017010051
506 N 304017010051 SCREW
508 N 000934010014 NUT
510 A 3854260165 PROTECTIVE PLATE
TOP
515 A 3854260065 PROTECTIVE PLATE
BOTTOM
A 0034303001 BRAKE MASTER CYLINDER
TEVES
550 A 0024307201 BRAKE MASTER CYLINDER
SCHAEFER
552 A 0004310265 VALVE
Repalced by: A 3075530107
552 A 3075530107 VALVE
A 0004319360 SEAL RING
A 0004319260 SEAL RING
A 0004319160 SEAL RING
A 0009933705 SPRING
A 0004310871 SCREW
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
555 A 0015869943 REPAIR KIT
Repalced by: A 0014300060
555 A 0014300060 REPAIR KIT
TO 002 430 72 01
560 A 0004318702 RESERVOIR
562 A 0004312833 FILLER CAP
Repalced by: A 0004315533
562 A 0004315533 FILLER CAP
A 0014310287 PROTECTIVE CAP
564 A 0039976440 SEAL RING
42X21.5 MM
566 A 0004312634 STRAINER
A 0004319702 RESERVOIR
Repalced by: A 0004318702
A 0004313333 FILLER CAP
570 N 007603022102 SEAL RING
572 N 000933010129 SCREW
Repalced by: N 304017010002
572 N 304017010002 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
574 N 912004010102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
576 A 3854300110 BRACKET
BRAKE MASTER CYLINDER
578 N 304014008004 SCREW
Repalced by: N 304014008001
578 N 304014008001 SCREW
MASTER CYLINDER TO BRACKET
580 N 000125008418 WASHER
Repalced by: N 000125008443
580 N 000125008443 WASHER
MASTER CYLINDER TO BRACKET
582 N 913004008004 NUT
Repalced by: N 913004008001
582 N 913004008001 NUT
MASTER CYLINDER TO BRACKET
584 N 000933010128 SCREW
BRACKET TO APPARATUS SUPPORT
586 N 000127010203 LOCK WASHER
Repalced by: N 912004010102
586 N 912004010102 LOCK WASHER
BRACKET TO APPARATUS SUPPORT
592 A 0004280830 CONNECTOR
BRAKE MASTER CYLINDER
594 A 0004280026 HOLLOW SCREW
BRAKE MASTER CYLINDER
596 N 007603014405 SEAL RING
BRAKE MASTER CYLINDER
600 A 3404201529 LINE
FROM BRAKE MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 900 MM
602 A 0004312231 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
602 A 0004316531 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
A 3604292940 BRACKET
TEST CONNECTION
A 0004311231 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
A 0004316631 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
N 000931008246 SCREW
Repalced by: N 304017008028
N 304017008028 SCREW
TEST CONNECTION TO BRACKET
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
A 3604280243 ANGLE
BRAKE LINE TO SIDE AND CROSS MEMBERS
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRAKE LINE TO SIDE MEMBER
M 8X25
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRAKE LINE TO CROSS MEMBER BEHIND CAB
M8X20
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRAKE LINE TO SIDE AND CROSS MEMBERS
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
BRAKE LINE TO CROSS MEMBER BEHIND CAB
N 000000001147 SCREW
BRAKE LINE TO CROSS MEMBER BEHIND CAB
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRAKE LINE TO CROSS MEMBER BEHIND CAB
625 A 3404202329 LINE
FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE
1300 MM
626 A 3404203929 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
2400 MM
627 A 3859970081 GROMMET
A 3879970181 GROMMET
AT SIDE MEMBER
628 A 3854280240 BRACKET
LEFT BRAKE HOSE
A 3854280340 BRACKET
RIGHT BRAKE HOSE
630 N 000933008147 SCREW
Repalced by: N 304017008021
630 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
631 N 913004008004 NUT
Repalced by: N 913004008001
631 N 913004008001 NUT
BRACKET TO SIDE MEMBER
634 A 0004280473 BRACKET
Repalced by: A 6525040038
634 A 6525040038 MOUNTING PLATE
640 A 0024281135 BRAKE HOSE
Repalced by: A 0004288935
640 A 0004288935 BRAKE HOSE
650 MM
640 A 0014284835 BRAKE HOSE
650 MM
A 3604280243 ANGLE
CONNECTOR
645 A 3404201129 LINE
FROM MASTER CYLINDER TO CONNECTOR
700 MM
A 0004292736 CONNECTOR
646 A 3609950601 CLAMP
AT BRACKET
647 N 000000001147 SCREW
AT BRACKET
M 6X20
648 N 913004006002 NUT
Repalced by: N 913004006001
648 N 913004006001 NUT
AT BRACKET
649 A 3604280243 ANGLE
CONNECTOR
650 N 000933008153 SCREW
Repalced by: N 304017008034
650 N 304017008034 SCREW
BRACKET TO LEFT SIDE MEMBER
651 N 913004008004 NUT
Repalced by: N 913004008001
651 N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
A 3404204529 LINE
FROM CONNECTOR TO TEST CONNECTION
3600 MM
A 3404204329 LINE
FROM CONNECTOR TO TEST CONNECTION
3200 MM
652 A 0004311231 TEST CONNECTION
REAR AXLE BRAKE CIRCUIT
A 0004316631 TEST CONNECTION
REAR AXLE BRAKE CIRCUIT
658 N 007985008160 SCREW
TEST CONNECTION TO BRACKET
N 000125006421 WASHER
TEST CONNECTION TO BRACKET
661 N 913004006002 NUT
Repalced by: N 913004006001
661 N 913004006001 NUT
TEST CONNECTION TO BRACKET
664 A 3604293140 BRACKET
TEST CONNECTION
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
A 3404202129 LINE
FROM REAR AXLE TEST CONNECTION TO BRAKE POWER REGULATOR
1200 MM
A 3404202929 LINE
FROM REAR AXLE TEST CONNECTION TO BRAKE POWER REGULATOR
1600 MM
670 A 3404201729 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1"
1000 MM
A 3404201229 LINE
FROM BRAKE POWER REGULATOR TO DISTRIBUTOR
750 MM
A 3404204429 LINE
FROM DISTRIBUTOR TO VALVE
3400 MM
A 3404204629 LINE
FROM DISTRIBUTOR TO VALVE
3800 MM
675 A 3404200729 LINE
FROM BRAKE POWER REGULATOR TO BRAKE HOSE
500 MM
A 3404202129 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE
1200 MM
A 0004286835 BRAKE HOSE
Repalced by: A 0024280535
685 A 0024280535 BRAKE HOSE
A 0014283435 BRAKE HOSE
685 A 0014285535 BRAKE HOSE
690 A 3404202529 LINE
FROM TEST CONNECTION TO LEFT REAR WHEEL
1400 MM
695 A 3404201329 LINE
FROM TEST CONNECTION TO RIGHT REAR WHEEL
800 MM

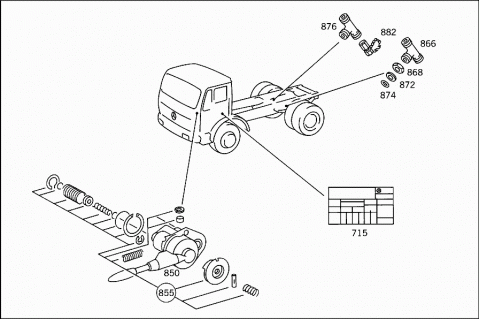

715 A 3805841221 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL

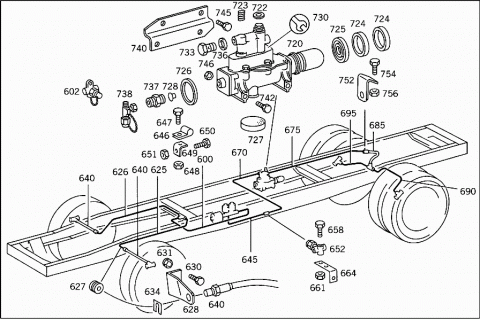

720 A 0014311912 BRAKE PRESSURE REGULATOR
722 A 0029976640 SEAL RING
723 A 0029937201 SPRING
724 A 0004314160 SEAL RING
725 A 0004315786 CUP
726 A 0004314060 SEAL RING
Repalced by: A 0129975448
726 A 0129975448 SEAL RING
727 A 0004290695 AIR CLEANER
728 A 0004317887 PROTECTIVE CAP
730 A 0014304260 REPAIR KIT
733 N 915039008202 HOLLOW SCREW FITTING
736 N 007603012405 SEAL RING
736 N 007603012405 SEAL RING
737 A 0019972572 FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
738 A 0024292444 VALVE
BRAKE POWER REGULATOR,CONNECTION:
"4"
A 0039974348 SEAL RING
A 0039974448 SEAL RING
A 0039974548 SEAL RING
740 A 3854314540 BRACKET
BRAKE POWER REGULATOR
742 N 000960012333 SCREW
BRAKE POWER REGULATOR TO BRACKET
N 000960012371 SCREW
BRAKE POWER REGULATOR TO BRACKET
M 12X11
745 N 000961012151 SCREW
BRACKET TO FRAME SIDE MEMBER
A 3604270253 SPACER TUBE
BRAKE POWER REGULATOR TO BRACKET
746 N 910113012002 NUT
752 A 3124281040 BRACKET
Repalced by: A 3834280140
752 A 3834280140 BRACKET
BRAKE HOSE,REAR
754 N 000933008152 SCREW
Repalced by: N 304017008027
754 N 304017008027 SCREW
BRACKET TO RIGHT SIDE MEMBER
756 N 913004008004 NUT
Repalced by: N 913004008001
756 N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
A 0004280473 BRACKET
Repalced by: A 6525040038
A 6525040038 MOUNTING PLATE
A 0004312231 TEST CONNECTION
REAR AXLE
A 0004316531 TEST CONNECTION
REAR AXLE
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
TEST CONNECTION TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
TEST CONNECTION TO BRACKET

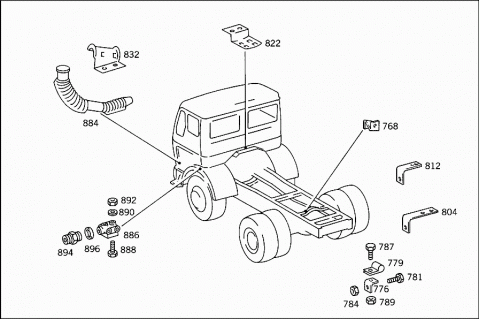

768 A 3814311940 BRACKET
TEST CONNECTION
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
BRACKET TO REAR AXLE
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO REAR AXLE
776 A 3604280243 ANGLE
BRAKE LINE TO SIDE AND CROSS MEMBERS
779 A 3604300143 CLAMP
Repalced by: N 916016008200
779 N 916016008200 CLAMP
BRAKE LINE TO SIDE AND CROSS MEMBERS
781 N 000933008153 SCREW
Repalced by: N 304017008034
781 N 304017008034 SCREW
BRAKE LINE TO SIDE AND CROSS MEMBERS
784 N 913004008004 NUT
Repalced by: N 913004008001
784 N 913004008001 NUT
BRAKE LINE TO SIDE AND CROSS MEMBERS
787 N 000000001147 SCREW
BRAKE LINE TO SIDE AND CROSS MEMBERS
M 6X20
789 N 913004006002 NUT
Repalced by: N 913004006001
789 N 913004006001 NUT
BRAKE LINE TO SIDE AND CROSS MEMBERS
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
BRAKE LINE TO REAR AXLE
N 000000001147 SCREW
BRAKE LINE TO REAR AXLE
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRAKE LINE TO REAR AXLE
A 3604292440 BRACKET
Repalced by: A 3604292940
804 A 3604292940 BRACKET
BRAKE LINE TO REAR AXLE
A 3604293140 BRACKET
BRAKE LINE TO REAR AXLE
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRAKE LINE TO REAR AXLE
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
BRAKE LINE TO REAR AXLE
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRAKE LINE TO REAR AXLE
812 A 3274925419 BRACKET
Repalced by: A 6205240340
812 A 6205240340 BRACKET
PLASTIC LINE
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO CROSS MEMBER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO CROSS MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO CROSS MEMBER
822 A 3874291140 BRACKET
PLASTIC LINE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO CAB
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO CAB
832 A 3874292540 BRACKET
LEFT
A 3874292640 BRACKET
RIGHT
N 000933008145 SCREW
BRACKET TO BUMPER STRUT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO BUMPER STRUT
850 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
850 A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
850 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
850 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
855 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
855 A 0004305760 REPAIR KIT
TO 000 430 55 81, WABCO
A 0005868143 REPAIR KIT
Repalced by: A 0004305860
A 0004305860 REPAIR KIT
TO 000 430 56 81, WABCO
A 0025866243 REPAIR KIT
Repalced by: A 0034303881
A 0034303881 REPAIR KIT
TO 000 430 66 81,000 430 67 81,KNORR
A 3874310684 SHIM
HAND BRAKE VALVE TO CAB
N 000963006013 SCREW
HAND BRAKE VALVE TO CAB
N 000965006003 SCREW
HAND BRAKE VALVE TO CAB
N 000965006003 SCREW
HAND BRAKE VALVE TO BRACKET
N 000965006040 SCREW
HAND BRAKE VALVE TO CAB
N 000965006058 SCREW
HAND BRAKE VALVE TO BRACKET
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
HAND BRAKE VALVE TO BRACKET
A 3854318140 BRACKET
HAND BRAKE VALVE
N 000933006121 SCREW
Repalced by: N 304017006020
N 304017006020 SCREW
BRACKET TO CAB FLOOR
A 3956190211 PLATE
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
BRACKET TO CAB FLOOR
A 3854200944 PROTECTIVE PLATE
A 0019978490 LOOM TIE
N 915011008103 HOLLOW SCREW
Repalced by: N 915036010100
N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
N 915036010108 HOLLOW SCREW
CONNECTION:
"1,2,3"
N 007603014405 SEAL RING
CONNECTION:
"1,2,3"
866 A 0009904270 T-FITTING
LEFT SPRING-LOAD ACCUMULATOR
868 N 080705016003 NUT
LEFT SPRING-LOAD ACCUMULATOR
872 A 0004290927 THRUST RING
LEFT SPRING-LOAD ACCUMULATOR
A 0029971640 SEAL RING
Repalced by: A 0009971548
874 A 0009971548 SEAL RING
LEFT SPRING-LOAD ACCUMULATOR
A 0009905563 HOLLOW SCREW
Repalced by: N 915047012100
N 915047012100 HOLLOW SCREW
LEFT SPRING-LOAD ACCUMULATOR
N 007603016401 SEAL RING
LEFT SPRING-LOAD ACCUMULATOR
876 A 0009904770 T-FITTING
RIGHT SPRING-LOAD ACCUMULATOR
N 080705016003 NUT
A 0004290927 THRUST RING
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
882 A 0004312031 TEST CONNECTION
RIGHT SPRING-LOAD ACCUMULATOR
VOSS
882 A 0004314831 TEST CONNECTION
RIGHT SPRING-LOAD ACCUMULATOR
WABCO
882 A 0004316131 TEST CONNECTION
RIGHT SPRING-LOAD ACCUMULATOR
WIRA
882 A 0004314531 TEST CONNECTION
RIGHT SPRING-LOAD ACCUMULATOR
SCHAEFER
A 0009979486 PLUG
884 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
884 A 0004290286 PROTECTIVE TUBE
A 0004294137 DISTRIBUTOR
886 A 0004294037 DISTRIBUTOR
SECONDARY CONSUMING UNITS
888 N 304017006026 SCREW
Repalced by: N 304017006026
888 N 304017006026 SCREW
DISTRIBUTOR TO CAB
890 N 000125006421 WASHER
DISTRIBUTOR TO CAB
892 N 913004006002 NUT
Repalced by: N 913004006001
892 N 913004006001 NUT
DISTRIBUTOR TO CAB
N 915036012203 HOLLOW SCREW
AT DISTRIBUTOR
N 915039008202 HOLLOW SCREW FITTING
DISTRIBUTOR,CONNECTIONS:
"1,2,3"
N 915047008202 HOLLOW SCREW
DISTRIBUTOR,CONNECTION:
"1"
894 A 0009971572 FITTING
Repalced by: A 0019972572
894 A 0019972572 FITTING
DISTRIBUTOR
N 007603016401 SEAL RING
AT DISTRIBUTOR
896 N 007603012405 SEAL RING
DISTRIBUTOR
N 000908012003 SCREW PLUG
Repalced by: N 000908012009
N 000908012009 SCREW PLUG
DISTRIBUTOR
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
