Transporto priemonė: 1017 LS; VIN numerio dalis: 380251

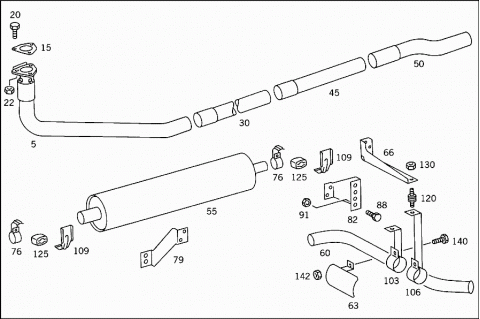

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3834900619 | EXHAUST PIPE | |
| FRONT | ||
| 005 | A 3814900119 | EXHAUST PIPE |
| Repalced by: A 3814900319 | ||
| 005 | A 3814900319 | EXHAUST PIPE |
| FRONT | ||
| A 3834922530 | PROTECTIVE PLATE | |
| 015 | A 3024900080 | FLANGE GASKET |
| Repalced by: A 4424920080 | ||
| 015 | A 4424920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000931012132 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 022 | N 000934012021 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | A 3524920907 | CONNECTOR |
| Repalced by: A 3024920509 | ||
| 030 | A 3024920509 | CONNECTOR |
| FRONT | ||
| 045 | A 3834923401 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 050 | A 3814920101 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 055 | A 3834900201 | EXHAUST MUFFLER |
| A 3604921907 | CONNECTOR | |
| REAR | ||
| A 3834925204 | REAR EXHAUST PIPE | |
| 060 | A 3604921505 | REAR EXHAUST PIPE |
| Repalced by: A 3604921705 | ||
| 060 | A 3604921705 | REAR EXHAUST PIPE |
| A 3814920204 | REAR EXHAUST PIPE | |
| 063 | A 3834901030 | PROTECTIVE PLATE |
| 066 | A 3854920416 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| A 3814910516 | SUPPORT | |
| EXHAUST PIPE TO SIDE MEMBER | ||
| A 3814910316 | SUPPORT | |
| Repalced by: A 3604910016 | ||
| A 3604910016 | SUPPORT | |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 076 | A 3814910416 | SUPPORT |
| FRONT AND REAR | ||
| 079 | A 3834922616 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 082 | A 3834910216 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| A 3854920416 | SUPPORT | |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 088 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 088 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 091 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 091 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| N 000933008150 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| N 000933010074 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| N 000961014007 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| 103 | A 3814922641 | BRACKET |
| Repalced by: A 3834927941 | ||
| 103 | A 3834927941 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 106 | A 3834921741 | BRACKET |
| Repalced by: A 3834927941 | ||
| 106 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 109 | A 3834921041 | BRACKET |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| A 3834927741 | BRACKET | |
| EXHAUST PIPE | ||
| A 3814920041 | BRACKET | |
| EXHAUST | ||
| A 3834921241 | BRACKET | |
| EXHAUST | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 120 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 120 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 125 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 130 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 130 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO SUPPORT | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO SUPPORT | ||
| N 071555075502 | CLAMP | |
| REAR EXHAUST PIPE | ||
| 75.5MM | ||
| 140 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 142 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 142 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
