Transporto priemonė: 1017 LS; VIN numerio dalis: 380251

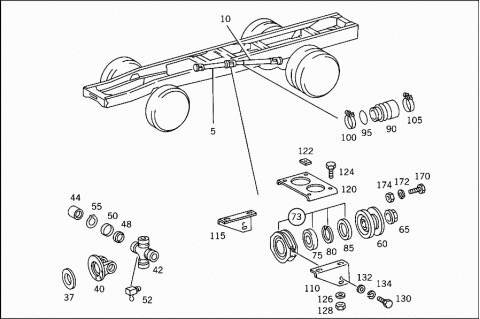

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 3814100904	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		846 MM
005	A 3834100604	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		846 MM
010	A 3814101602	PROPELLER SHAFT
	Repalced by: A 6744102102
010	A 6744102102	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1151 MM
010	A 3834100202	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1203 MM
010	A 3814100202	PROPELLER SHAFT
	Repalced by: A 6744100202
010	A 3834100302	PROPELLER SHAFT
	Repalced by: A 6744100202
010	A 6744100202	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1575 MM
037	A 3814130261	PROTECTIVE CAP
		OUTSIDE
037	A 3814130461	PROTECTIVE CAP
		OUTSIDE
	A 3814110011	DRIVE FLANGE
	Repalced by: A 3524110011
	A 3524110011	DRIVE FLANGE
040	A 3544110011	DRIVE FLANGE
040	A 3814110811	DRIVE FLANGE
	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
042	A 3854100131	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
042	A 6174100031	UNIVERSAL JOINT CROSS
	Repalced by: A 0004104031
042	A 0004104031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
	A 3224100542	BEARING BUSHING
044	A 3834100042	BEARING BUSHING
	A 3189810287	NEEDLE
		SET = 132 PIECES
	A 3819810487	NEEDLE
		SET = 124 PIECES
048	A 3224110080	GASKET
	A 3124111233	EXPANSION PLUG
050	A 3374110033	EXPANSION PLUG
052	N 071412008302	GREASE NIPPLE
055	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
055	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
055	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
055	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
055	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
055	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
055	A 3379945035	SNAP RING
		AS REQUIRED
		2.80 MM
055	A 3379945435	SNAP RING
		AS REQUIRED
		2.85 MM
055	A 3379945135	SNAP RING
		AS REQUIRED
		2.90 M
055	A 3379945235	SNAP RING
		AS REQUIRED
		2.95 MM
055	A 3379945335	SNAP RING
		AS REQUIRED
		3.00 MM
055	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
055	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
055	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
060	A 3814100030	CENTERING FLANGE
		PROPELLER SHAFT BEARING
	A 3814130261	PROTECTIVE CAP
		OUTSIDE
	A 3814130461	PROTECTIVE CAP
		OUTSIDE
065	A 3529900150	NUT
073	A 3854100010	REPAIR KIT
	Repalced by: A 3814100222
073	A 3814100222	INTERMEDIATE BEARING
	Repalced by: A 3814101222
073	A 3814101222	INTERMEDIATE BEARING
	Repalced by: A 3814101522
073	A 3814101522	INTERMEDIATE BEARING
		PROPELLER SHAFT
075	A 0019818625	BALL BEARING
080	A 0019948141	LOCK
085	A 3814130161	PROTECTIVE CAP
		INSIDE
	A 3524100080	BOOT
	A 3814100180	BOOT
090	A 3814100080	BOOT
	Repalced by: A 3814100180
090	A 3814100180	BOOT
095	A 3214110053	WIRE RING
100	N 916002078100	CLAMP
		78 MM
105	N 916002098100	CLAMP
		98 MM
110	A 3854130442	BRACKET
		LEFT,PROPELLER SHAFT BEARING
110	A 3854131042	BRACKET
		LEFT,PROPELLER SHAFT BEARING
115	A 3854130642	BRACKET
		RIGHT,PROPELLER SHAFT BEARING
115	A 3854131142	BRACKET
		RIGHT,PROPELLER SHAFT BEARING
120	A 3854130011	REINFORCEMENT
		BRACKET TO CROSS MEMBER
122	A 3854130111	REINFORCEMENT
		BRACKET TO CROSS MEMBER
124	N 000960010006	SCREW
		BRACKET TO CROSS MEMBER
126	N 007349010003	WASHER
	Repalced by: N 007349010007
126	N 007349010007	WASHER
		BRACKET TO CROSS MEMBER
128	N 913002010010	NUT
		BRACKET TO CROSS MEMBER
130	N 000931010282	SCREW
		PROPELLER SHAFT TO BRACKET
		M 10X40
130	N 000933010105	SCREW
		PROPELLER SHAFT TO BRACKET
		M 10X25
132	N 007349010003	WASHER
	Repalced by: N 007349010007
132	N 007349010007	WASHER
		PROPELLER SHAFT TO BRACKET
134	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO BRACKET
170	A 3529900401	SCREW
	Repalced by: A 3529904701
170	A 3529904701	SCREW
	Repalced by: A 0079901001
170	A 0079901001	SCREW
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
172	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
174	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
