Transporto priemonė: 1017 LS; VIN numerio dalis: 380251

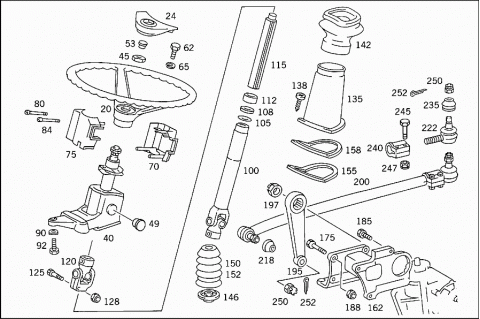

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR MERCEDES-BENZ STEERING, SEE PARTS LIST | ||
| 760.5 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR MERCEDES-BENZ STEERING, SEE PARTS LIST | ||
| 760.4 | ||
| A 3014640101 | STEERING WHEEL | |
| Repalced by: A 3834640201 | ||
| 020 | A 3834640201 | STEERING WHEEL |
| 024 | A 0004642031 | CAP |
| STEERING WHEEL | ||
| A 0004640432 | BADGE | |
| STEERING WHEEL | ||
| N 308675022001 | NUT | |
| STEERING WHEEL TO STEERING COLUMN | ||
| 040 | A 3814600531 | STEERING COLUMN BRACKET |
| A 3814601331 | STEERING COLUMN BRACKET | |
| 045 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 049 | A 3839970286 | PLUG |
| BOTTOM LATERAL | ||
| 053 | A 3819971186 | PLUG |
| TOP | ||
| 062 | N 007985004107 | SCREW |
| STEERING COLUMN MOUNTED SWITCH | ||
| 065 | N 912006004000 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH | ||
| 070 | A 3814620043 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 070 | A 3814620443 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 075 | A 3814620143 | SHELL |
| Repalced by: A 3814622443 | ||
| 075 | A 3814622443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 075 | A 3814620543 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 080 | A 3819900221 | SCREW |
| STEERING COLUMN PANELLING | ||
| 084 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| 090 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN TO CAB | ||
| 092 | N 000933010145 | SCREW |
| STEERING COLUMN TO CAB | ||
| 100 | A 3814600609 | STEERING SHAFT |
| Repalced by: A 6504600209 | ||
| 100 | A 6504600209 | STEERING SHAFT |
| 100 | A 6504600609 | STEERING SHAFT |
| 100 | A 3814600709 | STEERING SHAFT |
| Repalced by: A 3814607109 | ||
| 100 | A 3814607109 | STEERING SHAFT |
| 100 | A 3814607109 | STEERING SHAFT |
| 105 | A 3814620175 | WASHER |
| 108 | A 3814620260 | SEAL RING |
| 112 | A 3814620061 | SEAL HOLDER |
| 115 | A 3814620403 | SLEEVE |
| STEERING SHAFT | ||
| A 3814620251 | RING | |
| STEERING SHAFT | ||
| 120 | A 3814600057 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 120 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 120 | A 0004600057 | UNIVERSAL JOINT |
| 120 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 120 | A 0004600157 | UNIVERSAL JOINT |
| 125 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 125 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 125 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X38 | ||
| 128 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 135 | A 3874611297 | PROTECTIVE SLEEVE |
| UNIVERSAL JOINT COVERING | ||
| 138 | N 007981005309 | SHEET METAL SCREW |
| Repalced by: N 007981005321 | ||
| 138 | N 007981005321 | SHEET METAL SCREW |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 142 | A 3874610396 | BOOT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| A 3814620375 | WASHER | |
| Repalced by: A 3814620475 | ||
| 146 | A 3814620475 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| 150 | A 3814620496 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 152 | A 3814620996 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 155 | A 3874610180 | GASKET |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 158 | A 3874620024 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| A 3804610040 | STEERING SUPPORT | |
| AT FRAME | ||
| 162 | A 3834610640 | STEERING SUPPORT |
| AT FRAME | ||
| A 3804610140 | STEERING SUPPORT | |
| AT FRAME | ||
| A 3834610740 | STEERING SUPPORT | |
| AT FRAME | ||
| 175 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X55 | ||
| 185 | N 000960014229 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||
| 188 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 188 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| N 000961014079 | SCREW | |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 14X40 | ||
| N 000961016077 | SCREW | |
| Repalced by: N 308676016006 | ||
| N 308676016006 | SCREW | |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 16X1.5X45 | ||
| N 000177001003 | WIRE | |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 600 MM | ||
| N 000960014190 | SCREW | |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 14X60 | ||
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| A 3804630201 | PITMAN ARM | |
| 195 | A 3834630001 | PITMAN ARM |
| 197 | A 0009901455 | NUT |
| Repalced by: A 0019908151 | ||
| 197 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| A 3804601205 | DRAG LINK | |
| Repalced by: A 3804602605 | ||
| 200 | A 3804602605 | DRAG LINK |
| LEMFOERDER | ||
| 200 | A 3804602705 | DRAG LINK |
| EHRENREICH | ||
| A 3804601405 | DRAG LINK | |
| Repalced by: A 3804602205 | ||
| 200 | A 3804602205 | DRAG LINK |
| LEMFOERDER | ||
| 200 | A 3804601605 | DRAG LINK |
| EHRENREICH | ||
| A 3804601305 | DRAG LINK | |
| Repalced by: A 3804602805 | ||
| A 3804602805 | DRAG LINK | |
| LEHMFOERDER | ||
| 200 | A 3804602905 | DRAG LINK |
| EHRENREICH | ||
| A 3804601505 | DRAG LINK | |
| Repalced by: A 3804602305 | ||
| 200 | A 3804602305 | DRAG LINK |
| LEMFOERDER | ||
| 200 | A 3804601705 | DRAG LINK |
| EHRENREICH | ||
| 218 | A 0003300385 | BOOT |
| Repalced by: A 0003301185 | ||
| 218 | A 0003301185 | BOOT |
| FIXED PART OF JOINT | ||
| 222 | A 0003301435 | JOINT |
| Repalced by: A 0003309335 | ||
| 222 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 222 | A 0003309535 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 235 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 235 | A 0003300885 | BOOT |
| 240 | A 0003382245 | CLAMP |
| Repalced by: A 0009954944 | ||
| 240 | A 0009954944 | CLAMP |
| CLAMP, TWO-HOLE | ||
| A 0003382645 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| LEMFOERDER | ||
| A 0003383545 | CLAMP | |
| Repalced by: A 0003382645 | ||
| A 0003382645 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| EHRENREICH | ||
| 245 | N 000960012349 | SCREW |
| CLAMP, TWO-HOLE | ||
| N 000960012453 | SCREW | |
| Repalced by: N 308676012017 | ||
| N 308676012017 | SCREW | |
| CLAMP, ONE-HOLE | ||
| 247 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 247 | N 910113012003 | NUT |
| CLAMP, ONE-HOLE | ||
| 247 | N 910113012003 | NUT |
| CLAMP, TWO-HOLE | ||
| 250 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| 252 | N 000094004065 | COTTER PIN |
| DRAG LINK TO LEVER | ||
