Transporto priemonė: 1019 F; VIN numerio dalis: 380083
Grupė: 31 FRAME
29146
29147
29148
29149
29150
29151
29152
29153
# Kodas Pavadinimas

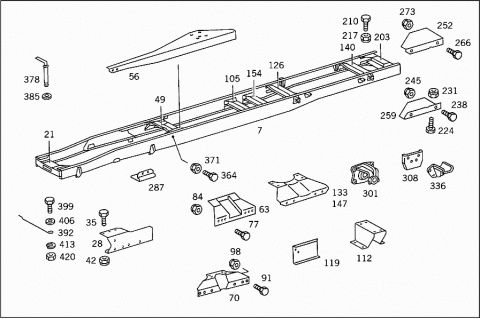

007 A 3803100001 FRAME
007 A 3803100101 FRAME
Repalced by: A 3803103401
007 A 3803103401 FRAME
007 A 3803103101 FRAME
007 A 3803100201 FRAME
Repalced by: A 3803103601
007 A 3803103601 FRAME
007 A 3803100301 FRAME
Repalced by: A 3803103701
007 A 3803103701 FRAME
007 A 3803108901 FRAME
007 A 3803100401 FRAME
007 A 3803100501 FRAME
007 A 3803107601 FRAME
007 A 3803100601 FRAME
007 A 3803100801 FRAME
007 A 3803100701 FRAME
007 A 3803100701 FRAME
007 A 3803109801 FRAME
007 A 3803103201 FRAME
007 A 3803107701 FRAME
007 A 3803109901 FRAME
014 A 3803101801 FRAME
014 A 3803101901 FRAME
014 A 3803102001 FRAME
021 A 3873100422 CROSS MEMBER
FRONT
028 A 3853121187 GUSSET PLATE
LEFT
028 A 3853121287 GUSSET PLATE
RIGHT
028 A 3853121987 GUSSET PLATE
Repalced by: A 3853122187
028 A 3853122187 GUSSET PLATE
LEFT
028 A 3853122087 GUSSET PLATE
Repalced by: A 3853122287
028 A 3853122287 GUSSET PLATE
RIGHT
035 N 000961012106 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
042 N 910113012002 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
049 A 3813100036 CROSS MEMBER
Repalced by: A 3853100436
049 A 3853100436 CROSS MEMBER
Repalced by: A 3813120015
049 A 3813100336 CROSS MEMBER
Repalced by: A 3813120015
049 A 3813120015 CROSS MEMBER
NO.2
056 A 3853120152 ANGLE
LEFT TOP
056 A 3813120652 ANGLE
LEFT TOP
056 A 3853120252 ANGLE
RIGHT TOP
056 A 3813120752 ANGLE
RIGHT TOP
063 A 3813120252 ANGLE
BOTTOM LEFT
063 A 3813120352 ANGLE
BOTTOM RIGHT
070 A 3813121152 ANGLE
BOTTOM LEFT
070 A 3813121252 ANGLE
BOTTOM RIGHT
077 N 000933010128 SCREW
ANGLE TO CROSS MEMBER
077 N 000961012052 SCREW
Repalced by: N 308676012012
077 N 308676012012 SCREW
ANGLE TO CROSS MEMBER
077 N 308676012012 SCREW
ANGLE TO CROSS MEMBER
084 N 913004010008 NUT
Repalced by: N 910113010000
084 N 910113010000 NUT
ANGLE TO CROSS MEMBER
084 N 910113012002 NUT
ANGLE TO CROSS MEMBER
084 N 910113012002 NUT
ANGLE TO CROSS MEMBER
091 N 000961012190 SCREW
Repalced by: N 308676012012
091 N 308676012012 SCREW
CROSS MEMBER AND GUSSET PLATE TO FRAME SIDE MEMBERS
091 N 000961014152 SCREW
Repalced by: N 000961014066
091 N 000961014066 SCREW
CROSS MEMBER AND GUSSET PLATE TO FRAME SIDE MEMBERS
098 N 913004012009 NUT
Repalced by: N 910113012003
098 N 910113012003 NUT
CROSS MEMBER AND GUSSET PLATE TO FRAME SIDE MEMBERS
098 N 913004014002 NUT
Repalced by: N 910113014001
098 N 910113014001 NUT
CROSS MEMBER AND GUSSET PLATE TO FRAME SIDE MEMBERS
105 A 3853100036 CROSS MEMBER
NO.3,NO.4
105 A 3853100036 CROSS MEMBER
NO.3
105 A 3813100136 CROSS MEMBER
NO.3
112 A 3804310040 BRACKET
SPRING-LOADED BRAKE UNIT
119 A 3804310095 WEB
SPRING-LOADED BRAKE UNIT
119 A 3804310095 WEB
SPRING-LOADED BRAKE UNIT
119 A 3804310095 WEB
SPRING-LOADED BRAKE UNIT
126 A 3813120017 CROSS MEMBER
NO.3
126 A 3813120017 CROSS MEMBER
NO.4
126 A 3813120017 CROSS MEMBER
NO.5
133 A 3833120360 REINFORCEMENT
AT CROSS MEMBER
140 A 3813120021 CROSS MEMBER
Repalced by: A 6173120117
140 A 6173120117 CROSS MEMBER
NO.4
140 A 6173120117 CROSS MEMBER
NO.5
140 A 6173120117 CROSS MEMBER
NO.6
147 A 3833120360 REINFORCEMENT
AT CROSS MEMBER
T YYYYYYYYYYYY PART NAME MISSING
FOR SHOCK ABSORBER CROSS MEMBER, SEE GROUP 32
154 A 3853100036 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
161 A 3523120125 CROSS MEMBER
NO.4,NO.5
161 A 3523120125 CROSS MEMBER
NO.5,NO.6
168 A 3523120060 REINFORCEMENT
AT CROSS MEMBER
175 A 3853110253 ANGLE
LEFT
175 A 3853110353 ANGLE
RIGHT
182 N 000961012106 SCREW
ANGLE TO CROSS MEMBER
189 N 910113012002 NUT
ANGLE TO CROSS MEMBER
196 N 000961012122 SCREW
ANGLE TO CROSS MEMBER
203 A 3833100246 CROSS MEMBER
REAR
203 A 3833100246 CROSS MEMBER
REAR
203 A 3813100146 CROSS MEMBER
REAR
210 N 000961012097 SCREW
Repalced by: N 308676012026
210 N 308676012026 SCREW
REAR CROSS MEMBER TO FRAME
M 12X35
210 N 000961012052 SCREW
Repalced by: N 308676012012
210 N 308676012012 SCREW
REAR CROSS MEMBER TO FRAME
M 12X25
210 N 000961012151 SCREW
REAR CROSS MEMBER TO FRAME
M 12X30
217 N 910113012002 NUT
REAR CROSS MEMBER TO FRAME
224 N 000961014100 SCREW
REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS
231 N 913004014002 NUT
Repalced by: N 910113014001
231 N 910113014001 NUT
REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS
238 N 000933010105 SCREW
REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS
245 N 913004010008 NUT
Repalced by: N 910113010000
245 N 910113010000 NUT
REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS
252 A 3213120087 GUSSET PLATE
TOP LEFT, BOTTOM RIGHT
252 A 3213120087 GUSSET PLATE
TOP LEFT, BOTTOM RIGHT
252 A 3213120087 GUSSET PLATE
TOP RIGHT, BOTTOM LEFT
252 A 3213120087 GUSSET PLATE
TOP LEFT, BOTTOM RIGHT
252 A 3213120087 GUSSET PLATE
TOP RIGHT
252 A 3833120487 GUSSET PLATE
BOTTOM LEFT
259 A 3213120187 GUSSET PLATE
TOP RIGHT, BOTTOM LEFT
259 A 3213120187 GUSSET PLATE
TOP RIGHT, BOTTOM LEFT
259 A 3213120187 GUSSET PLATE
TOP LEFT, BOTTOM RIGHT
259 A 3213120187 GUSSET PLATE
TOP RIGHT, BOTTOM LEFT
259 A 3213120187 GUSSET PLATE
TOP LEFT
259 A 3833120587 GUSSET PLATE
BOTTOM RIGHT
266 N 000961012107 SCREW
Repalced by: N 308676012011
266 N 308676012011 SCREW
266 N 000961012023 SCREW
REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS
273 N 910113012002 NUT
REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS
280 A 3523220201 FRONT SPRING BRACKET
FRONT AND REAR
280 A 3523220201 FRONT SPRING BRACKET
FRONT
280 A 3833220101 FRONT SPRING BRACKET
REAR
280 A 3523220301 FRONT SPRING BRACKET
FRONT
280 A 3833220001 FRONT SPRING BRACKET
REAR
280 A 3833220001 FRONT SPRING BRACKET
FRONT
287 A 3833220131 PLATE
HELPER SPRING
287 A 3833220231 PLATE
HELPER SPRING
294 A 3833110253 ANGLE
LEFT
294 A 3833110353 ANGLE
RIGHT REINFORCEMENT
301 A 3523250101 REAR SPRING BRACKET
FRONT AND REAR
301 A 3523250101 REAR SPRING BRACKET
REAR
301 A 3523250101 REAR SPRING BRACKET
FRONT
301 A 3803250001 REAR SPRING BRACKET
FRONT
308 A 3523250041 STIFFENING
Repalced by: A 3813250041
308 A 3813250041 STIFFENING
HELPER SPRING BRACKET TO SIDE MEMBER
308 A 3813250041 STIFFENING
HELPER SPRING BRACKET TO SIDE MEMBER
308 A 3583250041 STIFFENING
HELPER SPRING BRACKET TO SIDE MEMBER
308 A 3803250141 STIFFENING
HELPER SPRING BRACKET TO SIDE MEMBER, FRONT
308 A 3803250041 STIFFENING
HELPER SPRING BRACKET TO SIDE MEMBER, FRONT
315 A 3853110053 ANGLE
AT LEFT SIDE MEMBER
315 A 3853110153 ANGLE
AT RIGHT SIDE MEMBER
322 N 000961012164 SCREW
ANGLE TO SIDE MEMBER
M 12X28
322 N 000961012097 SCREW
Repalced by: N 308676012026
322 N 308676012026 SCREW
ANGLE TO SIDE MEMBER
M 12X35
329 N 910113012002 NUT
ANGLE TO SIDE MEMBER
336 A 3523250417 HELPER SPRING BRACKET
Repalced by: A 3893250117
336 A 3893250117 HELPER SPRING BRACKET
Repalced by: A 6843250017
336 A 6843250017 HELPER SPRING BRACKET
HELPER SPRING
336 A 6843250017 HELPER SPRING BRACKET
HELPER SPRING
336 A 6843250017 HELPER SPRING BRACKET
HELPER SPRING
336 A 6843250017 HELPER SPRING BRACKET
HELPER SPRING
336 A 3803250017 HELPER SPRING BRACKET
HELPER SPRING
336 A 3803250017 HELPER SPRING BRACKET
HELPER SPRING
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
T YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
T YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
T YYYYYYYYYYYY PART NAME MISSING
343 N 000609010004 FITTED SCREW
M 10X11X14X28
343 N 000610010003 FITTED SCREW
M 10X11X25X38
343 N 000609010014 FITTED SCREW
M 10X11X24X40
343 A 3859900514 SCREW
M 10X11X26,5X46
T YYYYYYYYYYYY PART NAME MISSING
343 A 3859900714 SCREW
M 12X12X10X25
343 A 3859901414 SCREW
M 12X12X11X26
343 A 0039900901 SCREW
Repalced by: A 0029908201
343 A 0029908201 SCREW
M 12X12X12X28
343 A 3859901514 SCREW
M 12X12X13X28
343 A 0029908201 SCREW
M 12X12X14X30
343 A 3859902114 SCREW
M 12X12X15X30
343 A 0029908301 SCREW
Repalced by: N 308676012013
343 N 308676012013 SCREW
M 12X12X16X32
343 A 3859902214 SCREW
M 12X12X17X32
T YYYYYYYYYYYY PART NAME MISSING
343 A 6209900114 SCREW
M 12X13X12X29
343 A 3969900314 SCREW
M 12X13X13X30
343 A 3589901914 SCREW
M 12X13X15X32
343 A 3559900014 SCREW
M 12X13X18X35
343 A 3589900614 SCREW
M 12X13X21X38
343 A 6179900114 SCREW
M 12X13X23X40
343 A 6249900014 SCREW
M 12X13X25X42
343 A 3859900214 SCREW
M 12X13X35X52
343 A 6689900114 SCREW
M 12X13X58X80
343 A 6689900014 SCREW
M 12X13X63X85
T YYYYYYYYYYYY PART NAME MISSING
343 A 3859900814 SCREW
Repalced by: A 3229903101
343 A 3229903101 SCREW
M 14X14X18X32
343 A 3859902014 SCREW
M 14X14X18X34
343 A 3559900114 SCREW
M 12X14X13X35
343 A 3219901601 SCREW
M 14X14X17X35
343 A 3219901901 SCREW
M 14X14X22X40
343 A 3559900501 SCREW
M 14X14X24X42
343 A 3409900201 SCREW
M 14X14X27X45
343 A 3609902001 SCREW
M 14X14X32X50
T YYYYYYYYYYYY PART NAME MISSING
343 A 3589900114 SCREW
M 14X15X15X32
343 A 3589900814 SCREW
M 14X15X17X34
343 A 6459900014 SCREW
M 14X15X18X35
343 A 3589901014 SCREW
M 14X15X19X36
343 A 3589900214 SCREW
M 14X15X21X38
343 A 3589900414 SCREW
M 14X15X25X42
343 A 3589900714 SCREW
M 14X15X27X44
343 A 3589900914 SCREW
M 14X15X29X46
343 A 3859900414 SCREW
M 14X15X31X48
343 A 3859900314 SCREW
M 14X15X35X52
T YYYYYYYYYYYY PART NAME MISSING
343 A 3859900914 SCREW
Repalced by: N 308676016020
343 N 308676016020 SCREW
M 16X16X18X36
343 A 3859901714 SCREW
M 16X16X20X38
343 A 3859901014 SCREW
M 16X16X22X40
343 A 3859901114 SCREW
M 16X16X24X42
343 A 0029909901 SCREW
Repalced by: A 3959900501
343 A 3959900501 SCREW
M 16X16X20X45
343 A 3859901814 SCREW
M 16X16X30X48
343 A 3859901914 SCREW
M 16X16X32X50
343 A 6259900301 SCREW
M 16X16X38X90
T YYYYYYYYYYYY PART NAME MISSING
343 A 3589900514 SCREW
M 16X17X22X42
343 A 6459900714 SCREW
M 16X17X24X44
343 A 3609900114 SCREW
M 16X17X28X48
T YYYYYYYYYYYY PART NAME MISSING
343 A 3469900014 SCREW
M 16X18X18X40
343 A 3859902314 SCREW
M 18X18X23X45
343 A 6209900014 SCREW
M 16X18X26X48
343 A 3469900114 SCREW
M 16X18X31X50
343 A 3859902414 SCREW
M 18X18X33X55
343 A 6229900014 SCREW
M 16X18X38X60
343 A 3919900014 SCREW
M 16X18X63X85
T YYYYYYYYYYYY PART NAME MISSING
343 N 000610018004 FITTED SCREW
M 18X19X25X45
343 N 000610018009 FITTED SCREW
M 18X19X33X55
343 N 000610018006 FITTED SCREW
M 18X19X38X60
343 N 000609018000 FITTED SCREW
M 18X19X57X85
T YYYYYYYYYYYY PART NAME MISSING
350 N 913004010011 NUT
350 N 913004012009 NUT
Repalced by: N 910113012003
350 N 910113012003 NUT
350 N 913004014005 NUT
Repalced by: N 910113014000
350 N 910113014000 NUT
350 N 913004016005 NUT
Repalced by: N 910113016001
350 N 910113016001 NUT
350 N 913004018004 NUT
T YYYYYYYYYYYY PART NAME MISSING
357 N 910005010082 RIVET
10X18 MM
357 N 910005010012 RIVET
10X24 MM
357 N 910005010014 RIVET
10X26 MM
357 N 910005010016 RIVET
10X28 MM
357 N 910005010022 RIVET
10X34 MM
357 N 910005012012 RIVET
12X26 MM
357 N 910005012073 RIVET
12X28 MM
357 N 910005012080 RIVET
12X42 MM
357 N 910005014056 RIVET
14X45 MM
357 N 910005014057 RIVET
14X48 MM
357 N 910005014059 RIVET
14X50 MM

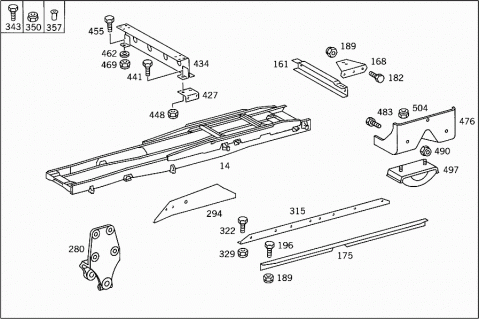

364 N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS
371 N 913004014002 NUT
Repalced by: N 910113014001
371 N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
378 A 3873150006 COUPLING PIN
FOR COUPLING MOUTH
378 A 3873150106 COUPLING PIN
FOR COUPLING MOUTH
385 A 0009874346 SEALING CORD
FOR COUPLING MOUTH
392 A 3353150031 LOCKING SPRING
FOR COUPLING MOUTH
399 N 000933008153 SCREW
Repalced by: N 304017008034
399 N 304017008034 SCREW
LOCK SPRING TO CROSS MEMBER
406 N 000125008418 WASHER
Repalced by: N 000125008443
406 N 000125008443 WASHER
LOCK SPRING TO CROSS MEMBER
413 N 912004008102 LOCK WASHER
LOCK SPRING TO CROSS MEMBER
420 N 304032008006 NUT
LOCK SPRING TO CROSS MEMBER
427 A 3813120852 ANGLE
TRANSFER CASE WITH CROSS MEMBER TO FRAME
434 A 3813100037 CROSS MEMBER
NO.3,TRANSFER CASE
434 A 3833101037 CROSS MEMBER
NO.3,TRANSFER CASE
441 N 000933010164 SCREW
CROSS MEMBER TO REINFORCEMENT
441 N 000933010164 SCREW
CROSS MEMBER TO REINFORCEMENT
448 N 913004010008 NUT
Repalced by: N 910113010000
448 N 910113010000 NUT
CROSS MEMBER TO REINFORCEMENT
455 N 000933010105 SCREW
TRANSFER CASE WITH CROSS MEMBER TO FRAME
455 N 000933010105 SCREW
TRANSFER CASE WITH CROSS MEMBER TO FRAME
455 N 000961012052 SCREW
Repalced by: N 308676012012
455 N 308676012012 SCREW
TRANSFER CASE WITH CROSS MEMBER TO FRAME
455 N 000961014050 SCREW
Repalced by: N 308676014020
455 N 308676014020 SCREW
TRANSFER CASE WITH CROSS MEMBER TO FRAME
462 N 000125010518 WASHER
Repalced by: N 000125010532
462 N 000125010532 WASHER
TRANSFER CASE WITH CROSS MEMBER TO FRAME
469 N 913004010008 NUT
Repalced by: N 910113010000
469 N 910113010000 NUT
TRANSFER CASE WITH CROSS MEMBER TO FRAME
469 N 910113010000 NUT
TRANSFER CASE WITH CROSS MEMBER TO FRAME
469 N 910113012002 NUT
TRANSFER CASE WITH CROSS MEMBER TO FRAME
469 N 913004014002 NUT
Repalced by: N 910113014001
469 N 910113014001 NUT
TRANSFER CASE WITH CROSS MEMBER TO FRAME
476 A 3853250340 BRACKET
Repalced by: A 3853200643
476 A 3853200643 BRACKET
RUBBER MOUNTING
483 N 007991010007 SCREW
BRACKET TO FRAME
M 10X25
483 N 000933010105 SCREW
BRACKET TO FRAME
M 10X25
483 N 000933010105 SCREW
RUBBER MOUNTING TO FRAME
M 10X25
490 N 913004010008 NUT
Repalced by: N 910113010000
490 N 910113010000 NUT
BRACKET TO FRAME
490 N 910113010000 NUT
RUBBER MOUNTING TO FRAME
497 A 3853300175 RUBBER MOUNTING
Repalced by: A 3853300275
497 A 3853300275 RUBBER MOUNTING
STOP TO REAR AXLE
497 A 6173300175 RUBBER MOUNTING
STOP TO REAR AXLE
504 N 913004008004 NUT
Repalced by: N 913004008001
504 N 913004008001 NUT
RUBBER MOUNTING TO BRACKET
510 A 3878910531 CONSOLE
Repalced by: A 3878912631
510 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
510 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
510 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
510 A 3878911431 CONSOLE
CAB MOUNTING,FRONT
510 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
510 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
510 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
510 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
514 A 3873170423 STRUT
BUMPER AT TORSION BAR
514 A 3873170423 STRUT
BUMPER AT TORSION BAR
514 A 3873170423 STRUT
BUMPER AT TORSION BAR
514 A 3873100153 STRUT
BUMPER,LEFT
514 A 3873100153 STRUT
BUMPER,LEFT
514 A 3873100253 STRUT
BUMPER,RIGHT
514 A 3873100253 STRUT
BUMPER,RIGHT
518 N 000961014101 SCREW
Repalced by: N 308676014012
518 N 308676014012 SCREW
CONSOLE AND STRUT TO BUMPER
M 14X45
522 N 000961014063 SCREW
Repalced by: A 9429901304
522 A 9429901304 SCREW
CONSOLE AND STRUT TO BUMPER
M 14X40
526 N 000125015013 WASHER
Repalced by: N 000125015019
526 N 000125015019 WASHER
CONSOLE AND STRUT TO BUMPER
530 N 913004014005 NUT
Repalced by: N 910113014000
530 N 910113014000 NUT
CONSOLE AND STRUT TO BUMPER
534 A 3813106409 BRACKET
CAB SUSPENSION,FRONT LEFT
534 A 3813106509 BRACKET
CAB SUSPENSION,FRONT LEFT
534 A 3813106509 BRACKET
CAB SUSPENSION,FRONT LEFT
534 A 3813106509 BRACKET
CAB SUSPENSION,FRONT LEFT
534 A 3813106609 BRACKET
CAB SUSPENSION,FRONT RIGHT
534 A 3813106609 BRACKET
CAB SUSPENSION,FRONT RIGHT
A 3813171512 RUBBER BUFFER
A 3813171412 RUBBER BUFFER
CAB SUSPENSION,FRONT
538 A 3878902903 MOUNTING
CAB SUSPENSION,FRONT
538 A 3878902903 MOUNTING
CAB SUSPENSION,FRONT
A 3813172174 PIN
542 N 007349017002 WASHER
RUBBER MOUNTING TO CONSOLE
542 N 007349017002 WASHER
RUBBER MOUNTING TO CONSOLE
546 N 913004016004 NUT
Repalced by: N 910113016002
546 N 910113016002 NUT
RUBBER MOUNTING TO CONSOLE
546 N 910113016002 NUT
RUBBER MOUNTING TO CONSOLE
550 A 3813172274 PIN
IN LEFT BRACKET
550 A 3813172274 PIN
IN LEFT BRACKET
554 N 000471018000 LOCK RING
PIN TO BEARING BRACKET
554 N 000471018000 LOCK RING
PIN TO BEARING BRACKET
558 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
558 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
562 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
562 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
566 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
566 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
570 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
570 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
574 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
574 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
578 N 913004014002 NUT
Repalced by: N 910113014001
578 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
578 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
582 N 000961014063 SCREW
Repalced by: A 9429901304
582 A 9429901304 SCREW
CAB TO FRAME
M 14X40
582 A 9429901304 SCREW
CAB TO FRAME
M 14X40
582 N 000961014101 SCREW
Repalced by: N 308676014012
582 N 308676014012 SCREW
CAB TO FRAME
M 14X45
582 N 308676014012 SCREW
CAB TO FRAME
M 14X45
A 3878910698 SHIM
586 N 913004014005 NUT
Repalced by: N 910113014000
586 N 910113014000 NUT
CAB TO FRAME
586 N 910113014000 NUT
CAB TO FRAME
590 A 3813100263 CONSOLE
Repalced by: A 3813170601
590 A 3813170601 CONSOLE
VIBRATION ABSORBER TO FRAME
590 A 3813170601 CONSOLE
VIBRATION ABSORBER TO FRAME
590 A 3813171201 CONSOLE
VIBRATION ABSORBER TO FRAME
594 N 000961014050 SCREW
Repalced by: N 308676014020
594 N 308676014020 SCREW
CONSOLE TO FRAME
M 14X35
594 N 308676014020 SCREW
CONSOLE TO FRAME
M 14X35
594 N 000961014028 SCREW
CONSOLE TO FRAME
M 14X40
594 N 000961014028 SCREW
CONSOLE TO FRAME
M 14X40
598 N 913004014002 NUT
Repalced by: N 910113014001
598 N 910113014001 NUT
CONSOLE TO FRAME
598 N 910113014001 NUT
CONSOLE TO FRAME
602 A 3813171526 GUIDE
CAB SUSPENSION,REAR LEFT
602 A 3813171526 GUIDE
CAB SUSPENSION,REAR LEFT
602 A 3813171926 GUIDE
CAB SUSPENSION,REAR LEFT
602 A 3813171626 GUIDE
CAB SUSPENSION,REAR RIGHT
602 A 3813171626 GUIDE
CAB SUSPENSION,REAR RIGHT
602 A 3813172026 GUIDE
CAB SUSPENSION,REAR RIGHT
606 A 3873170084 SHIM
GUIDE TO CAB
606 A 3873170084 SHIM
GUIDE TO CAB
610 N 912004012100 LOCK WASHER
GUIDE TO CAB
610 N 912004012100 LOCK WASHER
GUIDE TO CAB
614 N 000960012301 SCREW
GUIDE TO CAB
614 N 000960012301 SCREW
GUIDE TO CAB
618 A 3813170750 BUSHING
CAB GUIDE
618 A 3813170750 BUSHING
CAB GUIDE
622 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
622 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
626 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
626 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
630 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
630 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
634 A 3878901019 SHOCK ABSORBER
Repalced by: A 3878901619
634 A 3878901619 SHOCK ABSORBER
Repalced by: A 3878901319
634 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
634 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
634 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
634 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
638 A 0008910201 RUBBER MOUNTING
TO 387 890 16 19
638 A 0008910201 RUBBER MOUNTING
TO 387 890 16 19
638 A 0008910301 RUBBER MOUNTING
TO 387 890 13 19
638 A 0008910301 RUBBER MOUNTING
TO 387 890 13 19
642 A 0008910751 SPRING
Repalced by: A 0008910451
642 A 0008910451 SPRING
TO 387 890 13 19,387 890 16 19
642 A 0008910451 SPRING
TO 387 890 13 19,387 890 16 19
646 A 3813170753 SPACER TUBE
SHOCK ABSORBER TO BRACKET AND TO BODY
646 A 3813170753 SPACER TUBE
SHOCK ABSORBER TO BRACKET AND TO BODY
N 002093028201 DISC SPRING
Repalced by: A 3275045082
650 A 3275045082 RUBBER RING
SHOCK ABSORBER TO BRACKET AND TO BODY
650 A 3275045082 RUBBER RING
SHOCK ABSORBER TO BRACKET AND TO BODY
654 N 000433015005 WASHER
SHOCK ABSORBER TO BRACKET AND TO BODY
654 N 000433015005 WASHER
SHOCK ABSORBER TO BRACKET AND TO BODY
658 A 3878912010 WASHER
SHOCK ABSORBER TO BRACKET AND TO BODY
658 A 3878912010 WASHER
SHOCK ABSORBER TO BRACKET AND TO BODY
662 N 000934012022 NUT
SHOCK ABSORBER TO BRACKET AND TO BODY
662 N 000934012022 NUT
SHOCK ABSORBER TO BRACKET AND TO BODY
666 N 001587012008 CAP NUT
Repalced by: N 001587012010
666 N 001587012010 CAP NUT
SHOCK ABSORBER TO BRACKET AND TO BODY
666 N 001587012010 CAP NUT
SHOCK ABSORBER TO BRACKET AND TO BODY
670 N 000933008147 SCREW
Repalced by: N 304017008021
670 N 304017008021 SCREW
SHOCK ABSORBER TO CAB
670 N 304017008021 SCREW
SHOCK ABSORBER TO CAB
674 N 009021008205 WASHER
Repalced by: N 009021008213
674 N 009021008213 WASHER
SHOCK ABSORBER TO CAB
674 N 009021008213 WASHER
SHOCK ABSORBER TO CAB
678 N 913004008004 NUT
Repalced by: N 913004008001
678 N 913004008001 NUT
SHOCK ABSORBER TO CAB
678 N 913004008001 NUT
SHOCK ABSORBER TO CAB
682 N 912004008102 LOCK WASHER
SHOCK ABSORBER TO CAB
682 N 912004008102 LOCK WASHER
SHOCK ABSORBER TO CAB
686 A 3813176140 BRACKET
Repalced by: A 3813177840
686 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
686 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
686 A 3813176240 BRACKET
Repalced by: A 3813177940
686 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
686 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
690 N 000433010505 WASHER
Repalced by: N 000433010510
690 N 000433010510 WASHER
BRACKET TO CAB
690 N 000433010510 WASHER
BRACKET TO CAB
694 N 912004010102 LOCK WASHER
BRACKET TO CAB
694 N 912004010102 LOCK WASHER
BRACKET TO CAB
698 N 000933010105 SCREW
BRACKET TO CAB
698 N 000933010105 SCREW
BRACKET TO CAB
702 A 3813170097 BOOT
BRACKET TO CAB
702 A 3813170097 BOOT
BRACKET TO CAB
706 A 3813101875 LOCKING MECHANISM
CAB SUSPENSION,REAR LEFT
706 A 3813101875 LOCKING MECHANISM
CAB SUSPENSION,REAR LEFT
706 A 3813102075 LOCKING MECHANISM
CAB SUSPENSION,REAR LEFT
706 A 3813101775 LOCKING MECHANISM
CAB SUSPENSION,REAR RIGHT
706 A 3813101775 LOCKING MECHANISM
CAB SUSPENSION,REAR RIGHT
706 A 3813101975 LOCKING MECHANISM
CAB SUSPENSION,REAR RIGHT
710 A 3813172374 PIN
710 A 3813172374 PIN
714 A 3813170924 LEVER
714 A 3813170924 LEVER
718 A 3813170119 LATCH
718 A 3813170119 LATCH
722 A 3813170676 WASHER
722 A 3813170676 WASHER
726 A 0009935426 DISC SPRING
726 A 0009935426 DISC SPRING
730 N 001481006041 CLAMPING SLEEVE
730 N 001481006041 CLAMPING SLEEVE
734 N 910113012002 NUT
734 N 910113012002 NUT
738 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
738 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
742 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
742 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
746 N 000125010518 WASHER
Repalced by: N 000125010532
746 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
746 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
750 A 3878915320 MOUNTING
LEFT
750 A 3878916220 MOUNTING
LEFT
750 A 3878913720 MOUNTING
CAB SUSPENSION,FRONT LEFT
750 A 3878913720 MOUNTING
CAB SUSPENSION,FRONT LEFT
750 A 3878916020 MOUNTING
Repalced by: A 6558910320
750 A 6558910320 MOUNTING
CAB SUSPENSION,FRONT LEFT
750 A 6558910320 MOUNTING
CAB SUSPENSION,FRONT LEFT
750 A 6558910320 MOUNTING
CAB SUSPENSION,FRONT LEFT
754 A 3878913820 MOUNTING
CAB SUSPENSION,FRONT RIGHT
754 A 3878913820 MOUNTING
CAB SUSPENSION,FRONT RIGHT
754 A 3878916120 MOUNTING
Repalced by: A 6558910420
754 A 6558910420 MOUNTING
CAB SUSPENSION,FRONT RIGHT
754 A 6558910420 MOUNTING
CAB SUSPENSION,FRONT RIGHT
754 A 3878916320 MOUNTING
CAB SUSPENSION,FRONT RIGHT
754 A 3878916420 MOUNTING
CAB SUSPENSION,FRONT LEFT
754 A 3878916420 MOUNTING
CAB SUSPENSION,FRONT LEFT
754 A 3878916520 MOUNTING
CAB SUSPENSION,FRONT RIGHT
754 A 3878916520 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3813171712 RUBBER BUFFER
Repalced by: A 6205860031
A 3813171412 RUBBER BUFFER
Repalced by: A 6205860031
A 3873170874 PIN
Repalced by: A 6205860031
758 A 3873170376 WASHER
STOP
762 N 913004016004 NUT
Repalced by: N 910113016002
762 N 910113016002 NUT
MOUNTING TO BRACKET
766 N 007349017002 WASHER
MOUNTING TO BRACKET
768 A 3878910551 SPRING
CAB
768 A 3878900705 SPRING
Repalced by: A 3878910851
768 A 3878910851 SPRING
CAB SUSPENSION,FRONT

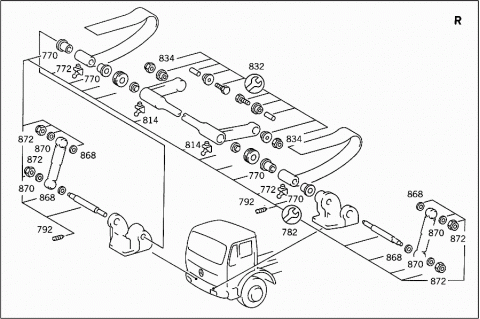

770 A 3638910617 BUSHING
CAB SUSPENSION,FRONT
770 A 3638910617 BUSHING
CAB SUSPENSION,FRONT
772 N 900216008201 GREASE NIPPLE
FOR SPRING
772 N 900216008201 GREASE NIPPLE
FOR SPRING

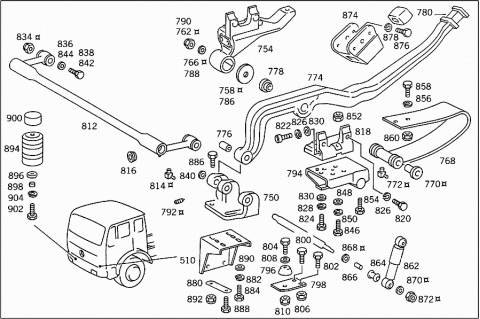

774 A 3878911156 LEVER
Repalced by: A 3878912556
774 A 3878912156 LEVER
Repalced by: A 3878912556
774 A 3878912556 LEVER
(TILTING LEVER),CAB
774 A 3878911656 LEVER
Repalced by: A 3878912756
774 A 3878912356 LEVER
Repalced by: A 3878912756
774 A 3878911256 LEVER
Repalced by: A 3878912856
774 A 3878912256 LEVER
Repalced by: A 3878912856
774 A 3878911756 LEVER
Repalced by: A 3878912856
774 A 3878912456 LEVER
Repalced by: A 3878912856
774 A 3878912856 LEVER
(TILTING LEVER),CAB
774 A 3878912856 LEVER
(TILTING LEVER),CAB
776 A 3879920003 BUSHING
CAB TILTING LEVER
776 A 3879920003 BUSHING
CAB TILTING LEVER
776 A 3879920203 BUSHING
CAB TILTING LEVER
776 A 3879920203 BUSHING
CAB TILTING LEVER
778 A 0009817231 JOINT BEARING
Repalced by: A 6208910017
778 A 0019810431 JOINT BEARING
Repalced by: A 6208910017
778 A 0019810531 JOINT BEARING
Repalced by: A 6208910017
778 A 6208910017 BUSHING
CAB TILTING LEVER
778 A 6208910017 BUSHING
CAB TILTING LEVER
A 0029943741 LOCK
Repalced by: A 6208910017
780 A 3638910023 BUFFER
LEVER TO BEARING
780 A 3638910023 BUFFER
LEVER TO BEARING
782 A 3873170674 PIN
Repalced by: A 3875860131
782 A 3875860131 REPAIR KIT
Repalced by: A 3873100077
782 A 3873100077 REPAIR KIT
CAB SUSPENSION,FRONT
782 A 3873100077 REPAIR KIT
CAB SUSPENSION,FRONT
784 A 6205860031 REPAIR KIT
CAB SUSPENSION,FRONT
786 A 3873170376 WASHER
LEVER TO BEARING
786 A 3873170376 WASHER
LEVER TO BEARING
788 N 007349017002 WASHER
LEVER TO BEARING
788 N 007349017002 WASHER
LEVER TO BEARING
790 N 913004016004 NUT
Repalced by: N 910113016002
790 N 910113016002 NUT
LEVER TO BEARING
790 N 910113016002 NUT
LEVER TO BEARING
792 N 000417008004 HEADLESS SETSCREW
LEVER TO BEARING
792 N 000417008004 HEADLESS SETSCREW
LEVER TO BEARING
794 A 3878903903 MOUNTING
Repalced by: A 3878905303
794 A 3878905303 MOUNTING
CAB SUSPENSION,FRONT LEFT
794 A 3878905303 MOUNTING
CAB SUSPENSION,FRONT LEFT
794 A 3878904003 MOUNTING
Repalced by: A 3878905603
794 A 3878905603 MOUNTING
CAB SUSPENSION,FRONT RIGHT
794 A 3878905603 MOUNTING
CAB SUSPENSION,FRONT RIGHT
796 A 3878910123 BUFFER
Repalced by: A 3348910072
796 A 3348910072 MOUNTING
CAB SUSPENSION,FRONT
796 A 3348910072 MOUNTING
CAB SUSPENSION,FRONT
798 A 3878910914 BRACKET
RUBBER MOUNTING
798 A 3878910914 BRACKET
RUBBER MOUNTING
800 N 000961012097 SCREW
Repalced by: N 308676012026
800 N 308676012026 SCREW
BRACKET TO FRAME
M 12X35
800 N 308676012026 SCREW
BRACKET TO FRAME
M 12X35
802 N 000961012151 SCREW
BRACKET TO FRAME
M 12X30
802 N 000961012151 SCREW
BRACKET TO FRAME
M 12X30
804 N 000933008153 SCREW
Repalced by: N 304017008034
804 N 304017008034 SCREW
BRACKET TO FRAME
804 N 304017008034 SCREW
BRACKET TO FRAME
806 N 913002012004 NUT
BRACKET TO FRAME
806 N 913002012004 NUT
BRACKET TO FRAME
808 N 009021008205 WASHER
Repalced by: N 009021008213
808 N 009021008213 WASHER
BRACKET TO FRAME
808 N 009021008213 WASHER
BRACKET TO FRAME
810 N 913004008004 NUT
Repalced by: N 913004008001
810 N 913004008001 NUT
BRACKET TO FRAME
810 N 913004008001 NUT
BRACKET TO FRAME
812 A 3878900504 STABILIZER
Repalced by: A 3878900404
812 A 3878900404 STABILIZER
CAB SUSPENSION,FRONT
812 A 3878900404 STABILIZER
CAB SUSPENSION,FRONT
A 0009810731 JOINT BEARING
Repalced by: A 0009817231
A 0009810931 JOINT BEARING
Repalced by: A 0009817331
A 0009817331 JOINT BEARING
Repalced by: A 0009817231
A 0009817331 JOINT BEARING
814 N 900216008201 GREASE NIPPLE
814 N 900216008201 GREASE NIPPLE
A 3878910717 BUSHING
Repalced by: A 3875860531
816 N 000906010000 SCREW PLUG
STABILIZER TO BEARING BRACKET
816 N 000906010000 SCREW PLUG
STABILIZER TO BEARING BRACKET
818 A 3878910272 MOUNTING
Repalced by: A 3875860531
818 A 3878910831 CONSOLE
Repalced by: A 6208910631
818 A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT
818 A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT
818 A 3878910931 CONSOLE
Repalced by: A 6208910731
818 A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT
818 A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT
820 N 000961012069 SCREW
Repalced by: N 308676012015
820 N 308676012015 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X45
820 N 308676012015 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X45
820 N 000960012189 SCREW
Repalced by: N 308676012031
820 N 308676012031 SCREW
Repalced by: N 308676012011
820 N 308676012011 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 12X50
822 N 006912012013 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
822 N 006912012013 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
824 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
824 N 000961014050 SCREW
Repalced by: N 308676014020
824 N 308676014020 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 14X35
824 N 308676014020 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 14X35
824 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
826 N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
826 N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
826 N 912004012100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
828 N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
828 N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
828 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
830 A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
830 A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
830 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
832 A 3878910957 PIN
Repalced by: A 3875860531
832 A 3875860531 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
832 A 3875860531 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
834 N 913004014002 NUT
Repalced by: N 910113014001
834 N 910113014001 NUT
STABILIZER TO BEARING BRACKET
834 N 910113014001 NUT
STABILIZER TO BEARING BRACKET
834 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
836 N 000125015013 WASHER
Repalced by: N 000125015019
836 N 000125015019 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
838 N 000960014167 SCREW
Repalced by: N 000961014064
838 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
840 A 3878911910 WASHER
BEARING BRACKET TO CAB
840 A 3878911910 WASHER
BEARING BRACKET TO CAB
842 N 000961014050 SCREW
Repalced by: N 308676014020
842 N 308676014020 SCREW
BEARING BRACKET TO CAB
844 A 3209901840 WASHER
BEARING BRACKET TO CAB
846 N 000961014028 SCREW
BEARING BRACKET TO CAB
M 14X40
846 N 000961014028 SCREW
BEARING BRACKET TO CAB
M 14X40
846 N 000960014167 SCREW
Repalced by: N 000961014064
846 N 000961014064 SCREW
BEARING BRACKET TO CAB
M 14X50
846 N 000961014044 SCREW
BEARING BRACKET TO CAB
M 14X45
846 N 000961014084 SCREW
Repalced by: N 000961014148
846 N 000961014148 SCREW
CONSOLE,STRUT,AND BRACKET TO FRAME
M 14X75
846 N 000961014054 SCREW
BEARING BRACKET TO CAB
M 14X45
848 N 007349015003 WASHER
BEARING BRACKET TO CAB
848 N 007349015003 WASHER
BEARING BRACKET TO CAB
848 N 000125015013 WASHER
Repalced by: N 000125015019
848 N 000125015019 WASHER
BEARING BRACKET TO CAB
850 N 912004014100 LOCK WASHER
BEARING BRACKET TO CAB
850 N 912004014100 LOCK WASHER
BEARING BRACKET TO CAB
852 N 913004014002 NUT
Repalced by: N 910113014001
852 N 910113014001 NUT
BEARING BRACKET TO CAB
854 N 000960012189 SCREW
Repalced by: N 308676012031
854 N 308676012031 SCREW
Repalced by: N 308676012011
854 N 308676012011 SCREW
BEARING BRACKET TO CAB
856 N 912004012100 LOCK WASHER
BEARING BRACKET TO CAB
858 N 000933008153 SCREW
Repalced by: N 304017008034
858 N 304017008034 SCREW
BEARING BRACKET TO CAB
858 N 304017008034 SCREW
BEARING BRACKET TO CAB
860 N 913004008004 NUT
Repalced by: N 913004008001
860 N 913004008001 NUT
BEARING BRACKET TO CAB
860 N 913004008001 NUT
BEARING BRACKET TO CAB
862 A 0008911905 SHOCK ABSORBER
Repalced by: A 0008911805
862 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,FRONT
862 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,FRONT
864 A 0008910401 RUBBER MOUNTING
Repalced by: A 0008910501
864 A 0008910501 RUBBER MOUNTING
866 A 0008910317 BUSHING
Repalced by: A 0008910617
866 A 0008910617 BUSHING
868 A 3873170176 WASHER
Repalced by: A 6203170176
868 A 6203170176 WASHER
SHOCK ABSORBER TO CAB
868 A 6203170176 WASHER
SHOCK ABSORBER TO CAB
870 A 3873170276 WASHER
Repalced by: N 000125013008
870 N 000125013008 WASHER
870 N 000125013008 WASHER
870 A 3639900040 WASHER
SHOCK ABSORBER TO CAB
872 N 910113012002 NUT
SHOCK ABSORBER TO CAB
872 N 910113012002 NUT
SHOCK ABSORBER TO CAB
874 A 3878915520 MOUNTING
Repalced by: A 3878913220
874 A 3878913220 MOUNTING
Repalced by: A 6208901603
874 A 6208901603 MOUNTING
LEVER TO BEARING
874 A 6208901603 MOUNTING
LEVER TO BEARING
876 N 000933010105 SCREW
MOUNTING TO CAB
876 N 000933010105 SCREW
MOUNTING TO CAB
876 N 000961012052 SCREW
Repalced by: N 308676012012
876 N 308676012012 SCREW
MOUNTING TO CAB
876 N 308676012012 SCREW
MOUNTING TO CAB
876 N 308676012012 SCREW
MOUNTING TO CAB
878 N 912004010102 LOCK WASHER
MOUNTING TO CAB
878 N 912004010102 LOCK WASHER
MOUNTING TO CAB
878 N 912004012100 LOCK WASHER
MOUNTING TO CAB
880 A 3878910098 SHIM
Repalced by: A 3878910498
880 A 3878910498 SHIM
CAB ON CONSOLE AT FRAME
880 A 3878910498 SHIM
CAB ON CONSOLE AT FRAME
882 N 912004014100 LOCK WASHER
CAB ON CONSOLE AT FRAME
882 N 912004014100 LOCK WASHER
CAB ON CONSOLE AT FRAME
884 N 000961014088 SCREW
Repalced by: N 308676014008
884 N 308676014008 SCREW
CAB ON CONSOLE AT FRAME
M 14X35
884 N 308676014008 SCREW
CAB ON CONSOLE AT FRAME
M 14X35
886 N 000961014063 SCREW
Repalced by: A 9429901304
886 A 9429901304 SCREW
CAB ON CONSOLE AT FRAME
M 14X40
888 N 000960014229 SCREW
CAB ON CONSOLE AT FRAME
M 14X55
888 N 000960014229 SCREW
CAB ON CONSOLE AT FRAME
M 14X55
890 N 007349015003 WASHER
CAB ON CONSOLE AT FRAME
892 N 913004014005 NUT
Repalced by: N 910113014000
892 N 910113014000 NUT
CAB ON CONSOLE AT FRAME
892 N 910113014000 NUT
CAB ON CONSOLE AT FRAME
894 A 3638910223 BUFFER
CAB SUSPENSION
894 A 3638910223 BUFFER
CAB SUSPENSION
896 A 3638910047 FLANGE
BUFFER TO FRAME
896 A 3638910047 FLANGE
BUFFER TO FRAME
898 A 3638910517 BUSHING
BUFFER TO FRAME
898 A 3638910517 BUSHING
BUFFER TO FRAME
900 A 3878911710 WASHER
Repalced by: A 3878912210
900 A 3878912210 WASHER
Repalced by: A 4432610076
900 A 4432610076 WASHER
BUFFER TO FRAME
10 MM
900 A 4432610076 WASHER
BUFFER TO FRAME
10 MM
902 N 000931010282 SCREW
BUFFER TO FRAME
902 N 000933010129 SCREW
Repalced by: N 304017010002
902 N 304017010002 SCREW
BUFFER TO FRAME
904 N 912004010102 LOCK WASHER
BUFFER TO FRAME
905 N 000961016112 SCREW
CAB ON CONSOLE AT FRAME
M 16X25
905 N 000961016010 SCREW
CAB ON CONSOLE AT FRAME
M 16X35
905 N 000961016108 SCREW
CAB ON CONSOLE AT FRAME
M 16X30
905 N 000961014008 SCREW
Repalced by: N 308676014003
905 N 308676014003 SCREW
CAB ON CONSOLE AT FRAME
906 N 900037018000 DOWEL PIN
CAB ON CONSOLE AT FRAME
908 A 3878911031 CONSOLE
CAB MOUNTING,REAR
908 A 3878911731 CONSOLE
CAB MOUNTING,REAR
908 A 3878911731 CONSOLE
CAB MOUNTING,REAR
910 N 000961014050 SCREW
Repalced by: N 308676014020
910 N 308676014020 SCREW
CONSOLE TO FRAME
910 N 308676014020 SCREW
CONSOLE TO FRAME
912 N 913004014002 NUT
Repalced by: N 910113014001
912 N 910113014001 NUT
CONSOLE TO FRAME
912 N 910113014001 NUT
CONSOLE TO FRAME
912 N 910113014001 NUT
CONSOLE TO FRAME
914 N 000961014050 SCREW
Repalced by: N 308676014020
914 N 308676014020 SCREW
SHOCK ABSORBER TO CONSOLE
914 N 308676014020 SCREW
SHOCK ABSORBER TO CONSOLE

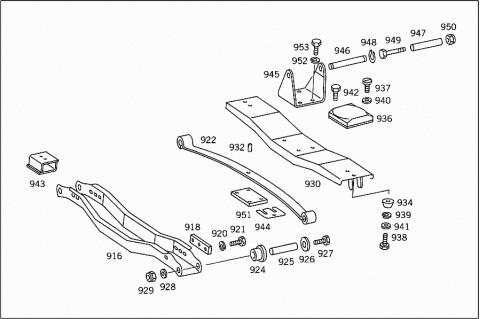

916 A 3878910024 STRUT
Repalced by: A 6558910224
916 A 6558910224 STRUT
CAB MOUNTING,REAR
916 A 6558910224 STRUT
CAB MOUNTING,REAR
918 A 3878910198 SHIM
CAB MOUNTING,REAR
918 A 3878910198 SHIM
CAB MOUNTING,REAR
920 N 912004012100 LOCK WASHER
BASE TO STRUT
920 N 912004012100 LOCK WASHER
BASE TO STRUT
921 N 000961012052 SCREW
Repalced by: N 308676012012
921 N 308676012012 SCREW
BASE TO STRUT
921 N 308676012012 SCREW
BASE TO STRUT
922 A 3878911351 SPRING
(SPRING LEAF),BOTTOM;CAB REAR SUSPENSION
922 A 3878911451 SPRING
(SPRING LEAF),BOTTOM;CAB REAR SUSPENSION
922 A 3878911051 SPRING
CAB SUSPENSION,REAR
924 A 3638910717 BUSHING
FOR SPRING
924 A 3638910717 BUSHING
FOR SPRING
925 A 3638910218 TUBE
SPRING TO STRUT
925 A 3638910218 TUBE
SPRING TO STRUT
926 A 3638910010 WASHER
SPRING TO STRUT
926 A 3638910010 WASHER
SPRING TO STRUT
927 N 000960012153 SCREW
SPRING TO STRUT
927 N 000960012153 SCREW
SPRING TO STRUT
928 N 009021013200 WASHER
SPRING TO STRUT
928 N 009021013200 WASHER
SPRING TO STRUT
929 N 910113012002 NUT
SPRING TO STRUT
929 N 910113012002 NUT
SPRING TO STRUT
930 A 3878900322 RAIL
Repalced by: A 3878900622
930 A 3878900622 RAIL
Repalced by: A 6558900222
930 A 6558900222 RAIL
(CONNECTING RAIL)
930 A 3878900622 RAIL
Repalced by: A 6558900222
930 A 6558900222 RAIL
(CONNECTING RAIL)
930 A 3878900522 RAIL
Repalced by: A 6558900122
930 A 6558900122 RAIL
(CONNECTING RAIL)
932 N 000007012213 CYLINDRICAL PIN
932 N 000007012201 CYLINDRICAL PIN
934 A 3638910123 BUFFER
Repalced by: A 3878910323
934 A 3878910323 BUFFER
(RUBBER BUFFER)
934 A 3878910323 BUFFER
(RUBBER BUFFER)
936 A 3878910072 MOUNTING
CAB,REAR
936 A 3878910072 MOUNTING
CAB,REAR
937 N 000084008119 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X20
937 N 000084008148 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X45
938 N 000933008154 SCREW
Repalced by: N 304017008021
938 N 304017008021 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X22
939 N 912004008102 LOCK WASHER
BUFFER AND MOUNTING TO RAIL
939 N 912004008102 LOCK WASHER
BUFFER AND MOUNTING TO RAIL
940 N 000433008406 WASHER
BUFFER AND MOUNTING TO RAIL
940 N 000433008406 WASHER
BUFFER AND MOUNTING TO RAIL
941 N 000125008418 WASHER
Repalced by: N 000125008443
941 N 000125008443 WASHER
BUFFER AND MOUNTING TO RAIL
941 N 000125008443 WASHER
BUFFER AND MOUNTING TO RAIL
942 N 000933008161 SCREW
Repalced by: N 304017008028
942 N 304017008028 SCREW
BUFFER AND MOUNTING TO RAIL
A 3204290052 SPACER WASHER
BUFFER AND MOUNTING TO RAIL
943 A 3803100184 SHIM
BUFFER AND MOUNTING TO RAIL
944 A 3878910298 SHIM
945 A 3638910520 MOUNTING
Repalced by: A 3878918120
945 A 3878918120 MOUNTING
CAB,REAR
945 A 6208910020 MOUNTING
CAB,REAR
945 A 3878917920 MOUNTING
CAB,REAR
946 A 3638910457 PIN
CAB SUSPENSION,REAR
946 A 3878911057 PIN
CAB SUSPENSION,REAR
947 A 3878911753 SPACER TUBE
CAB SUSPENSION,REAR
948 N 000471025002 LOCK RING
CAB SUSPENSION,REAR
948 N 000471025002 LOCK RING
CAB SUSPENSION,REAR
949 N 000960016242 SCREW
Repalced by: N 000960016251
949 N 000960016251 SCREW
CAB SUSPENSION,REAR
950 N 913004016004 NUT
Repalced by: N 910113016002
950 N 910113016002 NUT
CAB SUSPENSION,REAR
951 A 3878910811 PLATE
SPRING TO STRUT
951 A 3878910811 PLATE
SPRING TO STRUT
952 N 912004010102 LOCK WASHER
SPRING TO STRUT
952 N 912004010102 LOCK WASHER
SPRING TO STRUT
953 N 000931010268 SCREW
Repalced by: N 304017010050
953 N 304017010050 SCREW
SPRING TO STRUT
M 10X70
953 N 000931010258 SCREW
SPRING TO STRUT
M 10X50
954 A 0008911905 SHOCK ABSORBER
Repalced by: A 0008911805
954 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,REAR
954 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,REAR
954 A 0008912205 SHOCK ABSORBER
CAB SUSPENSION,REAR
955 A 0008910317 BUSHING
Repalced by: A 0008910617
955 A 0008910617 BUSHING
956 A 0008910401 RUBBER MOUNTING
Repalced by: A 0008910501
956 A 0008910501 RUBBER MOUNTING
958 A 3878911610 WASHER
SHOCK ABSORBER TO CONSOLE
960 A 3878910453 SPACER TUBE
SHOCK ABSORBER TO CONSOLE
960 A 3878910453 SPACER TUBE
SHOCK ABSORBER TO CONSOLE
962 N 000960014145 SCREW
SHOCK ABSORBER TO CONSOLE
M 14X130
962 N 000960018125 SCREW
Repalced by: N 000960018072
962 N 000960018072 SCREW
SHOCK ABSORBER TO CONSOLE
M 18X135
962 N 000960018072 SCREW
SHOCK ABSORBER TO CONSOLE
M 18X135
962 N 000960014136 SCREW
SHOCK ABSORBER TO CONSOLE
M 14X148
962 N 000960018072 SCREW
Repalced by: N 308765018004
962 N 308765018004 SCREW
SHOCK ABSORBER TO CONSOLE
M 18X140
962 N 308765018004 SCREW
SHOCK ABSORBER TO CONSOLE
M 18X140
962 N 308765018004 SCREW
SHOCK ABSORBER TO CONSOLE
M 18X140
962 N 000960014249 SCREW
SHOCK ABSORBER TO RAIL
M 14X55
962 N 000960018040 SCREW
Repalced by: N 000960018142
962 N 000960018142 SCREW
SHOCK ABSORBER TO RAIL
M 18X65
962 N 000960018142 SCREW
SHOCK ABSORBER TO RAIL
M 18X65
962 N 000960018142 SCREW
SHOCK ABSORBER TO RAIL
M 18X65
964 N 913004014002 NUT
Repalced by: N 910113014001
964 N 910113014001 NUT
SHOCK ABSORBER TO RAIL
964 N 910113014001 NUT
SHOCK ABSORBER TO RAIL
964 N 913004018003 NUT
Repalced by: N 910113018004
964 N 910113018004 NUT
SHOCK ABSORBER TO RAIL
964 N 910113018004 NUT
SHOCK ABSORBER TO RAIL
966 A 3815010121 CONSOLE
Repalced by: A 3815000727
966 A 3815000727 SUPPORT
EXPANSION TANK
966 A 3815000727 SUPPORT
EXPANSION TANK
966 A 3815000927 SUPPORT
Repalced by: A 3815001227
966 A 3815001227 SUPPORT
EXPANSION TANK
968 N 000961014050 SCREW
Repalced by: N 308676014020
968 N 308676014020 SCREW
SUPPORT TO FRAME
M 14X35
968 N 308676014020 SCREW
SUPPORT TO FRAME
M 14X35
968 N 308676014020 SCREW
SUPPORT TO FRAME
M 14X35
968 N 308676014020 SCREW
SUPPORT TO FRAME
M 14X35
968 N 000961014100 SCREW
SUPPORT TO FRAME
M 14X30
968 N 000961014100 SCREW
SUPPORT TO FRAME
M 14X30
970 N 913004014002 NUT
Repalced by: N 910113014001
970 N 910113014001 NUT
SUPPORT TO FRAME
970 N 910113014001 NUT
SUPPORT TO FRAME
970 N 910113014001 NUT
SUPPORT TO FRAME
971 N 000961012151 SCREW
SUPPORT TO FRAME
971 N 000961012151 SCREW
SUPPORT TO FRAME
972 N 910113012002 NUT
SUPPORT TO FRAME
972 N 910113012002 NUT
SUPPORT TO FRAME
972 N 910113012002 NUT
SUPPORT TO FRAME
973 A 0008900089 FASTENER
Repalced by: A 0008902389
973 A 0008901389 FASTENER
Repalced by: A 0008902389
973 A 0008902389 FASTENER
CAB MOUNTING
974 A 3878910170 ROD
CAB LOCKING MECHANISM
974 A 6208910170 ROD
CAB LOCKING MECHANISM
975 N 001444008202 PIN
PULL TO FASTENER
976 N 000433008406 WASHER
PULL TO FASTENER
977 N 000094002059 COTTER PIN
PULL TO FASTENER
978 A 3878911131 CONSOLE
CENTRAL LOCK
979 N 000933010128 SCREW
CENTRAL LOCK TO CAB
M 10X20
980 N 000933010105 SCREW
CENTRAL LOCK TO CAB
M 10X25
981 N 912004010102 LOCK WASHER
CENTRAL LOCK TO CAB
982 N 913004010008 NUT
Repalced by: N 910113010000
982 N 910113010000 NUT
CENTRAL LOCK TO CAB
983 N 000125010518 WASHER
Repalced by: N 000125010532
983 N 000125010532 WASHER
CENTRAL LOCK TO CAB
984 A 3878910814 BRACKET
ROD THRU CAB
985 A 3878910085 SEAL
ROD THRU CAB
986 N 007346005003 CLAMPING SLEEVE
CAB LOCKING MECHANISM
987 A 3878911956 LEVER
CAB LOCKING MECHANISM
987 A 6208910056 LEVER
CAB LOCKING MECHANISM
988 A 3638910317 BUSHING
LOCKING MECHANISM TO CAB
989 A 3638910073 HANDLE
Repalced by: A 6208910073
989 A 6208910073 HANDLE
LOCKING MECHANISM TO CAB
990 N 007985008142 SCREW
LEVER AND BUSHING TO CAB
991 N 913004008004 NUT
Repalced by: N 913004008001
991 N 913004008001 NUT
LEVER AND BUSHING TO CAB
992 N 007346005004 CLAMPING SLEEVE
Repalced by: N 001481005039
992 N 001481005039 CLAMPING SLEEVE
CAB LOCKING MECHANISM
993 N 000125015013 WASHER
Repalced by: N 000125015019
993 N 000125015019 WASHER
CAB LOCKING MECHANISM
994 N 900055014400 LOCK RING
CAB LOCKING MECHANISM
995 N 001444008233 PIN
CAB LOCKING MECHANISM
996 N 000433008406 WASHER
CAB LOCKING MECHANISM
997 N 000094002059 COTTER PIN
CAB LOCKING MECHANISM
998 A 3815840038 GUMMED LABEL
CAB LOCKING MECHANISM
999 A 3875841321 GUIDE SIGN
DANGER AREA IN FRONT OF TILTED CAB
A 3875840055 ADHESIVE FOIL
DANGER AREA IN FRONT OF TILTED CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
