Transporto priemonė: 1114; VIN numerio dalis: 678013

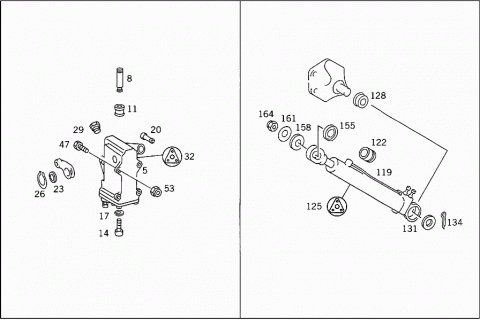

Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 005 | A 0005537901 | PUMP |
| 005 | A 0005538901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 008 | A 0005531890 | PISTON |
| TO 000 553 79 01 | ||
| 008 | A 0005532590 | PISTON |
| TO 000 553 89 01 | ||
| 011 | A 0005503455 | VALVE |
| TO 000 553 79 01 | ||
| 011 | A 0005504655 | VALVE |
| TO 000 553 89 01 | ||
| 014 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 014 | N 000000000190 | SCREW |
| CASE COVER | ||
| 017 | N 912004008102 | LOCK WASHER |
| CASE COVER | ||
| 020 | A 0005530403 | FILTER |
| 023 | N 000988020011 | FITTED WASHER |
| 20X28X1 MM | ||
| 026 | N 000471020001 | LOCK RING |
| 20X1.2 MM | ||
| 029 | A 0009901610 | SCREW |
| OIL FILLING | ||
| TO 000 553 79 01 | ||
| 029 | A 0009901301 | SCREW |
| OIL FILLING | ||
| TO 000 553 89 01 | ||
| 032 | A 0005502583 | GASKET KIT |
| HAND PUMP | ||
| TO 000 553 39 01 | ||
| 032 | A 0005502783 | GASKET KIT |
| HAND PUMP | ||
| 047 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 047 | N 304017010002 | SCREW |
| BRACKET TO CONSOLE | ||
| 053 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 053 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||

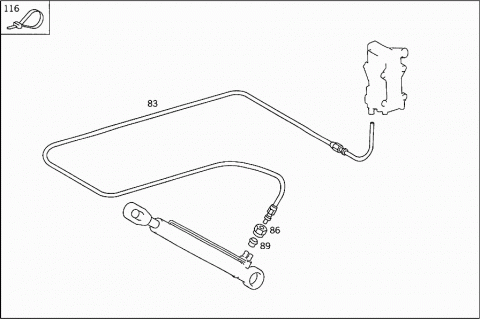

| 083 | A 6745534082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 083 | A 6745534282 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 086 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 089 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 089 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 116 | A 0019978490 | LOOM TIE |
| OIL DELIVERY LINE TO BRACKET | ||
| 376 MM | ||
| 116 | A 0019978390 | LOOM TIE |
| OIL DELIVERY LINE TO BRACKET | ||
| 280 MM | ||
| 119 | A 6745530405 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 122 | A 0005531628 | GUIDE |
| WEBER,TO 674 553 04 05 | ||
| 125 | A 0005501707 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 674 553 04 05 | ||
| 128 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 131 | N 000125025005 | WASHER |
| Repalced by: N 000125025008 | ||
| 131 | N 000125025008 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 134 | N 000094006317 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 155 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 158 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 161 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 161 | A 6745530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 164 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 164 | N 910113016002 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
| A 3604280243 | ANGLE | |
| LINE MOUNTING | ||
| A 6735530040 | BRACKET | |
| LINE MOUNTING | ||
