Transporto priemonė: 1213 AS; VIN numerio dalis: 381150

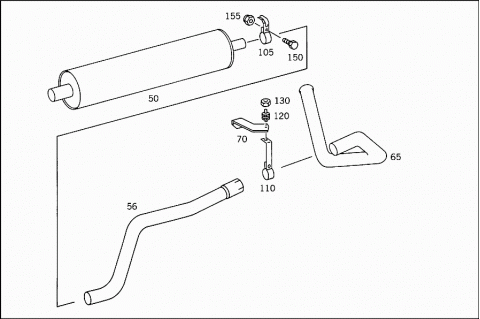

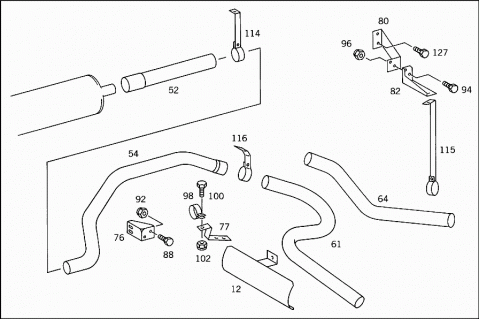

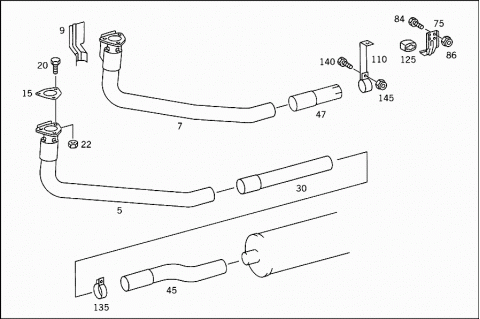

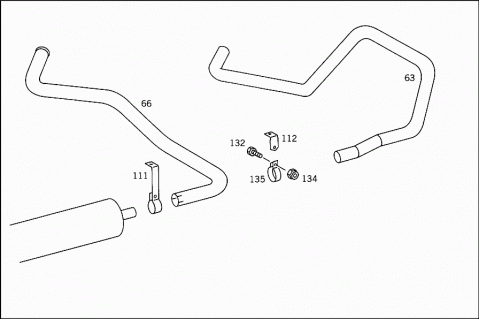

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3814900219 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3814900219 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3814900219 | EXHAUST PIPE |
| FRONT | ||
| 007 | A 3834900719 | EXHAUST PIPE |
| FRONT | ||
| 009 | A 3834922530 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 012 | A 3834901030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 015 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 015 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000931010282 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 022 | N 000934010014 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | A 3404920007 | CONNECTOR |
| Repalced by: A 3224920207 | ||
| 030 | A 3224920207 | CONNECTOR |
| FRONT | ||
| 030 | A 3224920207 | CONNECTOR |
| FRONT | ||
| 030 | A 3224920207 | CONNECTOR |
| FRONT | ||
| 045 | A 3814920001 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 045 | A 3814920001 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 045 | A 3814920001 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 047 | A 3834923701 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 050 | A 3834900001 | EXHAUST MUFFLER |
| 052 | A 3604921407 | CONNECTOR |
| REAR | ||
| 054 | A 3814924106 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 056 | A 3834926304 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 061 | A 3814900021 | EXHAUST PIPE |
| Repalced by: A 3814900321 | ||
| 061 | A 3814900321 | EXHAUST PIPE |
| REAR | ||
| 061 | A 3814900121 | EXHAUST PIPE |
| Repalced by: A 3814900421 | ||
| 061 | A 3814900421 | EXHAUST PIPE |
| REAR | ||
| 063 | A 3854920104 | REAR EXHAUST PIPE |
| REAR | ||
| 063 | A 3854920104 | REAR EXHAUST PIPE |
| REAR | ||
| 063 | A 3814926104 | REAR EXHAUST PIPE |
| REAR | ||
| 064 | A 3814925104 | REAR EXHAUST PIPE |
| REAR | ||
| 064 | A 3834925504 | REAR EXHAUST PIPE |
| REAR | ||
| 065 | A 3814922104 | REAR EXHAUST PIPE |
| REAR | ||
| 065 | A 3814925404 | REAR EXHAUST PIPE |
| 066 | A 3854920304 | REAR EXHAUST PIPE |
| Repalced by: A 3814926904 | ||
| 066 | A 3814926904 | REAR EXHAUST PIPE |
| REAR | ||
| 066 | A 3854921004 | REAR EXHAUST PIPE |
| Repalced by: A 3814927104 | ||
| 066 | A 3814927104 | REAR EXHAUST PIPE |
| REAR | ||
| 070 | A 3814910516 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 070 | A 3814920316 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 070 | A 3814920316 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 070 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 070 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| A 3834921516 | SUPPORT | |
| REAR EXHAUST PIPE TO FRAME | ||
| 075 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 075 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 075 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 075 | A 3814910016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 076 | A 3814910316 | SUPPORT |
| Repalced by: A 3604910016 | ||
| 076 | A 3604910016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 076 | A 3604910016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 077 | A 3834922016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 077 | A 3834921916 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 080 | A 3834922616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 082 | A 3834920116 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 082 | A 3834920216 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 082 | A 3854920416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 084 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 084 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 084 | N 304017008034 | SCREW |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| M 8X25 | ||
| 086 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 086 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 086 | N 913004008001 | NUT |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| 088 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| 088 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 088 | N 304017010002 | SCREW |
| REAR CROSS MEMBER | ||
| M 10X30 | ||
| 092 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 092 | N 910113010000 | NUT |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| 094 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 094 | N 304017012020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 096 | N 913002012004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 098 | A 3834920540 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 100 | N 000933010157 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X28 | ||
| 102 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 102 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| M 10 | ||
| 105 | A 3814921941 | BRACKET |
| EXHAUST PIPE | ||
| 105 | A 3814922041 | BRACKET |
| EXHAUST PIPE | ||
| 105 | A 3814922041 | BRACKET |
| EXHAUST PIPE | ||
| 105 | A 3814922041 | BRACKET |
| EXHAUST PIPE | ||
| 105 | A 3814922041 | BRACKET |
| EXHAUST PIPE | ||
| 110 | A 3814921341 | BRACKET |
| Repalced by: A 3814922241 | ||
| 110 | A 3814922241 | BRACKET |
| EXHAUST PIPE | ||
| 111 | A 3814922341 | BRACKET |
| Repalced by: A 3814922241 | ||
| 111 | A 3814922241 | BRACKET |
| EXHAUST PIPE | ||
| 111 | A 3834928241 | BRACKET |
| EXHAUST PIPE | ||
| 111 | A 3834928341 | BRACKET |
| Repalced by: A 3814922214 | ||
| 111 | A 3814922214 | END PIECE |
| EXHAUST PIPE | ||
| 112 | A 3814920041 | BRACKET |
| EXHAUST PIPE | ||
| 112 | A 3814920041 | BRACKET |
| EXHAUST PIPE | ||
| 114 | A 3834925241 | BRACKET |
| Repalced by: A 3814921441 | ||
| 114 | A 3814921441 | BRACKET |
| EXHAUST PIPE | ||
| 114 | A 3814922741 | BRACKET |
| Repalced by: A 3814922241 | ||
| 114 | A 3814922241 | BRACKET |
| EXHAUST PIPE | ||
| 114 | A 3814922241 | BRACKET |
| EXHAUST PIPE | ||
| 115 | A 3834923841 | BRACKET |
| EXHAUST PIPE | ||
| 116 | A 3814922441 | BRACKET |
| Repalced by: A 3814922241 | ||
| 116 | A 3814922241 | BRACKET |
| EXHAUST PIPE | ||
| 116 | A 3814922241 | BRACKET |
| EXHAUST PIPE | ||
| 120 | A 0019873140 | RUBBER BUFFER |
| Repalced by: A 0019875340 | ||
| 120 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 120 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 120 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 120 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 120 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 125 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 125 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 125 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 127 | N 000933010128 | SCREW |
| BRACKET TO SUPPORT | ||
| 130 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 130 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| 132 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 132 | N 304017008034 | SCREW |
| BRACKET TO SUPPORT | ||
| 134 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 134 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 135 | N 071555060500 | CLAMP |
| Repalced by: N 000000001642 | ||
| 135 | N 000000001642 | CLAMP |
| 60.5 MM | ||
| 135 | N 000000001642 | CLAMP |
| 60.5 MM | ||
| 135 | N 071555065501 | CLAMP |
| 65.5 MM | ||
| 135 | N 071555065501 | CLAMP |
| 65.5 MM | ||
| 140 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 140 | N 304017008034 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X25 | ||
| 145 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 145 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 150 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X28 | ||
| 155 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 155 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
