Transporto priemonė: 1213 KO; VIN numerio dalis: 381061
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3815010601 | RADIATOR |
| 005 | A 0005001403 | RADIATOR |
| 005 | A 3815010301 | RADIATOR |
| 005 | A 3815010901 | RADIATOR |
| 005 | A 0005001503 | RADIATOR |
| 010 | N 007603014405 | SEAL RING |
| 012 | N 007604014101 | SCREW PLUG |
| 020 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 020 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 022 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 024 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 024 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| 030 | A 3815000149 | TANK |
| Repalced by: A 3815000849 | ||
| 030 | A 3815000849 | TANK |
| COOLING WATER EXPANSION | ||
| 036 | A 0005013115 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 036 | A 0005013215 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 036 | A 0005014215 | RADIATOR CAP |
| TO 381 500 01 49 | ||
| 037 | A 0005014515 | RADIATOR CAP |
| TO 381 500 08 49 | ||
| 037 | A 0005014615 | RADIATOR CAP |
| TO 381 500 08 49 | ||
| 037 | A 0005017215 | RADIATOR CAP |
| TO 381 500 08 49 | ||
| 038 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM,TO 000 501 42 15,000 501 46 15 | ||
| 039 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 040 | A 3815010520 | BRACKET |
| Repalced by: A 6155010020 | ||
| 040 | A 6155010020 | BRACKET |
| EXPANSION TANK | ||
| 041 | A 3815001227 | SUPPORT |
| EXPANSION TANK | ||
| 042 | N 912004010102 | LOCK WASHER |
| BRACKET TO FENDER SUPPORT | ||
| 043 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 043 | N 304017010028 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 045 | A 4010100240 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 046 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 047 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 048 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 049 | N 000933010128 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 050 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 050 | N 910113010000 | NUT |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 051 | A 3815000131 | BRACKET |
| Repalced by: A 3815012720 | ||
| 051 | A 3815012720 | BRACKET |
| STRAP | ||
| 052 | A 3634750220 | PAD |
| EXPANSION TANK TO SUPPORT | ||
| 053 | A 3815010095 | SHIM |
| Repalced by: A 3815010295 | ||
| 053 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 053 | A 3815010495 | SHIM |
| EXPANSION TANK TO SUPPORT | ||
| 054 | N 000933010105 | SCREW |
| EXPANSION TANK TO SUPPORT | ||
| 055 | N 912004010102 | LOCK WASHER |
| EXPANSION TANK TO SUPPORT | ||
| 056 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 056 | N 910113010000 | NUT |
| EXPANSION TANK TO SUPPORT | ||
| 056 | N 910113010000 | NUT |
| EXPANSION TANK TO SUPPORT | ||
| 060 | A 3815050555 | FAN SHROUD |
| 062 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 065 | N 000933006102 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| M 6X16 | ||
| 065 | N 000933006130 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| M 6X18 | ||
| 070 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 072 | A 3859901140 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 073 | A 3815040051 | SPACER RING |
| Repalced by: A 3469910040 | ||
| 073 | A 3469910040 | SPACER TUBE |
| 074 | A 3815040031 | SUPPORTING PLATE |
| FAN SHROUD TO RADIATOR | ||
| 075 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 075 | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 076 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 076 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 077 | A 3835040040 | BRACKET |
| RADIATOR | ||
| 077 | A 3835040401 | SUPPORT |
| RADIATOR | ||
| 080 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 082 | N 000933010164 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| M 10X40 | ||
| 082 | N 000933010145 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| M 10X35 | ||
| 083 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 083 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 084 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR MOUNTING | ||
| 084 | A 3875040112 | RUBBER MOUNTING |
| RADIATOR MOUNTING | ||
| 086 | N 000961012106 | SCREW |
| BRACKET TO RADIATOR | ||
| 088 | N 913002012004 | NUT |
| BRACKET TO RADIATOR | ||
| 090 | A 3815011082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 092 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 092 | N 000000000671 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 094 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 094 | N 000000000672 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 100 | A 3815010882 | HOSE |
| FROM RADIATOR TO COOLING WATER PIPE | ||
| 102 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 102 | N 000000000672 | CLAMP |
| FROM RADIATOR TO COOLING WATER PIPE | ||
| 104 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 104 | N 000000000671 | CLAMP |
| FROM RADIATOR TO COOLING WATER PIPE | ||
| 110 | A 3815000672 | LINE |
| Repalced by: A 3815002572 | ||
| 110 | A 3815002572 | LINE |
| COOLING WATER PIPE | ||
| 113 | N 000933010105 | SCREW |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| M 10X25 | ||
| 113 | N 000933010094 | SCREW |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| M 10X40 | ||
| 115 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 115 | N 000125010532 | WASHER |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 116 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 116 | N 910113010000 | NUT |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| A 3835040084 | SHIM | |
| AS REQUIRED | ||
| 5.00 MM | ||
| A 3855040184 | SHIM | |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 3855040284 | SHIM | |
| AS REQUIRED | ||
| 2.00 MM | ||
| 120 | A 3815011282 | HOSE |
| COOLING WATER PIPE | ||
| 124 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 124 | N 000000000671 | CLAMP |
| COOLING WATER PIPE | ||
| 125 | A 3815011124 | COOLING WATER PIPE |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| 125 | A 3815011924 | COOLING WATER PIPE |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| 125 | A 3855010824 | COOLING WATER PIPE |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| 127 | N 900271028026 | HOSE |
| COOLING WATER LINE | ||
| 128 | A 3815011382 | HOSE |
| COOLING WATER LINE | ||
| 129 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 129 | N 000000000670 | CLAMP |
| COOLING WATER LINE | ||
| 137 | N 916016028200 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 137 | N 916016028200 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 140 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 140 | N 304017008021 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 140 | N 304017008021 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 144 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 144 | N 913004008001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 144 | N 913004008001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 170 | N 900271018038 | HOSE |
| HEATING PIPES | ||
| 172 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 172 | N 000000000667 | CLAMP |
| HEATING PIPES | ||
| 175 | A 3815000572 | LINE |
| HEATING PIPES | ||
| 177 | A 3835060035 | HOSE |
| HEATING PIPE | ||
| 179 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 179 | N 000000000667 | CLAMP |
| HEATING PIPE | ||
| 185 | A 3815060235 | HOSE |
| COOLING WATER PIPE TO RADIATOR | ||
| 187 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 187 | N 000000000667 | CLAMP |
| COOLING WATER PIPE TO RADIATOR | ||
| 190 | A 3815012025 | BREATHER PIPE |
| Repalced by: A 3815014025 | ||
| 190 | A 3815014025 | BREATHER PIPE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 190 | A 3815013425 | BREATHER PIPE |
| Repalced by: A 3815014025 | ||
| 190 | A 3815014025 | BREATHER PIPE |
| 191 | A 3815012425 | BREATHER PIPE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 1515 MM | ||
| 192 | A 3875014425 | BREATHER PIPE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 515 MM | ||
| 193 | N 900271012018 | HOSE |
| DE-AERATION PIPE TO TANK | ||
| 12X21 MM | ||
| 193 | N 900271012018 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 12X21 MM | ||
| 196 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 196 | N 000000000667 | CLAMP |
| BREATHER LINE,RADIATOR | ||
| 196 | N 000000000667 | CLAMP |
| BREATHER LINE,RADIATOR | ||
| 199 | A 3815012125 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 200 | A 3815012225 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 970 MM | ||
| 201 | A 3875014825 | BREATHER PIPE |
| FROM EXPANSION TANK TO ENGINE | ||
| 565 MM | ||
| 202 | N 900271015037 | HOSE |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 15X24 MM | ||
| 202 | N 900271015037 | HOSE |
| FROM EXPANSION TANK TO ENGINE | ||
| 15X24 MM | ||
| 203 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 203 | N 000000000667 | CLAMP |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 203 | N 000000000667 | CLAMP |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 204 | A 3049951520 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 205 | N 000933006102 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 206 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 206 | N 910113006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 204 | A 3875013420 | BRACKET |
| Repalced by: A 3875015620 | ||
| 207 | A 3875015620 | BRACKET |
| COOLING WATER PIPE TO CAB SUPPORT | ||
| 208 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 208 | N 304017008021 | SCREW |
| HEATING LINE TO BREATHER HOSE | ||
| 209 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 209 | N 913004008001 | NUT |
| HEATING LINE TO BREATHER HOSE | ||
| 210 | A 3522030840 | BRACKET |
| HEATING LINE TO BREATHER HOSE | ||
| 211 | N 000933006127 | SCREW |
| HEATING LINE TO BREATHER HOSE | ||
| 6X25 | ||
| 211 | N 000933006127 | SCREW |
| HEATING LINE TO BREATHER HOSE | ||
| 6X25 | ||
| 212 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 212 | N 913004006001 | NUT |
| HEATING; TO CONNECTOR | ||
| 212 | N 913004006001 | NUT |
| HEATING; TO CONNECTOR | ||
| 220 | A 3609950401 | CLAMP |
| HEATING LINE TO BREATHER HOSE | ||
| 220 | A 3609950401 | CLAMP |
| HEATING LINE TO BREATHER HOSE | ||
| A 3609951301 | CLAMP | |
| Repalced by: A 3609951201 | ||
| 220 | A 3609951201 | CLAMP |
| EXPANSION TANK TO BRACKET | ||

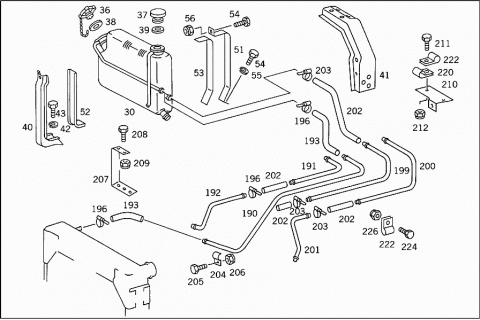

| 220 | A 3609951401 | CLAMP |
| Repalced by: N 916016011202 | ||
| 220 | N 916016011202 | CLAMP |
| EXPANSION TANK TO BRACKET | ||
| A 3609950501 | CLAMP | |
| Repalced by: A 3609952001 | ||
| 222 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 222 | A 6739950001 | CLAMP |
| HEATING LINE TO BREATHER HOSE | ||
| 222 | A 6739950001 | CLAMP |
| HEATING LINE TO BREATHER HOSE | ||
| 222 | A 3609950601 | CLAMP |
| HEATING LINE TO BREATHER HOSE | ||
| 222 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 222 | A 6739950001 | CLAMP |
| ENGINE BREATHING | ||
| 222 | A 3609950401 | CLAMP |
| ENGINE BREATHING | ||
| 224 | N 000933006102 | SCREW |
| ENGINE BREATHING | ||
| 226 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 226 | N 913004006001 | NUT |
| ENGINE BREATHING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
