Transporto priemonė: 1213 MBSA; VIN numerio dalis: 381005

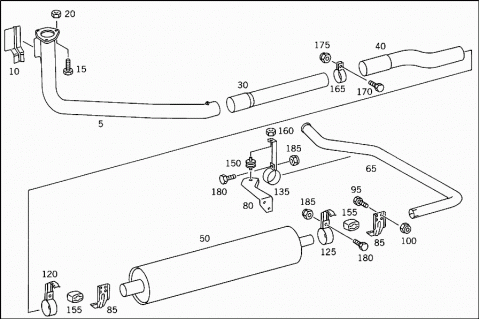

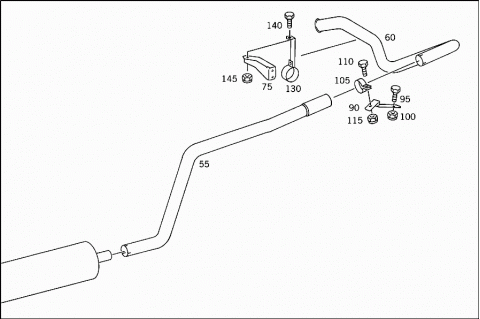

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3814900219 | EXHAUST PIPE |
| FRONT | ||
| 010 | A 3834922530 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 015 | N 000931010282 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000934010014 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | A 3224920207 | CONNECTOR |
| FRONT | ||
| 040 | A 3814920001 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 050 | A 3834900001 | EXHAUST MUFFLER |
| 055 | A 3834926304 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 060 | A 3814926104 | REAR EXHAUST PIPE |
| REAR | ||
| 065 | A 3814926904 | REAR EXHAUST PIPE |
| REAR | ||
| 065 | A 3814927104 | REAR EXHAUST PIPE |
| REAR | ||
| 075 | A 3814920316 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 080 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 085 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 090 | A 3834922016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 095 | N 000933008153 | SCREW |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| 100 | N 913004008004 | NUT |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| 105 | A 3834920540 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 110 | N 000933010157 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X28 | ||
| 115 | N 913004010008 | NUT |
| CLAMP TO BRACKET | ||
| 120 | A 3814921941 | BRACKET |
| EXHAUST PIPE | ||
| 125 | A 3814922041 | BRACKET |
| EXHAUST PIPE | ||
| 130 | A 3814922241 | BRACKET |
| EXHAUST PIPE | ||
| 135 | A 3814922441 | BRACKET |
| EXHAUST PIPE | ||
| 140 | N 000933008153 | SCREW |
| BRACKET TO SUPPORT | ||
| 145 | N 913004008004 | NUT |
| BRACKET TO SUPPORT | ||
| 150 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 155 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 160 | N 913004010008 | NUT |
| BRACKET TO SUPPORT | ||
| 165 | N 071555065501 | CLAMP |
| 65.5 MM | ||
| 170 | N 000933008153 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X25 | ||
| 175 | N 913004008004 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 180 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X28 | ||
| 185 | N 913004010008 | NUT |
| CLAMP TO BRACKET AND TO PIPE |
