Transporto priemonė: 1213 MBSA; VIN numerio dalis: 381007
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | N 074298022203 | DOUBLE FITTING |
| AT AIR COMPRESSOR | ||
| 009 | A 0009870446 | SEALING CORD |
| AT AIR COMPRESSOR | ||
| 011 | A 0004290227 | THRUST RING |
| AT AIR COMPRESSOR | ||
| 012 | A 0004291401 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 15 MM | ||
| 014 | N 915018015000 | UNION NUT |
| 016 | N 003861015004 | GLAND |
| 018 | N 915065015101 | THRUST RING |
| 020 | N 915045012100 | SEAL RING |
| 022 | N 003941015101 | FITTING |
| FITTING TO FRAME SIDE MEMBER | ||
| 024 | N 074305022202 | NUT |
| FITTING TO FRAME SIDE MEMBER | ||
| 026 | A 0004292101 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 12 MM | ||
| 028 | N 915017012100 | UNION NUT |
| 030 | N 003861012007 | GLAND |
| 032 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 032 | A 0009872827 | PLASTIC PIPE |
| AIR RESERVOIR,RELAY VALVE, SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 9X12 MM | ||
| 032 | A 0009872827 | PLASTIC PIPE |
| BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE | ||
| 9X12 MM | ||
| 034 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 034 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 036 | N 915017012100 | UNION NUT |
| 038 | N 003861012007 | GLAND |
| 040 | N 915062009000 | SLEEVE |
| 042 | N 915052009005 | BANJO UNION |
| Repalced by: N 915052009009 | ||
| 042 | N 915052009009 | BANJO UNION |
| 044 | N 074317012300 | FITTING |
| 046 | A 0089979082 | HOSE |
| BLACK | ||
| 6X8 MM | ||
| 048 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 048 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 050 | N 915017008100 | UNION NUT |
| 052 | N 003861008005 | GLAND |
| 054 | N 915062006000 | SLEEVE |
| 056 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 | ||
| 058 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 | ||
| 060 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 | ||
| 062 | N 915059006002 | FITTING |
| 064 | A 0089976082 | HOSE |
| PRESSURE GAUGE,FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 4X6 MM | ||
| 064 | A 0089976082 | HOSE |
| PARKING BRAKE VALVE | ||
| 4X6 MM | ||
| 066 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 068 | N 915017006100 | UNION NUT |
| 070 | N 003861006007 | GLAND |
| 072 | N 915062004000 | SLEEVE |
| 074 | N 073379006203 | HOSE |
| FROM PRESSURE GAUGE TO OIL BATH AIR CLEANER | ||
| 6X10 MM | ||
| 076 | A 3874291140 | BRACKET |
| LINE TO CAB CONSOLE | ||
| 078 | N 000933008147 | SCREW |
| LINE TO CAB CONSOLE | ||
| 080 | N 913004008004 | NUT |
| LINE TO CAB CONSOLE | ||
| 082 | A 3874292640 | BRACKET |
| BUMPER,RIGHT | ||
| 084 | N 000933008145 | SCREW |
| BRACKET TO BUMPER STRUT | ||
| 086 | N 913004008004 | NUT |
| BRACKET TO BUMPER STRUT | ||
| 088 | N 000933008153 | SCREW |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 090 | N 913004008004 | NUT |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 092 | N 000125008418 | WASHER |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 094 | A 0004290286 | PROTECTIVE TUBE |
| COMPRESSED AIR LINE | ||
| 096 | A 3274925419 | BRACKET |
| Repalced by: A 6205240340 | ||
| 096 | A 3604292940 | BRACKET |
| LINE TO CROSS MEMBER | ||
| 098 | A 3604292940 | BRACKET |
| PLASTIC LINES TO FRAME | ||
| 100 | N 000933008147 | SCREW |
| PLASTIC LINES TO FRAME | ||
| 102 | N 913004008004 | NUT |
| PLASTIC LINES TO FRAME | ||
| 104 | A 0019978490 | LOOM TIE |
| 106 | A 3229971581 | GROMMET |
| 108 | A 0004294037 | DISTRIBUTOR |
| SECONDARY CONSUMING UNITS | ||
| 110 | N 000931006136 | SCREW |
| DISTRIBUTOR TO CAB | ||
| 112 | N 000125006421 | WASHER |
| DISTRIBUTOR TO CAB | ||
| 114 | N 913004006003 | NUT |
| DISTRIBUTOR TO CAB | ||
| 116 | A 6204295240 | BRACKET |
| AT CAB FLOOR | ||
| 118 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 118 | N 913004006001 | NUT |
| AT CAB FLOOR | ||
| 120 | N 915036008202 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTIONS: | ||
| "1,2,3" | ||
| 120 | N 915047008202 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTION: | ||
| "1" | ||
| 124 | N 007603012405 | SEAL RING |
| AT DISTRIBUTOR | ||
| 126 | N 000908012003 | SCREW PLUG |
| AT DISTRIBUTOR | ||
| 128 | A 3854290540 | BRACKET |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| 130 | N 000933008153 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 132 | N 913004008004 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 134 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 134 | A 6739950001 | CLAMP |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| 136 | N 000000001147 | SCREW |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| M 6X20 | ||
| 138 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 138 | N 913004006001 | NUT |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| 140 | A 3404201529 | LINE |
| FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION | ||
| 900 MM | ||
| 140 | A 3404203329 | LINE |
| FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION | ||
| 1800 MM | ||

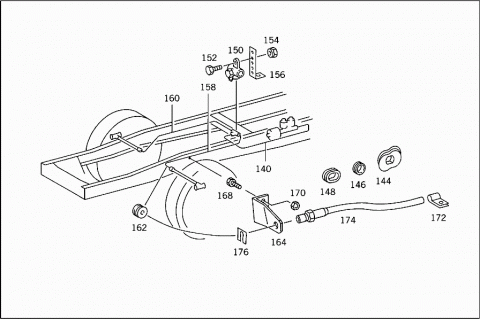

| 144 | A 3879970181 | GROMMET |
| LEFT BRAKE LINE TO FRAME | ||
| 146 | A 0039973481 | GROMMET |
| LEFT BRAKE LINE TO FRAME | ||
| 148 | A 3859970381 | GROMMET |
| LEFT BRAKE LINE TO FRAME | ||
| 150 | A 0004312231 | TEST CONNECTION |
| 150 | A 0004316531 | TEST CONNECTION |
| 152 | N 000933008153 | SCREW |
| TEST CONNECTION TO CROSS MEMBER | ||
| 154 | N 913004008004 | NUT |
| TEST CONNECTION TO CROSS MEMBER | ||
| 156 | A 3604292940 | BRACKET |
| TEST CONNECTION TO CROSS MEMBER BEHIND CAB | ||
| 158 | A 3404202329 | LINE |
| FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 1300 MM | ||
| 160 | A 3404203929 | LINE |
| FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 2400 MM | ||
| 162 | A 3859970081 | GROMMET |
| 164 | A 3854280240 | BRACKET |
| LEFT FRONT BRAKE HOSE | ||
| 164 | A 3854280340 | BRACKET |
| RIGHT FRONT BRAKE HOSE | ||
| 168 | N 000933008147 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 170 | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 172 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 172 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 174 | A 0004288935 | BRAKE HOSE |
| FRONT | ||
| 650 MM | ||
| 174 | A 0014284835 | BRAKE HOSE |
| FRONT | ||
| 650 MM | ||
| 176 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 176 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE,FRONT | ||
| 178 | A 3404201129 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 700 MM | ||
| 178 | A 3404201929 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 1100 MM | ||
| 182 | A 0004292736 | CONNECTOR |
| 184 | A 3404204329 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 3200 MM | ||
| 184 | A 3404204829 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 4200 MM | ||
| 184 | A 3404205129 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 4800 MM | ||
| 190 | A 0004311231 | TEST CONNECTION |
| REAR AXLE BRAKE CIRCUIT | ||
| 190 | A 0004316631 | TEST CONNECTION |
| REAR AXLE BRAKE CIRCUIT | ||
| 194 | A 3854310153 | SPACER TUBE |
| Repalced by: A 4409910040 | ||
| 194 | A 4409910040 | SPACER TUBE |
| TEST CONNECTION TO SIDE MEMBER | ||
| 194 | A 3804310053 | SPACER TUBE |
| TEST CONNECTION TO SIDE MEMBER | ||
| 196 | N 000931008251 | SCREW |
| TEST CONNECTION TO SIDE MEMBER | ||
| 196 | N 000931008281 | SCREW |
| TEST CONNECTION TO SIDE MEMBER | ||
| 198 | N 000125008418 | WASHER |
| TEST CONNECTION TO SIDE MEMBER | ||
| 200 | N 913004008004 | NUT |
| TEST CONNECTION TO SIDE MEMBER | ||
| 202 | A 3404201729 | LINE |
| FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1" | ||
| 1000 MM | ||

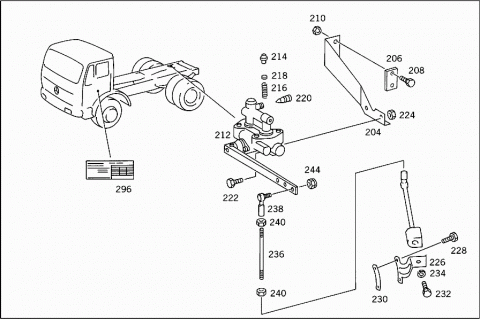

| 204 | A 3834300039 | SUPPORT |
| BRAKE POWER REGULATOR | ||
| 206 | A 3834310084 | SHIM |
| BRACKET TO SIDE MEMBER | ||
| 208 | N 000961012069 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 210 | N 913004012008 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 212 | A 0004317512 | BRAKE PRESSURE REGULATOR |
| A 0004312439 | LEVER | |
| TOOTHED | ||
| 214 | A 0004311068 | VALVE PART |
| 216 | A 0014315793 | SPRING |
| 218 | N 007603018101 | SEAL RING |
| 220 | A 3075530107 | VALVE |
| 222 | N 000931010258 | SCREW |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 224 | N 913004010008 | NUT |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 226 | A 3814311440 | BRACKET |
| METAL SPRING BELLOWS | ||
| 228 | N 000933010157 | SCREW |
| BRACKET TO REAR AXLE HOUSING | ||
| 230 | A 3554310384 | SHIM |
| BRACKET TO REAR AXLE HOUSING | ||
| 232 | N 000961012056 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| 234 | N 912004012100 | LOCK WASHER |
| METAL SPRING BELLOWS TO BRACKET | ||
| 236 | N 900331008427 | PULL ROD |
| L.H. AND R.H. THREAD | ||
| 400 MM | ||
| 238 | A 0004310867 | YOKE |
| L.H. THREAD | ||
| 240 | N 000934008010 | NUT |
| R.H. THREAD | ||
| 240 | N 000934008035 | NUT |
| L.H. THREAD | ||
| 244 | N 913004008004 | NUT |
| PULL ROD TO BRACKET AND TO BRAKEPRESSURE-REGULATOR LEVER | ||
| 246 | A 3404200729 | LINE |
| FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE | ||
| 500 MM | ||
| 248 | A 3224280140 | BRACKET |
| BRAKE HOSE,REAR | ||
| 250 | N 000933008147 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 252 | N 913004008004 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 254 | A 0024280735 | BRAKE HOSE |
| REAR | ||
| 600 MM | ||
| 256 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 256 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE,REAR | ||
| 258 | A 0004312231 | TEST CONNECTION |
| AT REAR AXLE | ||
| 258 | A 0004316531 | TEST CONNECTION |
| AT REAR AXLE | ||
| 260 | N 000933008147 | SCREW |
| TEST CONNECTION TO REAR AXLE | ||
| 262 | N 912004008102 | LOCK WASHER |
| TEST CONNECTION TO REAR AXLE | ||
| 264 | A 3604280243 | ANGLE |
| BRAKE LINE MOUNTING | ||
| 266 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 266 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 268 | A 3609950601 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 270 | N 000933008153 | SCREW |
| MOUNTING CLAMP TO ANGLE | ||
| 272 | N 913004008004 | NUT |
| MOUNTING CLAMP TO ANGLE | ||
| 274 | N 000933006121 | SCREW |
| BRAKE LINE MOUNTING | ||
| 276 | N 913004006003 | NUT |
| BRAKE LINE MOUNTING | ||
| 278 | A 3854294040 | BRACKET |
| Repalced by: A 3812711640 | ||
| 278 | A 3812711640 | BRACKET |
| BRAKE LINE TO REAR AXLE | ||
| 280 | N 000933008212 | SCREW |
| 282 | N 912004008102 | LOCK WASHER |
| 284 | A 3129951020 | CLAMP |
| BRAKE LINE TO REAR AXLE | ||
| 286 | A 3129973482 | HOSE |
| BRAKE LINE TO REAR AXLE | ||
| 288 | N 000933008212 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| 290 | N 912004008102 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||
| 292 | A 3404202429 | LINE |
| FROM TEST CONNECTION TO LEFT WHEEL CYLINDER | ||
| 1350 MM | ||
| 294 | A 3404201029 | LINE |
| FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER | ||
| 650 MM | ||
| 296 | A 3815840021 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| A 3875840055 | ADHESIVE FOIL | |
| LOAD-DEPENDING BRAKE | ||

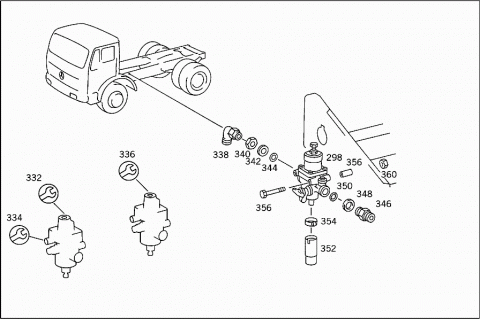

| 298 | A 0024314906 | PRESSURE REGULATOR |
| PRESSURE REGULATOR | ||
| WABCO | ||
| 298 | A 0024314306 | PRESSURE REGULATOR |
| PRESSURE REGULATOR | ||
| BOSCH | ||
| 298 | A 0024318306 | PRESSURE REGULATOR |
| KNORR | ||
| 332 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 334 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 336 | A 0014304960 | REPAIR KIT |
| TO 002 431 49 06,WABCO 975 303 46 00 | ||
| A 0004300407 | REPAIR KIT | |
| TO 002 431 83 06,KNORR 903 09 | ||
| 338 | A 0009905871 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 340 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 342 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 344 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 346 | A 0019972172 | FITTING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 348 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 350 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 352 | A 0159975082 | HOSE |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 354 | N 916026020001 | CLAMP |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 356 | A 3809910040 | SPACER TUBE |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 358 | N 000931008209 | SCREW |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 360 | N 913004008004 | NUT |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||

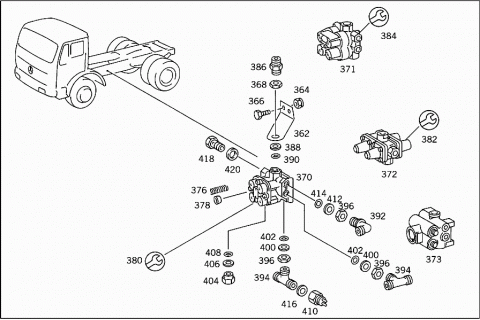

| 362 | A 3854313440 | BRACKET |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 364 | N 913004008004 | NUT |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 366 | N 000933008148 | SCREW |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 368 | N 074305022202 | NUT |
| VALVE TO BRACKET | ||
| 370 | A 0024310406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| BOSCH | ||
| 371 | A 0014318406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| KNORR | ||
| 372 | A 0014314706 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| WABCO | ||
| 373 | A 0024312906 | VALVE |
| Repalced by: A 0024319306 | ||
| 373 | A 0024319306 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| GRAU | ||
| 376 | A 0009935205 | SPRING |
| TO 002 431 04 06,BOSCH | ||
| 378 | A 0014310986 | CUP |
| TO 002 431 04 06,BOSCH | ||
| 380 | A 0004302906 | GASKET KIT |
| BOOT | ||
| TO 002 431 04 06,BOSCH | ||
| 382 | A 0004300468 | REPAIR KIT |
| TO 001 431 47 06,WABCO 2210 | ||
| 384 | A 0004303160 | REPAIR KIT |
| TO 001 431 84 06,KNORR | ||
| 386 | A 0019972372 | FITTING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 388 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 390 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 392 | N 074315012100 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "2.1,2.2" | ||
| 394 | A 0009904770 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "1.1,1.2,2.3" | ||
| 396 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "2.1,2.2" | ||
| 396 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "1.1,1.2,2.3" | ||
| 400 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "1.1,1.2,2.3" | ||
| 402 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "1.1,1.2,2.3" | ||
| 404 | A 0019905268 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 406 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 408 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 410 | A 0005455414 | SWITCH |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 412 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "2.1,2.2" | ||
| 414 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "2.1,2.2" | ||
| 416 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 418 | N 915036008202 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 420 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||

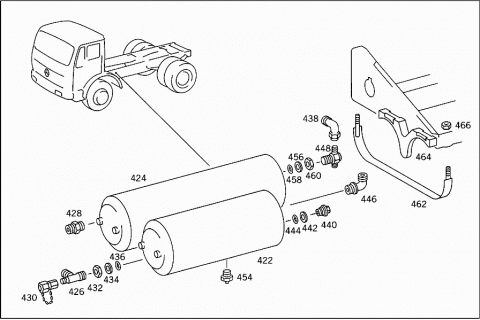

| 422 | A 0004322601 | RESERVOIR |
| Repalced by: A 0034321801 | ||
| 422 | A 0034321801 | RESERVOIR |
| 30 L | ||
| 424 | A 0004325301 | RESERVOIR |
| 30/10 L. | ||
| 426 | A 0009903970 | T-FITTING |
| Repalced by: A 0019901070 | ||
| 426 | A 0019901070 | T-FITTING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 428 | A 0019979572 | FITTING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 430 | A 0004312031 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 430 | A 0004314531 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 430 | A 0004314831 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 430 | A 0004316131 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| A 0009979486 | PLUG | |
| 432 | N 074305022202 | NUT |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 434 | A 0004290227 | THRUST RING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 436 | A 0009870446 | SEALING CORD |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 438 | A 0009907771 | ELBOW FITTING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 440 | N 000908022001 | SCREW PLUG |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 442 | A 0004290227 | THRUST RING |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 444 | A 0009870446 | SEALING CORD |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 446 | A 0019902171 | ELBOW FITTING |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 448 | A 0024295844 | VALVE |
| CHECK VALVE | ||
| 448 | A 0024295944 | VALVE |
| CHECK VALVE | ||
| 448 | A 0024297544 | VALVE |
| CHECK VALVE | ||
| 454 | A 0004321107 | VALVE |
| DRAIN VALVE | ||
| 454 | A 0004322107 | VALVE |
| DRAIN VALVE | ||
| 454 | A 0004322407 | VALVE |
| DRAIN VALVE | ||
| 456 | A 0004290227 | THRUST RING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 458 | A 0009870446 | SEALING CORD |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 460 | N 074305022202 | NUT |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 462 | A 3854300140 | STRAP |
| AIR RESERVOIR | ||
| 464 | A 3854320218 | BASE |
| AIR RESERVOIR | ||
| 466 | N 000934010014 | NUT |
| AIR RESERVOIR | ||

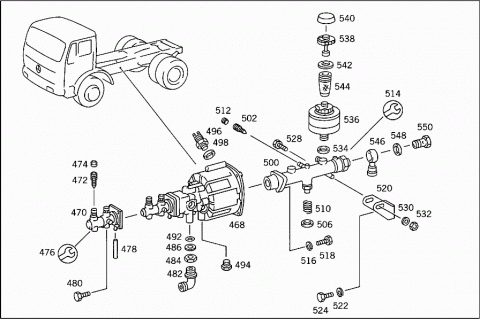

| 468 | A 0014317514 | BRAKE CYLINDER |
| BOSCH-SCHAEFER | ||
| 470 | A 0044206818 | WHEEL BRAKE CYLINDER |
| SLAVE CYLINDER | ||
| 472 | A 3075530107 | VALVE |
| 474 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 474 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 474 | A 0004210887 | PROTECTIVE CAP |
| 476 | A 0025860942 | REPAIR KIT |
| SLAVE CYLINDER | ||
| 478 | A 0089979082 | HOSE |
| SLAVE CYLINDER BREATHING | ||
| 480 | N 000933010094 | SCREW |
| BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT | ||
| 482 | N 074315012100 | FITTING |
| BRAKE CYLINDER,CONNECTIONS "1.1,1.2" | ||
| 484 | N 080705016003 | NUT |
| BRAKE CYLINDER,CONNECTIONS "1.1,1.2" | ||
| 486 | A 0004290927 | THRUST RING |
| BRAKE CYLINDER,CONNECTIONS "1.1,1.2" | ||
| 486 | A 0004290927 | THRUST RING |
| BRAKE CYLINDER,CONNECTIONS "2.1,2.2" | ||
| 492 | A 0009971548 | SEAL RING |
| BRAKE CYLINDER,CONNECTIONS "1.1,1.2" | ||
| 492 | A 0009971548 | SEAL RING |
| BRAKE CYLINDER,CONNECTIONS "2.1,2.2" | ||
| 494 | N 000908016001 | SCREW PLUG |
| BRAKE CYLINDER,CONNECTIONS "2.1,2.2" | ||
| 496 | A 0005455214 | SWITCH |
| BRAKE CYLINDER STROKE INDICATOR | ||
| M 24 X 1 MM | ||
| 498 | N 007603010103 | SEAL RING |
| BRAKE CYLINDER STROKE INDICATOR | ||
| 500 | A 0024307201 | BRAKE MASTER CYLINDER |
| SCHAEFER | ||
| 502 | A 3075530107 | VALVE |
| TO 002 430 72 01 | ||
| 506 | A 0004319360 | SEAL RING |
| TO 002 430 72 01 | ||
| 506 | A 0004319260 | SEAL RING |
| TO 002 430 72 01 | ||
| 506 | A 0004319160 | SEAL RING |
| TO 002 430 72 01 | ||
| 510 | A 0009933705 | SPRING |
| TO 002 430 72 01 | ||
| 512 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 512 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 512 | A 0004210887 | PROTECTIVE CAP |
| TO 002 430 72 01 | ||
| 514 | A 0014300060 | REPAIR KIT |
| TO 002 430 72 01 | ||
| 516 | N 912004010102 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 518 | N 000933010129 | SCREW |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 520 | A 3854300110 | BRACKET |
| BRAKE MASTER CYLINDER | ||
| 522 | N 912004010102 | LOCK WASHER |
| BRACKET TO APPARATUS SUPPORT | ||
| 524 | N 000933010128 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 524 | N 000933010105 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 528 | N 000931008278 | SCREW |
| MASTER CYLINDER TO BRACKET | ||
| 530 | N 000125008418 | WASHER |
| MASTER CYLINDER TO BRACKET | ||
| 532 | N 913004008004 | NUT |
| MASTER CYLINDER TO BRACKET | ||
| 534 | N 007603022102 | SEAL RING |
| RESERVOIR | ||
| 536 | A 0004318702 | RESERVOIR |
| EXPANSION TANK | ||
| 538 | A 0004315533 | FILLER CAP |
| TO 000 431 87 02 | ||
| 540 | A 0014310287 | PROTECTIVE CAP |
| 542 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 544 | A 0004312634 | STRAINER |
| TO 000 431 87 02 | ||
| 546 | A 0004280830 | CONNECTOR |
| MASTER CYLINDER,CONNECTION "2.1" | ||
| 548 | N 007603014405 | SEAL RING |
| MASTER CYLINDER,CONNECTION "2.1" | ||
| 550 | A 0004280026 | HOLLOW SCREW |
| MASTER CYLINDER,CONNECTION "2.1" | ||

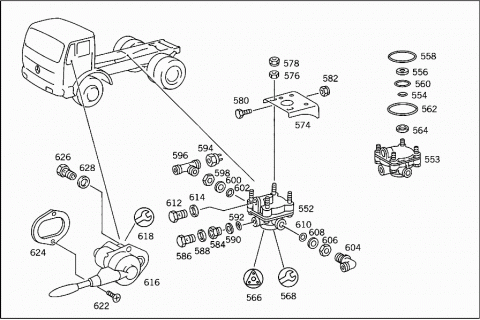

| 552 | A 0034291644 | VALVE |
| RELAY VALVE | ||
| BOSCH | ||
| 552 | A 0034295344 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| 552 | A 0014296844 | VALVE |
| RELAY | ||
| WABCO | ||
| 553 | A 0014299144 | VALVE |
| RELAY VALVE | ||
| GRAU | ||
| 554 | A 0059972648 | SEAL RING |
| 22.3X2.4 MM,TO 001 429 91 44,GRAU | ||
| 556 | A 0004312788 | VALVE SEAT |
| TO 001 429 91 44,GRAU | ||
| 558 | A 0059972748 | SEAL RING |
| TO 000 429 28 95,GRAU | ||
| 560 | A 0014311660 | SEAL RING |
| 28X2 MM,TO 001 429 91 44,GRAU | ||
| 562 | A 0014311760 | SEAL RING |
| 86X2 MM,TO 001 429 91 44,GRAU | ||
| 564 | A 0004311980 | GASKET |
| 34X2X6 MM,TO 001 429 91 44,GRAU | ||
| 566 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 566 | A 0004201071 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44,BOSCH ;UP TO 03.82 | ||
| 566 | A 0004201271 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44,BOSCH ; FROM 04.82 | ||
| 568 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 568 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| TO 003 429 16 44,BOSCH | ||
| 568 | A 0005865742 | REPAIR KIT |
| TO 001 429 68 44,WABCO | ||
| 568 | A 0025863542 | REPAIR KIT |
| TO 003 429 53 44,KNORR | ||
| 574 | A 3554320140 | BRACKET |
| RELAY VALVE | ||
| 576 | N 000125008418 | WASHER |
| RELAY VALVE TO BRACKET | ||
| 578 | N 913004008004 | NUT |
| RELAY VALVE TO BRACKET | ||
| 580 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 582 | N 913004010008 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 584 | A 0009905168 | FITTING |
| RELAY VALVE,CONNECTION "1" | ||
| 586 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION "1" | ||
| 588 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION "1" | ||
| 590 | A 0004290227 | THRUST RING |
| RELAY VALVE,CONNECTION "1" | ||
| 592 | A 0009870446 | SEALING CORD |
| RELAY VALVE,CONNECTION "1" | ||
| 594 | A 0005455414 | SWITCH |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 596 | A 0009904770 | T-FITTING |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 598 | N 080705016003 | NUT |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 600 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 602 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 604 | N 074315012100 | FITTING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 606 | N 080705016003 | NUT |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 608 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 610 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 612 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION "4" | ||
| 614 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION "4" | ||
| 616 | A 0004305681 | VALVE |
| HAND BRAKE VALVE | ||
| WABCO | ||
| 616 | A 0004306781 | VALVE |
| HAND BRAKE VALVE | ||
| KNORR | ||
| 618 | A 0004305860 | REPAIR KIT |
| TO 000 430 56 81,WABCO | ||
| 618 | A 0025866243 | REPAIR KIT |
| Repalced by: A 0034303881 | ||
| 618 | A 0034303881 | REPAIR KIT |
| TO 000 430 67 81,KNORR | ||
| 622 | N 000965006000 | SCREW |
| HAND BRAKE VALVE TO CAB | ||
| 624 | A 3874310684 | SHIM |
| HAND BRAKE VALVE TO CAB | ||
| 626 | N 915036010204 | HOLLOW SCREW |
| HAND BRAKE VALVE | ||
| 628 | N 007603014405 | SEAL RING |
| HAND BRAKE VALVE | ||

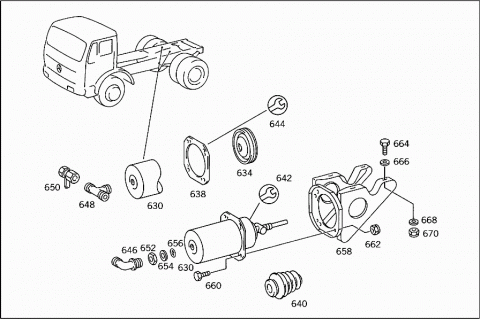

| 630 | A 0004317614 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| KNORR | ||
| 630 | A 0004312414 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| BOSCH | ||
| 634 | A 0014311186 | CUP |
| TO 000 431 24 14,BOSCH | ||
| 638 | A 0049971740 | SEAL RING |
| TO 000 431 24 14,BOSCH | ||
| 640 | A 0004319586 | CUP |
| TO 000 431 76 14,KNORR | ||
| 642 | A 0014301660 | REPAIR KIT |
| TO 000 431 76 14,KNORR | ||
| 644 | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 644 | A 0034201724 | REPAIR KIT |
| TO 000 431 24 14,BOSCH | ||
| 646 | N 074315012100 | FITTING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 648 | A 0009904770 | T-FITTING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 650 | A 0004312031 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| VOSS | ||
| 650 | A 0004314531 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| SCHAEFER | ||
| 650 | A 0004314831 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| WABCO | ||
| 650 | A 0004316131 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 652 | N 080705016003 | NUT |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 654 | A 0004290927 | THRUST RING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 656 | A 0009971548 | SEAL RING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 658 | A 3604302311 | CONSOLE |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 660 | N 000933010105 | SCREW |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 662 | N 913004010008 | NUT |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 664 | N 000933010129 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| 666 | A 3859900540 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 668 | N 000125010518 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 670 | N 913004010008 | NUT |
| CONSOLE TO CROSS MEMBER | ||

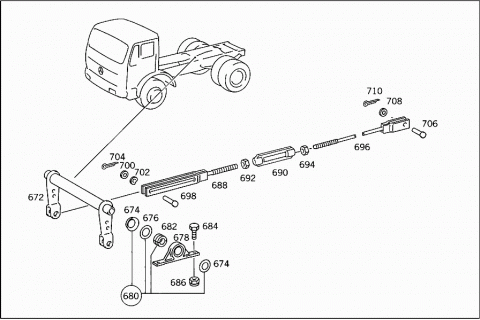

| 672 | A 3854200080 | BRAKE INTERMEDIATE SHAFT |
| 674 | A 3274270058 | SEAL HOLDER |
| 676 | A 3279970040 | SEAL RING |
| 678 | A 3854200178 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 680 | A 3025860242 | REPAIR KIT |
| 682 | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 684 | N 000933010145 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 686 | N 913004010008 | NUT |
| BEARING BRACKET TO FRAME | ||
| 688 | A 3604200474 | ROD |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 690 | A 3859960034 | NUT |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 692 | N 000934012020 | NUT |
| L.H. THREAD | ||
| 694 | N 000934012021 | NUT |
| R.H. THREAD | ||
| 696 | A 3584200074 | ROD |
| REAR | ||
| 698 | A 3529910207 | PIN |
| ROD TO LEVER | ||
| 700 | N 000433013005 | WASHER |
| ROD TO LEVER | ||
| 702 | N 900055012001 | SPRING WASHER |
| ROD TO LEVER | ||
| 704 | N 000094003210 | COTTER PIN |
| ROD TO LEVER | ||
| 706 | A 3529910107 | PIN |
| ROD TO LEVER | ||
| 708 | N 000433013005 | WASHER |
| ROD TO LEVER | ||
| 710 | N 000094003210 | COTTER PIN |
| ROD TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
