Transporto priemonė: 1213 MBSA; VIN numerio dalis: 381007

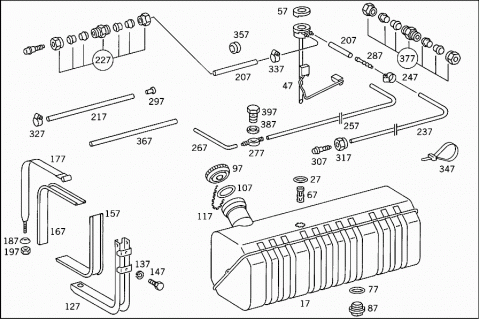

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 017 | A 3834700701 | FUEL TANK |
| Repalced by: A 6734701001 | ||
| 017 | A 6734701001 | FUEL TANK |
| 105 L | ||
| 027 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| A 0055423317 | SENDER UNIT | |
| Repalced by: A 0085427617 | ||
| 047 | A 0085427617 | SENDER UNIT |
| FUEL GAUGE | ||
| 057 | A 0009970920 | EXPANSION PLUG |
| FUEL GAUGE SENDER UNIT | ||
| 067 | A 0004710235 | FUEL STRAINER |
| 077 | N 007603014405 | SEAL RING |
| FUEL TANK | ||
| 087 | N 007604014106 | SCREW PLUG |
| FUEL TANK | ||
| A 0004718030 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| 097 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| A 0004717930 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| 097 | A 0004700305 | FILLER CAP |
| 107 | A 3049970340 | SEAL RING |
| 117 | A 3034700031 | CHAIN |
| FILLER CAP | ||
| 127 | A 3834701842 | SUPPORT |
| REAR TANK | ||
| 137 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 147 | N 000961014050 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 157 | A 3634750220 | PAD |
| FUEL TANK TO SUPPORT | ||
| 167 | A 3634750320 | PAD |
| FUEL TANK TO SUPPORT | ||
| 177 | A 6174700340 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 187 | A 3609970126 | WASHER |
| STRAP TO CONSOLE | ||
| 197 | N 000934012022 | NUT |
| STRAP TO CONSOLE | ||
| 207 | A 0089975482 | HOSE |
| FEED & RETURN | ||
| 8X11 MM | ||
| 217 | A 0089976082 | HOSE |
| LEAK LINE | ||
| 4X6 MM | ||
| 227 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 237 | A 3054760126 | HOSE |
| RETURN | ||
| 247 | A 0029978790 | CLIP |
| RETURN | ||
| 257 | N 040621011200 | INSULATING HOSE |
| FEED | ||
| 267 | N 073379006203 | HOSE |
| LEAK LINE | ||
| 277 | A 0009908188 | BANJO UNION |
| FEED | ||
| A 3879900078 | CONNECTOR | |
| Repalced by: N 915062008000 | ||
| 287 | N 915062008000 | SLEEVE |
| FEED & RETURN | ||
| 297 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 307 | A 0019975272 | FITTING |
| RETURN | ||
| 317 | N 915017008201 | UNION NUT |
| RETURN | ||
| 327 | N 900288010001 | CLAMP |
| LEAK LINE | ||
| 337 | N 916026010000 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 347 | A 0019978490 | LOOM TIE |
| FUEL LINE | ||
| 376 MM | ||
| 347 | A 0019978390 | LOOM TIE |
| FUEL LINE | ||
| 280 MM | ||
| 357 | A 3879970181 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 367 | A 0089979082 | HOSE |
| FUEL TANK BREATHING | ||
| 6X8 MM | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| 377 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 387 | N 007603014405 | SEAL RING |
| FUEL LINES TO ENGINE | ||
| 397 | N 915036010204 | HOLLOW SCREW |
| FUEL LINES TO ENGINE | ||
