Transporto priemonė: 1213 MBSA; VIN numerio dalis: 381007

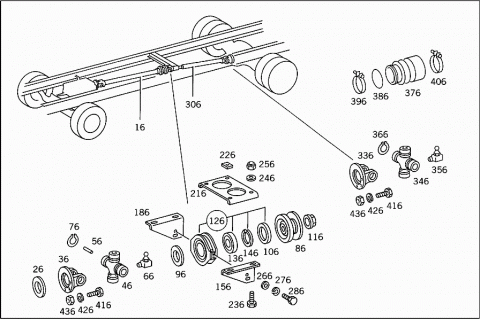

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
016	A 3814101104	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
		1449 MM
016	A 3814101504	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
		1845 MM
016	A 3814101304	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
		720 MM
026	A 3814130261	PROTECTIVE CAP
036	A 3524110011	DRIVE FLANGE
046	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
056	A 3189810287	NEEDLE
		SET = 132 PIECES
066	N 071412008300	GREASE NIPPLE
076	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
076	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
076	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
076	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
076	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
076	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
086	A 3814100030	CENTERING FLANGE
		INTERMEDIATE SHAFT BEARING
096	A 3814130261	PROTECTIVE CAP
		OUTSIDE
106	A 3814130161	PROTECTIVE CAP
		INTERMEDIATE SHAFT BEARING
116	A 3529900150	NUT
		FOLLOWER FLANGE TO PROPELLER SHAFT
126	A 3814100222	INTERMEDIATE BEARING
	Repalced by: A 3814101222
126	A 3814101222	INTERMEDIATE BEARING
		INTERMEDIATE SHAFT BEARING
136	A 0019818625	BALL BEARING
		INTERMEDIATE SHAFT BEARING
146	A 0009948141	LOCK
		INTERMEDIATE SHAFT BEARING
156	A 3814130242	BRACKET
		PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
156	A 3854131042	BRACKET
		PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
156	A 3834130042	BRACKET
		PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
186	A 3814130342	BRACKET
		PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
186	A 3854131142	BRACKET
		PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
186	A 3834130142	BRACKET
		PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
216	A 3854130011	REINFORCEMENT
		BRACKET TO CROSS MEMBER
226	A 3854130111	REINFORCEMENT
		BRACKET TO CROSS MEMBER
236	N 000960010026	SCREW
		BRACKET TO CROSS MEMBER
246	N 007349010007	WASHER
		BRACKET TO CROSS MEMBER
256	N 913002010010	NUT
		BRACKET TO CROSS MEMBER
266	N 007349010007	WASHER
		FRONT PROPELLER SHAFT TO BRACKET
276	N 912004010102	LOCK WASHER
		FRONT PROPELLER SHAFT TO BRACKET
286	N 000931010282	SCREW
		FRONT PROPELLER SHAFT TO BRACKET
	A 3814100202	PROPELLER SHAFT
	Repalced by: A 6744100202
306	A 6744100202	PROPELLER SHAFT
		FROM INTERMED.SHAFT BEARING TO REAR AXLE
		1575 MM
	A 3814100902	PROPELLER SHAFT
	Repalced by: A 6744101802
306	A 6744101802	PROPELLER SHAFT
		FROM INTERMED.SHAFT BEARING TO REAR AXLE
		1720 MM
306	A 3804100602	PROPELLER SHAFT
		FROM INTERMED.SHAFT BEARING TO REAR AXLE
		1319 MM
336	A 3524110011	DRIVE FLANGE
336	A 3814110811	DRIVE FLANGE
346	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
346	A 6174100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
356	N 071412008300	GREASE NIPPLE
366	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
366	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
366	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
366	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
366	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
366	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
366	A 0039944441	LOCK
		AS REQUIRED
		1.78 MM
366	A 0039945041	LOCK
		AS REQUIRED
		1.90 MM
366	A 0059941041	LOCK
		AS REQUIRED
		1.98 MM
376	A 3814100180	BOOT
376	A 3524100080	BOOT
386	A 3214110053	WIRE RING
396	N 916002078100	CLAMP
		BOOT TO PROPELLER SHAFT
		78 MM
406	N 916002098100	CLAMP
		BOOT TO PROPELLER SHAFT
		98 MM
416	A 3529900401	SCREW
	Repalced by: A 3529904701
416	A 3529904701	SCREW
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
426	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
436	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
