Transporto priemonė: 1213 MBSA; VIN numerio dalis: 381007
Grupė: 50 RADIATOR

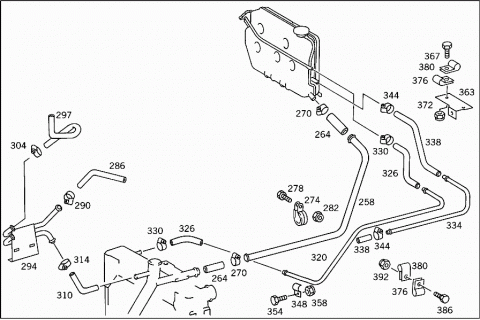

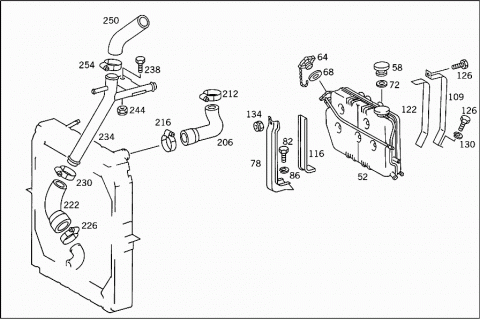

| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3815010301 | RADIATOR |
| 005 | A 3815010901 | RADIATOR |
| 010 | N 007603014405 | SEAL RING |
| 015 | N 007604014101 | SCREW PLUG |
| 022 | N 000933010145 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 027 | N 000933010103 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X40 | ||
| 033 | N 000125010518 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 040 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 046 | A 3835040084 | SHIM |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 5.00 MM | ||
| 046 | A 3855040184 | SHIM |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 3.00 MM | ||
| 046 | A 3855040284 | SHIM |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 2.00 MM | ||
| 052 | A 3815000849 | TANK |
| COOLING WATER EXPANSION | ||
| 058 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 064 | A 0005014615 | RADIATOR CAP |
| LATERAL CENTRAL | ||
| 064 | A 0005017215 | RADIATOR CAP |
| LATERAL CENTRAL | ||
| 068 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 072 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 078 | A 3815010520 | BRACKET |
| Repalced by: A 6155010020 | ||
| 078 | A 6155010020 | BRACKET |
| EXPANSION TANK | ||
| 082 | N 000933010238 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 086 | N 912004010102 | LOCK WASHER |
| BRACKET TO FENDER SUPPORT | ||
| 090 | A 4010100240 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 096 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 099 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 103 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 109 | A 3815012720 | BRACKET |
| STRAP | ||
| 116 | A 3634750220 | PAD |
| EXPANSION TANK TO SUPPORT | ||
| 122 | A 3815010495 | SHIM |
| EXPANSION TANK TO SUPPORT | ||
| 126 | N 000933010105 | SCREW |
| EXPANSION TANK TO SUPPORT | ||
| 130 | N 912004010102 | LOCK WASHER |
| EXPANSION TANK TO SUPPORT | ||
| 134 | N 913004010008 | NUT |
| EXPANSION TANK TO SUPPORT | ||
| 140 | A 3815050555 | FAN SHROUD |
| 146 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 150 | N 000933006102 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| M 6X16 | ||
| 155 | N 000933006130 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| M 6X18 | ||
| 160 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 166 | A 3859901140 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 172 | A 3835040401 | SUPPORT |
| RADIATOR MOUNTING | ||
| 180 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| 184 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 188 | A 3875040112 | RUBBER MOUNTING |
| RADIATOR MOUNTING | ||
| 194 | N 000961012023 | SCREW |
| BRACKET TO RADIATOR | ||
| 198 | N 913004012008 | NUT |
| BRACKET TO RADIATOR | ||
| 206 | A 3815011082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 212 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 212 | N 000000000671 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 40-60X13 MM | ||
| 216 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 216 | N 000000000672 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 50-70X13 MM | ||
| 222 | A 3815010882 | HOSE |
| FROM RADIATOR TO COOLING WATER PIPE | ||
| 226 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 226 | N 000000000672 | CLAMP |
| FROM RADIATOR TO COOLING WATER PIPE | ||
| 50-70X13 MM | ||
| 230 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 230 | N 000000000671 | CLAMP |
| FROM RADIATOR TO COOLING WATER PIPE | ||
| 40-60X13 MM | ||
| 234 | A 3815002572 | LINE |
| COOLING WATER PIPE | ||
| 238 | N 000933010105 | SCREW |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 244 | N 913004010008 | NUT |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 250 | A 3815011282 | HOSE |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| 254 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 254 | N 000000000671 | CLAMP |
| COOLING WATER PIPE | ||
| 40-60X13 MM | ||
| 258 | A 3815011124 | COOLING WATER PIPE |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| 264 | N 900271028026 | HOSE |
| 28X37 MM | ||
| 264 | N 900271028026 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK | ||
| 28X37 MM | ||
| 264 | N 900271028026 | HOSE |
| COOLING WATER LINE TO CONNECTION FITTING | ||
| 28X37 MM | ||
| 270 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 270 | N 000000000670 | CLAMP |
| COOLING WATER LINE | ||
| 274 | N 916016028200 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 278 | N 000933008147 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 282 | N 913004008004 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 286 | N 900271018038 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 18X27 MM | ||
| 290 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 290 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 294 | A 3815000572 | LINE |
| HEATING PIPE | ||
| 297 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 304 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 304 | N 000000000667 | CLAMP |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 20-32X13 MM | ||
| 310 | A 3815060235 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 314 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 314 | N 000000000667 | CLAMP |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 20-32X13 MM | ||
| 320 | A 3815014025 | BREATHER PIPE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 326 | N 900271012018 | HOSE |
| 12X21 MM | ||
| 326 | N 900271012018 | HOSE |
| DE-AERATION PIPE TO TANK | ||
| 12X21 MM | ||
| 326 | N 900271012018 | HOSE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 12X21 MM | ||
| 330 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 330 | N 000000000667 | CLAMP |
| DE-AERATION LINE | ||
| 20-32X13 MM | ||
| 334 | A 3815012125 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 338 | N 900271015037 | HOSE |
| 15X24 MM | ||
| 338 | N 900271015037 | HOSE |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 15X24 MM | ||
| 344 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 344 | N 000000000667 | CLAMP |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| 348 | A 3049951520 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 354 | N 000933006102 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 358 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 358 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 363 | A 3522030840 | BRACKET |
| HEATING LINE TO BREATHER HOSE | ||
| 367 | N 000933006127 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 6X25 | ||
| 372 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 372 | N 913004006001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 376 | A 3609950401 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 380 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 380 | A 6739950001 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 386 | N 000933006102 | SCREW |
| ENGINE BREATHING | ||
| 392 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 392 | N 913004006001 | NUT |
| ENGINE BREATHING | ||
