Transporto priemonė: 1213 MBSA; VIN numerio dalis: 381007
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

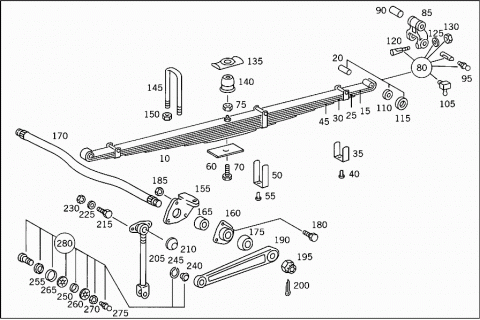

| 010 | A 3813200702 | FRONT SPRING |
| 7-LEAF | ||
| 010 | A 3833200302 | FRONT SPRING |
| 8-LEAF | ||
| 015 | A 3833201294 | SPRING LEAF |
| NO. 1 | ||
| 015 | A 3833201394 | SPRING LEAF |
| NO. 1 | ||
| 020 | A 3523220050 | BUSHING |
| 020 | A 3853220050 | BUSHING |
| 025 | A 3833212012 | SPRING LEAF |
| NO. 2 | ||
| 025 | A 3833211912 | SPRING LEAF |
| NO. 2 | ||
| 030 | A 3813200194 | SPRING LEAF |
| NO. 3 | ||
| 030 | A 3833200794 | SPRING LEAF |
| NO. 3 | ||
| 035 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 040 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 045 | A 3813210514 | SPRING LEAF |
| NO. 4 | ||
| 045 | A 3833210314 | SPRING LEAF |
| NO. 4 | ||
| 050 | A 3123240633 | SPRING CLAMP |
| TO LEAF NO.6 | ||
| 055 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 060 | A 3813220784 | SHIM |
| 060 | A 3523220384 | SHIM |
| 070 | N 004626012120 | SPRING BOLT |
| M 12X145 | ||
| 075 | N 913004012007 | NUT |
| 080 | A 3853200165 | SHACKLE PIN |
| (PARTS KIT),FRONT AND REAR | ||
| 085 | A 6173200163 | SHACKLE |
| LEAF SPRING | ||
| 090 | A 3523220050 | BUSHING |
| 090 | A 3853220050 | BUSHING |
| 095 | N 071412010100 | GREASE NIPPLE |
| SPRING SEAT | ||
| 095 | N 071412010300 | GREASE NIPPLE |
| SPRING SEAT | ||
| 105 | N 071412010100 | GREASE NIPPLE |
| SPRING SEAT | ||
| 110 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 110 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 115 | A 0029973140 | SEAL RING |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 120 | A 3529900337 | BOLT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 125 | N 000125010518 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 130 | N 913004010008 | NUT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 135 | A 3833220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 140 | A 3833240008 | HELPER SPRING |
| RUBBER SPRING | ||
| 145 | A 3603310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 145 | A 3603310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 150 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3523231463 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 160 | A 3523230283 | HOUSING |
| TORSION BAR,FRONT | ||
| 165 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 170 | A 3603230065 | TORSION BAR |
| TORSION BAR,FRONT | ||
| 175 | A 3603230151 | SPACER RING |
| TORSION BAR,FRONT | ||
| 180 | N 000933010145 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 185 | N 913004010008 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 190 | A 3603230869 | LEVER |
| TORSION BAR | ||
| 195 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 200 | N 000094006311 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 205 | A 6173200089 | ROD |
| TORSION BAR | ||
| 210 | A 0004631396 | BOOT |
| 215 | N 000961012097 | SCREW |
| ROD TO FRAME | ||
| M 12X35 | ||
| 215 | N 000961012179 | SCREW |
| ROD TO FRAME | ||
| M 12X38 | ||
| 225 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 230 | N 913004012008 | NUT |
| ROD TO FRAME | ||
| 230 | N 913004016004 | NUT |
| ROD TO FRAME | ||
| 240 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 240 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 245 | N 007993035200 | SNAP RING |
| ROD TO BEARING BRACKET | ||
| 250 | A 3603230460 | SEAL RING |
| ROD TO LEVER | ||
| 255 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 260 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 265 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 270 | N 000936020010 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 275 | N 071412010100 | GREASE NIPPLE |
| PIN | ||
| 280 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||

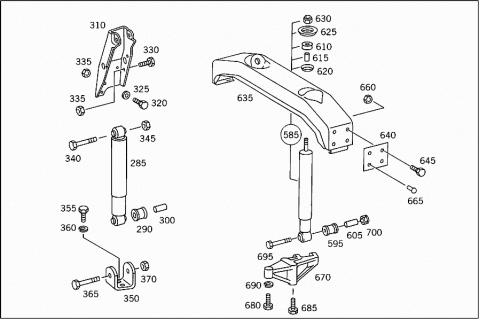

| 285 | A 0043236500 | SHOCK ABSORBER |
| 285 | A 0043233600 | SHOCK ABSORBER |
| 290 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 65 00 | ||
| 290 | A 0003233044 | RUBBER BUFFER |
| TO 004 323 36 00 | ||
| 300 | A 0003233150 | BUSHING |
| TO 004 323 65 00 | ||
| 300 | A 0003235250 | BUSHING |
| TO 004 323 36 00 | ||
| 310 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 310 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 320 | N 000961012122 | SCREW |
| BEARING BRACKET TO CAB CONSOLE | ||
| M 12X40 | ||
| 325 | N 007349013003 | WASHER |
| BEARING BRACKET TO CAB CONSOLE | ||
| 330 | N 308676012012 | SCREW |
| BEARING BRACKET TO CAB CONSOLE | ||
| M 12X1,5X25 | ||
| 335 | N 913004012008 | NUT |
| BEARING BRACKET TO CAB CONSOLE | ||
| 340 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 16X90 | ||
| 345 | N 913004016004 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 350 | A 3833231863 | BEARING BRACKET |
| BOTTOM | ||
| 355 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| M 12X1,5X25 | ||
| 360 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 365 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 370 | N 913004016004 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

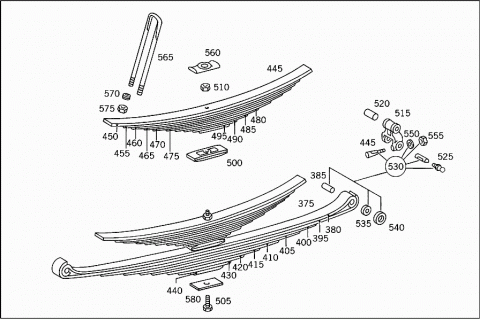

| 375 | A 3813200108 | REAR SPRING |
| 8-LEAF;WITH 9-LEAF HELPER SPRING | ||
| 375 | A 3813200208 | REAR SPRING |
| 9-LEAF,WITH 10-LEAF HELPER SPRING | ||
| 380 | A 3813201193 | SPRING LEAF |
| NO. 1 | ||
| 380 | A 3813201093 | SPRING LEAF |
| NO. 1 | ||
| 385 | A 3523250150 | BUSHING |
| 385 | A 3853250050 | BUSHING |
| 395 | A 3813241012 | SPRING LEAF |
| NO. 2 | ||
| 395 | A 3813241112 | SPRING LEAF |
| NO. 2 | ||
| 400 | A 3813240113 | SPRING LEAF |
| NO. 3 | ||
| 400 | A 3813240213 | SPRING LEAF |
| NO. 3 | ||
| 405 | A 3813240114 | SPRING LEAF |
| NO. 4 | ||
| 405 | A 3813240214 | SPRING LEAF |
| NO. 4 | ||
| 410 | A 3813240115 | SPRING LEAF |
| NO. 5 | ||
| 410 | A 3813240215 | SPRING LEAF |
| NO. 5 | ||
| 415 | A 3813240116 | SPRING LEAF |
| NO. 6 | ||
| 415 | A 3813240216 | SPRING LEAF |
| NO. 6 | ||
| 420 | A 3813240117 | SPRING LEAF |
| NO. 7 | ||
| 420 | A 3813240217 | SPRING LEAF |
| NO. 7 | ||
| 430 | A 3813240118 | SPRING LEAF |
| NO. 8 | ||
| 430 | A 3813240218 | SPRING LEAF |
| NO. 8 | ||
| 440 | A 3813240019 | SPRING LEAF |
| NO. 9 | ||
| 445 | A 3813200010 | HELPER SPRING |
| 445 | A 3813200110 | HELPER SPRING |
| 450 | A 3813240140 | SPRING LEAF |
| NO. 1 | ||
| 450 | A 3813240240 | SPRING LEAF |
| NO. 1 | ||
| 455 | A 3813240141 | SPRING LEAF |
| NO. 2 | ||
| 455 | A 3813240241 | SPRING LEAF |
| NO. 2 | ||
| 460 | A 3813240142 | SPRING LEAF |
| NO. 3 | ||
| 460 | A 3813240242 | SPRING LEAF |
| NO. 3 | ||
| 465 | A 3813240143 | SPRING LEAF |
| NO. 4 | ||
| 465 | A 3813240243 | SPRING LEAF |
| NO. 4 | ||
| 470 | A 3813240144 | SPRING LEAF |
| NO. 5 | ||
| 470 | A 3813240244 | SPRING LEAF |
| NO. 5 | ||
| 475 | A 3813240145 | SPRING LEAF |
| NO. 6 | ||
| 475 | A 3813240245 | SPRING LEAF |
| NO. 6 | ||
| 480 | A 3813240046 | SPRING LEAF |
| NO. 7 | ||
| 480 | A 3813240146 | SPRING LEAF |
| NO. 7 | ||
| 485 | A 3813240047 | SPRING LEAF |
| NO. 8 | ||
| 485 | A 3813240147 | SPRING LEAF |
| NO. 8 | ||
| 490 | A 3583240048 | SPRING LEAF |
| NO. 9 | ||
| 490 | A 3813240148 | SPRING LEAF |
| NO. 9 | ||
| 495 | A 3813240049 | SPRING LEAF |
| NO. 10 | ||
| 500 | A 3583240035 | SPACER |
| 500 | A 3583240035 | SPACER |
| 505 | A 6173241771 | SPRING BOLT |
| M 12X230 | ||
| 505 | A 6173241871 | SPRING BOLT |
| M 12X255 | ||
| 510 | N 913004012007 | NUT |
| 515 | A 3523200163 | SHACKLE |
| 520 | A 3523250150 | BUSHING |
| 520 | A 3853250050 | BUSHING |
| 525 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 530 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 535 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 535 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 540 | A 0029973040 | SEAL RING |
| REAR SPRING TO SPRING BRACKET | ||
| 545 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING BRACKET | ||
| 550 | N 000125010518 | WASHER |
| REAR SPRING TO SPRING BRACKET | ||
| 555 | N 913004010008 | NUT |
| REAR SPRING TO SPRING BRACKET | ||
| 560 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 565 | A 3213512325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 370 MM | ||
| 565 | A 3523510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 390 MM | ||
| 570 | A 3859970226 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 575 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 580 | A 3853510528 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 580 | A 3853510728 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 585 | A 3853260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 595 | A 0003230785 | RUBBER MOUNTING |
| TO 002 326 46 00,003 326 92 00 | ||
| 595 | A 0003233044 | RUBBER BUFFER |
| TO 003 326 45 00 | ||
| 605 | A 0003230553 | SPACER TUBE |
| 610 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 615 | A 3853230253 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 620 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 625 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 630 | N 913004016004 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 635 | A 3853100440 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| 640 | A 3853120084 | SHIM |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 645 | N 000961012097 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12X35 | ||
| 645 | N 000961012122 | SCREW |
| MOUNTING PLATE,SHOCK ABSORBER CROSS MEMBER & SHIM TO FRAME SIDE MEMBER | ||
| M 12X40 | ||
| 645 | N 000960012225 | SCREW |
| MOUNTING PLATE,SHOCK ABSORBER CROSS MEMBER & SHIM TO FRAME SIDE MEMBER | ||
| M 12X45 | ||
| 660 | N 913004012008 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 665 | N 910005012080 | RIVET |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 12X42 MM | ||
| 670 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 670 | A 3833260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 680 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 685 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 690 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 695 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 700 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
