Transporto priemonė: 1217 AS; VIN numerio dalis: 381151

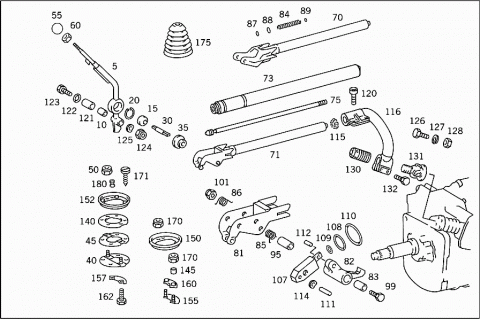

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE PARTS LIST: | ||
| 714.0 | ||
| N 000933014014 | SCREW | |
| TRANSMISSION TO BELL HOUSING | ||
| N 912004014100 | LOCK WASHER | |
| TRANSMISSION TO BELL HOUSING | ||
| 005 | A 3852605139 | SHIFT LEVER |
| Repalced by: A 3852605539 | ||
| 005 | A 3852605539 | SHIFT LEVER |
| 005 | A 3852607439 | SHIFT LEVER |
| Repalced by: A 3852607039 | ||
| 005 | A 3852607039 | SHIFT LEVER |
| 010 | A 3359920203 | BUSHING |
| 015 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 015 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 015 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 020 | N 000472042001 | LOCK RING |
| SHIFT LEVER | ||
| 030 | A 3852681474 | PIN |
| SHIFT LEVER | ||
| 035 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 035 | A 6202680196 | BOOT |
| SHIFT LEVER | ||
| 040 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 045 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 050 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 050 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 055 | A 3222600040 | HANDLE |
| SHIFT LEVER | ||
| 060 | N 000936010010 | NUT |
| SHIFT LEVER | ||
| 070 | A 3852606033 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 071 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 073 | A 3852607033 | SHIFTING ROD |
| (TELESCOPIC TUBE) | ||
| 073 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 075 | A 3852600689 | PULL ROD |
| 081 | A 3852680423 | YOKE |
| MECHANICAL RELAESE | ||
| 081 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 082 | A 3852600187 | PAWL |
| MECHANICAL RELAESE | ||
| 082 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 082 | A 6202600087 | PAWL |
| HYDRAULIC RELEASE | ||
| 083 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| 083 | A 6209920003 | BUSHING |
| PAWL TO ROD END | ||
| 083 | A 6202680150 | BUSHING |
| PAWL TO ROD END | ||
| 084 | A 3859930901 | SPRING |
| MECHANICAL RELAESE | ||
| 085 | A 3859930020 | SPRING |
| HYDRAULIC RELEASE | ||
| 086 | A 3859930120 | SPRING |
| HYDRAULIC RELEASE | ||
| 087 | A 0009978648 | SEAL RING |
| MECHANICAL RELAESE | ||
| 17.20 MM | ||
| 088 | A 0009978748 | SEAL RING |
| MECHANICAL RELAESE | ||
| 30.20 MM | ||
| 089 | A 0039970448 | SEAL RING |
| MECHANICAL RELAESE | ||
| 8.30 MM | ||
| 095 | A 3852680153 | SPACER TUBE |
| HYDRAULIC RELEASE | ||
| 099 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 099 | A 0019909404 | SCREW |
| HYDRAULIC RELEASE | ||
| 101 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 101 | N 910113010000 | NUT |
| HYDRAULIC RELEASE | ||
| 107 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 107 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| 108 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| 109 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| 110 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 111 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45X39 MM | ||
| 112 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 112 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22X16 MM | ||
| N 000094002059 | COTTER PIN | |
| HYDRAULIC RELEASE | ||
| 114 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 115 | A 3852680776 | WASHER |
| BETWEEN FRONT AND REAR SHIFTING TUBES | ||
| 116 | A 3812602233 | SHIFTING ROD |
| MECHANICAL RELAESE | ||
| 116 | A 3802600233 | SHIFTING ROD |
| HYDRAULIC RELEASE | ||
| 116 | A 3812602833 | SHIFTING ROD |
| REAR | ||
| 120 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 121 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 122 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 123 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 123 | A 0019909404 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 124 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 124 | N 910113010000 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 125 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 126 | A 3219900601 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 127 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 128 | N 304032008006 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| 130 | A 3812680028 | CONNECTOR |
| Repalced by: A 3812680128 | ||
| 130 | A 3812680128 | CONNECTOR |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 131 | A 3832680089 | JOINT |
| Repalced by: A 3832680489 | ||
| 131 | A 3832680489 | JOINT |
| 131 | A 3832680289 | JOINT |
| 131 | A 3832680589 | JOINT |
| 132 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 132 | N 304017010047 | SCREW |
| SHIFTING ROD TO JOINT | ||
| M 10X35 | ||
| 140 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 145 | A 3892680525 | TUBE |
| SHIFT LEVER TO CAB FLOOR | ||
| 150 | A 3852600562 | BRACKET |
| GEARSHIFT LEVER UPPER PART | ||
| 152 | A 3852601962 | BRACKET |
| GEARSHIFT LEVER UPPER PART | ||
| 155 | A 3852600962 | BRACKET |
| GEARSHIFT LEVER LOWER PART | ||
| 157 | A 3852681640 | BRACKET |
| GEARSHIFT LEVER LOWER PART | ||
| 160 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 162 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 162 | N 304017008018 | SCREW |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 170 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 170 | N 913004008001 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 171 | N 007981003214 | SHEET METAL SCREW |
| BOOT TO CAB | ||
| 175 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| 180 | A 3859970086 | PLUG |
| SHIFT LEVER | ||
| 181 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 181 | A 0009872627 | PLASTIC PIPE |
| FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER | ||
| 4X 6 MM | ||
| 182 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 183 | N 915017006100 | UNION NUT |
| 184 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 184 | A 0019901667 | SEAL CONE |
| 185 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 185 | N 915062004000 | SLEEVE |
| 186 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 187 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 187 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 187 | N 915052004003 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 194 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 194 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 194 | N 007603010110 | SEAL RING |
| LINE CONNECTIONS | ||
| 195 | N 915036006202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 196 | N 915039008202 | HOLLOW SCREW FITTING |
| LINE CONNECTIONS | ||
| 220 | A 0019976136 | VALVE |
| P.T.O. CONTROL | ||
| WABCO | ||
| 220 | A 0019975036 | VALVE |
| P.T.O. CONTROL | ||
| BOSCH | ||
| 220 | A 0039975936 | VALVE |
| P.T.O. CONTROL | ||
| KNORR | ||
| 220 | A 0039976036 | VALVE |
| P.T.O. CONTROL | ||
| VOSS | ||
| 221 | A 0049937501 | SPRING |
| TO 001 997 61 36 | ||
| 222 | A 0069972648 | SEAL RING |
| TO 001 997 61 36 | ||
| 223 | A 0039979640 | SEAL RING |
| TO 001 997 61 36 | ||
| 225 | A 3855841524 | SYMBOL PLATE |
| P.T.O. | ||
| 226 | A 3859901640 | WASHER |
| OPERATING VALVE | ||
| 227 | A 3839900051 | NUT |
| OPERATING VALVE | ||
| 228 | A 3609900170 | T-FITTING |
| OPERATING VALVE | ||
| 229 | A 0004290827 | THRUST RING |
| OPERATING VALVE | ||
| 230 | A 0019875046 | SEALING CORD |
| OPERATING VALVE | ||
| 231 | A 0005456009 | SWITCH |
| P.T.O. | ||
| 232 | N 080705012003 | NUT |
| SHIFTING CYLINDER TO P.T.O. | ||
| 234 | A 3839970372 | FITTING |
| Repalced by: N 915039008100 | ||
| 234 | N 915039008202 | HOLLOW SCREW FITTING |
| SHIFTING CYLINDER TO P.T.O. | ||
