Transporto priemonė: 1217 LS; VIN numerio dalis: 381252
Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|

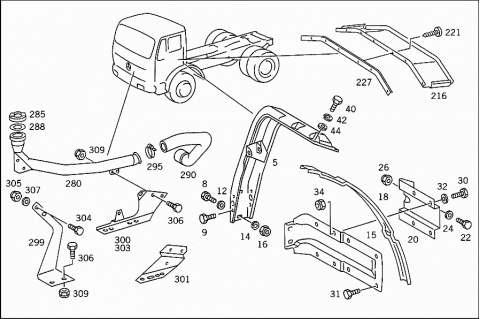

| 005 | A 3815200033 | SUPPORT |
| Repalced by: A 3815201433 | ||
| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| A 3815200333 | SUPPORT | |
| Repalced by: A 3815202333 | ||
| 005 | A 3815202333 | SUPPORT |
| EXPANSION TANK | ||
| 008 | N 000961012106 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X1.5X35 | ||
| 009 | N 000961012122 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X1.5X40 | ||
| 012 | N 009021013200 | WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 014 | N 912004012100 | LOCK WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 016 | N 910113012002 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 016 | N 910113012002 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 018 | N 000961012151 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X1.5X30 | ||
| 015 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 015 | A 6575210140 | BRACKET |
| FENDER | ||
| 018 | A 3815200026 | FENDER STAY |
| RIGHT | ||
| 018 | A 3815200026 | FENDER STAY |
| RIGHT | ||
| 020 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 020 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 020 | A 6575200033 | SUPPORT |
| FENDER | ||
| 022 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 024 | A 3609901840 | WASHER |
| BRACKET TO FRAME | ||
| 026 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 026 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 030 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 030 | N 304017008021 | SCREW |
| FENDER TO FENDER BRACKET | ||
| 031 | N 000933008145 | SCREW |
| FENDER TO FENDER BRACKET | ||
| 031 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 031 | N 304017008027 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X30 | ||
| 032 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 032 | A 6312670276 | WASHER |
| FENDER TO FENDER BRACKET | ||
| 034 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 034 | N 913004008001 | NUT |
| FENDER TO FENDER BRACKET | ||
| 040 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 040 | N 304017008034 | SCREW |
| FENDER TO FENDER BRACKET | ||
| 040 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 040 | N 304017008018 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X35 | ||
| 042 | N 912004008102 | LOCK WASHER |
| FENDER TO FENDER BRACKET | ||
| 044 | N 000433008406 | WASHER |
| FENDER TO FENDER BRACKET | ||

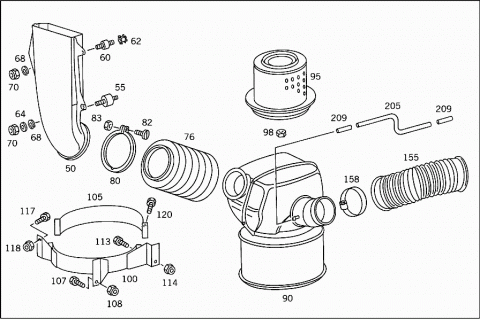

| 050 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 050 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 055 | A 3879880011 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 060 | A 3879880111 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 062 | A 0019901791 | NUT RETAINER |
| 064 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 064 | N 000125008443 | WASHER |
| 068 | N 912004008102 | LOCK WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 070 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 070 | N 913004008001 | NUT |
| AIR INTAKE PIPE TO CAB | ||
| 076 | A 3815280191 | BOOT |
| 080 | A 3815280443 | CLAMP |
| 082 | N 000084004423 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 083 | N 000934004006 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 090 | A 0090945302 | AIR CLEANER |
| 090 | A 0090945402 | AIR CLEANER |
| 090 | A 0090945502 | AIR CLEANER |
| 090 | A 0090945602 | AIR CLEANER |
| 095 | A 0010949304 | FILTER ELEMENT |
| 098 | A 0000940772 | NUT |
| Repalced by: N 913002010001 | ||
| 098 | N 913002010001 | NUT |
| 100 | A 3855200633 | SUPPORT |
| Repalced by: A 6505200333 | ||
| 100 | A 6505200333 | SUPPORT |
| 100 | A 3855200733 | SUPPORT |
| Repalced by: A 6505200433 | ||
| 100 | A 6505200433 | SUPPORT |
| 105 | A 3855280421 | STRAP |
| 107 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 107 | N 308676014020 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 108 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 108 | N 910113014001 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 113 | N 000961012122 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 114 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 117 | N 000933010128 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 118 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 118 | N 910113010000 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 120 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 120 | N 304017008021 | SCREW |
| STRAP WITH AIR CLEANER TO SUPPORT | ||

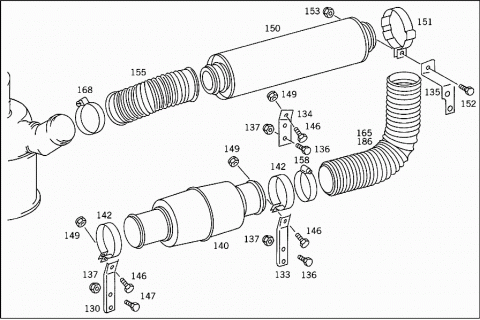

| 130 | A 3815282340 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 133 | A 3815282040 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| A 3815284440 | BRACKET | |
| Repalced by: A 3815202041 | ||
| 134 | A 3815202041 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 135 | A 3815283740 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 136 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 136 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 136 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 137 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 137 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 137 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 140 | A 0080944902 | MUFFLER |
| 142 | A 3049951235 | CLAMP |
| MUFFLER TO BRACKET | ||
| 146 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 146 | N 304017008034 | SCREW |
| MUFFLER TO BRACKET | ||
| M 8X25 | ||
| 147 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 147 | N 304017008021 | SCREW |
| MUFFLER TO BRACKET | ||
| M 8X20 | ||
| 149 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 149 | N 913004008001 | NUT |
| MUFFLER TO BRACKET | ||
| 150 | A 3520900104 | AIR CLEANER |
| INTAKE MUFFLER | ||
| 151 | A 3815200167 | STRAP |
| Repalced by: A 6155200067 | ||
| 151 | A 6155200067 | STRAP |
| 152 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 152 | N 304017010002 | SCREW |
| INTAKE MUFFLER | ||
| 153 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 153 | N 910113010000 | NUT |
| 155 | A 3830940008 | ACCORDION TUBE |
| FROM AIR CLEANER TO MUFFLER | ||
| 158 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 158 | A 0059971490 | LOOM TIE |
| FROM AIR CLEANER TO MUFFLER | ||
| 165 | A 3835280608 | AIR INTAKE PIPE |
| HOSE TO AIR CLEANER AND TO MUFFLER | ||
| 165 | A 3835280282 | HOSE |
| HOSE TO AIR CLEANER AND TO MUFFLER | ||
| 168 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 168 | A 0059971490 | LOOM TIE |
| HOSE TO AIR CLEANER AND TO MUFFLER | ||
| 168 | N 916017090000 | CLAMP |
| HOSE TO AIR CLEANER AND TO MUFFLER | ||
| 171 | A 3049951235 | CLAMP |
| AIR INTAKE PIPE TO BRACKET | ||
| 174 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 174 | N 304017008034 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| 177 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 177 | N 913004008001 | NUT |
| AIR INTAKE PIPE TO BRACKET | ||
| 180 | A 3830940008 | ACCORDION TUBE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 183 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 183 | A 0059971490 | LOOM TIE |
| 186 | A 3835280008 | AIR INTAKE PIPE |
| Repalced by: A 6155280482 | ||
| 186 | A 6155280482 | HOSE |
| 189 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 189 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 189 | A 0059972990 | CLAMP |
| 192 | A 3835200101 | AIR INTAKE PIPE |
| 195 | A 3835200201 | AIR INTAKE PIPE |
| 198 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 198 | N 000000000667 | CLAMP |
| INTAKE PIPE TO AIR COMPRESSOR | ||
| 199 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 199 | N 000000000668 | CLAMP |
| ENGINE BREATHING | ||
| 200 | A 3835280540 | BRACKET |
| AIR INTAKE PIPE,LEFT FRONT | ||
| 201 | A 3835280340 | BRACKET |
| AIR INTAKE PIPE,LEFT REAR | ||
| 202 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 202 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 203 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 203 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 205 | A 0109977082 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 4X6 | ||
| 209 | N 073379006203 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 6X10 | ||
| 216 | A 3835240529 | COVER |
| 221 | N 007981005302 | SHEET METAL SCREW |
| 227 | A 3875240084 | SHIM |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| OIL REFILLING | ||
| 280 | A 4010101564 | OIL FILLER NECK |
| THREADED | ||
| 285 | A 3520100468 | CAP |
| THREADED | ||
| A 0000180180 | GASKET | |
| Repalced by: A 1020180080 | ||
| 288 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 288 | A 1020180380 | GASKET |
| 290 | A 3520181082 | HOSE |
| THREADED | ||
| 295 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 295 | N 000000000671 | CLAMP |
| 299 | A 4010182540 | BRACKET |
| FRONT | ||
| 300 | A 4010182840 | BRACKET |
| REAR | ||
| 301 | A 4010182940 | BRACKET |
| REAR | ||
| 303 | A 4010182640 | BRACKET |
| 304 | N 000933010105 | SCREW |
| BRACKET MOUNTING | ||
| 305 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 305 | N 910113010000 | NUT |
| BRACKET MOUNTING | ||
| 306 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 306 | N 304017006020 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 307 | N 000125006421 | WASHER |
| 309 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 309 | N 913004006001 | NUT |
| OIL FILLER NECK TO BRACKET | ||
