Transporto priemonė: 1217 LS; VIN numerio dalis: 381252

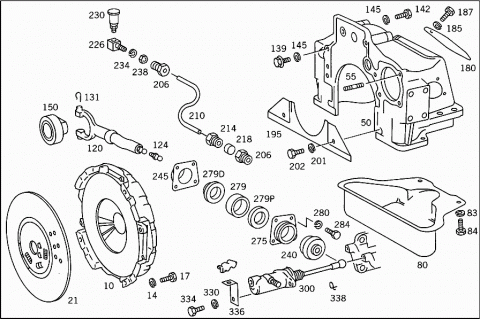

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0022507104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022508704 | ||
| 010 | A 0022508704 | CLUTCH PRESSURE PLATE |
| 014 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 017 | N 000933008317 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X18 | ||
| 017 | N 000931008311 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X50 | ||
| 021 | A 0032508303 | CLUTCH DISC |
| Repalced by: A 0032508403 | ||
| 021 | A 0072502803 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 021 | A 0032508403 | CLUTCH DISC |
| 021 | A 0052505303 | CLUTCH DISC |
| A 0012525010 | CLUTCH LINING | |
| ASBESTOS-FREE | ||
| 310 MM | ||
| A 0002529010 | CLUTCH LINING | |
| 310 MM | ||
| A 0012524710 | CLUTCH LINING | |
| Repalced by: A 0012529010 | ||
| A 0012529010 | CLUTCH LINING | |
| ASBESTOS-FREE | ||
| 330 MM | ||
| A 0002529510 | CLUTCH LINING | |
| 330 MM | ||
| A 0002521275 | RIVET | |
| Repalced by: A 0002524375 | ||
| A 0002524375 | RIVET | |
| LINING WITH INTERMEDIATE SPRING | ||
| A 0002521475 | RIVET | |
| Repalced by: A 0002523875 | ||
| A 0002523875 | RIVET | |
| LINING WITH CLUTCH DISC | ||
| A 0002523875 | RIVET | |
| LINING WITH INTERMEDIATE SPRING | ||
| A 0002522175 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X8 MM | ||
| A 0002522575 | RIVET | |
| Repalced by: A 0002523975 | ||
| A 0002523975 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| A 0002522075 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| A 0002523975 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| A 0002522019 | LEAF SPRING | |
| A 0002523519 | LEAF SPRING | |
| Repalced by: A 0002524719 | ||
| A 0002524719 | LEAF SPRING | |
| 050 | A 3812510401 | BELL HOUSING |
| Repalced by: A 3812510501 | ||
| 050 | A 3812510501 | BELL HOUSING |
| 055 | A 0009902605 | STUD |
| STOP TO BEARING BRACKET | ||
| 080 | A 3812510202 | BELL HOUSING |
| Repalced by: A 3812501005 | ||
| 080 | A 3812501005 | HOUSING |
| Repalced by: A 6762500105 | ||
| 080 | A 6762500105 | HOUSING |
| Repalced by: A 6762510002 | ||
| 080 | A 6762510002 | BELL HOUSING |
| LOWER PART | ||
| 083 | N 912004006102 | LOCK WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| N 000137006204 | SPRING WASHER | |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 084 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 084 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 084 | N 000000002270 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 120 | A 3812500213 | RELEASE LEVER |
| Repalced by: A 3812540208 | ||
| 120 | A 3812540208 | RELEASE LEVER |
| 124 | A 3029910015 | BALL PIVOT |
| 124 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 131 | A 3812540013 | SPRING LOCK |
| Repalced by: A 3812540113 | ||
| 131 | A 3812540113 | SPRING LOCK |
| 139 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 139 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 142 | N 000931012206 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X145 | ||
| 145 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 150 | A 0002504615 | RELEASE BEARING |
| Repalced by: A 0012509315 | ||
| 150 | A 0012509315 | RELEASE BEARING |
| 150 | A 0002504215 | RELEASE BEARING |
| 180 | A 3812510204 | END COVER |
| TOP | ||
| 185 | N 000137006204 | SPRING WASHER |
| END COVER TO BELL HOUSING | ||
| 187 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 187 | N 304017006034 | SCREW |
| END COVER TO BELL HOUSING | ||
| 195 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 195 | A 3522500055 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 195 | A 3522510106 | PROTECTIVE PLATE |
| 201 | N 912004006102 | LOCK WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 202 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 202 | N 304017006018 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 206 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 210 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 214 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 218 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| N 071428004102 | SCREW-IN FITTING | |
| RELEASE BEARING LUBRICATION | ||
| 226 | A 3072510108 | INTERMEDIATE PIECE |
| Repalced by: A 3072510208 | ||
| 226 | A 3072510208 | INTERMEDIATE PIECE |
| Repalced by: A 6209970088 | ||
| 226 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 230 | N 003411002001 | GREASE CUP |
| Repalced by: A 6209880135 | ||
| 230 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 234 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 238 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 238 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 238 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 240 | A 3812540097 | BOOT |
| Repalced by: A 6152540097 | ||
| 240 | A 6152540097 | BOOT |
| RELEASE LEVER | ||
| 245 | A 3812540540 | BRACKET |
| INSIDE | ||
| A 3029910115 | BALL PIVOT | |
| 275 | A 3812540640 | BRACKET |
| Repalced by: A 3812500243 | ||
| 275 | A 3812500243 | BRACKET |
| OUTSIDE | ||
| 279 | A 3522540135 | BEARING |
| Repalced by: A 3802540035 | ||
| 279 | A 3802540035 | BEARING |
| OUTSIDE | ||
| 279 | A 3802540135 | BEARING |
| OUTSIDE | ||
| 279D | A 3802540059 | SEAL RING |
| SOFT | ||
| 279D | A 3802540259 | SEAL RING |
| SOFT | ||
| 279P | A 3802540159 | SEAL RING |
| HARD | ||
| 279P | A 3802540359 | SEAL RING |
| HARD | ||
| 280 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 284 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 284 | N 304017008021 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 300 | A 0002957207 | SLAVE CYLINDER |
| CLUTCH | ||
| A 0002952983 | BOOT | |
| A 0002950673 | LOCK | |
| A 0002950233 | ROD | |
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 3075530107 | VALVE | |
| A 0004210887 | PROTECTIVE CAP | |
| Repalced by: A 0004217187 | ||
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0005864329 | REPAIR KIT | |
| Repalced by: A 0002900811 | ||
| A 0002900811 | REPAIR KIT | |
| CLUTCH SLAVE CYLINDER | ||
| 330 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 334 | N 000933010157 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 336 | A 3835460543 | BRACKET |
| STARTING CABLE | ||
| 338 | N 071805016402 | SECURING CLIP |
| CLUTCH SLAVE CYLINDER TO LEVER | ||
