Transporto priemonė: 1217 LS; VIN numerio dalis: 381252
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

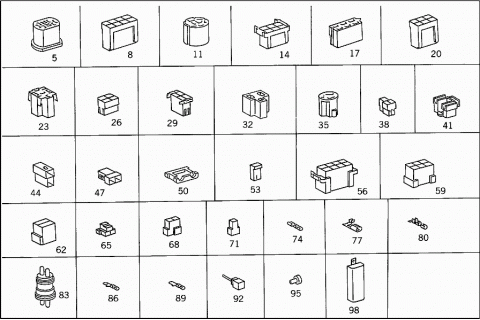

| 005 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 008 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 011 | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 014 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 017 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 020 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 023 | A 0045454028 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 023 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 026 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 026 | A 0075457328 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 029 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 032 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 035 | A 0125450928 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 035 | A 0065459128 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 038 | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 041 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 044 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 047 | A 0045450728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 050 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 053 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 056 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 059 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 062 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 065 | A 0055456628 | PLUG HOUSING |
| 3-POLE | ||
| 068 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 071 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 074 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 074 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 074 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 074 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 074 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 074 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 074 | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 074 | A 0035455326 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 077 | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 2.5 MM2 | ||
| 080 | A 0015454826 | ROUND PIN BUSHING |
| LESS DETENT | ||
| 0.75-2.5 MM2 | ||
| 083 | A 0065457328 | PLUG |
| BIPOLAR | ||
| 086 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 089 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 089 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 092 | A 0075456128 | PLUG |
| 095 | A 0015466641 | CABLE CONNECTOR |
| 6-10 MM2 | ||
| 098 | A 0005452403 | CAP |
| 101 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 101 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 101 | A 3805401081 | PLUG SOCKET |
| EXHAUST BRAKE SWITCH | ||
| M 30X1 | ||
| 104 | A 0005463435 | BOOT |
| TACHOGRAPH SENDER UNIT CONNECTION | ||
| 107 | A 3019901440 | WASHER |
| TACHOGRAPH SENDER UNIT CONNECTION | ||
| 110 | A 0005421572 | NUT |
| TACHOGRAPH SENDER UNIT CONNECTION | ||
| 113 | A 0029978590 | CLIP |
| TACHOGRAPH SENDER UNIT CONNECTION | ||
| 116 | A 6205460230 | INSULATING HOSE |
| 119 | A 0005450155 | GUIDE |
| 122 | A 0019976572 | FITTING |
| TRAILER PLUG SOCKET | ||
| 125 | A 0019906440 | WASHER |
| TRAILER PLUG SOCKET | ||
| 128 | A 0009904954 | NUT |
| TRAILER PLUG SOCKET | ||

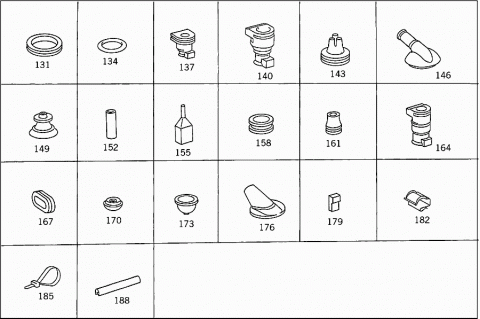

| 131 | A 0059971981 | GROMMET |
| 134 | A 0019875046 | SEALING CORD |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 137 | A 3805461937 | GROMMET |
| 16 MM | ||
| 137 | A 3805462037 | GROMMET |
| 19 MM | ||
| 137 | A 0005462237 | GROMMET |
| 140 | A 3875460437 | GROMMET |
| AT CABLE CONNECTOR | ||
| 143 | A 3839970181 | GROMMET |
| Repalced by: A 0089976381 | ||
| 143 | A 0089976381 | GROMMET |
| 146 | A 3149970181 | GROMMET |
| 149 | A 1119971481 | GROMMET |
| 149 | A 0009973081 | GROMMET |
| 152 | A 0009970181 | GROMMET |
| 1.75 MM | ||
| 152 | A 0009970381 | GROMMET |
| 3 MM | ||
| 152 | A 0009970481 | GROMMET |
| 4 MM | ||
| 152 | A 0009970581 | GROMMET |
| 5 MM | ||
| 152 | A 0009970681 | GROMMET |
| 7.5 MM | ||
| 152 | A 0009970781 | GROMMET |
| 10 MM | ||
| 155 | A 0039977381 | GROMMET |
| 158 | A 0039973481 | GROMMET |
| ELECTRIC CABLE THRU MUD APRON BRACKET | ||
| 158 | A 4069975081 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| 158 | A 3549970081 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| 158 | A 6209970481 | GROMMET |
| ELECTRIC CABLE TO BRACKET,TOP | ||
| 161 | A 6019972081 | GROMMET |
| AT TAIL LAMP SHELL | ||
| 164 | A 3805462037 | GROMMET |
| 164 | A 0005461237 | GROMMET |
| 167 | A 3859970181 | GROMMET |
| BATTERY CABLES THRU BATTERY CASE | ||
| 167 | A 3859970281 | GROMMET |
| TO PLUG THE OPENING FOR CABLE AT BATTERY CASE | ||
| 170 | A 0029970981 | GROMMET |
| ELECTRIC CABLE TO BRACKET,BOTTOM | ||
| 173 | A 0039976781 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 176 | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 179 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 182 | A 0009881878 | CLIP |
| ROOF MOUNTED CABLE HARNESS | ||
| 14 MM | ||
| 185 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 185 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 188 | A 0019877625 | PLASTIC SECTION |

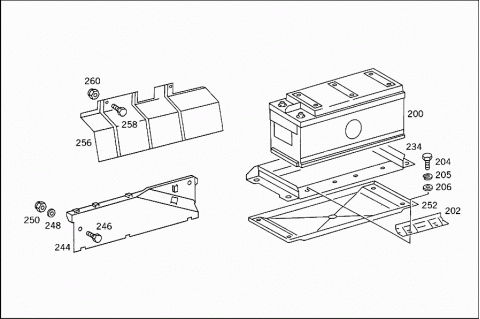

| 200 | A 0015419701 | BATTERY |
| Repalced by: A 0025411701 | ||
| 200 | A 0025411701 | BATTERY |
| 12 V 143 AH | ||
| 202 | A 3855410140 | BRACKET |
| BATTERY MOUNTING | ||
| 204 | N 007985008119 | SCREW |
| BATTERY BASE FRAME | ||
| 205 | N 912004008102 | LOCK WASHER |
| BATTERY BASE FRAME | ||
| 206 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 206 | N 000125008443 | WASHER |
| BATTERY BASE FRAME | ||

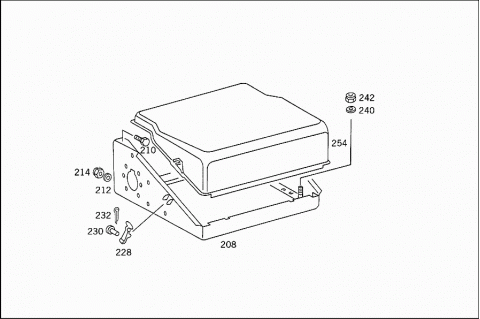

| 208 | A 3804200968 | SUPPORT |
| BATTERY | ||
| 208 | A 3804202268 | SUPPORT |
| BATTERY | ||
| 210 | N 000961014014 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X50 MM | ||
| 210 | N 000961014028 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X40 MM | ||
| 212 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 212 | N 000125015019 | WASHER |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 214 | N 913004014001 | NUT |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 228 | A 3874260040 | BRACKET |
| 230 | A 3125271174 | PIN |
| BRACKET TO BATTERY CASE | ||
| 232 | N 000094001516 | COTTER PIN |
| BRACKET TO BATTERY CASE | ||
| 234 | A 3815400318 | RAIL |
| BATTERY BASE FRAME | ||
| 240 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 240 | N 007349010007 | WASHER |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 242 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 242 | N 910113010000 | NUT |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 244 | A 3855410332 | FRONT PANEL |
| 246 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 246 | N 304017008021 | SCREW |
| FRONT PANEL TO BATTERY SUPPORT | ||
| 248 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 248 | N 009021008213 | WASHER |
| FRONT PANEL TO BATTERY SUPPORT | ||
| 250 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 250 | N 913004008001 | NUT |
| FRONT PANEL TO BATTERY SUPPORT | ||
| 252 | A 3805410102 | BATTERY CASE |
| 254 | A 3804260265 | PROTECTIVE PLATE |
| 256 | A 3854310062 | COVERING |
| 256 | A 3854310662 | COVERING |
| 258 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 258 | N 304017008021 | SCREW |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 260 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 260 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||

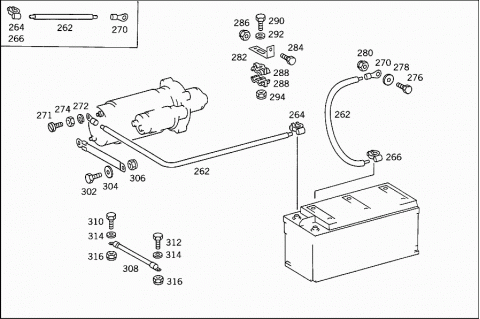

| 262 | N 072551095880 | ELECTRIC CABLE |
| Repalced by: N 922002095000 | ||
| 262 | N 922002095000 | ELECTRIC CABLE |
| BATTERY | ||
| 264 | N 072332015100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 266 | N 072332015200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 270 | N 046234010006 | CABLE SHOE |
| WITH BORE | ||
| 10.5 MM | ||
| 271 | N 000084006132 | SCREW |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 272 | N 912004006102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 272 | N 912004010102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 274 | N 000934010014 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 276 | N 000933010105 | SCREW |
| BATTERY CABLE THRU SIDE MEMBER | ||
| 278 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 278 | N 009021010209 | WASHER |
| BATTERY CABLE THRU SIDE MEMBER | ||
| 280 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 280 | N 910113010000 | NUT |
| BATTERY CABLE THRU SIDE MEMBER | ||
| 282 | A 3854290640 | BRACKET |
| ELECTRIC CABLE TO FRAME | ||
| 284 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 284 | N 304017008027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 286 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 286 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 288 | A 3835460044 | CLAMPING PIECE |
| BATTERY POS. CABLE TO BRACKET | ||
| 290 | N 000933006147 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 292 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 292 | N 009021006208 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 294 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 294 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 302 | N 000933010105 | SCREW |
| GROUND STRAP TO SIDE MEMBER | ||
| 304 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 304 | N 009021010209 | WASHER |
| GROUND STRAP TO SIDE MEMBER | ||
| 306 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 306 | N 910113010000 | NUT |
| GROUND STRAP TO SIDE MEMBER | ||
| 308 | A 3835400231 | NEG. CABLE |
| Repalced by: A 6205402339 | ||
| 308 | A 6205402339 | NEG. CABLE |
| FROM FRAME CROSS MEMBER TO CAB | ||
| 310 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 310 | N 304017008016 | SCREW |
| GROUND STRAP TO CAB | ||
| 312 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 312 | N 304017008034 | SCREW |
| GROUND FRAME-CABLE-HARNESS & CAB-FRAME GROUND STRAP TO FRAME CROSS MEMBER | ||
| 314 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 314 | N 000125008443 | WASHER |
| FRAME CABLE HARN.GROUND CONN.&CAB FRAME GROUND STRAP TO FRAME CROSS MEMBER | ||
| 316 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 316 | N 913004008001 | NUT |
| FRAME CABLE HARN.GROUND CONN.&CAB FRAME GROUND STRAP TO FRAME CROSS MEMBER | ||

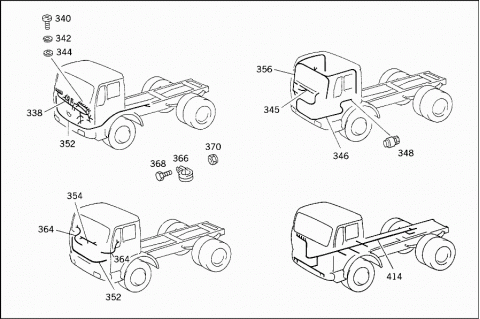

| 338 | A 3835400205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835401005 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835402005 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835402605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835403305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835404605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835405105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835406005 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835406605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835400305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835401105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835402105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835402705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835403405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3838404705 | BOX |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835405205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835406405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 338 | A 3835406905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 340 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 340 | N 000000001146 | SCREW |
| GROUND CONNECTION TO WINDOW SILL | ||
| M 6X16 | ||
| 342 | N 912004006102 | LOCK WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 344 | N 000125006421 | WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 345 | A 3805403837 | ELECTRIC CABLE |
| FROM FUSE BOX TO CAB PLUG CONNECTION & TO STARTING MOTOR RELAY | ||
| 346 | A 6155401336 | ELECTRIC CABLE |
| FROM TACHOGRAPH TO PULSE TRANSMITTER | ||
| 348 | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 348 | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 352 | A 3805402537 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO EXHAUST BRAKE SWITCH | ||
| 354 | A 3835400027 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO STOP LIGHT SWITCH | ||
| 354 | A 3835403627 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO STOP LIGHT SWITCH | ||
| 354 | A 3835400127 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO STOP LIGHT SWITCH | ||
| 354 | A 3835403227 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO STOP LIGHT SWITCH | ||
| 354 | A 3835403727 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO STOP LIGHT SWITCH | ||
| 356 | A 3895401737 | ELECTRIC CABLE |
| CAB ROOF | ||
| 356 | A 3855405827 | ELECTRIC CABLE |
| CAB ROOF | ||
| 356 | A 3855400036 | ELECTRIC CABLE |
| CAB ROOF | ||
| 356 | A 3875402837 | ELECTRIC CABLE |
| CAB ROOF | ||
| 356 | A 3855400136 | ELECTRIC CABLE |
| CAB ROOF | ||
| 364 | A 0018207015 | ELECTRIC CABLE |
| FROM OUTSIDE REARVIEW MIRROR PLUGCONNECTION TO OUTSIDE REARVIEW MIRROR | ||
| 366 | N 916016032201 | CLAMP |
| ELECTRIC CABLE TO BRACKET | ||
| 368 | N 000933006127 | SCREW |
| ELECTRIC CABLE TO BRACKET | ||
| 370 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 370 | N 913004006001 | NUT |
| ELECTRIC CABLE TO BRACKET | ||

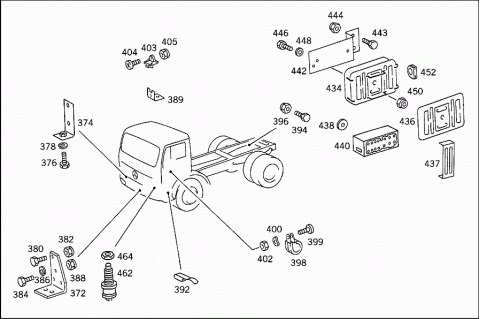

| 372 | A 3875420540 | BRACKET |
| CROSS MEMBER | ||
| 372 | A 3875420940 | BRACKET |
| CROSS MEMBER | ||
| 374 | A 3875401873 | BRACKET |
| CROSS MEMBER | ||
| 376 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 376 | N 304017008021 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 378 | N 912004008102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 380 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 380 | N 304017008034 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 382 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 382 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 384 | N 000933006127 | SCREW |
| LINE TO CAB | ||
| 386 | N 912004006102 | LOCK WASHER |
| LINE TO CAB | ||
| 388 | N 000934006007 | NUT |
| LINE TO CAB | ||
| 389 | A 3604280243 | ANGLE |
| CABLE BRANCH-OFF TO STARTER NON-REPEAT UNIT TO TRANSMISSION | ||
| 392 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 394 | N 000933010105 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 396 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 396 | N 910113010000 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| 398 | N 916016015202 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 399 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 399 | N 000000001145 | SCREW |
| ALTERNATOR BRANCH-OFF | ||
| 400 | N 000137005203 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF | ||
| 400 | N 000137005203 | SPRING WASHER |
| CLAMP TO ALTERNATOR | ||
| 400 | N 000137006204 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF | ||
| 402 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 402 | N 304032005005 | NUT |
| ALTERNATOR BRANCH-OFF | ||
| 402 | N 304032005005 | NUT |
| CLAMP TO ALTERNATOR | ||
| 402 | N 000934006007 | NUT |
| ALTERNATOR BRANCH-OFF | ||
| 402 | N 000934004006 | NUT |
| CABLE TO ALTERNATOR | ||
| 402 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 402 | N 304032005005 | NUT |
| CABLE TO ALTERNATOR | ||
| 403 | A 0005462243 | BRACKET |
| CABLE TO ALTERNATOR | ||
| 404 | N 007985005504 | SCREW |
| ALTERNATOR BRANCH-OFF | ||
| 405 | N 913004005001 | NUT |
| ALTERNATOR BRANCH-OFF | ||
| 414 | A 3815401209 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 414 | A 3815402809 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 414 | A 3815404409 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 414 | A 3815406009 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 414 | A 3815408109 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 414 | A 3815408709 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 414 | A 3815401608 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 434 | A 0015465441 | CABLE CONNECTOR |
| BEHIND REAR AXLE | ||
| 434 | A 0015465441 | CABLE CONNECTOR |
| BEHIND CAB | ||
| 436 | A 0005460581 | COVERING |
| 437 | A 0005460283 | ANGLE |
| CABLE CONNECTOR | ||
| 438 | A 3609902340 | WASHER |
| CABLE CONNECTOR | ||
| 440 | A 0105456728 | PLUG |
| CABLE CONNECTOR | ||
| 442 | A 3835461143 | BRACKET |
| CABLE CONNECTOR | ||
| 442 | A 3835461143 | BRACKET |
| CABLE CONNECTOR | ||
| 443 | N 000933010105 | SCREW |
| BRACKET AND GROUND CABLE TO SIDE MEMBER | ||
| 444 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 444 | N 910113010000 | NUT |
| BRACKET AND GROUND CABLE TO SIDE MEMBER | ||
| 446 | N 007985005146 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| M 5X25 | ||
| 448 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 448 | N 009021005205 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 450 | N 913004005001 | NUT |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 452 | A 0009872844 | EXPANSION PLUG |
| TO LOCK TRAILER-PLUG-SOCKET OUTLET | ||
| 462 | A 0005455509 | SWITCH |
| STOP LIGHT | ||
| 462 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 462 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 462 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 462 | A 0015452709 | SWITCH |
| STOP LIGHT | ||
| 462 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 464 | A 0029901951 | NUT |
| SWITCH TO BRAKE PEDAL | ||
| 464 | A 0009909251 | NUT |
| SWITCH TO BRAKE PEDAL | ||
| 474 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 474 | A 0015444503 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 474 | A 0015444203 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 474 | A 0015444803 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 474 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 474 | A 0015444603 | TAIL LAMP |
| RIGHT | ||
| 474 | A 0015445903 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 474 | A 0015446103 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 476 | A 0015445590 | LENS |
| HELLA | ||
| 476 | A 0015447290 | LENS |
| Repalced by: A 0015445990 | ||
| 476 | A 0015445990 | LENS |
| R & S | ||
| 478 | A 0005448480 | GASKET |
| HELLA | ||
| 478 | A 0005447580 | GASKET |
| R & S | ||
| 480 | A 0005445293 | LAMP SOCKET |
| HELLA | ||
| 480 | A 0005445193 | LAMP SOCKET |
| R & S | ||
| 482 | A 0005440476 | WASHER |
| R & S | ||
| 484 | A 0019901940 | WASHER |
| R & S | ||
| 486 | A 4069975081 | GROMMET |
| 486 | A 0009978081 | GROMMET |
| 488 | N 072601012702 | BULB |
| G 12 V 10 W | ||
| 490 | N 072601012190 | BULB |
| RL 12 V 21 W | ||
| 492 | A 0015446903 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 492 | A 0015448003 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 492 | A 0015447103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 492 | A 0015448203 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 492 | A 0015446803 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 492 | A 0015448103 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 492 | A 0015447003 | TAIL LAMP |
| Repalced by: A 0025440203 | ||
| 492 | A 0025440203 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 492 | A 0015448303 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 494 | A 0015448390 | LENS |
| HELLA | ||
| 494 | A 0015448490 | LENS |
| R & S | ||
| 496 | A 0005448580 | GASKET |
| 496 | A 0005448880 | GASKET |
| 498 | N 072601012702 | BULB |
| G 12 V 10 W | ||
| 500 | N 072601012190 | BULB |
| RL 12 V 21 W | ||
| 506 | A 6215402207 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| 506 | A 6175401507 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 508 | N 912004008102 | LOCK WASHER |
| TAIL LAMP | ||
| 510 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 510 | N 000125008443 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 512 | N 304032008006 | NUT |
| TAIL LAMP | ||
| 514 | A 3875440076 | WASHER |
| TAIL LAMP | ||
| 515 | A 3815400373 | BRACKET |
| RIGHT | ||
| 515 | A 3815400473 | BRACKET |
| LEFT | ||
| 516 | N 000961018009 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 516 | N 000933010145 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 517 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 517 | N 910113010000 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 518 | A 3525405173 | BRACKET |
| LEFT TAIL LAMP | ||
| 518 | A 3525405273 | BRACKET |
| RIGHT TAIL LAMP | ||
| 519 | A 0005443305 | REFLECTOR |
| 520 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 522 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 522 | N 000433005304 | WASHER |
| REFLECTOR TO BRACKET | ||
| 524 | N 912004005103 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||
| 526 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| 528 | A 3855460043 | BRACKET |
| BATTERY CABLE | ||
| 528 | A 3604280243 | ANGLE |
| BATTERY CABLE | ||
| 530 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 530 | N 304017008027 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 532 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 532 | N 913004008001 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 536 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 538 | N 000963006005 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 538 | N 000084006137 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 540 | N 000125006421 | WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 542 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 542 | N 913004006001 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 550 | A 3605840025 | NAME PLATE |
| 552 | A 3875840051 | SUPPORT |
| 554 | N 000660004043 | RIVET |
| 556 | N 000933008145 | SCREW |
| NAME PLATE TO BRACKET | ||
| 560 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 560 | N 913004008001 | NUT |
| NAME PLATE TO BRACKET | ||
| 562 | N 000084006426 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| 566 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 566 | N 913004006001 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 568 | N 000933010157 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 568 | N 000933010164 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 568 | N 000933010128 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 570 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 570 | N 910113010000 | NUT |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 570 | N 910113010000 | NUT |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||

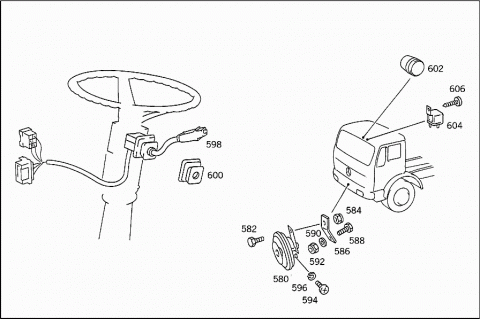

| 580 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 580 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 580 | A 0035422720 | HORN |
| 580 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 580 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 580 | A 0035422720 | HORN |
| 582 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 582 | N 304017010002 | SCREW |
| HORN TO BRACKET | ||
| 10X25 MM | ||
| 584 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 584 | N 910113010000 | NUT |
| HORN TO BRACKET | ||
| 586 | A 3095421340 | BRACKET |
| HORN | ||
| 588 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 590 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 590 | N 009021010209 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 592 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 592 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 594 | N 007985004123 | SCREW |
| CABLE TO DISC-TYPE HORN | ||
| 596 | N 912004004102 | LOCK WASHER |
| CABLE TO DISC-TYPE HORN | ||
| 598 | A 0055455124 | STEERG.COLUMN MTD. SWITCH |
| STEERING COLUMN MOUNTED | ||
| 598 | A 0055455224 | STEERG.COLUMN MTD. SWITCH |
| STEERING COLUMN MOUNTED | ||
| 600 | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 602 | A 0005423523 | BUZZER |
| COOLING WATER TEMPERATURE | ||
| 604 | A 0005423023 | BUZZER |
| BLINKER | ||
| 606 | N 007971004223 | SHEET METAL SCREW |
| BUZZER TO CAB | ||

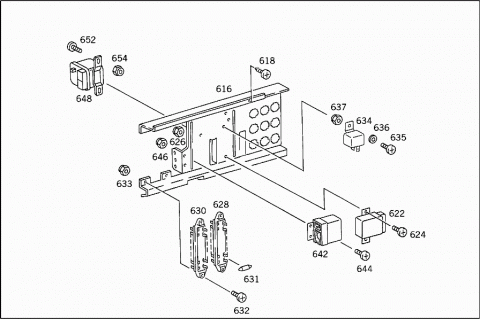

| 616 | A 3875420439 | PLATE |
| APPARATUS | ||
| 616 | A 6205420239 | PLATE |
| Repalced by: A 3985420039 | ||
| 616 | A 3985420039 | PLATE |
| APPARATUS | ||
| 616 | A 3875420739 | PLATE |
| APPARATUS | ||
| 616 | A 6205420339 | PLATE |
| APPARATUS | ||
| 618 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 618 | N 000000000453 | SHEET METAL SCREW |
| APPARATUS PLATE TO WINDOW SILL | ||
| 622 | A 0045456224 | SWITCH,AUTOMATIC |
| WIPER PULSE SENDER UNIT | ||
| 622 | A 0055450524 | SENDER UNIT |
| Repalced by: A 0055451324 | ||
| 622 | A 0055451324 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 12V/HELLA | ||
| 622 | A 0055451524 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 12V/SWF | ||
| 624 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 624 | N 000000001145 | SCREW |
| SWITCH TO APPARATUS PLATE | ||
| 626 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 626 | N 913004006001 | NUT |
| SWITCH TO APPARATUS PLATE | ||
| 628 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 630 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 631 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 631 | N 072581008101 | FUSE |
| 8A | ||
| 632 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 632 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 632 | N 000000001149 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 633 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 633 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||
| 634 | A 0005458605 | RELAY |
| STARTING MOTOR | ||
| 634 | A 0005458905 | RELAY |
| STARTING MOTOR | ||
| 634 | A 0005455505 | RELAY |
| STARTING MOTOR | ||
| 634 | A 0005458305 | RELAY |
| STARTING MOTOR | ||
| 635 | N 007985005149 | SCREW |
| RELAY TO BATTERY CASE | ||
| 636 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 636 | N 009021005205 | WASHER |
| RELAY TO BATTERY CASE | ||
| 637 | N 913004005001 | NUT |
| RELAY TO BATTERY CASE | ||
| 642 | A 0021547406 | REGULATOR AND CUT-OUT |
| TRANSISTOR | ||
| 644 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 644 | N 000000001145 | SCREW |
| REGULATOR AND CUT-OUT TO APPARATUS PLATE | ||
| 6X12 MM | ||
| 646 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 646 | N 913004006001 | NUT |
| REGULATOR AND CUT-OUT TO APPARATUS PLATE | ||
| 648 | A 0025445832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 648 | A 0025446332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 652 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 652 | N 000000001146 | SCREW |
| HAZARD WARNING LIGHT SENDER UNIT AND PULSE SENDER UNIT TO APPARATUS PLATE | ||
| M 6X16 | ||
| 654 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 654 | N 913004006001 | NUT |
| HAZARD WARNING LIGHT SENDER UNIT AND PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 670 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 672 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 674 | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 676 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 678 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 680 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 682 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 684 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 686 | A 3015400165 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 688 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 690 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING | ||
| 692 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING | ||
| 694 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING | ||
| 696 | A 0015450511 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 698 | A 0005452883 | CAP |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 700 | A 0015450490 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 702 | N 072601012800 | BULB |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 12V 2W | ||
| 704 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 704 | A 0045454326 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||
| 706 | A 0009900946 | WASHER |
| PLUG SOCKET TO SWITCHBOARD | ||
| 708 | A 3805450076 | WASHER |
| PLUG SOCKET TO SWITCHBOARD | ||
| 710 | A 0009974435 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 712 | A 6209880035 | CAP |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 712 | A 3899880135 | CAP |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 713 | A 0015452518 | RESISTOR |
| CHARGE CONTROL | ||
| 714 | N 007985004107 | SCREW |
| RESISTOR TO APPARATUS PANEL | ||
| 715 | N 912004004102 | LOCK WASHER |
| RESISTOR TO APPARATUS PANEL | ||
| 716 | A 0015451514 | SWITCH |
| STARTING AT ENGINE | ||
| 716 | A 0035452314 | SWITCH |
| STARTING AT ENGINE | ||
| 718 | A 0009941710 | LOCK |
| 718 | A 0009941910 | LOCK |
| 720 | A 0005451672 | NUT |
| 720 | A 0005451772 | NUT |
| 722 | A 0005452945 | BOOT |
| STARTING AT ENGINE | ||
| TO 001 545 46 14 | ||
| 724 | A 0015454914 | SWITCH |
| STARTING IN CAB | ||
| 726 | A 0005422527 | WARNING INDICATOR |
| AIR CLEANER | ||
| 728 | A 3816890056 | RING |
| MAINTENANCE OF AIR CLEANER | ||
| 730 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 730 | A 0105426810 | TACHOGRAPH |
| Repalced by: A 0115421710 | ||
| 730 | A 0115421710 | TACHOGRAPH |
| ELECTRONIC | ||
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| 732 | N 072601012800 | BULB |
| 12V 2W | ||
| 732 | A 0015442594 | BULB |
| Repalced by: A 0005453419 | ||
| 732 | A 0005453419 | SOCKET LAMP |
| 12 V 1.2 W | ||
| 733 | A 0005420481 | GROMMET |
| TACHOGRAPH | ||
| 734 | A 0005420390 | BLIND CAP |
| TACHOGRAPH LEAD SEALING | ||
| 736 | A 0005420285 | PROTECTIVE PLATE |
| TACHOGRAPH LEAD SEALING | ||
| 738 | N 007971002206 | SHEET METAL SCREW |
| TACHOGRAPH LEAD SEALING | ||
| 739 | A 3816890808 | COVERING |
| TACHOMETER | ||
| 740 | A 0015421316 | TACHOMETER |
| 744 | N 072601012800 | BULB |
| TACHOMETER | ||
| 12 V/2 W | ||
| 746 | A 0035407247 | INSTRUMENT CLUSTER |
| 748 | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002 540 57 47 | ||
| 748 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 75 47 | ||
| 748 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 72 47 | ||
| 750 | A 0035423805 | TEMPERATURE GAUGE |
| TO 002 540 57 47 | ||
| 750 | A 0035428905 | TEMPERATURE GAUGE |
| TO 003 540 75 47 | ||
| 750 | A 0035429605 | TEMPERATURE GAUGE |
| TO 003 540 72 47 | ||
| 752 | A 0025420202 | OIL PRESSURE GAUGE |
| TO 002 540 57 47 | ||
| 752 | A 0025422802 | OIL PRESSURE GAUGE |
| TO 003 540 75 47 | ||
| 752 | A 0025423202 | OIL PRESSURE GAUGE |
| TO 003 540 72 47 | ||
| 754 | A 0015425103 | FUEL GAUGE DASH UNIT |
| TO 002 540 57 47 | ||
| 754 | A 0025429103 | FUEL GAUGE DASH UNIT |
| TO 003 540 75 47 | ||
| 754 | A 0025429303 | FUEL GAUGE DASH UNIT |
| TO 003 540 72 47 | ||
| 756 | A 0005422178 | CONNECTION PLATE |
| TO 002 540 57 47 | ||
| 756 | A 0005423078 | CONNECTION PLATE |
| TO 003 540 75 47 | ||
| 756 | A 0005423678 | CONNECTION PLATE |
| TO 003 540 72 47 | ||
| 758 | A 0005451219 | SOCKET |
| 760 | N 072601012800 | BULB |
| 2W | ||
| 761 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER | ||

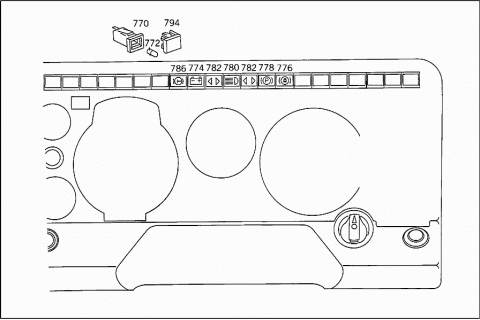

| 770 | A 0015451815 | TELL-TALE LAMP |
| 772 | N 072601012800 | BULB |
| 774 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 776 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| 778 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 780 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 782 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 786 | A 0015456290 | LENS |
| BRAKE CONTROL | ||
| 786 | A 0015456290 | LENS |
| BRAKE CONTROL | ||
| 794 | A 0009974335 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 804 | A 0035423530 | ANGLE DRIVE |
| 804 | A 0025423830 | ANGLE DRIVE |
| 804 | A 0005422930 | ANGLE DRIVE |
| RATIO 1: | ||
| 1.0 | ||
| 806 | A 0045424207 | FLEXIBLE SHAFT |
| 3500 MM | ||
| 806 | A 0055421007 | FLEXIBLE SHAFT |
| 3450 MM | ||
| 806 | A 0045423107 | FLEXIBLE SHAFT |
| 4400 MM | ||
| A 0005420781 | GROMMET | |
| Repalced by: A 0005421081 | ||
| 816 | A 0005421081 | GROMMET |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 818 | A 3875420740 | BRACKET |
| GROMMET TO CAB | ||
| 818 | A 6155420140 | BRACKET |
| GROMMET TO CAB | ||
| 820 | N 007981004400 | SHEET METAL SCREW |
| Repalced by: N 000000000878 | ||
| 820 | N 000000000878 | SCREW |
| GROMMET TO CAB | ||
| 822 | A 0009940545 | LOCK |
| GROMMET TO CAB | ||
| 824 | A 3875460044 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB | ||
| 824 | A 3875460344 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 826 | A 3875460144 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 826 | A 3875460244 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 826 | A 6175460344 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 828 | N 000931006118 | SCREW |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 6X35 MM | ||
| 830 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 830 | N 913004006001 | NUT |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 832 | A 3855400773 | BRACKET |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 834 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 834 | N 000000001146 | SCREW |
| BRACKET TO BUMBER STRUT | ||
| M 6X16 | ||
| 836 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 836 | N 913004006001 | NUT |
| BRACKET TO BUMBER STRUT | ||
| 838 | A 3875460244 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 838 | A 3875460244 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 840 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 840 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 840 | N 000000001149 | SCREW |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 840 | N 000000001149 | SCREW |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 842 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 842 | N 913004006001 | NUT |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 842 | N 913004006001 | NUT |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
