Transporto priemonė: 1217 LS; VIN numerio dalis: 381252

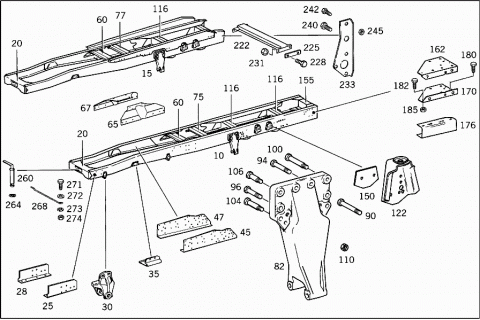

Grupė: 31 FRAME
29259
29260
29261
29262
29263
# Kodas Pavadinimas
010 A 3813101001 FRAME
010 A 3813101301 FRAME
010 A 3813101501 FRAME
010 A 3813101701 FRAME
010 A 3813103101 FRAME
010 A 3813104201 FRAME
015 A 3813101101 FRAME
020 A 3873100422 CROSS MEMBER
FRONT
025 A 3853121187 GUSSET PLATE
LEFT
025 A 3853122187 GUSSET PLATE
LEFT
028 A 3853121287 GUSSET PLATE
RIGHT
028 A 3853122287 GUSSET PLATE
RIGHT
N 000961012106 SCREW
GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS
N 910113012002 NUT
GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS
030 A 3523220201 FRONT SPRING BRACKET
FRONT
035 A 3833220131 PLATE
HELPER SPRING
A 3523220201 FRONT SPRING BRACKET
REAR
045 A 3833110253 ANGLE
LEFT
047 A 3833110353 ANGLE
RIGHT
A 3813100036 CROSS MEMBER
Repalced by: A 3853100436
A 3853100436 CROSS MEMBER
Repalced by: A 3813120015
060 A 3813120015 CROSS MEMBER
NO.2
A 3853120152 ANGLE
LEFT TOP
A 3853120252 ANGLE
RIGHT TOP
065 A 3813120252 ANGLE
LEFT BOTTOM
067 A 3813120352 ANGLE
RIGHT BOTTOM
N 000933010128 SCREW
ANGLE TO CROSS MEMBER
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 SCREW
ANGLE TO CROSS MEMBER
N 308676012012 SCREW
TOP GUSSET PLATE TO CROSS MEMBER
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
ANGLE TO CROSS MEMBER
N 910113012002 NUT
ANGLE TO CROSS MEMBER
N 910113012002 NUT
TOP GUSSET PLATE TO CROSS MEMBER
075 A 3813100136 CROSS MEMBER
INTERMEDIATE BEARING
NO.3
075 A 3813100136 CROSS MEMBER
REAR INTERMEDIATE BEARING
NO.4
077 A 3853100036 CROSS MEMBER
NO.3
077 A 3853100036 CROSS MEMBER
FRONT INTERMEDIATE BEARING
NO.3
082 A 3813520041 BEARING BODY
Repalced by: A 3813520341
082 A 3813520341 BEARING BODY
Repalced by: A 3813500032
082 A 3813500032 SUPPORT
Repalced by: A 6523520341
082 A 6523520341 BEARING BODY
LONGITUDINAL CONTROL ARM
090 N 000960018117 SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X100
090 N 000961018043 SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X55
094 N 000960018093 SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X95
096 N 000961018020 SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X50
096 N 000960018119 SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X85
096 N 000961018041 SCREW
Repalced by: N 308676018001
096 N 308676018001 SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X45
100 N 000609018004 FITTED SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X100
100 N 000610018006 FITTED SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X60
104 N 000609018001 FITTED SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X95
104 N 000610018009 FITTED SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X50
106 N 000609018000 FITTED SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X85
106 N 000610018004 FITTED SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X45
A 6179900340 WASHER
BEARING BODY TO SIDE AND CROSS MEMBERS
110 N 913004018004 NUT
BEARING BRACKET TO SIDE MEMBER
116 A 3853100237 CROSS MEMBER
NO.3,NO.4
116 A 3853100237 CROSS MEMBER
NO.4,NO.5
116 A 3853100237 CROSS MEMBER
NO.5,NO.6
A 3833270304 COVER PLATE
AIR SPRING BELLOWS
N 910005014056 RIVET
COVER PLATE TO GUSSET PLATE
N 910005014029 RIVET
COVER PLATE TO GUSSET PLATE
122 A 3603200878 CONSOLE
SHOCK ABSORBER
A 0039906701 SCREW
Repalced by: N 000961018009
N 000961018009 SCREW
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
N 000961018002 SCREW
Repalced by: A 3019900601
A 3019900601 SCREW
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
N 913004018003 NUT
Repalced by: N 910113018004
N 910113018004 NUT
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
N 000961014028 SCREW
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
M 14X40
N 000961014100 SCREW
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
M 14X30
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
150 A 3833230284 SHIM
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
155 A 3853120235 CROSS MEMBER
Repalced by: A 3833100246
A 3833100246 CROSS MEMBER
REAR
162 A 3213120087 GUSSET PLATE
TOP LEFT, BOTTOM RIGHT
170 A 3213120187 GUSSET PLATE
TOP RIGHT, BOTTOM LEFT
176 A 3833120460 REINFORCEMENT
STRUTTING TO REAR CROSS MEMBER
180 N 000961012151 SCREW
GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
M 12X30
182 N 000961012052 SCREW
Repalced by: N 308676012012
182 N 308676012012 SCREW
GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
M 12X25
185 N 910113012002 NUT
GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
N 000961014028 SCREW
GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
M 14X40
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
N 000609010004 FITTED SCREW
M 10X11X14X28
N 000610010003 FITTED SCREW
M 10X11X25X38
N 000609010014 FITTED SCREW
M 10X11X24X40
A 3859900514 SCREW
M 10X11X26.5X46
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900714 SCREW
M 12X12X10X25
A 3859901414 SCREW
M 12X12X11X26
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
M 12X12X12X28
A 3859901514 SCREW
M 12X12X13X28
A 0029908201 SCREW
M 12X12X14X30
A 3859902114 SCREW
M 12X12X15X30
A 0029908301 SCREW
Repalced by: N 308676012013
N 308676012013 SCREW
M 12X12X16X32
A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
A 6209900114 SCREW
M 12X13X12X29
A 3969900314 SCREW
M 12X13X13X30
A 3589901914 SCREW
M 12X13X15X32
A 3559900014 SCREW
M 12X13X18X35
A 3589900614 SCREW
M 12X13X21X38
A 6179900114 SCREW
M 12X13X23X40
A 6249900014 SCREW
M 12X13X25X42
A 3859900214 SCREW
M 12X13X35X52
A 6689900114 SCREW
M 12X13X58X80
A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
A 3229903101 SCREW
M 14X14X14X32
A 3859900814 SCREW
Repalced by: A 3229903101
A 3229903101 SCREW
M 14X14X16X32
A 3859902014 SCREW
M 14X14X18X34
A 3559900114 SCREW
M 12X14X13X35
A 3219901601 SCREW
Repalced by: A 3169900014
A 3169900014 SCREW
M 14X14X17X35
A 3219901901 SCREW
M 14X14X22X40
A 3559900501 SCREW
M 14X14X24X42
A 3409900201 SCREW
M 14X14X27X45
A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900114 SCREW
M 14X15X15X32
A 3589900814 SCREW
M 14X15X17X34
A 6459900014 SCREW
M 14X15X18X35
A 3589901014 SCREW
M 14X15X19X36
A 3589900214 SCREW
M 14X15X21X38
A 3589900414 SCREW
M 14X15X25X42
A 3589900714 SCREW
M 14X15X27X44
A 3589900914 SCREW
M 14X15X29X46
A 3859900414 SCREW
M 14X15X31X48
A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900914 SCREW
Repalced by: N 308676016020
N 308676016020 SCREW
M 16X16X18X36
A 3859901714 SCREW
M 16X16X20X38
A 3859901014 SCREW
M 16X16X22X40
A 3859901114 SCREW
M 16X16X24X42
A 0029909901 SCREW
Repalced by: A 3959900501
A 3959900501 SCREW
M 16X16X20X45
A 3589901814 SCREW
M 16X16X30X48
A 3859901914 SCREW
M 16X16X32X50
A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900514 SCREW
M 16X17X22X42
A 6459900714 SCREW
M 16X17X24X44
A 3609900114 SCREW
M 16X17X28X48
Y YYYYYYYYYYYY PART NAME MISSING
A 3469900014 SCREW
M 16X18X18X40
A 3859902314 SCREW
M 18X18X23X45
A 6209900014 SCREW
M 16X18X26X48
A 3469900114 SCREW
M 16X18X31X50
A 3859902414 SCREW
M 18X18X33X55
A 6229900014 SCREW
M 16X18X38X60
A 3919900014 SCREW
M 16X18X63X85
Y YYYYYYYYYYYY PART NAME MISSING
N 000610018004 FITTED SCREW
M 18X19X25X45
N 000610018009 FITTED SCREW
M 18X19X33X55
N 000610018006 FITTED SCREW
M 18X19X38X60
N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
N 913004010011 NUT
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
N 913004016005 NUT
Repalced by: N 910113016001
N 910113016001 NUT
N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
N 910005010012 RIVET
10X24 MM
N 910005010014 RIVET
10X26 MM
N 910005010016 RIVET
10X28 MM
N 910005010020 RIVET
10X30 MM
N 910005010022 RIVET
10X34 MM
N 910005012012 RIVET
12X26 MM
N 910005012073 RIVET
12X28 MM
N 910005012080 RIVET
12X42 MM
N 910005014059 RIVET
14X16 MM
N 910005014056 RIVET
14X45 MM
N 910005014057 RIVET
14X48 MM
A 0009902193 RIVET
Repalced by: N 910005010022
N 910005010022 RIVET
N 000960010007 SCREW
GUSSET PLATE TO CROSS MEMBER
M 10X40
N 913004010014 NUT
Repalced by: N 910113010003
N 910113010003 NUT
GUSSET PLATE TO CROSS MEMBER
222 A 3834030201 SUPPORT
SPARE WHEEL
225 A 3854030019 BASE BLOCK
Repalced by: A 6744320019
225 A 6744320019 BASE
SPARE WHEEL
228 N 000933010129 SCREW
Repalced by: N 304017010002
228 N 304017010002 SCREW
CROSS MEMBER TO SIDE MEMBERS
231 N 913004010008 NUT
Repalced by: N 910113010000
231 N 910113010000 NUT
CROSS MEMBER TO SIDE MEMBERS
233 A 3815440043 MOUNTING ANGLE
240 A 0039906701 SCREW
Repalced by: N 000961018009
240 N 000961018009 SCREW
ANGLE TO CROSS AND SIDE MEMBERS
M 18X45
242 N 000933010145 SCREW
ANGLE TO CROSS AND SIDE MEMBERS
M 10X35
245 N 913004010008 NUT
Repalced by: N 910113010000
245 N 910113010000 NUT
ANGLE TO CROSS AND SIDE MEMBERS
260 A 3873150006 COUPLING PIN
FOR COUPLING MOUTH
264 A 0009874346 SEALING CORD
FOR COUPLING MOUTH
268 A 3353150031 LOCKING SPRING
FOR COUPLING MOUTH
271 N 000933008153 SCREW
Repalced by: N 304017008034
271 N 304017008034 SCREW
LOCK SPRING TO CROSS MEMBER
272 N 000125008418 WASHER
Repalced by: N 000125008443
272 N 000125008443 WASHER
LOCK SPRING TO CROSS MEMBER
273 N 912004008102 LOCK WASHER
LOCK SPRING TO CROSS MEMBER
274 N 304032008006 NUT
LOCK SPRING TO CROSS MEMBER
280 A 3878910531 CONSOLE
Repalced by: A 3878912631
280 A 3878912631 CONSOLE
CAB MOUNTING
280 A 3878912631 CONSOLE
CAB MOUNTING
284 A 3873170423 STRUT
BUMPER AT TORSION BAR
284 A 3873170423 STRUT
BUMPER AT TORSION BAR
A 3873100153 STRUT
BUMPER,LEFT
A 3873100253 STRUT
BUMPER,RIGHT
286 N 000961014101 SCREW
Repalced by: N 308676014012
286 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
287 N 000961014063 SCREW
Repalced by: A 9429901304
287 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
289 N 000125015013 WASHER
Repalced by: N 000125015019
289 N 000125015019 WASHER
CONSOLE AND STRUT TO FRAME
290 N 913004014005 NUT
Repalced by: N 910113014000
290 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
295 A 3813106409 BRACKET
CAB SUSPENSION,FRONT LEFT
A 3813106509 BRACKET
CAB SUSPENSION,FRONT LEFT
A 3813106609 BRACKET
CAB SUSPENSION,FRONT RIGHT
300 A 3813172274 PIN
305 N 000471018001 LOCK RING
310 A 3813171512 RUBBER BUFFER
314 A 3813171412 RUBBER BUFFER
318 A 3878902903 MOUNTING
322 A 3813172174 PIN
326 N 007349017002 WASHER
330 N 913004016004 NUT
Repalced by: N 910113016002
330 N 910113016002 NUT
331 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
332 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
332F N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
333 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
334 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
335 N 913004014002 NUT
Repalced by: N 910113014001
335 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
336 N 000961014063 SCREW
Repalced by: A 9429901304
336 A 9429901304 SCREW
CAB TO FRAME
M 14X40
337 N 000961014101 SCREW
Repalced by: N 308676014012
337 N 308676014012 SCREW
CAB TO FRAME
M 14X45
340 A 3878910698 SHIM
350 N 913004014005 NUT
Repalced by: N 910113014000
350 N 910113014000 NUT
CAB TO FRAME
353 A 3878913720 MOUNTING
CAB SUSPENSION,FRONT LEFT
353 A 3878916020 MOUNTING
Repalced by: A 6558910320
353 A 6558910320 MOUNTING
CAB SUSPENSION,FRONT LEFT
357 A 3878916420 MOUNTING
CAB SUSPENSION,FRONT LEFT
A 3878913820 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3878916120 MOUNTING
Repalced by: A 6558910420
A 6558910420 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3878916520 MOUNTING
CAB SUSPENSION,FRONT RIGHT
361 A 3813171712 RUBBER BUFFER
Repalced by: A 6205860031
364 A 3813171412 RUBBER BUFFER
Repalced by: A 6205860031
366 A 3878910551 SPRING
CAB SUSPENSION,FRONT
368 A 3638910617 BUSHING
CAB SUSPENSION,FRONT
369 N 071412008200 GREASE NIPPLE
FOR SPRING
371 A 3878912156 LEVER
Repalced by: A 3878912556
A 3878912556 LEVER
(TILTING LEVER),CAB
A 3878912256 LEVER
Repalced by: A 3878912856
A 3878912456 LEVER
Repalced by: A 3878912856
A 3878912856 LEVER
(TILTING LEVER),CAB
373 A 3879920003 BUSHING
CAB SUSPENSION
373 A 3879920203 BUSHING
CAB SUSPENSION
377 A 0019810431 JOINT BEARING
Repalced by: A 6208910017
A 6208910017 BUSHING
CAB SUSPENSION
385 A 3638910023 BUFFER
CAB SUSPENSION,FRONT
387 A 3873170674 PIN
Repalced by: A 3875860131
387 A 3875860131 REPAIR KIT
Repalced by: A 3873100077
387 A 3873100077 REPAIR KIT
CAB SUSPENSION
390 N 000417008004 HEADLESS SETSCREW
PIN TO BEARING
393 A 3873170874 PIN
Repalced by: A 6205860031
393 A 6205860031 REPAIR KIT
CAB SUSPENSION,FRONT
396 A 3873170376 WASHER
STOP
399 N 007349017002 WASHER
MOUNTING TO BRACKET
402 N 913004016004 NUT
Repalced by: N 910113016002
402 N 910113016002 NUT
MOUNTING TO BRACKET
405 A 3878905303 MOUNTING
CAB SUSPENSION,FRONT LEFT
A 3878905603 MOUNTING
CAB SUSPENSION,FRONT RIGHT
409 A 3348910072 MOUNTING
CAB SUSPENSION
412 A 3878910914 BRACKET
STOP BUFFER TO FRAME
414 N 000961012097 SCREW
Repalced by: N 308676012026
414 N 308676012026 SCREW
BRACKET TO FRAME
M 12X35
415 N 000961012151 SCREW
BRACKET TO FRAME
M 12X30
416 N 910113012002 NUT
BRACKET TO FRAME
417 N 913004008004 NUT
Repalced by: N 913004008001
417 N 913004008001 NUT
BRACKET TO FRAME
418 N 009021008205 WASHER
Repalced by: N 009021008213
418 N 009021008213 WASHER
BRACKET TO FRAME
419 N 000933008153 SCREW
Repalced by: N 304017008034
419 N 304017008034 SCREW
BRACKET TO FRAME
423 A 3878900404 STABILIZER
CAB SUSPENSION,FRONT
426 A 0009817331 JOINT BEARING
Repalced by: A 0009817231
426 A 0009817231 JOINT BEARING
Repalced by: A 0019814631
426 A 0019814631 JOINT BEARING
CAB FRONT SUSPENSION STABILIZER
A 0019814831 JOINT BEARING
CAB FRONT SUSPENSION STABILIZER
431 N 071412008200 GREASE NIPPLE
STABILIZER
435 A 3878910717 BUSHING
Repalced by: A 3875860531
438 A 3878910272 MOUNTING
Repalced by: A 3875860531
440 N 000906010000 SCREW PLUG
STABILIZER
442 A 3878910831 CONSOLE
Repalced by: A 6208910631
442 A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT
A 3878910931 CONSOLE
Repalced by: A 6208910731
A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT
445 N 000961012069 SCREW
Repalced by: N 308676012015
445 N 308676012015 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X145
448 N 006912012013 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
451 N 000961014050 SCREW
Repalced by: N 308676014020
451 N 308676014020 SCREW
LEFT AND RIGHT CONSOLES TO CAB
454 N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
457 N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
460 A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
463 A 3878910957 PIN
Repalced by: A 3875860531
464 A 3875860531 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
466 N 913004014002 NUT
Repalced by: N 910113014001
466 N 910113014001 NUT
STABILIZER TO BEARING BRACKET
N 000960012189 SCREW
Repalced by: N 308676012031
N 308676012031 SCREW
Repalced by: N 308676012011
N 308676012011 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
N 000961014054 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X45
468 N 912004012100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
470 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 000125015013 WASHER
Repalced by: N 000125015019
N 000125015019 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 000960014167 SCREW
Repalced by: N 000961014064
N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
476 A 3878911910 WASHER
BEARING BRACKET TO CAB
479 N 000961014050 SCREW
Repalced by: N 308676014020
479 N 308676014020 SCREW
BEARING BRACKET TO CAB
M 14X35
482 N 000961014084 SCREW
Repalced by: N 000961014148
482 N 000961014148 SCREW
BEARING BRACKET TO CAB
M 14X75
485 N 007349015003 WASHER
BEARING BRACKET TO CAB
488 N 912004014100 LOCK WASHER
BEARING BRACKET TO CAB
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BEARING BRACKET TO CAB
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BEARING BRACKET TO CAB
492 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,FRONT
493 A 0008910617 BUSHING
495 A 0008910501 RUBBER MOUNTING
497 A 3873170176 WASHER
Repalced by: A 6203170176
497 A 6203170176 WASHER
SHOCK ABSORBER TO CAB
500 A 3873170276 WASHER
Repalced by: N 000125013008
500 N 000125013008 WASHER
503 N 910113012002 NUT
SHOCK ABSORBER TO CAB
506 A 3878913220 MOUNTING
Repalced by: A 6208901603
506 A 6208901603 MOUNTING
TILTING LEVER TO CAB SIDE MEMBER
509 N 000933010105 SCREW
BEARING BRACKET TO CAB
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 SCREW
BEARING BRACKET TO CAB
N 308676012012 SCREW
BEARING BRACKET TO CAB
512 N 912004010102 LOCK WASHER
BEARING BRACKET TO CAB
N 912004012100 LOCK WASHER
BEARING BRACKET TO CAB
A 3854291840 BRACKET
Repalced by: A 3854290540
A 3854290540 BRACKET
COMPRESSED AIR LINE
A 3854290540 BRACKET
COMPRESSED AIR LINE
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO FRAME SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO FRAME SIDE MEMBER
A 3805460643 BRACKET
A 3464295840 BRACKET
Repalced by: A 3812950440
A 3144290240 BRACKET
Repalced by: A 3812950440
A 3812950440 BRACKET
COMPRESSED AIR LINE BRACKET
N 000960014229 SCREW
CAB ON CONSOLE AT FRAME
528 A 3878910498 SHIM
CAB ON CONSOLE AT FRAME
530 N 912004014100 LOCK WASHER
CAB ON CONSOLE AT FRAME
532 N 000961014088 SCREW
Repalced by: N 308676014008
532 N 308676014008 SCREW
CAB ON CONSOLE AT FRAME
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
CAB ON CONSOLE AT FRAME
N 007349015003 WASHER
CAB ON CONSOLE AT FRAME
N 000961014100 SCREW
CAB ON CONSOLE AT FRAME
540 A 3638910223 BUFFER
CAB SUSPENSION,FRONT
542 A 3638910047 FLANGE
BUFFER TO FRAME
544 A 3638910517 BUSHING
BUFFER TO FRAME
546 A 3878912210 WASHER
Repalced by: A 4432610076
546 A 4432610076 WASHER
BUFFER TO FRAME
548 N 000933010129 SCREW
Repalced by: N 304017010002
548 N 304017010002 SCREW
BUFFER TO CAB
550 N 912004010102 LOCK WASHER
BUFFER TO CAB
A 3813100263 CONSOLE
Repalced by: A 3813170601
552 A 3813170601 CONSOLE
VIBRATION ABSORBER TO FRAME
552 A 3813171201 CONSOLE
VIBRATION ABSORBER TO FRAME
555 N 000961014050 SCREW
Repalced by: N 308676014020
555 N 308676014020 SCREW
CONSOLE TO FRAME
M 14X35
N 000961014028 SCREW
CONSOLE TO FRAME
M 14X40
558 N 913004014005 NUT
Repalced by: N 910113014000
558 N 910113014000 NUT
CONSOLE TO FRAME
561 A 3813171526 GUIDE
CAB SUSPENSION,REAR LEFT
561 A 3813171926 GUIDE
CAB SUSPENSION,REAR LEFT
561 A 3813171626 GUIDE
CAB SUSPENSION,REAR RIGHT
561 A 3813172026 GUIDE
CAB SUSPENSION,REAR RIGHT
564 A 3873170084 SHIM
GUIDE TO CAB
567 N 912004012100 LOCK WASHER
GUIDE TO CAB
570 N 000960012294 SCREW
GUIDE TO CAB
573 A 3813170750 BUSHING
GUIDE TO CAB
576 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
579 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
582 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
585 A 3878901619 SHOCK ABSORBER
Repalced by: A 3878901319
585 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
585 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
588 A 0008910201 RUBBER MOUNTING
TO 387 890 16 19
588 A 0008910301 RUBBER MOUNTING
TO 387 890 13 19
591 A 0008910751 SPRING
Repalced by: A 0008910451
591 A 0008910451 SPRING
594 A 3878912010 WASHER
SHOCK ABSORBER
597 A 3813170753 SPACER TUBE
SHOCK ABSORBER
600 A 3275045082 RUBBER RING
SHOCK ABSORBER
603 N 000433015005 WASHER
SHOCK ABSORBER
606 N 000934012022 NUT
SHOCK ABSORBER
609 N 001587012008 CAP NUT
Repalced by: N 001587012010
609 N 001587012010 CAP NUT
SHOCK ABSORBER
612 N 009021008205 WASHER
Repalced by: N 009021008213
612 N 009021008213 WASHER
SHOCK ABSORBER TO CONSOLE
615 N 912004008102 LOCK WASHER
SHOCK ABSORBER TO CONSOLE
618 N 000933008147 SCREW
Repalced by: N 304017008021
618 N 304017008021 SCREW
SHOCK ABSORBER TO CONSOLE
621 N 913004008004 NUT
Repalced by: N 913004008001
621 N 913004008001 NUT
SHOCK ABSORBER TO CONSOLE
624 A 3813176140 BRACKET
Repalced by: A 3813177840
624 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
624 A 3813176240 BRACKET
Repalced by: A 3813177940
624 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
627 N 000433010505 WASHER
Repalced by: N 000433010510

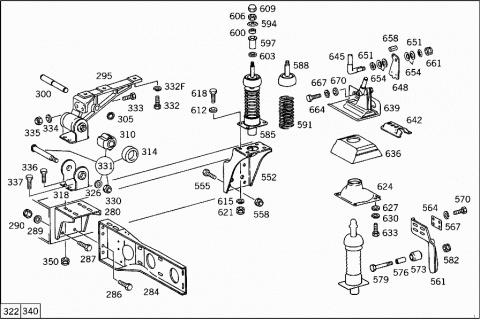

627 N 000433010510 WASHER
BRACKET TO CAB
630 N 912004010102 LOCK WASHER
BRACKET TO CAB
633 N 000933010105 SCREW
BRACKET TO CAB
636 A 3813170097 BOOT
BRACKET TO CAB
639 A 3813101875 LOCKING MECHANISM
CAB SUSPENSION,REAR LEFT
639 A 3813102075 LOCKING MECHANISM
CAB SUSPENSION,REAR LEFT
639 A 3813101775 LOCKING MECHANISM
CAB SUSPENSION,REAR RIGHT
639 A 3813101975 LOCKING MECHANISM
CAB SUSPENSION,REAR RIGHT
642 A 3813170119 LATCH
645 A 3813172374 PIN
648 A 3813170924 LEVER
651 A 3813170676 WASHER
654 A 0009935426 DISC SPRING
658 N 001481006041 CLAMPING SLEEVE
661 N 910113012002 NUT
664 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
667 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
670 N 000125010518 WASHER
Repalced by: N 000125010532
670 N 000125010532 WASHER
LOCKING MECHANISM TO CAB

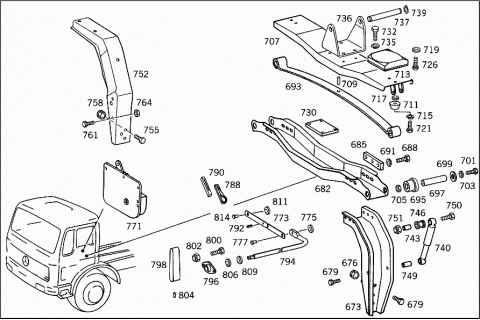

673 A 3878911731 CONSOLE
CAB MOUNTING,REAR
676 N 913004014002 NUT
Repalced by: N 910113014001
676 N 910113014001 NUT
CONSOLE TO FRAME
679 N 000961014050 SCREW
Repalced by: N 308676014020
679 N 308676014020 SCREW
CONSOLE TO FRAME
682 A 3878910024 STRUT
Repalced by: A 6558910224
682 A 6558910224 STRUT
CAB MOUNTING,REAR
685 A 3878910198 SHIM
CAB MOUNTING,REAR
688 N 000961012052 SCREW
Repalced by: N 308676012012
688 N 308676012012 SCREW
STRUT TO CONSOLE
691 N 912004012100 LOCK WASHER
STRUT TO CONSOLE
693 A 3878911051 SPRING
CAB SUSPENSION,REAR
695 A 3638910717 BUSHING
SPRING TO STRUT
697 A 3638910218 TUBE
SPRING TO STRUT
699 A 3638910010 WASHER
SPRING TO STRUT
701 N 000960012153 SCREW
SPRING TO STRUT
703 N 009021013200 WASHER
SPRING TO STRUT
705 N 910113012002 NUT
SPRING TO STRUT
707 A 3878900522 RAIL
Repalced by: A 6558900122
707 A 6558900122 RAIL
(CONNECTING RAIL)
709 N 000007012201 CYLINDRICAL PIN
711 A 3638910123 BUFFER
Repalced by: A 3878910323
711 A 3878910323 BUFFER
(RUBBER BUFFER)
713 A 3878910072 MOUNTING
CAB,REAR
715 N 912004008102 LOCK WASHER
BUFFER AND MOUNTING TO RAIL
717 N 000433008406 WASHER
BUFFER AND MOUNTING TO RAIL
719 N 000125008418 WASHER
Repalced by: N 000125008443
719 N 000125008443 WASHER
BUFFER AND MOUNTING TO RAIL
721 N 000933008161 SCREW
Repalced by: N 304017008028
721 N 304017008028 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X50
726 N 000084008148 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X45
A 3803100184 SHIM
BUFFER AND MOUNTING TO RAIL
730 A 3878910811 PLATE
SPRING TO STRUT
732 N 000931010258 SCREW
RAIL AND PLATE TO SPRING
735 N 912004010102 LOCK WASHER
RAIL AND PLATE TO SPRING
736 A 3878917920 MOUNTING
CAB,REAR
737 A 3878911057 PIN
CAB,REAR
739 N 000471025002 LOCK RING
CAB,REAR
740 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,REAR
740 A 0008912205 SHOCK ABSORBER
CAB SUSPENSION,REAR
743 A 0008910617 BUSHING
746 A 0008910501 RUBBER MOUNTING
749 A 3878910453 SPACER TUBE
VIBRATION ABSORBER TO CONSOLE
750 N 000960018125 SCREW
Repalced by: N 000960018072
750 N 000960018072 SCREW
VIBRATION ABSORBER TO CONSOLE
751 N 913004018003 NUT
Repalced by: N 910113018004
751 N 910113018004 NUT
VIBRATION ABSORBER TO CONSOLE
752 A 3815000927 SUPPORT
Repalced by: A 3815001227
752 A 3815001227 SUPPORT
RESERVOIR
755 N 000960018072 SCREW
Repalced by: N 308765018004
755 N 308765018004 SCREW
TANK TO CONSOLES
758 N 913004018003 NUT
Repalced by: N 910113018004
758 N 910113018004 NUT
TANK TO CONSOLES
761 N 000961014050 SCREW
Repalced by: N 308676014020
761 N 308676014020 SCREW
SUPPORT TO CROSS MEMBER
N 000961012151 SCREW
SUPPORT TO CROSS MEMBER
764 N 910113012002 NUT
SUPPORT TO CROSS MEMBER
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
SUPPORT TO CROSS MEMBER
N 912004012100 LOCK WASHER
SUPPORT TO CROSS MEMBER
N 000960018040 SCREW
Repalced by: N 000960018142
N 000960018142 SCREW
SHOCK ABSORBER TO RAIL
N 913004018003 NUT
Repalced by: N 910113018004
N 910113018004 NUT
SHOCK ABSORBER TO RAIL
771 A 0008900089 FASTENER
Repalced by: A 0008902389
771 A 0008901389 FASTENER
Repalced by: A 0008902389
771 A 0008902389 FASTENER
CAB MOUNTING
773 A 3878910170 ROD
CAB LOCKING MECHANISM
773 A 6208910170 ROD
CAB LOCKING MECHANISM
775 N 000433008406 WASHER
PULL TO FASTENER
N 000094002059 COTTER PIN
PULL TO FASTENER
777 N 001444008202 PIN
PULL TO FASTENER
N 000933010128 SCREW
CENTRAL LOCK TO CAB
M 10X20
N 000933010105 SCREW
CENTRAL LOCK TO CAB
M 10X25
N 912004010102 LOCK WASHER
CENTRAL LOCK TO CAB
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
CENTRAL LOCK TO CAB
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
CENTRAL LOCK TO CAB
788 A 3878910814 BRACKET
ROD THRU CAB
790 A 3878910085 SEAL
ROD THRU CAB
792 N 007346005003 CLAMPING SLEEVE
CAB LOCKING MECHANISM
794 A 3878911956 LEVER
CAB LOCKING MECHANISM
794 A 6208910056 LEVER
CAB LOCKING MECHANISM
796 A 3638910317 BUSHING
LEVER TO CAB
798 A 3638910073 HANDLE
Repalced by: A 6208910073
798 A 6208910073 HANDLE
CAB LOCKING MECHANISM
800 N 007985008142 SCREW
LEVER AND BUSHING TO CAB
802 N 913004008004 NUT
Repalced by: N 913004008001
802 N 913004008001 NUT
LEVER AND BUSHING TO CAB
804 N 007346005004 CLAMPING SLEEVE
Repalced by: N 001481005039
804 N 001481005039 CLAMPING SLEEVE
CAB LOCKING MECHANISM
806 N 000125015013 WASHER
Repalced by: N 000125015019
806 N 000125015019 WASHER
CAB LOCKING MECHANISM
809 N 900055014400 LOCK RING
CAB LOCKING MECHANISM
811 N 000433008406 WASHER
PULL ROD TO LEVER
N 000094002030 COTTER PIN
PULL ROD TO LEVER
814 N 001444008233 PIN
PULL ROD TO LEVER
A 3475841321 GUIDE SIGN
DANGER AREA IN FRONT OF TILTED CAB
A 3815840038 GUMMED LABEL
CAB LOCKING MECHANISM
A 3875840055 ADHESIVE FOIL
DANGER AREA IN FRONT OF TILTED CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
