Transporto priemonė: 1217 LS; VIN numerio dalis: 381252
Grupė: 29 PEDAL ASSEMBLY

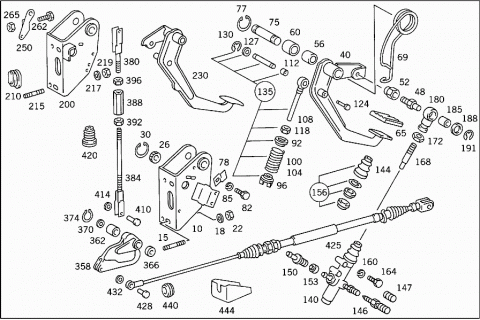

26658
26659

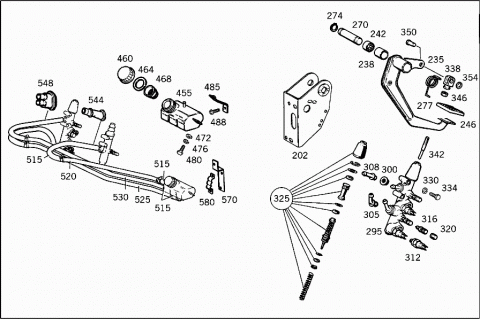

26660
# Kodas Pavadinimas
010 A 3812901319 BEARING BRACKET
Repalced by: A 3812901219
010 A 3812901219 BEARING BRACKET
CLUTCH PEDAL
015 N 000939008083 STUD BOLT
BEARING BRACKET TO CAB
M 8X20
015 N 000939008136 STUD BOLT
BEARING BRACKET TO CAB
M 8X30
018 N 000125008418 WASHER
Repalced by: N 000125008443
018 N 000125008443 WASHER
BEARING BRACKET TO CAB
022 N 913004008004 NUT
Repalced by: N 913004008001
022 N 913004008001 NUT
BEARING BRACKET TO CAB
026 A 3812910186 STOP
030 N 000471016001 LOCK RING
Repalced by: A 0079942041
030 A 0079942041 LOCK
STOP TO BEARING BRACKET
040 A 3812900916 PEDAL
Repalced by: A 3812901016
040 A 3812901016 PEDAL
Repalced by: A 6202900216
040 A 6202900416 PEDAL
Repalced by: A 6202900216
040 A 6202900216 PEDAL
CLUTCH
048 A 3812910274 PIN
CLUTCH PEDAL
052 N 913004008004 NUT
Repalced by: N 913004008001
052 N 913004008001 NUT
CLUTCH PEDAL
056 A 3812910053 SPACER TUBE
CLUTCH PEDAL
060 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
060 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
060 A 0119813410 NEEDLE BEARING
CLUTCH PEDAL
065 A 1102910182 PAD
Repalced by: A 1072910182
065 A 1072910182 PAD
CLUTCH PEDAL
A 3819930510 SPRING
Repalced by: A 3819930710
069 A 3819930710 SPRING
CLUTCH PEDAL RESET
075 A 3812940707 PIVOT PIN
PEDAL TO BEARING BRACKET
077 N 000471020001 LOCK RING
PEDAL TO BEARING BRACKET
078 A 3812910073 LOCK
PEDAL TO BEARING BRACKET
082 N 000933006102 SCREW
LOCK TO BEARING BRACKET
085 N 912004006102 LOCK WASHER
LOCK TO BEARING BRACKET
092 A 1112910491 SPRING RETAINER
DEAD CENTER SPRING,TOP
096 A 3092910091 SPRING RETAINER
BOTTOM
100 A 3819930201 SPRING
(DEAD CENTER SPRING)
23.2 MM
104 A 1109930501 SPRING
(DEAD CENTER SPRING)
35 MM
108 A 3812910233 ROD
OVER-CENTER ACTING SPRING
A 3812910333 ROD
OVER-CENTER ACTING SPRING
112 A 0059814410 NEEDLE BEARING
ROD TO CLUTCH PEDAL
112 A 0059813810 NEEDLE BEARING
ROD TO CLUTCH PEDAL
112 A 0089811210 NEEDLE BEARING
ROD TO CLUTCH PEDAL
112 A 0139818210 NEEDLE BEARING
ROD TO CLUTCH PEDAL
118 N 000936010010 NUT
SPRING TO PUSH ROD
124 A 3812910574 PIN
PUSH ROD TO PEDAL
127 N 000433008406 WASHER
PUSH ROD TO PEDAL
130 N 912002008001 LOCK
Repalced by: N 912002008003
130 N 912002008003 LOCK
PUSH ROD TO PEDAL
135 A 3802900193 REPAIR KIT
DEAD CENTER SPRING
140 A 0002956806 MASTER CYLINDER
Repalced by: A 0012952906
140 A 0012952906 MASTER CYLINDER
Repalced by: A 0012956006
140 A 0012956006 MASTER CYLINDER
CLUTCH;LESS DE-AERATION
144 A 0002953283 BOOT
146 A 0004310265 VALVE
Repalced by: A 3075530107
146 A 3075530107 VALVE
BREATHER
TO 000 295 68 06
147 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
147 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
147 A 0004210887 PROTECTIVE CAP
CLUTCH MASTER CYLINDER
TO 000 295 68 06
150 A 0002950836 INTERMEDIATE PIECE
CLUTCH MASTER CYLINDER
153 A 0009974235 PLUG
Repalced by: A 0009971186
153 A 0009971186 PLUG
156 A 0005863529 REPAIR KIT
Repalced by: A 0002903412
156 A 0002903412 REPAIR KIT
TO MASTER CYLINDER HAVING ALUMINUM PISTON
TO 000 295 68 06,001 295 29 06
A 0002904667 REPAIR KIT
TO MASTER CYLINDER HAVING SYNTHETIC PISTON
TO 001 295 60 06
160 N 912004006102 LOCK WASHER
MASTER CYLINDER TO BEARING BRACKET
164 N 000931006191 SCREW
MASTER CYLINDER TO BEARING BRACKET
168 A 3812950033 ROD
CLUTCH MASTER CYLINDER
172 N 000439008211 NUT
Repalced by: N 304035008001
172 N 304035008001 NUT
YOKE TO ROD
180 A 0009961045 ARTICULATION PIECE
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
180 A 0009961145 ARTICULATION PIECE
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
185 A 0059814410 NEEDLE BEARING
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
185 A 0059813810 NEEDLE BEARING
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
185 A 0089811210 NEEDLE BEARING
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
185 A 0139818210 NEEDLE BEARING
CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
188 N 000433008406 WASHER
PISTON ROD TO LEVER
191 N 912002008001 LOCK
Repalced by: N 912002008003
191 N 912002008003 LOCK
PISTON ROD TO LEVER
200 A 3812901419 BEARING BRACKET
BRAKE PEDAL
202 A 3812901519 BEARING BRACKET
BRAKE PEDAL
210 A 3819970786 PLUG
BEARING BRACKET TO CAB
215 N 000939008083 STUD BOLT
BEARING BRACKET TO CAB
217 N 000125008418 WASHER
Repalced by: N 000125008443
217 N 000125008443 WASHER
BEARING BRACKET TO CAB
219 N 913004008004 NUT
Repalced by: N 913004008001
219 N 913004008001 NUT
BEARING BRACKET TO CAB
230 A 3812900618 PEDAL
BRAKE
235 A 3812900318 PEDAL
BRAKE
238 A 3812910053 SPACER TUBE
242 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
242 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
242 A 0119813410 NEEDLE BEARING
246 A 1102910182 PAD
Repalced by: A 1072910182
246 A 1072910182 PAD
BRAKE PEDAL
250 A 3815400084 LEVER
Repalced by: A 3815450144
A 3815450144 LEVER
STOP LIGHT SWITCH
N 000931008231 SCREW
LEVER TO BRAKE PEDAL
N 000931008314 SCREW
LEVER TO BRAKE PEDAL
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
LEVER TO BRAKE PEDAL
262 N 000933006127 SCREW
STOP LIGHT SWITCH STOP
265 N 000934006007 NUT
STOP LIGHT SWITCH STOP
270 A 3812940707 PIVOT PIN
BRAKE PEDAL TO BEARING BRACKET
274 N 000471020001 LOCK RING
BRAKE PEDAL TO BEARING BRACKET
277 A 3819930210 SPRING
CLUTCH PEDAL RESET
A 3812910073 LOCK
BRAKE PEDAL TO BEARING BRACKET
N 000933006102 SCREW
LOCK TO BEARING BRACKET
N 912004006102 LOCK WASHER
LOCK TO BEARING BRACKET
295 A 0002958706 MASTER CYLINDER
BRAKE
300 A 0002950050 BUSHING
Repalced by: A 0004310950
300 A 0004310950 BUSHING
305 A 0002950536 INTERMEDIATE PIECE
45 DEGREES
308 A 0002950636 INTERMEDIATE PIECE
80 DEGREES
312 A 0035424717 SENDER UNIT
Repalced by: A 0005455509
312 A 0005455509 SWITCH
STOP LIGHT
316 A 0004310265 VALVE
Repalced by: A 3075530107
316 A 3075530107 VALVE
BREATHER
320 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
320 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
320 A 0004210887 PROTECTIVE CAP
325 A 0005864729 REPAIR KIT
TO 000 295 87 06
330 N 912004006102 LOCK WASHER
MASTER CYLINDER TO BEARING BRACKET
334 N 000931006191 SCREW
MASTER CYLINDER TO BEARING BRACKET
338 A 0009961601 YOKE
MASTER CYLINDER
342 A 3812950133 ROD
MASTER CYLINDER
346 N 000439008211 NUT
Repalced by: N 304035008001
346 N 304035008001 NUT
MASTER CYLINDER
350 A 3529910007 PIN
PISTON ROD TO LEVER
354 N 000433010505 WASHER
Repalced by: N 000433010510
354 N 000433010510 WASHER
PISTON ROD TO LEVER
N 000094003219 COTTER PIN
PISTON ROD TO LEVER
358 A 3812900128 LEVER
BRAKE LINKAGE
362 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
362 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
362 A 0119813410 NEEDLE BEARING
366 A 0089978046 SEAL RING
Repalced by: A 0069979147
366 A 0069979147 SEAL RING
370 N 000433021002 WASHER
LEVER TO SHAFT
374 N 000471020001 LOCK RING
LEVER TO SHAFT
380 A 3812901039 ROD
FROM ADJUSTMENT NUT TO REVERSING LEVER
384 A 3812901239 ROD
FROM BRAKE PEDAL TO ADJUSTING NUT
388 A 3812920033 NUT
ADJUSTMENT
392 N 000934008035 NUT
L.H. THREAD
396 N 304032008006 NUT
ROD TO BRAKE PEDAL AND TO LEVER
A 3149910107 PIN
Repalced by: A 3529910007
410 A 3529910007 PIN
ROD TO BRAKE PEDAL AND TO LEVER
414 N 000433010505 WASHER
Repalced by: N 000433010510
414 N 000433010510 WASHER
ROD TO BRAKE PEDAL AND TO LEVER
N 000094003219 COTTER PIN
ROD TO BRAKE PEDAL AND TO LEVER
420 A 3812920097 BOOT
BRAKE PEDAL
A 3812900285 CABLE
Repalced by: A 3812900385
425 A 3812900385 CABLE
BRAKE
428 A 3819910607 PIN
CABLE TO DOUBLE LEVER
432 N 000433008406 WASHER
CABLE TO DOUBLE LEVER
N 000094002059 COTTER PIN
CABLE TO DOUBLE LEVER
440 A 3819970681 GROMMET
CABLE TO BRACKET
444 A 3812920040 BRACKET
BRAKE CABLE
N 000933010105 SCREW
BRACKET TO SIDE MEMBER
N 000933010105 SCREW
BRACKET TO SIDE MEMBER
N 000933010157 SCREW
BRACKET TO SIDE MEMBER
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
BRACKET TO SIDE MEMBER
N 000125010532 WASHER
BRACKET TO SIDE MEMBER
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRACKET TO SIDE MEMBER
A 3529910007 PIN
CABLE TO LEVER
N 000433010505 WASHER
Repalced by: N 000433010510
N 000433010510 WASHER
CABLE TO LEVER
N 000094003219 COTTER PIN
CABLE TO LEVER
A 3812920440 BRACKET
CABLE GUIDE TO BEARING BRACKET
450 A 0002951715 RESERVOIR
RESERVOIR
455 A 0002951915 RESERVOIR
RESERVOIR
460 A 0002950116 LOCKING CAP
464 A 0002950260 SEAL RING
Repalced by: A 0009972940
464 A 0009972940 SEAL RING
468 A 0002950123 STRAINER
Repalced by: A 0004314334
468 A 0004314334 STRAINER
A 0009885435 CAP
BREATHER
472 N 009021006205 WASHER
Repalced by: N 009021006208
472 N 009021006208 WASHER
BRACKET TO RESERVOIR
476 N 912004006102 LOCK WASHER
BRACKET TO RESERVOIR
480 N 000000001147 SCREW
BRACKET TO RESERVOIR
M 6X20
A 3872900033 BRACKET
Repalced by: A 3872900433
485 A 3872900433 BRACKET
RESERVOIR
488 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
495 A 3872930041 ANGLE
WIPER MOTOR
500 N 009021006205 WASHER
Repalced by: N 009021006208
500 N 009021006208 WASHER
ANGLE TO WIPER MOTOR BRACKET
504 N 912004006102 LOCK WASHER
ANGLE TO WIPER MOTOR BRACKET
508 N 000000001147 SCREW
ANGLE TO WIPER MOTOR BRACKET
M 6X20
515 A 0079974282 HOSE
Repalced by: A 0009978952
515 A 0009978952 HOSE
BETWEEN MASTER CYLINDER AND LINES
520 A 3872950313 PIPE
FROM CLUTCH MASTER CYLINDER TO RESERVOIR
700 MM
520 A 3872950313 PIPE
FROM BRAKE MASTER CYLINDER TO RESERVOIR
700 MM
525 A 3872950813 PIPE
FROM CLUTCH MASTER CYLINDER TO RESERVOIR
320 MM
530 A 3872950413 PIPE
FROM BRAKE MASTER CYLINDER TO RESERVOIR
550 MM
540 A 3819970781 GROMMET
CLUTCH LINE THRU CAB WINDOW SILL
544 A 6209970281 GROMMET
CLUTCH LINE THRU CAB WINDOW SILL
548 A 3819971081 GROMMET
Repalced by: A 3819970581
548 A 3819970581 GROMMET
BRAKE LINE THRU CAB WINDOW SILL
552 A 3812950440 BRACKET
FROM CLUTCH MASTER CYLINDER TO RESERVOIR
556 N 000125006421 WASHER
BRACKET TO CAB
560 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
564 A 3609950301 CLAMP
FROM CLUTCH MASTER CYLINDER TO RESERVOIR
566 N 000000001147 SCREW
CLAMP TO BRACKET
M 6X20
567 N 913004006002 NUT
Repalced by: N 913004006001
567 N 913004006001 NUT
CLAMP TO BRACKET
570 A 3872950140 BRACKET
BRACKET TO CAB
A 3872950340 BRACKET
BRACKET TO CAB
A 3872950640 BRACKET
BRACKET TO CAB
A 3812950440 BRACKET
BRACKET TO CAB
N 000000001147 SCREW
BRACKET TO WIPER MOTOR
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRACKET TO WIPER MOTOR
N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
N 000125006421 WASHER
BRACKET TO CAB
580 A 3879950007 CLAMP
LINES FROM MASTER CYLINDER TO RESERVOIR
A 3609950301 CLAMP
LINES FROM MASTER CYLINDER TO RESERVOIR
N 000000001147 SCREW
CLAMP TO BRACKET
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
CLAMP TO BRACKET
590 A 3812902113 LINE
Repalced by: A 3812901614
590 A 3812901614 LINE
FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE
550 MM
590 A 3812901614 LINE
FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE
550 MM
A 3812900913 LINE
Repalced by: A 3812901814
A 3812901814 LINE
FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE
700 MM
A 3812901814 LINE
FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE
700 MM
594 A 3919970881 GROMMET
594 A 3919970881 GROMMET
598 A 0002951435 HOSE
CLUTCH LINE,CAB FULCRUM POINT
555 MM
598 A 0002951435 HOSE
BRAKE LINE,CAB FULCRUM POINT
555 MM
601 A 0002951835 HOSE
CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT ENGINE
350 MM
604 A 0004280473 BRACKET
Repalced by: A 6525040038
604 A 6525040038 MOUNTING PLATE
604 A 6525040038 MOUNTING PLATE
606 A 3812905613 LINE
Repalced by: A 6202901113
606 A 6202901113 LINE
Repalced by: A 3812902114
606 A 3812902114 LINE
FROM HYDRAULIC HOSE TO CLUTCH CONNECTOR
1500 MM
A 3812902014 LINE
FROM CONNECTOR TO CLUTCH SLAVE CYLINDER
1100 MM
610 A 3812902513 LINE
Repalced by: A 3812902214
610 A 3812902214 LINE
FROM HYDRAULIC HOSE TO CLUTCH CONNECTOR
2000 MM
610 A 3812902214 LINE
FROM HYDRAULIC HOSE TO BRAKE CONNECTOR
2000 MM
A 3812902314 LINE
FROM HYDRAULIC HOSE TO BRAKE CONNECTOR
2500 MM
A 3812902314 LINE
FROM CONNECTOR TO BRAKE SLAVE CYLINDER
2500 MM
A 3812906413 LINE
Repalced by: A 3812902314
A 3812902314 LINE
FROM CONNECTOR TO BRAKE SLAVE CYLINDER
2500 MM
612 A 0002950736 INTERMEDIATE PIECE
BRAKE AND CLUTCH LINES
612 A 0002950736 INTERMEDIATE PIECE
BRAKE AND CLUTCH LINES
613 A 3609950201 CLAMP
Repalced by: A 3604300143
613 A 3604300143 CLAMP
Repalced by: N 916016008200
613 N 916016008200 CLAMP
HYDRAULIC LINE TO BRACKET
613 N 916016008200 CLAMP
HYDRAULIC LINE TO BRACKET
613 N 916016008200 CLAMP
HYDRAULIC LINE TO BRACKET
614 N 000933006121 SCREW
Repalced by: N 304017006020
614 N 304017006020 SCREW
HYDRAULIC LINE TO BRACKET
615 N 913004006002 NUT
Repalced by: N 913004006001
615 N 913004006001 NUT
HYDRAULIC LINE TO BRACKET
616 A 3852951940 BRACKET
Repalced by: A 3852952140
616 A 3852952140 BRACKET
FROM CLUTCH MASTER CYLINDER LINE TO HYDRAULIC HOSE
616 A 3852952140 BRACKET
FROM CLUTCH MASTER CYLINDER LINE TO HYDRAULIC HOSE
617 N 000933006102 SCREW
BRACKET TO CAB FLOOR
617 N 000933006102 SCREW
BRACKET TO CAB FLOOR
618 N 912004006102 LOCK WASHER
BRACKET TO CAB FLOOR
618 N 912004006102 LOCK WASHER
BRACKET TO CAB FLOOR
A 3872940040 BRACKET
Repalced by: A 3852952140
N 007981005306 SHEET METAL SCREW
BRACKET TO CAB FLOOR
A 3812952240 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
620 A 3852951340 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
A 3852953040 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
A 3812952340 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
A 3852951840 BRACKET
HYDRAULIC HOSE TO STEERING GEAR
N 000933006102 SCREW
BRACKET TO OIL TANK
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRACKET TO OIL TANK
A 3872950540 BRACKET
BRACKET TO CAB FLOOR
N 000125006421 WASHER
BRACKET TO CAB FLOOR
N 000000001147 SCREW
BRACKET TO CAB FLOOR
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRACKET TO CAB FLOOR
635 A 3812951340 BRACKET
LINE TO FRONT CROSS MEMBER
635 A 3812951340 BRACKET
LINE TO FRONT CROSS MEMBER
A 3852952940 BRACKET
LINE TO FRONT CROSS MEMBER
638 N 000933008147 SCREW
Repalced by: N 304017008021
638 N 304017008021 SCREW
BRACKET UNDER CROSS MEMBER
640 N 913004008004 NUT
Repalced by: N 913004008001
640 N 913004008001 NUT
BRACKET UNDER CROSS MEMBER
650 A 3044293040 BRACKET
Repalced by: A 3604292940
650 A 3604292940 BRACKET
HYDRAULIC LINES TO FRAME
652 N 000933008147 SCREW
Repalced by: N 304017008021
652 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
652 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
N 000933010105 SCREW
BRACKET TO BUMPER STRUT
654 N 913004008004 NUT
Repalced by: N 913004008001
654 N 913004008001 NUT
BRACKET TO BUMPER STRUT
654 N 913004008001 NUT
BRACKET TO BUMPER STRUT
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRACKET TO BUMPER STRUT
N 000433010505 WASHER
Repalced by: N 000433010510
N 000433010510 WASHER
BRACKET TO BUMPER STRUT
657 A 3812951940 BRACKET
Repalced by: A 3464296040
657 A 3464296040 BRACKET
WITH ENGINE REAR CROSS MEMBER TO RUBBER-MOUNTING CONSOLE
A 3852952440 BRACKET
WITH ENGINE REAR CROSS MEMBER TO RUBBER-MOUNTING CONSOLE
A 3464296440 BRACKET
Repalced by: A 3812952440
660 A 3812952440 BRACKET
WITH STABILIZER ROD TO FRAME
670 A 3852950840 BRACKET
Repalced by: A 3354292440
670 A 3354292440 BRACKET
AT TRANSMISSION CASE
