Transporto priemonė: 1217 LS; VIN numerio dalis: 381252

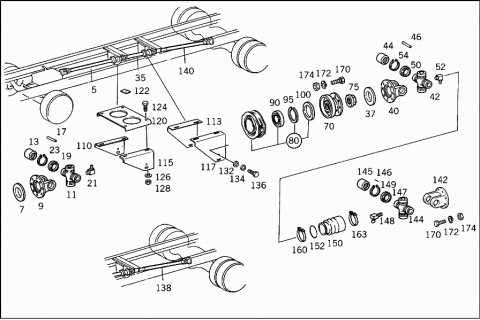

Grupė: 41 PROPELLER SHAFT
41251
# Kodas Pavadinimas
005 A 3834100604 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
846 MM
005 A 3834101204 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
1845 MM
005 A 3834100704 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
1445 MM
007 A 3814130261 PROTECTIVE CAP
007 A 3814130461 PROTECTIVE CAP
009 A 3544110011 DRIVE FLANGE
011 A 3854100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
013 A 3834100042 BEARING BUSHING
017 A 3819810487 NEEDLE
SET = 144 PIECES
019 A 3374110033 EXPANSION PLUG
021 N 071412008302 GREASE NIPPLE
023 A 3379945035 SNAP RING
AS REQUIRED
2.80 MM
023 A 3379945435 SNAP RING
AS REQUIRED
2.85 MM
023 A 3379945135 SNAP RING
AS REQUIRED
2.90 MM
023 A 3379945235 SNAP RING
AS REQUIRED
2.95 MM
023 A 3379945335 SNAP RING
AS REQUIRED
3.00 MM
035 A 3834100404 PROPELLER SHAFT
Repalced by: A 6744101004
035 A 6744101004 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1583 MM
037 A 3814130261 PROTECTIVE CAP
037 A 3814130461 PROTECTIVE CAP
040 A 3544110011 DRIVE FLANGE
040 A 3814110811 DRIVE FLANGE
042 A 3854100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
042 A 6174100031 UNIVERSAL JOINT CROSS
Repalced by: A 0004104031
042 A 0004104031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
044 A 3834100042 BEARING BUSHING
046 A 3819810487 NEEDLE
SET = 144 PIECES
050 A 3374110033 EXPANSION PLUG
052 N 071412008302 GREASE NIPPLE
054 A 3379945035 SNAP RING
AS REQUIRED
2.80 MM
054 A 3379945435 SNAP RING
AS REQUIRED
2.85 MM
054 A 3379945135 SNAP RING
AS REQUIRED
2.90 MM
054 A 3379945235 SNAP RING
AS REQUIRED
2.95 MM
054 A 3379945335 SNAP RING
AS REQUIRED
3.00 MM
054 A 0039944541 LOCK
Repalced by: A 0039944441
054 A 0039944441 LOCK
Repalced by: A 0059949441
054 A 0059949441 LOCK
Repalced by: N 000472042001
054 N 000472042001 LOCK RING
AS REQUIRED
1.750 MM
054 A 0039945041 LOCK
Repalced by: A 0059949941
054 A 0059949941 LOCK
AS REQUIRED
1.875 MM
054 A 0059941041 LOCK
Repalced by: A 0069940441
054 A 0069940441 LOCK
AS REQUIRED
2.000 MM
070 A 3814100030 CENTERING FLANGE
PROPELLER SHAFT BEARING
070 A 3814100130 CENTERING FLANGE
Repalced by: A 3814110145
A 3814110145 FLANGE
PROPELLER SHAFT BEARING
A 3814130261 PROTECTIVE CAP
OUTSIDE
A 3814130461 PROTECTIVE CAP
OUTSIDE
075 A 3529900150 NUT
FOLLOWER FLANGE TO PROPELLER SHAFT
A 3832820262 THRUST WASHER
FOLLOWER FLANGE TO PROPELLER SHAFT
A 3839900019 SCREW
FOLLOWER FLANGE TO PROPELLER SHAFT
080 A 3854100010 REPAIR KIT
Repalced by: A 3814100222
080 A 3814100222 INTERMEDIATE BEARING
Repalced by: A 3814101222
080 A 3814101222 INTERMEDIATE BEARING
Repalced by: A 3814101522
080 A 3814101522 INTERMEDIATE BEARING
PROPELLER SHAFT
090 A 0019818625 BALL BEARING
095 A 0019948141 LOCK
100 A 3814130161 PROTECTIVE CAP
110 A 3854130442 BRACKET
LEFT
113 A 3854131042 BRACKET
LEFT
115 A 3854130642 BRACKET
RIGHT
117 A 3854131142 BRACKET
RIGHT
120 A 3854130011 REINFORCEMENT
BRACKET TO CROSS MEMBER
122 A 3854130111 REINFORCEMENT
BRACKET TO CROSS MEMBER
124 N 000960010006 SCREW
BRACKET TO CROSS MEMBER
126 N 007349010003 WASHER
Repalced by: N 007349010007
126 N 007349010007 WASHER
BRACKET TO CROSS MEMBER
128 N 913002010001 NUT
BRACKET TO CROSS MEMBER
132 N 007349010003 WASHER
Repalced by: N 007349010007
132 N 007349010007 WASHER
PROPELLER SHAFT TO BRACKET
134 N 000127010203 LOCK WASHER
Repalced by: N 912004010102
134 N 912004010102 LOCK WASHER
PROPELLER SHAFT TO BRACKET
136 N 000931010282 SCREW
PROPELLER SHAFT TO BRACKET
M 10X40
136 N 000933010105 SCREW
PROPELLER SHAFT TO BRACKET
M 10X25
138 A 3834100202 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1203 MM
138 A 3834100302 PROPELLER SHAFT
Repalced by: A 6744100202
138 A 6744100202 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1575 MM
138 A 3834101702 PROPELLER SHAFT
Repalced by: A 6744101802
138 A 6744101802 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1720 MM
140 A 3834101302 PROPELLER SHAFT
Repalced by: A 6744101902
140 A 6744101902 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
974 MM
142 A 3544110011 DRIVE FLANGE
142 A 3814110811 DRIVE FLANGE
144 A 3854100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
144 A 6174100031 UNIVERSAL JOINT CROSS
Repalced by: A 0004104031
144 A 0004104031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
145 A 3834100042 BEARING BUSHING
A 3544110080 GASKET
146 A 3819810487 NEEDLE
SET = 144 PIECES
147 A 3374110033 EXPANSION PLUG
148 N 071412008302 GREASE NIPPLE
149 A 3379945035 SNAP RING
AS REQUIRED
2.80 MM
149 A 3379945435 SNAP RING
AS REQUIRED
2.85 MM
149 A 3379945135 SNAP RING
AS REQUIRED
2.90 MM
149 A 3379945235 SNAP RING
AS REQUIRED
2.95 MM
149 A 3379945335 SNAP RING
AS REQUIRED
3.00 MM
149 A 0039944441 LOCK
Repalced by: A 0059949441
149 A 0059949441 LOCK
Repalced by: N 000472042001
149 N 000472042001 LOCK RING
AS REQUIRED
1.750 MM
149 A 0039945041 LOCK
Repalced by: A 0059949941
149 A 0059949941 LOCK
AS REQUIRED
1.875 MM
149 A 0059941041 LOCK
Repalced by: A 0069940441
149 A 0069940441 LOCK
AS REQUIRED
2.000 MM
150 A 3814100080 BOOT
Repalced by: A 3814100180
150 A 3814100180 BOOT
152 A 3214110053 WIRE RING
160 N 916002078100 CLAMP
78 MM
163 N 916002098100 CLAMP
98 MM
170 A 3529900401 SCREW
Repalced by: A 3529904701
170 A 3529904701 SCREW
Repalced by: A 0079901001
170 A 0079901001 SCREW
172 N 912004010102 LOCK WASHER
174 N 000934010010 NUT
