Transporto priemonė: 1219; VIN numerio dalis: 381027
Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

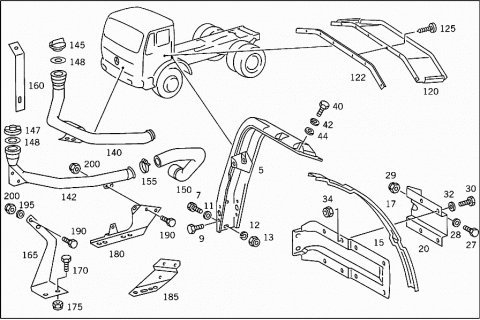

| FRONT FENDER MOUNTING | ||
| A 3815200033 | SUPPORT | |
| Repalced by: A 3815201433 | ||
| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| A 3815200333 | SUPPORT | |
| Repalced by: A 3815202333 | ||
| 005 | A 3815202333 | SUPPORT |
| EXPANSION TANK | ||
| 007 | N 308676012010 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X1.5X40 | ||
| 007 | N 000961012106 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X1.5X35 | ||
| 007 | N 000961012122 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 009 | N 000961012151 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X1.5X30 | ||
| 011 | N 009021013200 | WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 012 | N 912004012100 | LOCK WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 013 | N 910113012002 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 015 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 015 | A 6575210140 | BRACKET |
| FENDER | ||
| 017 | A 3815200026 | FENDER STAY |
| 017 | A 3815200026 | FENDER STAY |
| 020 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 020 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 020 | A 6575200033 | SUPPORT |
| 021 | A 3875211640 | BRACKET |
| LEFT FENDER | ||
| 021 | A 3875211740 | BRACKET |
| RIGHT FENDER | ||
| 022 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 022 | N 308676014020 | SCREW |
| BRACKET TO FRAME | ||
| 023 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 023 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 024 | A 3875212040 | BRACKET |
| LEFT FENDER | ||
| 024 | A 3875212140 | BRACKET |
| RIGHT FENDER | ||
| 025 | N 308676012012 | SCREW |
| BRACKET TO BRACKET | ||
| 026 | N 910113012002 | NUT |
| BRACKET TO BRACKET | ||
| 027 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 027 | N 000961014054 | SCREW |
| BRACKET TO FRAME | ||
| 028 | A 3609901840 | WASHER |
| BRACKET TO FRAME | ||
| 029 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 029 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 030 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 030 | N 304017008034 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X25 | ||
| 030 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 030 | N 304017008021 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X22 | ||
| 032 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 032 | A 6312670276 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 034 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 034 | N 913004008001 | NUT |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 034 | N 913004008001 | NUT |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 040 | N 000933008145 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X18 | ||
| 042 | N 912004008102 | LOCK WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 044 | N 000433008406 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

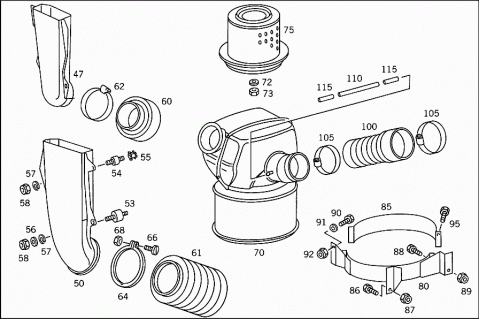

| AIR CLEANER | ||
| 047 | A 3875200201 | AIR INTAKE PIPE |
| 047 | A 3875200201 | AIR INTAKE PIPE |
| 047 | A 3875200201 | AIR INTAKE PIPE |
| 047 | A 3875200301 | AIR INTAKE PIPE |
| 047 | A 3875200301 | AIR INTAKE PIPE |
| 047 | A 3875200301 | AIR INTAKE PIPE |
| 050 | A 3855200201 | AIR INTAKE PIPE |
| 050 | A 3855200201 | AIR INTAKE PIPE |
| 050 | A 3855200201 | AIR INTAKE PIPE |
| 050 | A 3855200301 | AIR INTAKE PIPE |
| 050 | A 3855200301 | AIR INTAKE PIPE |
| 050 | A 3855200301 | AIR INTAKE PIPE |
| A 3875280076 | BINDING RAIL | |
| 053 | A 3879880011 | BUFFER |
| AIR DUCT TO CAB | ||
| 053 | A 3879880011 | BUFFER |
| AIR DUCT TO CAB | ||
| 054 | A 3879880111 | BUFFER |
| AIR DUCT TO CAB | ||
| 055 | A 0019901791 | NUT RETAINER |
| 056 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 056 | N 000125008443 | WASHER |
| 057 | N 912004008102 | LOCK WASHER |
| 058 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 058 | N 913004008001 | NUT |
| 060 | A 3855280391 | BOOT |
| 061 | A 3815280191 | BOOT |
| 062 | A 0029972790 | LOOM TIE |
| 064 | A 3815280443 | CLAMP |
| 066 | N 000084004423 | SCREW |
| 068 | N 000934004006 | NUT |
| A 0080944402 | AIR CLEANER | |
| Repalced by: A 0090945702 | ||
| 070 | A 0090945702 | AIR CLEANER |
| 070 | A 0090945702 | AIR CLEANER |
| A 0080944502 | AIR CLEANER | |
| Repalced by: A 0090945802 | ||
| 070 | A 0090945802 | AIR CLEANER |
| 070 | A 0090945802 | AIR CLEANER |
| A 0010947304 | FILTER ELEMENT | |
| Repalced by: A 0010949304 | ||
| 072 | A 0000940276 | WASHER |
| FELT | ||
| 073 | A 0009901550 | NUT |
| 075 | A 0010949304 | FILTER ELEMENT |
| 080 | A 3855200633 | SUPPORT |
| Repalced by: A 6505200333 | ||
| 080 | A 6505200333 | SUPPORT |
| 080 | A 3855200733 | SUPPORT |
| Repalced by: A 6505200433 | ||
| 080 | A 6505200433 | SUPPORT |
| 085 | A 3855280421 | STRAP |
| 086 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 086 | N 308676014020 | SCREW |
| 087 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 087 | N 910113014001 | NUT |
| 088 | N 000961012151 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 089 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 090 | N 000933010128 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 091 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 091 | N 000125010532 | WASHER |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 092 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 092 | N 910113010000 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 095 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 095 | N 304017008021 | SCREW |
| 100 | A 3855280008 | AIR INTAKE PIPE |
| Repalced by: A 6215280182 | ||
| 100 | A 6215280182 | HOSE |
| FROM AIR CLEANER TO MUFFLER | ||
| 100 | A 3835280308 | AIR INTAKE PIPE |
| Repalced by: A 6215280282 | ||
| 100 | A 6215280282 | HOSE |
| AIR INTAKE PIPE,LEFT REAR | ||
| 105 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 105 | A 0059971490 | LOOM TIE |
| HOSE TO PICO AIR CLEANER | ||
| 110 | A 0109977082 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 115 | N 073379006203 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 6X10 MM | ||
| 120 | A 3835240529 | COVER |
| ENGINE COVERING | ||
| 122 | A 3875240084 | SHIM |
| COVER PLATE TO CAB REAR PANEL | ||
| 125 | N 007981005302 | SHEET METAL SCREW |
| COVER PLATE TO CAB REAR PANEL | ||

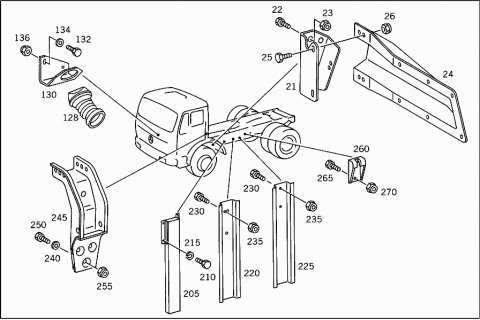

| 128 | A 3835280182 | HOSE |
| ALTERNATOR AIR INTAKE | ||
| 130 | A 3835280440 | BRACKET |
| AIR INTAKE HOSE TO SIDE MEMBER | ||
| 132 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 132 | N 304017008021 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 134 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 134 | N 000125008443 | WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 136 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 136 | N 913004008001 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| OIL REFILLING | ||
| A 4010101864 | OIL FILLER NECK | |
| Repalced by: A 4010101664 | ||
| 140 | A 4010101664 | OIL FILLER NECK |
| 142 | A 4010101564 | OIL FILLER NECK |
| THREADED | ||
| 142 | A 4010101564 | OIL FILLER NECK |
| THREADED | ||
| A 3520100168 | CAP | |
| Repalced by: A 0000180702 | ||
| 145 | A 0000180702 | CAP |
| OIL REFILLING | ||
| 145 | A 1020180302 | CAP |
| OIL REFILLING | ||
| 145 | A 1020180402 | CAP |
| OIL REFILLING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 148 | ||
| 147 | A 3520100468 | CAP |
| THREADED | ||
| 148 | A 3520180180 | GASKET |
| TO 352 010 01 68 | ||
| A 0000180180 | GASKET | |
| Repalced by: A 1020180080 | ||
| 148 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 148 | A 1020180380 | GASKET |
| 150 | A 4010180682 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| N 900288045004 | CLAMP | |
| 155 | N 900288049000 | CLAMP |
| 155 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 155 | N 000000000671 | CLAMP |
| 155 | N 000000000671 | CLAMP |
| 160 | A 4010182140 | BRACKET |
| 165 | A 4010182540 | BRACKET |
| OIL FILLER NECK,FRONT | ||
| 170 | N 000933010105 | SCREW |
| 175 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 175 | N 910113010000 | NUT |
| 180 | A 4010182840 | BRACKET |
| OIL FILLER NECK,REAR | ||
| 185 | A 4010182940 | BRACKET |
| OIL FILLER NECK,REAR | ||
| 190 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 190 | N 304017006020 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 195 | N 000125006421 | WASHER |
| OIL FILLER NECK TO BRACKET | ||
| 200 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 200 | N 913004006001 | NUT |
| OIL FILLER NECK TO BRACKET | ||
| 205 | A 3815200130 | SUPPORT |
| ROCKER PANEL | ||
| 205 | A 3815200230 | SUPPORT |
| ROCKER PANEL | ||
| 210 | N 308676012012 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 210 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 215 | N 912004012100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 220 | A 3815230015 | SUPPORT |
| ROCKER PANEL | ||
| 225 | A 3815230115 | SUPPORT |
| CONSOLE TO SIDE MEMBER | ||
| 230 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 230 | N 304017012020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 230 | N 000933012077 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 235 | N 913002012004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 240 | A 3609901740 | WASHER |
| Repalced by: A 3859900440 | ||
| 240 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| 240 | A 3379900440 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 245 | A 3818900031 | CONSOLE |
| 250 | N 000961014100 | SCREW |
| PLATFORM DUMPER CONTROL MECHANISM IN ENGINE COVERING | ||
| 250 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 250 | N 308676014020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 255 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 255 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 260 | A 3828910014 | BRACKET |
| CONSOLE TO SIDE MEMBER | ||
| 265 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 265 | N 304017012020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 265 | N 000933012077 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 270 | N 913002012004 | NUT |
| BRACKET TO SIDE MEMBER | ||
