Transporto priemonė: 1219; VIN numerio dalis: 381027

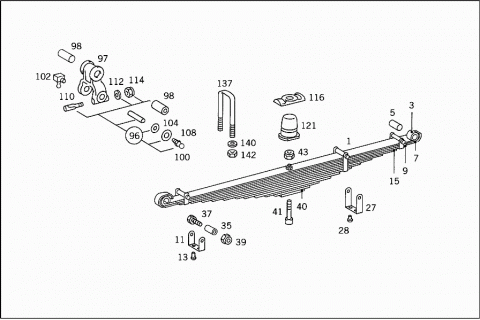

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3813200502 | FRONT SPRING |
| Repalced by: A 3813200702 | ||
| 001 | A 3813200702 | FRONT SPRING |
| 7-LEAF | ||
| 001 | A 3833200402 | FRONT SPRING |
| 8-LEAF | ||
| 001 | A 3833200302 | FRONT SPRING |
| 8-LEAF | ||
| 001 | A 3813200402 | FRONT SPRING |
| 7-LEAF | ||
| 001 | A 3833200602 | FRONT SPRING |
| 8-LEAF | ||
| 001 | A 3833200502 | FRONT SPRING |
| Repalced by: A 3833202202 | ||
| 001 | A 3833202202 | FRONT SPRING |
| 8-LEAF | ||
| 003 | A 3813200094 | SPRING LEAF |
| Repalced by: A 3833201294 | ||
| 003 | A 3833200094 | SPRING LEAF |
| Repalced by: A 3833201294 | ||
| 003 | A 3833200894 | SPRING LEAF |
| Repalced by: A 3833201294 | ||
| 003 | A 3833200094 | SPRING LEAF |
| Repalced by: A 3833201294 | ||
| 003 | A 3833201294 | SPRING LEAF |
| NO. 1 | ||
| 003 | A 3833201294 | SPRING LEAF |
| NO. 1 | ||
| 003 | A 3833200694 | SPRING LEAF |
| Repalced by: A 3833201394 | ||
| 003 | A 3833201394 | SPRING LEAF |
| NO.1 | ||
| 003 | A 3813200294 | SPRING LEAF |
| Repalced by: A 3853202994 | ||
| 003 | A 3853200694 | SPRING LEAF |
| Repalced by: A 3853202994 | ||
| 003 | A 3833200294 | SPRING LEAF |
| Repalced by: A 3853202994 | ||
| 003 | A 3853202994 | SPRING LEAF |
| NO.1 | ||
| 005 | A 3523220050 | BUSHING |
| 005 | A 3853220050 | BUSHING |
| 007 | A 3813210512 | SPRING LEAF |
| Repalced by: A 3833212012 | ||
| 007 | A 3833210412 | SPRING LEAF |
| Repalced by: A 3833212012 | ||
| 007 | A 3833210612 | SPRING LEAF |
| Repalced by: A 3833212012 | ||
| 007 | A 3833210412 | SPRING LEAF |
| Repalced by: A 3833212012 | ||
| 007 | A 3833212012 | SPRING LEAF |
| NO. 2 | ||
| 007 | A 3833212012 | SPRING LEAF |
| NO. 2 | ||
| 007 | A 3833210312 | SPRING LEAF |
| Repalced by: A 3833211912 | ||
| 007 | A 3833211912 | SPRING LEAF |
| NO. 2 | ||
| 007 | A 3813210412 | SPRING LEAF |
| Repalced by: A 3853212512 | ||
| 007 | A 3853211012 | SPRING LEAF |
| Repalced by: A 3853212512 | ||
| 007 | A 3833210512 | SPRING LEAF |
| Repalced by: A 3853212512 | ||
| 007 | A 3853212512 | SPRING LEAF |
| NO. 2 | ||
| 009 | A 3813200194 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3833200194 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3833200794 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3813200394 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3813200494 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3833200994 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3833201994 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3833200394 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3833201894 | SPRING LEAF |
| NO.3 | ||
| 011 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 011 | A 3123240633 | SPRING CLAMP |
| 011 | A 3123240633 | SPRING CLAMP |
| 011 | A 3123240633 | SPRING CLAMP |
| 013 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 013 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 015 | A 3813210413 | SPRING LEAF |
| NO. 3 | ||
| 015 | A 3833210613 | SPRING LEAF |
| NO. 3 | ||
| 015 | A 3833210513 | SPRING LEAF |
| NO. 3 | ||
| 015 | A 3813210514 | SPRING LEAF |
| NO.4 | ||
| A 3833210414 | SPRING LEAF | |
| Repalced by: A 3833210614 | ||
| 015 | A 3833210614 | SPRING LEAF |
| NO.4 | ||
| 015 | A 3833210314 | SPRING LEAF |
| NO.4 | ||
| 015 | A 3813210414 | SPRING LEAF |
| NO.4 | ||
| 015 | A 3833210614 | SPRING LEAF |
| NO.4 | ||
| 015 | A 3833210514 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3523210133 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 027 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 027 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.6 | ||
| 027 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.6 | ||
| 027 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 027 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.7 | ||
| 027 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.6 | ||
| 028 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||

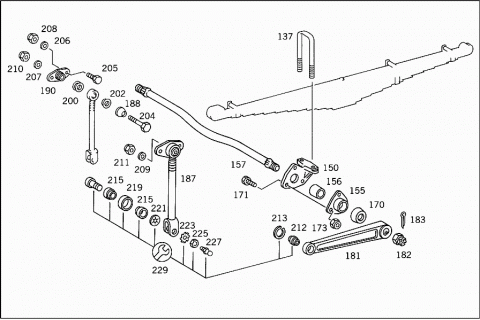

| 035 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 035 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 035 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 037 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 037 | N 304014008009 | SCREW |
| FOR SPRING CLAMPS | ||
| 037 | N 304014008009 | SCREW |
| FOR SPRING CLAMPS | ||
| 039 | N 304032008006 | NUT |
| FOR SPRING CLAMPS | ||
| 039 | N 304032008006 | NUT |
| FOR SPRING CLAMPS | ||
| 040 | A 3813220784 | SHIM |
| 040 | A 3143221084 | SHIM |
| 040 | A 3523220384 | SHIM |
| 040 | A 3813220284 | SHIM |
| 040 | A 3833220184 | SHIM |
| A 3833220084 | SHIM | |
| 041 | N 004626012120 | SPRING BOLT |
| M 12X145 | ||
| 041 | N 004626012127 | SPRING BOLT |
| M 12X145 | ||
| 043 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 043 | N 910113012005 | NUT |
| 096 | A 3523220530 | SHACKLE PIN |
| Repalced by: A 3855860332 | ||
| 096 | A 3853220030 | SHACKLE PIN |
| Repalced by: A 3855860332 | ||
| 096 | A 3855860032 | REPAIR KIT |
| Repalced by: A 3855860332 | ||
| 096 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 096 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| A 3523200063 | SHACKLE | |
| Repalced by: A 6173200163 | ||
| 097 | A 6173200163 | SHACKLE |
| LEAF SPRING | ||
| 098 | A 3523220050 | BUSHING |
| 098 | A 3853220050 | BUSHING |
| 100 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 102 | N 071412010300 | GREASE NIPPLE |
| FRONT SPRING | ||
| 102 | N 071412010100 | GREASE NIPPLE |
| FRONT SPRING | ||
| 104 | A 3523230376 | WASHER |
| SPRING SEAT | ||
| 4.00 MM | ||
| 104 | A 3523230476 | WASHER |
| SPRING SEAT | ||
| 4.20 MM | ||
| 104 | A 3523230576 | WASHER |
| SPRING SEAT | ||
| 4.30 MM | ||
| 108 | A 0029973140 | SEAL RING |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 110 | A 3529900337 | BOLT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 112 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 112 | N 000125010532 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 114 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 114 | N 910113010000 | NUT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 116 | A 3833220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 116 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 121 | A 3833240008 | HELPER SPRING |
| RUBBER BUFFER TO FRAME | ||
| 130 | A 3853200077 | RUBBER SPRING |
| (HELPER SPRING) | ||
| 131 | N 912002012001 | LOCK |
| RUBBER SPRING TO BRACKET | ||
| 132 | N 000125013008 | WASHER |
| 134 | A 3853250040 | BRACKET |
| HELPER SPRING | ||
| 137 | A 3403510325 | U-BOLT |
| Repalced by: A 3603310125 | ||
| 137 | A 3603310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 137 | A 3603310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 137 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 260 MM | ||
| 137 | A 3523310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 210 MM | ||
| 140 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 142 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 144 | A 3523300175 | RUBBER MOUNTING |
| Repalced by: A 3853300075 | ||
| 144 | A 3853300075 | RUBBER MOUNTING |
| FRONT AXLE | ||
| 145 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| M 10 X 25 | ||
| 145 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| M 10 X 20 | ||
| 146 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 147 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 147 | N 910113010000 | NUT |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 150 | A 3523231463 | BEARING BRACKET |
| FRONT AXLE TORSION BAR | ||
| 155 | A 3523230283 | HOUSING |
| TORSION BAR,FRONT | ||
| 156 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 157 | A 3603230065 | TORSION BAR |
| FRONT AXLE | ||
| 157 | A 3603230065 | TORSION BAR |
| FRONT AXLE | ||
| 170 | A 3603230151 | SPACER RING |
| FRONT STABILIZER | ||
| 171 | N 000933010145 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 173 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 173 | N 910113010000 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 181 | A 3603230869 | LEVER |
| FRONT STABILIZER | ||
| 182 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 183 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 187 | A 3813200589 | ROD |
| Repalced by: A 6173200089 | ||
| 187 | A 3813200789 | ROD |
| Repalced by: A 6173200089 | ||
| 187 | A 6173200189 | ROD |
| Repalced by: A 6173200089 | ||
| 187 | A 6173200089 | ROD |
| STABILIZER | ||
| 188 | A 0003300085 | BOOT |
| Repalced by: A 0004631396 | ||
| 188 | A 0004631396 | BOOT |
| TO 381 320 07 89,617 320 00 89 | ||
| 190 | A 3813230263 | BEARING BRACKET |
| Repalced by: A 6173200089 | ||
| 190 | A 6173200089 | ROD |
| TO 381 320 05 89 | ||
| 200 | A 3813230060 | SEAL RING |
| TO 381 320 05 89 | ||
| 202 | A 3813230158 | SEAL HOLDER |
| TO 381 320 05 89 | ||
| 204 | A 3813230171 | SCREW |
| TO 381 320 05 89 | ||
| 205 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 205 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 206 | N 000125013008 | WASHER |
| 207 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 207 | N 000125015019 | WASHER |
| ROD TO FRAME | ||
| 208 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 208 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 209 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 210 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 210 | N 910113014001 | NUT |
| ROD TO FRAME | ||
| 211 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 211 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 212 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 212 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 212 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 212 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 212 | A 0019814631 | JOINT BEARING |
| 212 | A 0019814831 | JOINT BEARING |
| 213 | N 009045035001 | SNAP RING |
| ROD TO BEARING BRACKET | ||
| 215 | A 3603230460 | SEAL RING |
| ROD TO LEVER | ||
| A 3603230274 | PIN | |
| Repalced by: A 3605860032 | ||
| 219 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 221 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 223 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 225 | N 000936020010 | NUT |
| ROD TO LEVER | ||
| 227 | N 071412010100 | GREASE NIPPLE |
| PIN | ||
| A 3605860032 | REPAIR KIT | |
| Repalced by: A 3603200041 | ||
| 229 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||

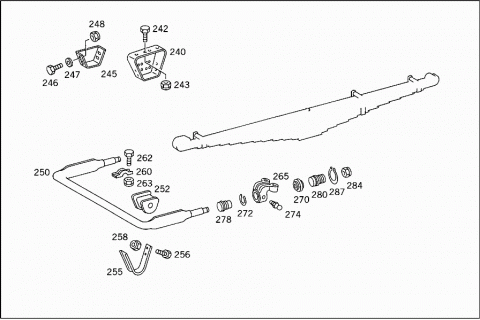

| 240 | A 3833231363 | BEARING BRACKET |
| STABILIZER | ||
| 242 | N 000961012164 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 243 | N 910113012002 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 245 | A 3833230195 | REINFORCEMENT |
| STABILIZER | ||
| 246 | N 000961012164 | SCREW |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| 247 | N 000125013008 | WASHER |
| 248 | N 910113012002 | NUT |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| A 3853230065 | TORSION BAR | |
| Repalced by: A 3853230265 | ||
| 250 | A 3853230265 | TORSION BAR |
| STABILIZER | ||
| 252 | A 3833260081 | RUBBER MOUNTING |
| STABILIZER | ||
| 255 | A 3833230240 | BRACKET |
| STABILIZER | ||
| 256 | N 000961012164 | SCREW |
| BRACKET AND RUBBER MOUNTING TO BEARING BRACKET | ||
| 258 | N 910113012002 | NUT |
| BRACKET AND RUBBER MOUNTING TO BEARING BRACKET | ||
| 260 | A 3833230340 | BRACKET |
| STABILIZER | ||
| 262 | N 000961012151 | SCREW |
| BRACKET TO STABILIZER | ||
| 263 | N 910113012002 | NUT |
| BRACKET TO STABILIZER | ||
| 265 | A 3853230263 | BEARING BRACKET |
| STABILIZER | ||
| 270 | A 0009816131 | JOINT BEARING |
| 270 | A 0009817431 | JOINT BEARING |
| 272 | N 000472055000 | LOCK RING |
| STABILIZER TO BEARING BRACKET | ||
| 274 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 274 | N 071412008102 | GREASE NIPPLE |
| STABILIZER TO BEARING BRACKET | ||
| 278 | A 3833230092 | BOOT |
| CAB REAR PANEL | ||
| 280 | A 3833230192 | BOOT |
| Repalced by: A 3833230292 | ||
| 280 | A 3833230292 | BOOT |
| TORSION BAR TO BEARING BRACKET | ||
| 280 | A 3833230392 | BOOT |
| TORSION BAR TO BEARING BRACKET | ||
| 284 | N 913004024004 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 287 | N 900055022200 | LOCK RING |
| TORSION BAR TO BEARING BRACKET | ||
| 290 | A 0033231000 | SHOCK ABSORBER |
| Repalced by: A 0043236500 | ||
| 290 | A 0043236500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0043236500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0023238700 | SHOCK ABSORBER |
| Repalced by: A 0033231100 | ||
| 290 | A 0033231100 | SHOCK ABSORBER |
| Repalced by: A 0043233600 | ||
| 290 | A 0043233600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0043233600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0033232000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| A 0033232100 | SHOCK ABSORBER | |
| Repalced by: A 0043235600 | ||
| 290 | A 0043235600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| A 0033230100 | SHOCK ABSORBER | |
| Repalced by: A 0043235500 | ||
| 290 | A 0043235500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0033230300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| A 0023237600 | SHOCK ABSORBER | |
| Repalced by: A 0043237100 | ||
| 290 | A 0043237100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0043237100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| A 0023238400 | SHOCK ABSORBER | |
| Repalced by: A 0043233300 | ||
| 290 | A 0043233300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0043233300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0033232200 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0033232300 | SHOCK ABSORBER |
| Repalced by: A 0043234000 | ||
| 290 | A 0043234000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 292 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 292 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 86 00,003 323 10 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 20 00,002 323 76 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 22 00,003 323 03 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 65 00,004 323 71 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 01 00,002 323 87 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 11 00,002 323 21 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 84 00,003 323 23 00 | ||
| 292 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 292 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 33 00,004 323 36 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 40 00,004 323 55 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 56 00 | ||
| 294 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 294 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 294 | A 0003233150 | SPACER RING |
| TO 003 323 23 00,003 323 10 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 20 00,002 323 76 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 22 00,003 323 03 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 65 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 01 00,002 323 87 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 11 00,002 323 21 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 84 00 | ||
| 294 | A 0003235250 | BUSHING |
| TO 004 323 33 00,004 323 36 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 40 00,004 323 55 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 56 00 | ||
| 300 | A 3833200043 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 300 | A 3833200143 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 301 | A 3833200278 | CONSOLE |
| Repalced by: A 6173200078 | ||
| 301 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 301 | A 3833200378 | CONSOLE |
| Repalced by: A 6173200178 | ||
| 301 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 301 | A 3833200078 | CONSOLE |
| Repalced by: A 3833200478 | ||
| 301 | A 3833200478 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 301 | A 3833200478 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 301 | A 3833200178 | CONSOLE |
| Repalced by: A 3833200578 | ||
| 301 | A 3833200578 | CONSOLE |
| Repalced by: A 3853200678 | ||
| 301 | A 3853200678 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 301 | A 3853200678 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 304 | A 3813200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 304 | A 3813200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 306 | N 000961012151 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 306 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 306 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 306 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X25 | ||
| 306 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X25 | ||
| 306 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 306 | N 308676014020 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 307 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 307 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 307 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 308 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 308 | N 910113014001 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 308 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 308 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 310 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 312 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 312 | N 910113016002 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 313 | A 3853230695 | REINFORCEMENT |
| LEFT SHOCK ABSORBER | ||
| 313 | A 3853230795 | REINFORCEMENT |
| RIGHT SHOCK ABSORBER | ||
| 314 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 314 | N 308676014020 | SCREW |
| REINFORCEMENT TO FRAME | ||
| 315 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 315 | N 910113014001 | NUT |
| REINFORCEMENT TO FRAME | ||
| 316 | A 3833230963 | BEARING BRACKET |
| BOTTOM LEFT | ||
| 316 | A 3833231063 | BEARING BRACKET |
| BOTTOM RIGHT | ||
| 317 | A 3833231863 | BEARING BRACKET |
| BOTTOM | ||
| 318 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 318 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 319 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 320 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 322 | N 000093017001 | LOCK PLATE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 324 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 324 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

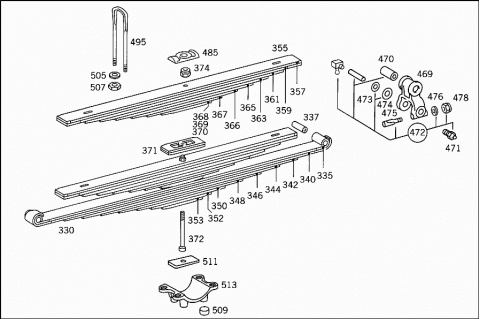

| 330 | A 3813200108 | REAR SPRING |
| 8-LEAF;WITH 9-LEAF HELPER SPRING | ||
| 330 | A 3813200108 | REAR SPRING |
| 8-LEAF;WITH 9-LEAF HELPER SPRING | ||
| 330 | A 3813200108 | REAR SPRING |
| 8-LEAF;WITH 9-LEAF HELPER SPRING | ||
| 330 | A 3813200208 | REAR SPRING |
| 9-LEAF,WITH 10-LEAF HELPER SPRING | ||
| 330 | A 3813200208 | REAR SPRING |
| 9-LEAF,WITH 10-LEAF HELPER SPRING | ||
| 330 | A 3813200208 | REAR SPRING |
| 9-LEAF,WITH 10-LEAF HELPER SPRING | ||
| A 3813200093 | SPRING LEAF | |
| Repalced by: A 3813201193 | ||
| 335 | A 3813201193 | SPRING LEAF |
| NO.1 | ||
| A 3813200193 | SPRING LEAF | |
| Repalced by: A 3813201093 | ||
| 335 | A 3813201093 | SPRING LEAF |
| NO.1 | ||
| 337 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 337 | A 3523250150 | BUSHING |
| 337 | A 3853250050 | BUSHING |
| 340 | A 3813240112 | SPRING LEAF |
| Repalced by: A 3813241012 | ||
| 340 | A 3813241012 | SPRING LEAF |
| NO.2 | ||
| A 3813240212 | SPRING LEAF | |
| Repalced by: A 3813241112 | ||
| 340 | A 3813241112 | SPRING LEAF |
| NO.2 | ||
| 342 | A 3813240113 | SPRING LEAF |
| NO.3 | ||
| 342 | A 3813240213 | SPRING LEAF |
| NO.3 | ||
| 344 | A 3813240114 | SPRING LEAF |
| NO.4 | ||
| 344 | A 3813240214 | SPRING LEAF |
| NO.4 | ||
| 346 | A 3813240115 | SPRING LEAF |
| NO.5 | ||
| 346 | A 3813240215 | SPRING LEAF |
| NO.5 | ||
| 348 | A 3813240116 | SPRING LEAF |
| NO.6 | ||
| 348 | A 3813240216 | SPRING LEAF |
| NO.6 | ||
| 350 | A 3813240117 | SPRING LEAF |
| NO.7 | ||
| 350 | A 3813240217 | SPRING LEAF |
| NO.7 | ||
| 352 | A 3813240118 | SPRING LEAF |
| NO.8 | ||
| 352 | A 3813240218 | SPRING LEAF |
| NO.8 | ||
| 353 | A 3813240019 | SPRING LEAF |
| NO.9 | ||
| 355 | A 3813200010 | HELPER SPRING |
| 355 | A 3813200110 | HELPER SPRING |
| 357 | A 3813240140 | SPRING LEAF |
| NO.1 | ||
| 357 | A 3813240240 | SPRING LEAF |
| NO.1 | ||
| 359 | A 3813240141 | SPRING LEAF |
| NO.2 | ||
| 359 | A 3813240241 | SPRING LEAF |
| NO.2 | ||
| 361 | A 3813240142 | SPRING LEAF |
| NO.3 | ||
| 361 | A 3813240242 | SPRING LEAF |
| NO.3 | ||
| 363 | A 3813240143 | SPRING LEAF |
| NO.4 | ||
| 363 | A 3813240243 | SPRING LEAF |
| NO.4 | ||
| 365 | A 3813240144 | SPRING LEAF |
| NO.5 | ||
| 365 | A 3813240244 | SPRING LEAF |
| NO.5 | ||
| 366 | A 3813240145 | SPRING LEAF |
| NO.6 | ||
| 366 | A 3813240245 | SPRING LEAF |
| NO.6 | ||
| 367 | A 3813240046 | SPRING LEAF |
| NO.7 | ||
| 367 | A 3813240146 | SPRING LEAF |
| NO.7 | ||
| 368 | A 3813240047 | SPRING LEAF |
| NO.8 | ||
| 368 | A 3813240147 | SPRING LEAF |
| NO.8 | ||
| 369 | A 3813240048 | SPRING LEAF |
| Repalced by: A 3583240048 | ||
| 369 | A 3583240048 | SPRING LEAF |
| NO.9 | ||
| 369 | A 3813240148 | SPRING LEAF |
| NO.9 | ||
| 370 | A 3813240049 | SPRING LEAF |
| NO.10 | ||
| 371 | A 3583240035 | SPACER |
| 372 | N 004626012156 | SPRING BOLT |
| M 12X225 | ||
| 372 | A 6173241771 | SPRING BOLT |
| M 12X230 | ||
| 372 | N 004626012104 | SPRING BOLT |
| M 12X250 | ||
| 372 | A 6173241871 | SPRING BOLT |
| M 12X255 | ||
| 374 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 374 | N 910113012005 | NUT |

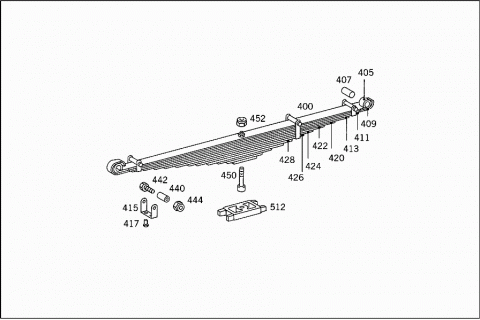

| 400 | A 3813200006 | REAR SPRING |
| 9-LEAF | ||
| 400 | A 3813200106 | REAR SPRING |
| 9-LEAF | ||
| 405 | A 3813200293 | SPRING LEAF |
| NO.1 | ||
| 405 | A 3813200493 | SPRING LEAF |
| NO.1 | ||
| 407 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 407 | A 3523250150 | BUSHING |
| 407 | A 3853250050 | BUSHING |
| 409 | A 3813240312 | SPRING LEAF |
| NO.2 | ||
| 409 | A 3813240712 | SPRING LEAF |
| NO.2 | ||
| 411 | A 3813240313 | SPRING LEAF |
| NO.3 | ||
| 411 | A 3813240713 | SPRING LEAF |
| NO.3 | ||
| 413 | A 3813200393 | SPRING LEAF |
| NO.4 | ||
| 413 | A 3813200593 | SPRING LEAF |
| NO.4 | ||
| 415 | A 3603210133 | SPRING CLAMP |
| 415 | A 3603210033 | SPRING CLAMP |
| 417 | N 910006008024 | RIVET |
| 8X25 MM | ||
| 420 | A 3813240315 | SPRING LEAF |
| NO.5 | ||
| 420 | A 3813240615 | SPRING LEAF |
| NO.5 | ||
| 422 | A 3813240316 | SPRING LEAF |
| NO.6 | ||
| 422 | A 3813240616 | SPRING LEAF |
| NO.6 | ||
| 424 | A 3813240317 | SPRING LEAF |
| NO.7 | ||
| 424 | A 3813240617 | SPRING LEAF |
| NO.7 | ||
| 426 | A 3813240318 | SPRING LEAF |
| NO.8 | ||
| 426 | A 3813240618 | SPRING LEAF |
| NO.8 | ||
| 428 | A 3813240119 | SPRING LEAF |
| NO.9 | ||
| 428 | A 3813240419 | SPRING LEAF |
| NO.9 | ||
| A 0003212553 | SPACER TUBE | |
| Repalced by: A 0003212753 | ||
| 440 | A 0003212753 | SPACER TUBE |
| 442 | N 000931012081 | SCREW |
| 444 | N 000934012021 | NUT |
| 450 | N 004626012164 | SPRING BOLT |
| M 12X140 | ||
| 450 | A 6173240371 | SPRING BOLT |
| M 12X145 | ||
| 452 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 452 | N 910113012005 | NUT |
| 469 | A 3523200163 | SHACKLE |
| REAR SPRING | ||
| 470 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 470 | A 3523250150 | BUSHING |
| 470 | A 3853250050 | BUSHING |
| 471 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| A 3523250530 | SHACKLE PIN | |
| Repalced by: A 3855860232 | ||
| A 3853250030 | SHACKLE PIN | |
| Repalced by: A 3855860232 | ||
| A 3855860132 | REPAIR KIT | |
| Repalced by: A 3855860232 | ||
| A 3855860232 | REPAIR KIT | |
| Repalced by: A 3853200065 | ||
| 472 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 473 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 473 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 474 | A 0029973040 | SEAL RING |
| REAR SPRING TO SPRING SHACKLE | ||
| 475 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING SHACKLE | ||
| 476 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 476 | N 000125010532 | WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 478 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 478 | N 910113010000 | NUT |
| REAR SPRING TO SPRING SHACKLE | ||
| 485 | A 3833250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 485 | A 3833250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 485 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 495 | A 3403510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 410 MM | ||
| A 3583510025 | U-BOLT | |
| Repalced by: A 3273515425 | ||
| 495 | A 3273515425 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 430 MM | ||
| A 3213512225 | U-BOLT | |
| Repalced by: A 3213512325 | ||
| 495 | A 3213512325 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 370 MM | ||
| A 3403510125 | U-BOLT | |
| Repalced by: A 3273515425 | ||
| 495 | A 3273515425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 430 MM | ||
| 495 | A 3523510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 350 MM | ||
| A 3523511225 | U-BOLT | |
| Repalced by: A 3213512125 | ||
| 495 | A 3213512125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 310 MM | ||
| A 3403510025 | U-BOLT | |
| Repalced by: A 3523510625 | ||
| 495 | A 3523510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 390 MM | ||
| 495 | A 3583510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 490 MM | ||
| A 3583510125 | U-BOLT | |
| Repalced by: A 3853510225 | ||
| 495 | A 3853510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 MM | ||
| 495 | A 3853510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 MM | ||
| A 3853510025 | U-BOLT | |
| 510 MM | ||
| 495 | A 3383515425 | U-BOLT |
| Repalced by: A 3383515125 | ||
| 495 | A 3383515125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 470 MM | ||
| A 3383515125 | U-BOLT | |
| Repalced by: A 3583510125 | ||
| 495 | A 3583510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 460 MM | ||
| 505 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 505 | A 3859970226 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 507 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 509 | A 3839910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 509 | A 3859910464 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 509 | A 3859910464 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 509 | A 3859910164 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 509 | A 3859910164 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 509 | A 6179910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 511 | A 3853510528 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 511 | A 3853510528 | PAD |
| Repalced by: A 3853510728 | ||
| 511 | A 3853510728 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 511 | A 3853510728 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 511 | A 3853510728 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 511 | A 3853510728 | PAD |
| Repalced by: A 3853510428 | ||
| 511 | A 3853510428 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 511 | A 3853510428 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 511 | A 3853510428 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 511 | A 3853510428 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 511 | A 3833250084 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 511 | A 3833250084 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 511 | A 3833250484 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 511 | A 3853250384 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 511 | A 6173250384 | SHIM |
| Repalced by: A 6173250984 | ||
| 511 | A 6173250984 | SHIM |
| Repalced by: A 6173251484 | ||
| 511 | A 6173251484 | SHIM |
| REAR SPRING | ||
| 512 | A 3833250284 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 512 | A 3833250384 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 513 | A 3553250531 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 513 | A 3853250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 513 | A 3853250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 513 | A 3853250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||

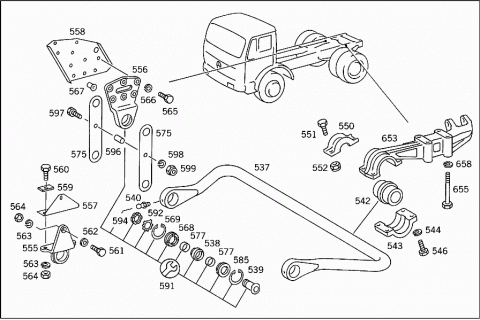

| 537 | A 3833260065 | TORSION BAR |
| REAR AXLE | ||
| 538 | A 0009810831 | JOINT BEARING |
| REAR STABILIZER | ||
| 538 | A 0009811231 | JOINT BEARING |
| REAR STABILIZER | ||
| 539 | N 000472055000 | LOCK RING |
| BEARING BODY TO REAR AXLE | ||
| 540 | N 071412008302 | GREASE NIPPLE |
| BEARING BODY TO REAR AXLE | ||
| 542 | A 3833260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 543 | A 3833260640 | BRACKET |
| RUBBER MOUNTING | ||
| 544 | N 912004014100 | LOCK WASHER |
| BRACKET TO TORSION BAR | ||
| 546 | N 000961014028 | SCREW |
| BRACKET TO TORSION BAR | ||
| 550 | A 3833260740 | BRACKET |
| TORSION BAR | ||
| 551 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 551 | N 308676014020 | SCREW |
| BRACKET TO SHOCK ABSORBER/STABILIZER BRACKET | ||
| M 14X35 | ||
| 551 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| M 12X25 | ||
| 552 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 552 | N 910113014001 | NUT |
| BRACKET TO SHOCK ABSORBER/STABILIZER BRACKET | ||
| 552 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 555 | A 3523260063 | BEARING BRACKET |
| TORSION BAR MOUNTING | ||
| 555 | A 3523260063 | BEARING BRACKET |
| TORSION BAR MOUNTING | ||
| 556 | A 3833260163 | BEARING BRACKET |
| TORSION BAR MOUNTING | ||
| 556 | A 3833260163 | BEARING BRACKET |
| TORSION BAR MOUNTING | ||
| 557 | A 3523260425 | PLATE |
| Repalced by: A 3803260025 | ||
| 557 | A 3803260025 | PLATE |
| BEARING BRACKET TO FRAME | ||
| 558 | A 3583250041 | STIFFENING |
| TORSION BAR,REAR | ||
| 558 | A 3833250341 | STIFFENING |
| TORSION BAR,LEFT | ||
| 558 | A 3833250341 | STIFFENING |
| TORSION BAR,LEFT | ||
| 558 | A 3833250241 | STIFFENING |
| TORSION BAR,RIGHT | ||
| 558 | A 3833250241 | STIFFENING |
| TORSION BAR,RIGHT | ||
| 559 | A 3604750484 | SHIM |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 559 | A 3604750484 | SHIM |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 560 | N 000961014054 | SCREW |
| BEARING BRACKET AND PLATE TO FRAME | ||
| M 14X45 | ||
| 560 | N 000961014054 | SCREW |
| BEARING BRACKET AND PLATE TO FRAME | ||
| M 14X45 | ||
| 561 | N 007991014001 | SCREW |
| BEARING BRACKET AND PLATE TO FRAME | ||
| M 14X45 | ||
| 561 | N 007991014001 | SCREW |
| BEARING BRACKET AND PLATE TO FRAME | ||
| M 14X45 | ||
| 562 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 562 | N 000125015019 | WASHER |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 562 | N 000125015019 | WASHER |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 563 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 564 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 564 | N 910113014001 | NUT |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 564 | N 910113014001 | NUT |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 565 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 565 | N 308676016020 | SCREW |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 566 | N 912004016101 | LOCK WASHER |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 567 | N 910005012073 | RIVET |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 12X28 MM | ||
| 568 | A 0009810831 | JOINT BEARING |
| 568 | A 0009811231 | JOINT BEARING |
| 569 | N 000472055000 | LOCK RING |
| REAR STABILIZER | ||
| 575 | A 3853260016 | LINK |
| TORSION BAR,REAR | ||
| 575 | A 3853260016 | LINK |
| TORSION BAR,REAR | ||
| 575 | A 3523260416 | LINK |
| TORSION BAR,REAR | ||
| 575 | A 3523260416 | LINK |
| TORSION BAR,REAR | ||
| 577 | A 3523260153 | SPACER TUBE |
| TORSION BAR,REAR | ||
| 585 | A 3603230560 | SEAL RING |
| TORSION BAR,REAR | ||
| 591 | A 3523260274 | PIN |
| Repalced by: A 3605860332 | ||
| 591 | A 3605860332 | REPAIR KIT |
| Repalced by: A 3603200341 | ||
| 591 | A 3603200341 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 592 | N 070952035101 | LOCK PLATE |
| TORSION BAR,REAR | ||
| 594 | N 070852035000 | NUT |
| TORSION BAR,REAR | ||
| 596 | A 3604270253 | SPACER TUBE |
| TORSION BAR,REAR | ||
| 597 | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 597 | N 000961012208 | SCREW |
| TORSION BAR,REAR | ||
| 598 | N 912004012100 | LOCK WASHER |
| TORSION BAR,REAR | ||
| 599 | N 000934012022 | NUT |
| TORSION BAR,REAR | ||
| A 0033264500 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023264600 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023264700 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023265700 | SHOCK ABSORBER | |
| Repalced by: A 3813260100 | ||
| A 0023265900 | SHOCK ABSORBER | |
| Repalced by: A 3813260100 | ||
| A 0023267100 | SHOCK ABSORBER | |
| Repalced by: A 3813260200 | ||
| A 0023267200 | SHOCK ABSORBER | |
| Repalced by: A 3813260200 | ||
| A 0033264500 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023264600 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023264700 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023267700 | SHOCK ABSORBER | |
| Repalced by: A 3813260300 | ||
| A 0023267800 | SHOCK ABSORBER | |
| Repalced by: A 3813260300 | ||
| A 0023264800 | SHOCK ABSORBER | |
| Repalced by: A 3853260200 | ||
| A 0023264900 | SHOCK ABSORBER | |
| Repalced by: A 3853260200 | ||
| A 0023267900 | SHOCK ABSORBER | |
| Repalced by: A 3813260400 | ||
| A 0023268000 | SHOCK ABSORBER | |
| Repalced by: A 3813260400 | ||
| A 0003260268 | RUBBER BUFFER | |
| Repalced by: A 0003230785 | ||
| 610 | A 0003230785 | RUBBER MOUNTING |

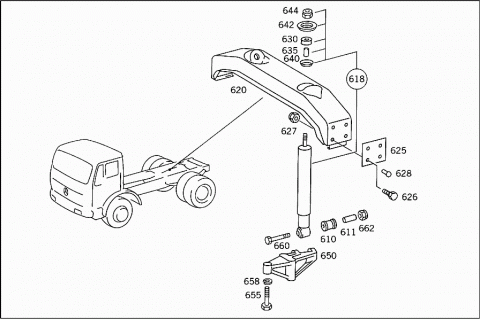

| REAR SHOCK ABSORBERS | ||
| TO 002 326 46 00,002 326 47 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 326 92 00,003 326 93 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 48 00,002 326 49 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 57 00,002 326 59 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 71 00,002 326 72 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 77 00,002 326 78 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 79 00,002 3 26 80 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 326 96 00,003 326 95 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 326 94 00 | ||
| 610 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 610 | A 0003233144 | RUBBER BUFFER |
| SHOCK ABSORBER,BOTTOM | ||
| TO 003 326 45 00,004 326 16 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 326 17 00,004 326 18 00 | ||
| A 0003234585 | RUBBER MOUNTING | |
| Repalced by: A 0003230785 | ||
| A 0003260750 | BUSHING | |
| Repalced by: A 0003230553 | ||
| 611 | A 0003230553 | SPACER TUBE |
| 618 | A 3853260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 618 | A 3853260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 618 | A 3853260200 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 618 | A 3853260200 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 618 | A 3813260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 618 | A 3813260200 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 618 | A 3813260300 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 618 | A 3813260400 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| A 3853100040 | CROSS MEMBER | |
| Repalced by: A 3853100440 | ||
| 620 | A 3853100440 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 620 | A 3853100440 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 620 | A 3853100140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 620 | A 3853100140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 625 | A 3853120084 | SHIM |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 625 | A 3853120084 | SHIM |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 626 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 626 | N 308676012026 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12X35 | ||
| 626 | N 308676012026 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12X35 | ||
| 626 | N 308676012026 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12X35 | ||
| 626 | N 308676012026 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12X35 | ||
| 626 | N 000961012122 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12X40 | ||
| 626 | N 000961012122 | SCREW |
| MOUNTING PLATE,SHOCK ABSORBER CROSS MEMBER & SHIM TO FRAME SIDE MEMBER | ||
| M 12X40 | ||
| 626 | N 000960012342 | SCREW |
| MOUNTING PLATE,SHOCK ABSORBER CROSS MEMBER & SHIM TO FRAME SIDE MEMBER | ||
| 627 | N 910113012002 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 627 | N 910113012002 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 628 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 628 | N 910005012080 | RIVET |
| 12 X 40 MM | ||
| 630 | A 3853260068 | RUBBER BUFFER |
| CROSS MEMBER TO FRAME | ||
| 630 | A 3853260068 | RUBBER BUFFER |
| CROSS MEMBER TO FRAME | ||
| 635 | A 3853230253 | SPACER TUBE |
| CROSS MEMBER TO FRAME | ||
| 635 | A 3853230253 | SPACER TUBE |
| CROSS MEMBER TO FRAME | ||
| 640 | A 3543260067 | RETAINER |
| CROSS MEMBER TO FRAME | ||
| 640 | A 3543260067 | RETAINER |
| CROSS MEMBER TO FRAME | ||
| A 3223230167 | RETAINER | |
| Repalced by: A 3173260167 | ||
| 642 | A 3173260167 | RETAINER |
| CROSS MEMBER TO FRAME | ||
| 642 | A 3173260167 | RETAINER |
| CROSS MEMBER TO FRAME | ||
| 644 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 644 | N 910113016002 | NUT |
| CROSS MEMBER TO FRAME | ||
| 644 | N 910113016002 | NUT |
| CROSS MEMBER TO FRAME | ||
| 650 | A 3833260040 | BRACKET |
| LEFT STABILIZER | ||
| 650 | A 3833260140 | BRACKET |
| RIGHT STABILIZER | ||
| 653 | A 3833260240 | BRACKET |
| LEFT STABILIZER | ||
| 653 | A 3833260240 | BRACKET |
| LEFT STABILIZER | ||
| 653 | A 3833260440 | BRACKET |
| LEFT STABILIZER | ||
| 653 | A 3833260440 | BRACKET |
| LEFT STABILIZER | ||
| 653 | A 3833260340 | BRACKET |
| RIGHT STABILIZER | ||
| 653 | A 3833260340 | BRACKET |
| RIGHT STABILIZER | ||
| 653 | A 3833260540 | BRACKET |
| RIGHT STABILIZER | ||
| 653 | A 3833260540 | BRACKET |
| RIGHT STABILIZER | ||
| A 3833230184 | SHIM | |
| BRACKET TO SPRING SADDLE | ||
| 655 | N 000960014145 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| 655 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 655 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 655 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 655 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 658 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 658 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 660 | A 3859900101 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| 660 | A 3859900101 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| 662 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 662 | N 913004020003 | NUT |
| BRACKET TO SPRING SADDLE | ||
| 662 | N 913004020003 | NUT |
| BRACKET TO SPRING SADDLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
