Transporto priemonė: 1222; VIN numerio dalis: 615026
Grupė: 42 BRAKES
43060
42608
43061
43072
43073
43064
43074
43075

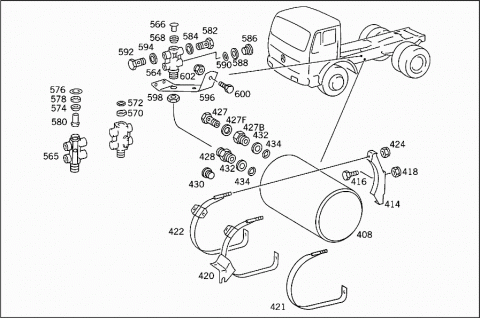

43076
43077
43078
43079

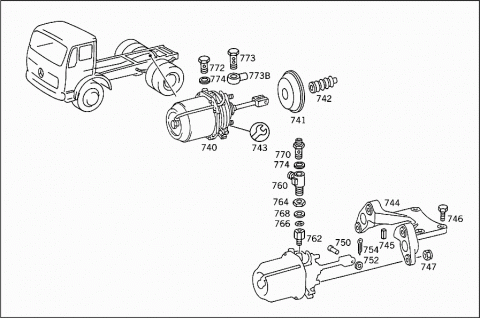

43080
43081
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
730.0
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
731.6
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
731.3
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
745.6
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.1
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
006 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, AIR CLEANER
15 MM
006 A 0004291401 LINE
FOUR-CIRCUIT PROTECTIVE VALVE,AIR RESERVOIR,CHECK VALVE
15 MM
008 N 915018015000 UNION NUT
N 915017015100 UNION NUT
010 N 003861015004 GLAND
012 N 915065015101 THRUST RING
014 N 915045012100 SEAL RING
Repalced by: N 007603012121
014 N 007603012121 SEAL RING
016 A 0019972172 FITTING
BETWEEN THE LINES
016 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
018 A 0019972372 FITTING
THROUGH SIDE MEMBER
018 N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
020 N 074305022202 NUT
THROUGH SIDE MEMBER
022 A 3609952001 CLAMP
Repalced by: A 6739950001
022 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
024 N 007985006145 SCREW
Repalced by: N 007985006581
024 N 007985006581 SCREW
CLAMP TO BRACKET
M 6X20
026 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
027 N 000125006421 WASHER
CLAMP TO BRACKET
028 N 913004006002 NUT
Repalced by: N 913004006001
028 N 913004006001 NUT
CLAMP TO BRACKET
030 A 0109975982 HOSE
Repalced by: A 0009872827
030 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,BRAKE VALVE,BRAKE PRESSURE REGULATOR,SPRING-LOAD ACCUMULATOR
9X12 MM
030 A 0009872827 PLASTIC PIPE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
030 A 0009872827 PLASTIC PIPE
FROM OVERFLOW VALVE TO AIR RESERVOIR
9X12 MM
030 A 0009872827 PLASTIC PIPE
FROM PROTECTIVE VALVE TO AIR RESERVOIR
9X12 MM
030 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
030 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
031 A 0049971772 FITTING
Repalced by: A 0029906171
031 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
A 0009907378 CONNECTOR
REPAIR SIZE
032 N 915017012100 UNION NUT
034 N 003861012007 GLAND
Repalced by: A 0019901967
034 A 0019901967 SEAL CONE
036 N 915062009000 SLEEVE
038 N 915052009009 BANJO UNION
I.D., / HOSE WIDTH,
9/16 MM
039 A 0019909771 ELBOW FITTING
FROM AIR RESERVOIR TO CHECK VALVE
039F A 0019901088 BANJO UNION
040 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
040 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
040 A 0089979082 HOSE
FROM BRAKE POWER REGULATOR TO BRAKE VALVE
6X8 MM
040 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
041 A 0039978972 FITTING
Repalced by: A 0029905971
041 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
042 N 915017008100 UNION NUT
044 N 003861008005 GLAND
046 N 915052006021 BANJO UNION
I.D., / HOSE WIDTH,
14 MM/6 MM
046 N 915052006014 BANJO UNION
I.D., / HOSE WIDTH,
16 MM/6 MM
046 N 915052006013 BANJO UNION
I.D., / HOSE WIDTH,
12 MM/6 M
051 A 0009904678 CONNECTOR
060 A 0089976082 HOSE
Repalced by: A 0009872627
060 A 0009872627 PLASTIC PIPE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO FILLING VALVE
4X6 MM
060 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
4X6 MM
061 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
062 N 915017006100 UNION NUT
064 N 003861006007 GLAND
Repalced by: A 0019901667
064 A 0019901667 SEAL CONE
066 N 915062004000 SLEEVE
068 N 915052004019 BANJO UNION
HOSE WIDTH, / I.D.,
4/16 MM
A 0019973472 FITTING
Repalced by: N 915059004001
069 N 915059004001 FITTING
069B N 080705012003 NUT
070 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
072 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
073 A 6173530040 BRACKET
BREATHER LINE TO FRONT AXLE
A 6173530140 BRACKET
BREATHER LINE TO FRONT AXLE
073B A 6179950035 CLAMP
BREATHER LINE TO FRONT AXLE
073E N 000933006183 SCREW
Repalced by: N 304017006016
073E N 304017006016 SCREW
BREATHER LINE TO FRONT AXLE
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
BREATHER LINE TO FRONT AXLE
073K N 913004006002 NUT
Repalced by: N 913004006001
073K N 913004006001 NUT
BREATHER LINE TO FRONT AXLE
N 912004008102 LOCK WASHER
BREATHER LINE TO FRONT AXLE
073M A 0019978390 LOOM TIE
BREATHER LINE TO FRONT AXLE
280 MM
074 A 6204201186 BRACKET
COMPRESSED AIR LINE
074 A 6204201286 BRACKET
COMPRESSED AIR LINE
A 3609902440 WASHER
Repalced by: A 3609902340
A 3609902340 WASHER
LINE MOUNTING
076 N 000933008147 SCREW
Repalced by: N 304017008021
076 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
078 N 913004008004 NUT
Repalced by: N 913004008001
078 N 913004008001 NUT
BRACKET TO BUMPER STRUT
080 A 6204201386 BRACKET
Repalced by: A 6154200086
080 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
080 A 6204201486 BRACKET
Repalced by: A 6154200186
080 A 6154200186 BRACKET
RIGHT COMPRESSED AIR LINES
082 N 000933008153 SCREW
Repalced by: N 304017008034
082 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
084 N 913004008004 NUT
Repalced by: N 913004008001
084 N 913004008001 NUT
BRACKET TO CAB CONSOLE
086 A 6204294340 BRACKET
Repalced by: A 3604293140
086 A 3604293140 BRACKET
COMPRESSED AIR LINE
088 A 6204293940 BRACKET
COMPRESSED AIR LINE
088 A 6204293940 BRACKET
COMPRESSED AIR LINE
090 N 000933008152 SCREW
Repalced by: N 304017008027
090 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
090 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
092 N 913004008004 NUT
Repalced by: N 913004008001
092 N 913004008001 NUT
BRACKET TO SIDE MEMBER
092 N 913004008001 NUT
BRACKET TO SIDE MEMBER
094 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
094 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
096 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
098 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
098B N 009021005202 WASHER
Repalced by: N 009021005205
098B N 009021005205 WASHER
BRACKET TO CAB FLOOR
098F A 0009946445 LOCK
BRACKET TO CAB FLOOR
A 3854201744 PROTECTIVE PLATE
LEFT COMPRESSED AIR LINES
103 A 6204295240 BRACKET
SCREENING PLATE
103 A 6204295240 BRACKET
SCREENING PLATE
104 N 913004006002 NUT
Repalced by: N 913004006001
104 N 913004006001 NUT
BRACKET TO CAB
A 6174200244 PROTECTIVE PLATE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
LEFT COMPRESSED AIR LINES
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
LEFT COMPRESSED AIR LINES
106 A 6194290301 LINE
Repalced by: A 6194290801
106 A 6194290401 LINE
Repalced by: A 6194290801
106 A 6194290801 LINE
Repalced by: A 6254293501
106 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
108 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
110 N 080705018002 NUT
BRAKE HOSE TO SIDE MEMBER
112 A 0004296034 ADAPTER FITTING
Repalced by: A 0004296634
112 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
112 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
113 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
113 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
114 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
114 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
116 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
118 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
120 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
120 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
122 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
124 N 915017012100 UNION NUT
126 N 003861012007 GLAND
Repalced by: A 0019901967
126 A 0019901967 SEAL CONE
128 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
130 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
132 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
134 N 916017016000 CLAMP
Repalced by: N 000000000666
134 N 000000000666 CLAMP
LINE MOUNTING
136 A 3159955010 CLAMP
LINE MOUNTING
138 N 007985006145 SCREW
Repalced by: N 007985006581
138 N 007985006581 SCREW
LINE MOUNTING
139 N 000125006421 WASHER
LINE MOUNTING
140 N 913004006002 NUT
Repalced by: N 913004006001
140 N 913004006001 NUT
LINE MOUNTING

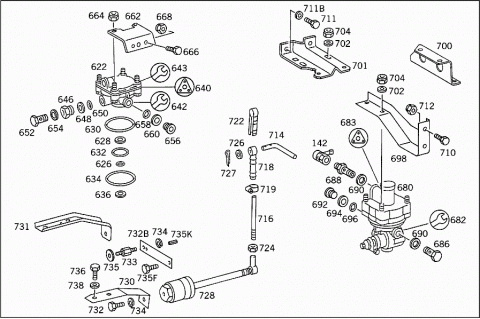

142 A 0004312031 TEST CONNECTION
VOSS
142 A 0004314531 TEST CONNECTION
SCHAEFER
142 A 0004314831 TEST CONNECTION
WABCO
142 A 0004316131 TEST CONNECTION
WIRA
142 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
142 A 0004316131 TEST CONNECTION
AIR CLEANER,CONNECTION:
"20"
142 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
142 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
142 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
142 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
144 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
144 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
146 A 6154200068 SUPPORT
148 N 000933014003 SCREW
APPARATUS SUPPORT TO FRAME SIDE MEMBER
148 N 000961014028 SCREW
APPARATUS SUPPORT TO FRAME SIDE MEMBER
M 14X40
148 N 000961014054 SCREW
APPARATUS SUPPORT TO FRAME SIDE MEMBER
M 14X45
148 N 000933010105 SCREW
APPARATUS SUPPORT TO FRAME SIDE MEMBER
M 10X25
N 000125015013 WASHER
Repalced by: N 000125015019
N 000125015019 WASHER
N 912004014100 LOCK WASHER
APPARATUS SUPPORT TO FRAME SIDE MEMBER
150 N 913004014002 NUT
Repalced by: N 910113014001
150 N 910113014001 NUT
APPARATUS SUPPORT TO FRAME SIDE MEMBER
150 N 913004010008 NUT
Repalced by: N 910113010000
150 N 910113010000 NUT
APPARATUS SUPPORT TO FRAME SIDE MEMBER

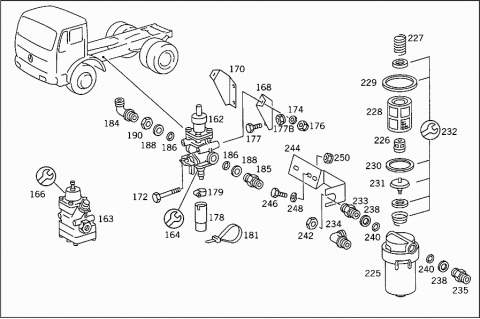

162 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
162 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
162 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
162 A 0024314906 PRESSURE REGULATOR
Repalced by: A 0034313706
162 A 0034313706 PRESSURE REGULATOR
WABCO
163 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
163 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
163 A 0024314306 PRESSURE REGULATOR
Repalced by: A 0034313506
163 A 0034313506 PRESSURE REGULATOR
BOSCH
163 A 0024318306 PRESSURE REGULATOR
Repalced by: A 0034313506
164 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
164 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
164 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
164 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
164 A 0014304960 REPAIR KIT
TO 003 431 37 06
164 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
166 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
166 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
166 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
166 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
166 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
166 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
166 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
A 0004300907 REPAIR KIT
TO 003 431 35 06,BOSCH
168 A 6164310140 BRACKET
PRESSURE REGULATOR
170 A 6174311440 BRACKET
PRESSURE REGULATOR
172 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
174 N 000125008418 WASHER
Repalced by: N 000125008443
174 N 000125008443 WASHER
PRESSURE REGULATOR TO BRACKET
176 N 913004008004 NUT
Repalced by: N 913004008001
176 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
177 N 000933008154 SCREW
Repalced by: N 304017008021
177 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
177B N 913004008004 NUT
Repalced by: N 913004008001
177B N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
178 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
178 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
178 A 0004300170 MUFFLER
PRESSURE REGULATOR,CONNECTION:
"30"
179 N 916026016001 CLAMP
Repalced by: A 0059970190
179 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
179 N 916026020001 CLAMP
Repalced by: N 000000000667
179 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
179 N 916017025000 CLAMP
Repalced by: N 000000000668
179 N 000000000668 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
179 N 916026016001 CLAMP
Repalced by: A 0059970190
179 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
181 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
184 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
184 N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
A 0029902271 ELBOW FITTING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
185 A 0019972372 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
186 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
N 007604012102 SCREW PLUG
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
N 007603012405 SEAL RING
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
188 A 0004290227 THRUST RING
Repalced by: A 0009940203
188 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
190 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
198 A 0004314315 ANTI-FREEZE DEVICE
198 A 0004312915 ANTI-FREEZE DEVICE
198 A 0004315915 ANTI-FREEZE DEVICE
Repalced by: A 0004312915
198 A 0004312915 ANTI-FREEZE DEVICE
200 A 0009974877 HANDLE
TO 000 431 43 15
204 A 0014304060 REPAIR KIT
TO 000 431 43 15
204 A 0014303060 REPAIR KIT
SEAL RING
TO 000 431 29 15
204 A 0014303760 REPAIR KIT
TO 000 431 59 15
208 A 0014315702 RESERVOIR
Repalced by: A 0024311602
208 A 0024311602 RESERVOIR
ANTI-FREEZE
209 A 0004315433 FILLER CAP
BUTTRESS THREAD
209B A 0009972940 SEAL RING
210 N 000931008189 SCREW
ANTE-FREEZE DEVICE TO BRACKET
212 N 913004008004 NUT
Repalced by: N 913004008001
212 N 913004008001 NUT
ANTE-FREEZE DEVICE TO BRACKET
214 A 0004290227 THRUST RING
Repalced by: A 0009940203
214 A 0009940203 THRUST RING
FLUID RESERVOIR TO ANTI-FREEZE DEVICE
215 A 0009870446 SEALING CORD
FLUID RESERVOIR TO ANTI-FREEZE DEVICE
216 N 074305022202 NUT
FLUID RESERVOIR TO ANTI-FREEZE DEVICE
218 A 0009905871 ELBOW FITTING
ANTI-FREEZE DEVICE,CONNECTION:
"20"
218 A 0029902271 ELBOW FITTING
ANTI-FREEZE DEVICE,CONNECTION:
"20"
218F A 0019972172 FITTING
ANTI-FREEZE DEVICE,CONNECTION:
"10"
218F N 003910015002 BULKHEAD FITTING
ANTI-FREEZE DEVICE,CONNECTION:
"10"
219 A 0004290227 THRUST RING
Repalced by: A 0009940203
219 A 0009940203 THRUST RING
ANTI-FREEZE DEVICE,CONNECTIONS:
"10,20"
220 A 0009870446 SEALING CORD
ANTI-FREEZE DEVICE,CONNECTIONS:
"10,20"
221 N 074305022202 NUT
ANTI-FREEZE DEVICE,CONNECTION:
"10"
225 A 0004292595 AIR CLEANER
BOSCH
225 A 0004292695 AIR CLEANER
KNORR
225 A 0004292795 AIR CLEANER
WABCO
225 A 0004292895 AIR CLEANER
GRAU
226 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
227 A 0059930901 SPRING
TO 000 429 27 95,WABCO
228 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
228 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
228 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
229 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
229 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
229 A 0049972248 SEAL RING
Repalced by: A 0289972348
229 A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
230 A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
230 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
230 A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
231 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
231 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
232 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
232 A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
233 A 0019972372 FITTING
AIR CLEANER;CONNECTIONS:
"10,20"
234 A 0009905871 ELBOW FITTING
AIR CLEANER,CONNECTION:
"10"
234 A 0029902271 ELBOW FITTING
AIR CLEANER,CONNECTION:
"10"
235 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
235 A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
N 003910015001 BULKHEAD FITTING
AIR CLEANER,CONNECTION:
"20"
238 A 0004290227 THRUST RING
Repalced by: A 0009940203
238 A 0009940203 THRUST RING
AIR CLEANER;CONNECTIONS:
"10,20"
240 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"10,20"
242 N 074305022202 NUT
AIR CLEANER;CONNECTIONS:
"10,20"
244 A 6204310740 BRACKET
AIR CLEANER
246 N 000933008147 SCREW
Repalced by: N 304017008021
246 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
248 N 000125008418 WASHER
Repalced by: N 000125008443
248 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
250 N 913004008004 NUT
Repalced by: N 913004008001
250 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
251 A 6154320640 BRACKET
AIR CLEANER
252 N 000933012064 SCREW
BRACKET TO FRAME SIDE MEMBER
M 12X25
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 SCREW
BRACKET TO FRAME SIDE MEMBER
M 12X1.5X25
252B N 913002012004 NUT
BRACKET TO FRAME SIDE MEMBER
M 12
N 910113012002 NUT
BRACKET TO FRAME SIDE MEMBER
M 12X1.5
253 A 0019908168 FITTING
AT BRACKET
256 N 915036012203 HOLLOW SCREW
AT BRACKET
257 N 007603016401 SEAL RING
AT BRACKET
258 N 080705012003 NUT
AT BRACKET
259 N 304017010027 SCREW
AIR CLEANER TO BRACKET
M 10X16
260 N 912004010102 LOCK WASHER
AIR CLEANER TO BRACKET

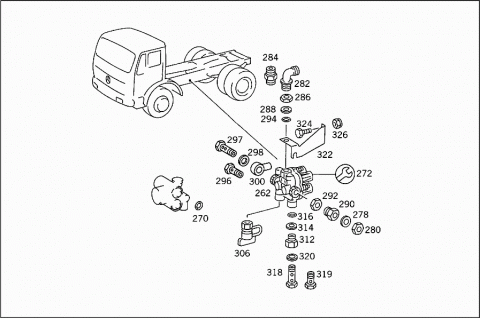

262 A 0014319306 VALVE
Repalced by: A 0034315006
262 A 0014318906 VALVE
Repalced by: A 0024314006
262 A 0024314006 VALVE
Repalced by: A 0034315006
262 A 0014318706 VALVE
Repalced by: A 0034315006
262 A 0024310206 VALVE
Repalced by: A 0024312706
262 A 0024312706 VALVE
Repalced by: A 0024319106
262 A 0024319106 VALVE
Repalced by: A 0034315006
262 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
270 A 0059973248 SEAL RING
TO 002 431 02 06,GRAU
262 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
272 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
272 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
272 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
272 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
272 A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66 001
272 A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
278 N 000125017010 WASHER
Repalced by: N 000125017016
278 N 000125017016 WASHER
VALVE TO BRACKET
280 N 080705016003 NUT
VALVE TO BRACKET
282 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
282 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
284 A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
286 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
288 A 0004290227 THRUST RING
Repalced by: A 0009940203
288 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
290 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
292 N 000439016206 NUT
Repalced by: N 308675016001
292 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
294 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
296 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
297 N 915047012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21","23"
298 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
300 A 0019900788 BANJO UNION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21","23"
306 A 0034291044 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
306 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
306 A 0044293744 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
306 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
312 A 0019973872 FITTING
Repalced by: A 0009977172
312 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
314 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
316 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
318 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
318 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
319 N 915036008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
320 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
322 A 6164310240 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
324 N 000933008147 SCREW
Repalced by: N 304017008021
324 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
326 N 913004008004 NUT
Repalced by: N 913004008001
326 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT

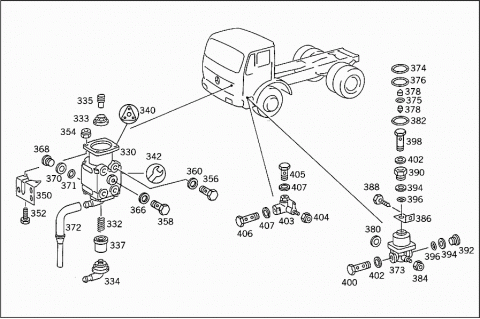

330 A 0024310605 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
330 A 0024311005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
330 A 0024312005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
330 A 0014318305 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
330 A 0014318905 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
330 A 0014319105 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
330 A 0014319905 BRAKE VALVE
TRUCK-TRACTOR BRAKE
GRAU
332 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
333 A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
334 A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
335 A 0004318383 PISTON
TO 001 431 83 05,WABCO
337 A 0004313623 VALVE
WABCO
340 A 0004300060 REPAIR KIT
Repalced by: A 0014308460
340 A 0014308460 GASKET KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 10 05,BOSCH
342 A 0035861143 REPAIR KIT
Repalced by: A 0004306360
342 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
342 A 0004308206 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 06 05,WABCO
342 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
342 A 0004306260 REPAIR KIT
Repalced by: A 0014300460
342 A 0014300460 REPAIR KIT
Repalced by: A 0004308006
342 A 0004308006 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 83 05,WABCO
342 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
342 A 0004303506 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 89 05,BOSCH
342 A 0035861243 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 91 05,KNORR
350 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
352 N 000933008152 SCREW
Repalced by: N 304017008027
352 N 304017008027 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
354 N 913004008004 NUT
Repalced by: N 913004008001
354 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
356 N 915036012203 HOLLOW SCREW
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
358 N 915036008202 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"40"
360 N 007603016401 SEAL RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
366 N 007603012405 SEAL RING
BRAKE VALVE,CONNECTION:
"40"
368 N 000908016001 SCREW PLUG
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
370 A 0004290927 THRUST RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
371 A 0009971548 SEAL RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
372 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
372 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
373 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
374 A 0019871746 SEALING CORD
375 A 0089970445 SEAL RING
376 A 0089978648 SEAL RING
378 A 0004313223 VALVE
380 N 007603016401 SEAL RING
382 A 0089978748 SEAL RING
384 N 913004008004 NUT
Repalced by: N 913004008001
384 N 913004008001 NUT
VALVE TO FLOOR
386 A 6204312440 BRACKET
PRESSURE RATIO VALVE
386 A 6204312540 BRACKET
PRESSURE RATIO VALVE
388 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
390 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
390 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
392 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
394 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
396 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
398 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
400 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
402 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
403 A 0029900271 ELBOW FITTING
PRESSURE RATIO VALVE,CONNECTIONS:
"2"
403 A 0029900871 ELBOW FITTING
PRESSURE RATIO VALVE,CONNECTIONS:
"2"
404 N 913004008004 NUT
Repalced by: N 913004008001
404 N 913004008001 NUT
FITTING TO CAB FLOOR
405 N 915036012203 HOLLOW SCREW
AT FITTING
406 N 915047012203 HOLLOW SCREW
AT FITTING
407 N 007603016401 SEAL RING
AT FITTING
408 A 0004324801 RESERVOIR
Repalced by: A 0014327501
408 A 0014327501 RESERVOIR
Repalced by: A 0034321201
408 A 0034321201 RESERVOIR
FRONT AIR RESERVOIR
20 L
412 A 0004322001 RESERVOIR
Repalced by: A 0034321001
412 A 0034321001 RESERVOIR
PARKING BRAKE
20 L
414 A 3874320540 BRACKET
PRESSURE REGULATOR
416 N 000933008215 SCREW
Repalced by: A 0069909301
416 A 0069909301 SCREW
BRACKET TO APPARATUS SUPPORT
418 N 913004008004 NUT
Repalced by: N 913004008001
418 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
420 A 6204300440 STRAP
FRONT AIR RESERVOIR
420 A 6204301240 STRAP
FRONT AIR RESERVOIR
420 A 6204301040 STRAP
FRONT AIR RESERVOIR
421 A 6204300240 STRAP
FRONT AIR RESERVOIR
421 A 3874300640 STRAP
FRONT AIR RESERVOIR
422 A 6204300540 STRAP
FRONT AIR RESERVOIR
424 N 913004010008 NUT
Repalced by: N 910113010000
424 N 910113010000 NUT
AIR RESERVOIR TO BRACKET
426 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"35"
426 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"33"
427 N 915036012203 HOLLOW SCREW
"13"
427 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
427 N 915036012203 HOLLOW SCREW
"33"
427B A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
427B A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"33"
427F N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
427F N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"23"
427F N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"33"
428 A 0009905168 FITTING
AIR RESERVOIR,CONNECTIONS:
"13,23"
430 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
430 N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
432 A 0004290227 THRUST RING
Repalced by: A 0009940203
432 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,23,33"
434 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"13,23,33"

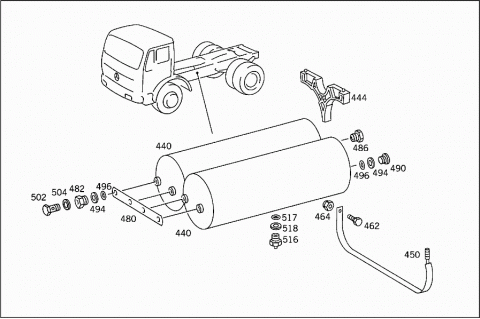

440 A 0004322601 RESERVOIR
Repalced by: A 0034321801
440 A 0034321801 RESERVOIR
INSIDE AND OUTSIDE AIR RESERVOIRS
30 L
442 A 0004327501 RESERVOIR
Repalced by: A 0014328901
442 A 0014328901 RESERVOIR
BRAKE CIRCUIT I
5/25 L
A 3874320101 RESERVOIR
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
AIR RESERVOIR TO BRACKET
444 A 6204320018 BASE
STRAP TO SUPPORT
448 A 3354320418 BASE
RIGHT AIR RESERVOIR
450 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
454 A 6154300040 STRAP
LEFT AIR RESERVOIR
456 A 3524300040 STRAP
Repalced by: A 3354300340
456 A 3354300340 STRAP
RIGHT AIR RESERVOIR
A 3874300640 STRAP
460 A 6154320440 BRACKET
RIGHT AIR RESERVOIR
A 6154321040 BRACKET
AT CROSS MEMBER
A 3874320540 BRACKET
AT CROSS MEMBER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO CROSS MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO CROSS MEMBER
462 N 000933010105 SCREW
STRAP TO SUPPORT
N 001440010002 WASHER
STRAP TO SUPPORT
464 N 913004010008 NUT
Repalced by: N 910113010000
464 N 910113010000 NUT
STRAP TO SUPPORT
468 A 0009951320 CLAMP
Repalced by: A 3609950501
468 A 3609950501 CLAMP
Repalced by: A 3609952001
468 A 3609952001 CLAMP
Repalced by: A 6739950001
468 A 6739950001 CLAMP
COMPRESSED AIR LINE MOUNTING
468 A 6739950001 CLAMP
ANTI-FREEZE DEVICE
470 N 000933006102 SCREW
M 6X16
472 N 007985006193 SCREW
Repalced by: N 000000001146
472 N 000000001146 SCREW
ANTI-FREEZE DEVICE
M 6X16
474 N 913004006002 NUT
Repalced by: N 913004006001
474 N 913004006001 NUT
476 N 000933010129 SCREW
Repalced by: N 304017010002
476 N 304017010002 SCREW
BRACKET TO SUPPORT
478 N 913004010008 NUT
Repalced by: N 910113010000
478 N 910113010000 NUT
BRACKET TO SUPPORT
480 A 3464320073 LOCK
PROTECTION AGAINST TORSION
482 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
486 A 0009905168 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,42,51,52"
490 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
490 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTIONS:
"32,41"
492 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
492 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"52"
494 A 0004290227 THRUST RING
Repalced by: A 0009940203
494 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32,41,42,51,52"
496 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32,41,42,51,52"
498 N 915039012205 HOLLOW SCREW FITTING
AIR RESERVOIR,CONNECTION:
"52,42,51"
502 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,22,42,51"
503 N 915037012200 HOLLOW SCREW FITTING
AIR RESERVOIR,CONNECTION:
"21"
504 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,42,51,52"
508 A 0039977072 FITTING
AIR RESERVOIR,CONNECTIONS:
"12,21"
510 N 080705016003 NUT
AIR RESERVOIR,CONNECTIONS:
"12,21"
514 A 0004290927 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"12,21"
515 A 0009971548 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"12,21"
A 0009970934 UNION SCREW
AIR RESERVOIR,CONNECTIONS:
TO M22
516 A 0004322407 VALVE
DRAIN
516 A 0004321107 VALVE
DRAIN
516 A 0004321907 VALVE
DRAIN
516 A 0004322107 VALVE
DRAIN
517 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
518 A 0004290227 THRUST RING
Repalced by: A 0009940203
518 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
520 A 0034290844 VALVE
(OVERFLOW VALVE)
GRAU
520 A 0034290944 VALVE
(OVERFLOW VALVE)
WABCO
524 A 0024298844 VALVE
TO 003 429 08 44,GRAU
526 A 0004290745 DIAPHRAGM
TO 003 429 08 44,GRAU
528 A 0005865842 REPAIR KIT
TO 003 429 09 44,WABCO
530 N 080705016003 NUT
OVERFLOW VALVE TO AIR RESERVOIR
532 A 0004290927 THRUST RING
OVERFLOW VALVE TO AIR RESERVOIR
534 A 0009971548 SEAL RING
OVERFLOW VALVE TO AIR RESERVOIR
536 A 0009905168 FITTING
OVERFLOW VALVE,CONNECTIONS:
"10,20"
538 A 0004290227 THRUST RING
Repalced by: A 0009940203
538 A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTIONS:
"10,20"
540 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTIONS:
"10,20"
544 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION:
"20"
546 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"20"
564 A 0024299644 VALVE
(CHECK VALVE)
VOSS
564 A 0034290444 VALVE
(CHECK VALVE)
WABCO
565 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
566 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
568 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
570 A 0002950320 VALVE
TO 003 429 04 44,WABCO
572 A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
574 A 0109970048 SEAL RING
13.6X2 MM;TO 003 429 12 44,SCHAEFER
576 A 0109970148 SEAL RING
15.3X2.4 MM;TO 003 429 12 44,SCHAEFER
578 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
580 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
582 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
584 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
586 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
588 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
590 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
592 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
592 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
594 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
596 A 6204292540 BRACKET
Repalced by: A 6164290140
596 A 6164290140 BRACKET
CHECK VALVE
598 N 074305022202 NUT
CHECK VALVE TO BRACKET
600 N 000933010129 SCREW
Repalced by: N 304017010002
600 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
602 N 913004010008 NUT
Repalced by: N 910113010000
602 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
622 A 0034291644 VALVE
RELAY VALVE
BOSCH
622 A 0014296844 VALVE
RELAY VALVE
WABCO
622 A 0034295344 VALVE
RELAY VALVE
KNORR
622 A 0014299144 VALVE
RELAY VALVE
GRAU
626 A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 91 44,GRAU
628 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
630 A 0059972748 SEAL RING
80X3 MM;TO 000 429 28 95, GRAU
632 A 0014311660 SEAL RING
28X2 MM;TO 001 429 91 44,GRAU
634 A 0014311760 SEAL RING
86X2 MM;TO 001 429 91 44,GRAU
636 A 0004311980 GASKET
34X2X6 MM;TO 001 429 91 44,GRAU
640 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
640 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
640 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
642 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
642 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
643 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
643 A 0005863542 REPAIR KIT
TO 003 429 53 44,KNORR
646 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
648 A 0004290227 THRUST RING
Repalced by: A 0009940203
648 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"1"
650 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
652 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,4"
654 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,4"
656 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
658 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
660 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",LEFT
"2"
662 A 6174310640 BRACKET
RELAY VALVE
664 N 913004008004 NUT
Repalced by: N 913004008001
664 N 913004008001 NUT
RELAY VALVE TO BRACKET
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
RELAY VALVE TO BRACKET
666 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
668 N 913004010008 NUT
Repalced by: N 910113010000
668 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
680 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
680 A 0014313612 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
680 A 0024310412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
680 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
680 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
680 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
682 A 0035860243 REPAIR KIT
Repalced by: A 0004307560
682 A 0004307560 REPAIR KIT
TO 001 431 32 12,001 431 33 12,WABCO
682 A 0014311586 REPAIR KIT
COVERING
TO 001 431 36 12,BOSCH
682 A 0014311486 REPAIR KIT
COVERING
TO 001 431 36 12,BOSCH
682 A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,36 12,BOSCH
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 04 12,KNORR
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
683 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,36 12,BOSCH

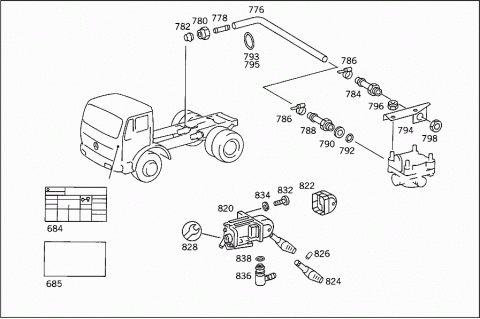

684 A 6155840721 GUIDE SIGN
LOAD-DEPENDING BRAKE
684 A 6155841121 GUIDE SIGN
LOAD-DEPENDING BRAKE
684 A 6155840821 GUIDE SIGN
LOAD-DEPENDING BRAKE
684 A 6155840921 GUIDE SIGN
LOAD-DEPENDING BRAKE
684 A 6155841621 GUIDE SIGN
LOAD-DEPENDING BRAKE
685 A 3875840055 ADHESIVE FOIL
686 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
688 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
690 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
692 N 000908016001 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION:
"2"
694 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
696 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
698 A 6154310140 BRACKET
BRAKE POWER REGULATOR
700 A 6174310240 BRACKET
BRAKE POWER REGULATOR
701 A 6454310440 BRACKET
BRAKE POWER REGULATOR
A 6174310195 WEB
AT BRACKET
N 000933008004 SCREW
REINFORCEMENT TO CONSOLE
M 8X20
702 N 000125008418 WASHER
Repalced by: N 000125008443
702 N 000125008443 WASHER
BRAKE POWER REGULATOR TO BRACKET
702 N 000125008443 WASHER
REINFORCEMENT TO CONSOLE
704 N 913004008004 NUT
Repalced by: N 913004008001
704 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
704 N 913004008001 NUT
REINFORCEMENT TO CONSOLE
710 N 000933010105 SCREW
BRACKET TO SIDE MEMBER
M 10X25
711 N 000933010128 SCREW
CONSOLE TO SIDE MEMBER
M 10X20
711 N 000933010128 SCREW
CONSOLE TO SIDE MEMBER
M 10X20
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
CONSOLE TO SIDE MEMBER
M 10X30
711 N 000933010164 SCREW
CONSOLE TO SIDE MEMBER
M 10X22
711 N 000933010105 SCREW
CONSOLE TO SIDE MEMBER
M 10X25
711B N 000125010518 WASHER
Repalced by: N 000125010532
711B N 000125010532 WASHER
CONSOLE TO SIDE MEMBER
711B N 007349010003 WASHER
Repalced by: N 007349010007
711B N 007349010007 WASHER
CONSOLE TO SIDE MEMBER
712 N 913004010008 NUT
Repalced by: N 910113010000
712 N 910113010000 NUT
BRACKET TO SIDE AND CROSS MEMBERS
714 A 3854310239 LEVER
Repalced by: A 6204310839
714 A 6204310839 LEVER
Repalced by: A 6744310039
714 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
716 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
716 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
716 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
716 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
718 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
719 N 916026010000 CLAMP
Repalced by: N 000000000665
719 N 000000000665 CLAMP
CONNECTOR TO ROD
722 A 6249950065 CLAMP
CONNECTOR TO ROD
724 N 304032008006 NUT
PULL ROD TO METAL-SPRING-BELLOWS BALL JOINT
726 N 000125008418 WASHER
Repalced by: N 000125008443
726 N 000125008443 WASHER
CONNECTOR TO ROD
727 N 000094002069 COTTER PIN
CONNECTOR TO ROD
728 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
728 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
728 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
728 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
A 6174310175 THREADED UNION
METAL SPRING BELLOWS
N 009021013200 WASHER
METAL SPRING BELLOWS
N 912004010102 LOCK WASHER
METAL SPRING BELLOWS
N 912004012100 LOCK WASHER
METAL SPRING BELLOWS
730 A 6204314240 BRACKET
BRAKE POWER REGULATOR CONTROL
731 A 6174311040 BRACKET
BRAKE POWER REGULATOR CONTROL
731 A 6524310440 BRACKET
732 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
732 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M12X1.5X18
732 N 000961012173 SCREW
Repalced by: A 0079903901
732 A 0079903901 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X16
732B A 6154311140 BRACKET
METAL SPRING BELLOWS
733 A 6174310075 THREADED UNION
METAL SPRING BELLOWS TO REAR AXLE
733 A 6174310175 THREADED UNION
METAL SPRING BELLOWS TO REAR AXLE
734 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
734 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
734 N 912004010102 LOCK WASHER
METAL SPRING BELLOWS TO REAR AXLE
735 N 009021013200 WASHER
METAL SPRING BELLOWS TO REAR AXLE
735F N 914140010006 SCREW
METAL SPRING BELLOWS TO REAR AXLE
M 10X16
735K N 001470004001 GROOVED PIN
METAL SPRING BELLOWS TO REAR AXLE
736 N 000961016096 SCREW
Repalced by: N 308676016007
736 N 308676016007 SCREW
BRACKET TO REAR AXLE
M 16X1.5X50
736 N 000961012052 SCREW
Repalced by: N 308676012012
736 N 308676012012 SCREW
BRACKET TO REAR AXLE
M 12X1.5X25
738 A 6209900640 WASHER
BRACKET TO REAR AXLE
738 A 3609900940 WASHER
BRACKET TO REAR AXLE
740 A 0094200918 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
741 A 0004311728 DIAPHRAGM
742 A 0004212286 CUP
Repalced by: A 0004215286
742 A 0004215286 CUP
743 A 0004305160 REPAIR KIT
TRISTOP CYLINDER
744 A 6154200078 BEARING BRACKET
TRISTOP CYLINDER
745 N 007346012003 CLAMPING SLEEVE
746 N 000961016036 SCREW
Repalced by: N 308676016013
746 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
747 N 913004016004 NUT
Repalced by: N 910113016002
747 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
750 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
752 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
754 N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
760 A 0019905370 T-FITTING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
762 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
762 A 0069970072 FITTING
LEFT TRISTOP CYLINDER,CONNECTIONS:
"1,2"
764 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
766 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
768 A 0004290927 THRUST RING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
770 N 915039012205 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
770 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"2"
770 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"1"
770 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"2"
772 N 915036012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"1"
773 N 915047012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"1"
773 N 915047012203 HOLLOW SCREW
LEFT TRISTOP CYLINDER,CONNECTION:
"2"
773 N 915047012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"2"
773B A 0019900788 BANJO UNION
RIGHT TRISTOP CYLINDER,CONNECTION:
"1"
773B A 0019900788 BANJO UNION
LEFT TRISTOP CYLINDER,CONNECTION:
"2"
773B A 0019900788 BANJO UNION
RIGHT TRISTOP CYLINDER,CONNECTION:
"2"
774 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
776 N 916027011014 HOSE
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
778 A 0004290541 FITTING
AT TRISTOP CYLINDER
780 N 915017012100 UNION NUT
782 N 003861012007 GLAND
Repalced by: A 0019901967
782 A 0019901967 SEAL CONE
784 A 0004290641 FITTING
AT BRACKET
786 N 916017016000 CLAMP
Repalced by: N 000000000666
786 N 000000000666 CLAMP
788 N 074304016201 FITTING
790 A 0004290927 THRUST RING
FITTING TO RELAY VALVE
790 A 0004290927 THRUST RING
FITTING TO BRAKE POWER REGULATOR
792 A 0009971548 SEAL RING
FITTING TO RELAY VALVE
792 A 0009971548 SEAL RING
FITTING TO BRAKE POWER REGULATOR
793 A 3039971440 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
A 1159950465 CLAMP
BRAKE HOSE TO PARKING BRAKE HOSE
A 6209950065 CLAMP
BRAKE HOSE TO PARKING BRAKE HOSE
794 A 6204292040 BRACKET
FITTING
795 A 0039975745 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
796 N 913004008004 NUT
Repalced by: N 913004008001
796 N 913004008001 NUT
BRACKET TO RELAY VALVE
798 N 080705018002 NUT
FITTING TO BRACKET
820 A 0014303481 VALVE
HAND BRAKE VALVE
BOSCH
820 A 0014305681 VALVE
HAND BRAKE VALVE
WABCO
820 A 0014306681 VALVE
Repalced by: A 0024309881
820 A 0024309881 VALVE
HAND BRAKE VALVE
KNORR
820 A 0014304381 VALVE
HAND BRAKE VALVE
BOSCH
820 A 0014305781 VALVE
HAND BRAKE VALVE
WABCO
820 A 0014306781 VALVE
Repalced by: A 0024309981
820 A 0024309981 VALVE
HAND BRAKE VALVE
KNORR
822 A 0014311287 PROTECTIVE CAP
KNORR
822 A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,57 81,WABCO
822 A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,43 81,BOSCH
824 A 0009975577 HANDLE
KNORR
824 A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81,WABCO
824 A 0004300027 HANDLE
TO 001 430 34 81,001 430 43 81,BOSCH
826 N 001481003025 CLAMPING SLEEVE
KNORR
828 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
828 A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81,WABCO
828 A 0025866343 REPAIR KIT
TO 001 430 34 81,001 430 43 81,BOSCH
828 A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
828 A 0035860543 REPAIR KIT
TO 001 430 66 81,001 430 67 81,KNORR
832 N 007985008119 SCREW
VALVE TO CAB
834 N 912006008000 LOCK WASHER
VALVE TO CAB
836 A 0009976189 COUPLING
HAND BRAKE VALVE,CONNECTIONS:
"11,21"
838 A 0099973948 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
