Transporto priemonė: 1222; VIN numerio dalis: 615026

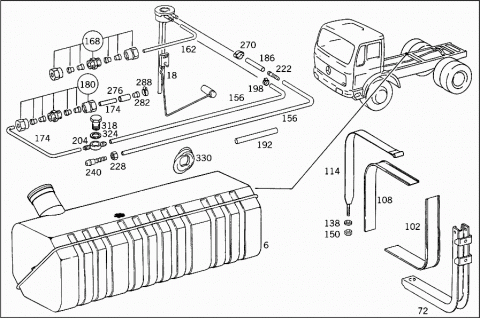

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3834701101 | FUEL TANK |
| Repalced by: A 6164700001 | ||
| 006 | A 3834701101 | FUEL TANK |
| Repalced by: A 6164700001 | ||
| 006 | A 3834700901 | FUEL TANK |
| Repalced by: A 6164700001 | ||
| A 6164700001 | FUEL TANK | |
| Repalced by: A 6524700101 | ||
| A 6524700101 | FUEL TANK | |
| PLASTIC VERSION | ||
| 125 L | ||
| A 6524700101 | FUEL TANK | |
| PLASTIC VERSION | ||
| 125 L | ||
| A 3834701301 | FUEL TANK | |
| Repalced by: A 6504700501 | ||
| A 6504700501 | FUEL TANK | |
| EINFUELLSTUTZEN IST VOM AUFBAUHERSTELLERZU BEZIEHEN | ||
| 125 L | ||
| 018 | A 0055423417 | SENDER UNIT |
| Repalced by: A 0085427717 | ||
| 018 | A 0085427717 | SENDER UNIT |
| FUEL TANK | ||
| 018 | A 0085427717 | SENDER UNIT |
| FUEL TANK | ||
| A 0055423617 | SENDER UNIT | |
| Repalced by: A 0085427917 | ||
| A 0085427917 | SENDER UNIT | |
| Repalced by: A 0085428917 | ||
| A 0085427917 | SENDER UNIT | |
| Repalced by: A 0085428917 | ||
| 024 | A 0055423517 | SENDER UNIT |
| Repalced by: A 0085427817 | ||
| 024 | A 0085427817 | SENDER UNIT |
| FUEL TANK | ||
| 030 | A 0004710235 | FUEL STRAINER |
| AT TANK | ||
| 036 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 042 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 042 | N 007604014110 | SCREW PLUG |
| FUEL TANK | ||
| 048 | N 915035000017 | SEAL RING |
| FUEL TANK | ||
| 054 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 054 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 054 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 054 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 054 | A 0004700305 | FILLER CAP |
| 060 | A 3049970340 | SEAL RING |
| 066 | A 3034700031 | CHAIN |
| 072 | A 6174700742 | SUPPORT |
| FUEL TANK | ||
| TO 383 470 09 01,1101 | ||
| 072 | A 6174700742 | SUPPORT |
| FUEL TANK | ||
| TO 383 470 09 01,1101 | ||
| A 6174701242 | SUPPORT | |
| FUEL TANK | ||
| TO 616 470 00 01 | ||
| 072 | A 6174700842 | SUPPORT |
| FUEL TANK | ||
| A 6174701442 | SUPPORT | |
| FUEL TANK | ||
| A 6174701442 | SUPPORT | |
| FUEL TANK | ||
| A 6174703042 | SUPPORT | |
| FUEL TANK | ||
| 078 | A 6154700042 | SUPPORT |
| Repalced by: A 6504700042 | ||
| 078 | A 6504700042 | SUPPORT |
| Repalced by: A 6504700142 | ||
| 078 | A 6504700142 | SUPPORT |
| FRONT TANK | ||
| 078 | A 6154700142 | SUPPORT |
| REAR TANK | ||
| A 6504750084 | SHIM | |
| Repalced by: A 3974750084 | ||
| A 3974750084 | SHIM | |
| FRONT CONSOLE TO FRAME | ||
| 090 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 090 | N 308676014020 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X35 | ||
| 090 | N 308676014020 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X35 | ||
| 090 | N 308676014020 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X35 | ||
| 090 | N 000961014028 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X40 | ||
| 090 | N 000961014028 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X40 | ||
| 096 | N 912004014100 | LOCK WASHER |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| A 3434750026 | REINFORCEMENT | |
| REINFORCEMENT RAIL TO CONSOLE | ||
| 102 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 600 MM | ||
| 108 | A 3634750320 | PAD |
| 540 MM | ||
| A 3834750087 | STOP | |
| FUEL TANK TO CONSOLE | ||
| A 3834750087 | STOP | |
| FUEL TANK TO CONSOLE | ||
| A 6174750084 | SHIM | |
| FUEL TANK TO CONSOLE | ||
| 114 | A 3834700540 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 114 | A 3834700540 | STRAP |
| FUEL TANK TO CONSOLE | ||
| TO 383 470 09 01,1101 | ||
| 114 | A 6174700040 | STRAP |
| Repalced by: A 6174700240 | ||
| 114 | A 6174700240 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 114 | A 6174700040 | STRAP |
| Repalced by: A 6174700240 | ||
| 114 | A 6174700240 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 120 | A 3834700340 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 126 | N 001443016203 | PIN |
| N 000094004051 | COTTER PIN | |
| 132 | A 3609970126 | WASHER |
| STRAP TO SUPPORT | ||
| 138 | N 000125013008 | WASHER |
| 144 | N 910113012002 | NUT |
| STRAP TO SUPPORT | ||
| M 12X1.5 | ||
| 150 | N 000934012021 | NUT |
| STRAP TO SUPPORT | ||
| M 12 | ||
| N 910113012002 | NUT | |
| STRAP TO SUPPORT | ||
| M 12X1.5 | ||
| 156 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 162 | A 0089979082 | HOSE |
| AERATION | ||
| 6X8 MM | ||
| 168 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 168 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 174 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 174 | A 0009872627 | PLASTIC PIPE |
| LEAK LINE | ||
| 4X6 MM | ||
| 180 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 186 | A 3054760126 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 192 | N 040621011200 | INSULATING HOSE |
| FEED LINE | ||
| 198 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 198 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 204 | A 0009908188 | BANJO UNION |
| FEED LINE | ||
| 210 | N 915052008016 | BANJO UNION |
| FEED LINE | ||
| 210 | N 915052008016 | BANJO UNION |
| FEED LINE | ||
| 222 | A 3879900078 | CONNECTOR |
| Repalced by: N 915062008000 | ||
| 222 | N 915062008000 | SLEEVE |
| FUEL LINE | ||
| 228 | N 915017008201 | UNION NUT |
| FUEL LINE | ||
| 234 | N 915017010200 | UNION NUT |
| RETURN LINE | ||
| 234 | N 915017010200 | UNION NUT |
| RETURN LINE | ||
| 240 | A 0019975272 | FITTING |
| FUEL LINE | ||
| 246 | A 0019974972 | FITTING |
| RETURN LINE | ||
| 246 | A 0019974972 | FITTING |
| RETURN LINE | ||
| 252 | A 3874760136 | BRACKET |
| Repalced by: A 6454310740 | ||
| 252 | A 6454310740 | BRACKET |
| LINE MOUNTING | ||
| 258 | A 3854760036 | BRACKET |
| Repalced by: A 6205240340 | ||
| 258 | A 6205240340 | BRACKET |
| LINE MOUNTING | ||
| A 6174760136 | BRACKET | |
| LINE MOUNTING | ||
| A 6154760136 | BRACKET | |
| LINE MOUNTING | ||
| A 6174760336 | BRACKET | |
| FUEL LINE TO TRANSMISSION | ||
| A 6174760636 | BRACKET | |
| Repalced by: A 6174761336 | ||
| A 6174761336 | BRACKET | |
| FUEL LINE TO FRAME | ||
| A 6174761336 | BRACKET | |
| FUEL LINE TO FRAME | ||
| A 6174760436 | BRACKET | |
| FUEL LINE TO TRANSMISSION | ||
| A 6174760536 | BRACKET | |
| FUEL LINE TO TRANSMISSION | ||
| A 6174760536 | BRACKET | |
| FUEL LINE TO TRANSMISSION | ||
| 270 | A 0029978790 | CLIP |
| RETURN | ||
| 276 | N 073379006203 | HOSE |
| LEAK LINE | ||
| 282 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 288 | N 900288010001 | CLAMP |
| LEAK LINE | ||
| 294 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 294 | N 304017008034 | SCREW |
| ENGINE SUSPENSION EYE | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| FUEL LINE TO FRAME | ||
| N 304017008027 | SCREW | |
| FUEL LINE TO FRAME | ||
| 300 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 300 | N 913004008001 | NUT |
| ENGINE SUSPENSION EYE | ||
| 300 | N 913004008001 | NUT |
| FUEL LINE TO FRAME | ||
| 300 | N 913004008001 | NUT |
| ENGINE SUSPENSION EYE | ||
| 306 | A 0019978490 | LOOM TIE |
| FUEL LINE | ||
| 376 MM | ||
| 312 | A 0019978390 | LOOM TIE |
| FUEL LINE | ||
| 280 MM | ||
| 318 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 318 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 324 | N 007603014405 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 330 | A 3879970481 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 38/30 MM | ||
| 330 | A 3879970481 | GROMMET |
| FUEL LINE TO FRAME | ||
| 38/30 MM | ||
| 336 | A 4069975081 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
