Transporto priemonė: 1222; VIN numerio dalis: 615026
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6155010901 | RADIATOR |
| BEHR | ||
| 005 | A 6175012401 | RADIATOR |
| BEHR | ||
| 005 | A 6175013301 | RADIATOR |
| BEHR | ||
| 005 | A 6175013501 | RADIATOR |
| BEHR | ||
| 005 | A 0005017601 | RADIATOR |
| 005 | A 0005017601 | RADIATOR |
| 008 | A 0015010901 | RADIATOR |
| BEHR | ||
| 008 | A 0015010801 | RADIATOR |
| BEHR | ||

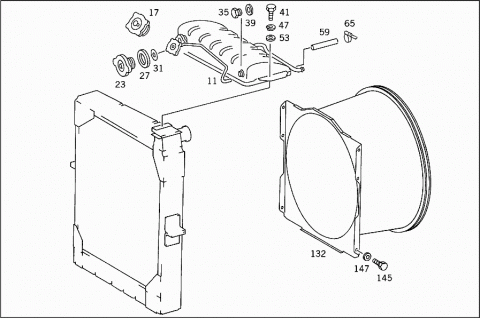

| 011 | A 0005000649 | TANK |
| COOLING WATER EXPANSION | ||
| TO 000 501 76 01,001 501 08 01 | ||
| 011 | A 0005001549 | TANK |
| COOLING WATER EXPANSION | ||
| TO 001 501 09 01 | ||
| 017 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 017 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 023 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 023 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 027 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 031 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 035 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 035 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 039 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 041 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 041 | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 047 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 053 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 053 | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 059 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 065 | A 0005040033 | CLAMP |
| Repalced by: N 916017011000 | ||
| 065 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 065 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 071 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 071 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 077 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||

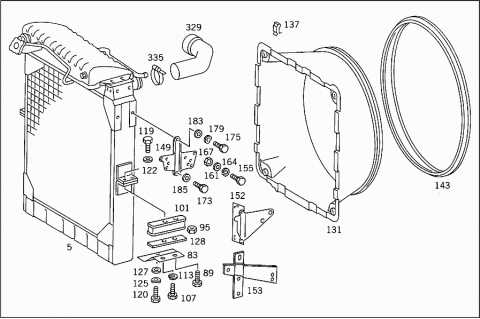

| 083 | A 3835040101 | SUPPORT |
| RADIATOR | ||
| 083 | A 3835040101 | SUPPORT |
| RADIATOR | ||
| 083 | A 3835040401 | SUPPORT |
| RADIATOR | ||
| 089 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X32 | ||
| 095 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 101 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 101 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 101 | A 3875040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 107 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 10X18 | ||
| 113 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 119 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 119 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 120 | N 000933010145 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 10X35 | ||
| 120 | N 000933010094 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 10X40 | ||
| 122 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 122 | N 009021010209 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 125 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 127 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 127 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 128 | A 3835040084 | SHIM |
| 128 | A 3855040184 | SHIM |
| 128 | A 3855040284 | SHIM |
| 128 | A 3142360384 | SHIM |
| RUBBER MOUNTING TO SUPPORT | ||
| 131 | A 6165050255 | FAN SHROUD |
| RADIATOR | ||
| 131 | A 6165050255 | FAN SHROUD |
| RADIATOR | ||
| 132 | A 6165050355 | FAN SHROUD |
| RADIATOR | ||

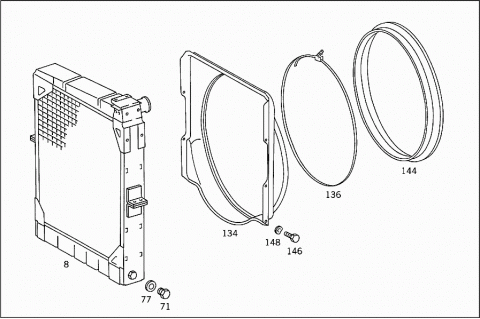

| 134 | A 6175050030 | AIR BAFFLE |
| RADIATOR | ||
| 136 | A 3639950065 | CLAMP |
| BOOT TO AIR BAFFLE | ||
| 137 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 143 | A 6175050086 | BOOT |
| FAN SHROUD | ||
| 144 | A 3635050180 | BOOT |
| AIR BAFFLE | ||
| 145 | N 000933006102 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| M 6X16 | ||
| 146 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 146 | N 304017006018 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| 146 | N 000933006130 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| 147 | A 3859901140 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 148 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 148 | N 000137006204 | SPRING WASHER |
| GUIDE TUBE BRACKET TO RADIATOR | ||
| 149 | A 4210100040 | BRACKET |
| OIL DIPSTICK GUIDE TUBE | ||
| 149 | A 4210100040 | BRACKET |
| OIL DIPSTICK GUIDE TUBE | ||
| 149 | A 4010100240 | BRACKET |
| OIL DIPSTICK GUIDE TUBE | ||
| 152 | A 4010100440 | BRACKET |
| OIL DIPSTICK GUIDE TUBE | ||
| 153 | A 3660100140 | BRACKET |
| OIL DIPSTICK GUIDE TUBE | ||
| 153 | A 3660100740 | BRACKET |
| OIL DIPSTICK GUIDE TUBE | ||
| 155 | N 000933008301 | SCREW |
| OIL DIPSTICK GUIDE TUBE | ||
| M 8X14 | ||
| 155 | N 000933008301 | SCREW |
| OIL DIPSTICK GUIDE TUBE | ||
| M 8X14 | ||
| 155 | N 000933008290 | SCREW |
| OIL DIPSTICK GUIDE TUBE | ||
| M 8X16 | ||
| 155 | N 000933008290 | SCREW |
| OIL DIPSTICK GUIDE TUBE | ||
| M 8X16 | ||
| 161 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 161 | N 000125008443 | WASHER |
| OIL DIPSTICK GUIDE TUBE | ||
| 161 | N 007349008003 | WASHER |
| OIL DIPSTICK GUIDE TUBE | ||
| 164 | N 912004008102 | LOCK WASHER |
| OIL DIPSTICK GUIDE TUBE | ||
| 167 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 167 | N 913004008001 | NUT |
| OIL DIPSTICK GUIDE TUBE | ||
| 173 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 173 | N 304017006016 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X16 | ||
| 173 | N 304017006016 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X16 | ||
| 173 | N 304017006016 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| M 6X16 | ||
| 173 | N 000933006130 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X18 | ||
| 175 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 175 | N 304017006020 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X20 | ||
| 179 | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 179 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 183 | N 000125006421 | WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 185 | A 3859901140 | WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 185 | A 3859901140 | WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||

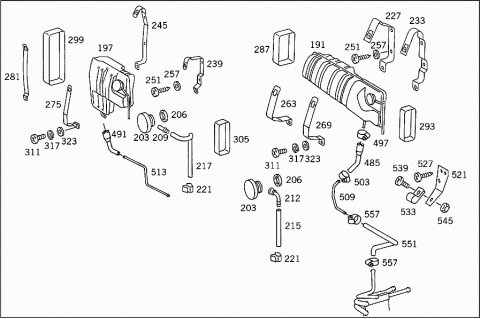

| 191 | A 6205000149 | TANK |
| (EXPANSION TANK) | ||
| 197 | A 6175000049 | TANK |
| Repalced by: A 6205000349 | ||
| 197 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 203 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 206 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 209 | A 0005010010 | DRAIN PIPE |
| TO 617 500 00 49 | ||
| 212 | A 0005010110 | DRAIN PIPE |
| TO 620 500 01 49,620 500 03 49 | ||
| 215 | A 0139978682 | HOSE |
| TO 620 500 01 49,617 500 00 49 | ||
| 217 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 217 | A 0219977682 | HOSE |
| TO 620 500 03 49 | ||
| 221 | A 0009881878 | CLIP |
| DE-AERATION | ||
| 221 | A 0009881878 | CLIP |
| DE-AERATION | ||
| 227 | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 233 | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 239 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 245 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 251 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 257 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 263 | A 6205010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 269 | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 275 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 281 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 287 | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 293 | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 299 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 305 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 311 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 311 | N 000000001146 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X16 | ||
| 317 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 323 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 323 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 329 | A 6165010882 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 329 | A 6165010882 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 329 | A 3835010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 329 | A 6175010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 335 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 335 | N 000000000674 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 335 | N 000000000674 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 335 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 335 | N 000000000671 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 335 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 335 | N 000000000672 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 341 | A 6165010982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 341 | A 6165010982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 344 | A 6165011182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 346 | A 6175010182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 347 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 347 | N 000000000674 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 347 | N 000000000674 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 347 | N 000000000674 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 347 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 347 | N 000000000672 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||

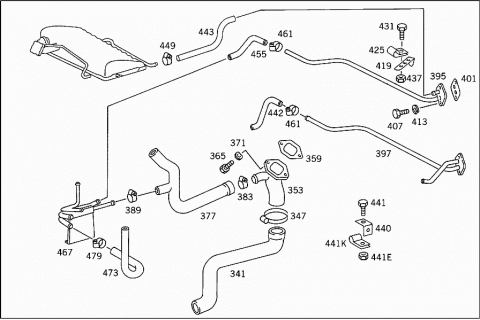

| 353 | A 6165010223 | CONNECTOR |
| AT WATER PUMP | ||
| 359 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 359 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 365 | N 000933010164 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X22 | ||
| 371 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||

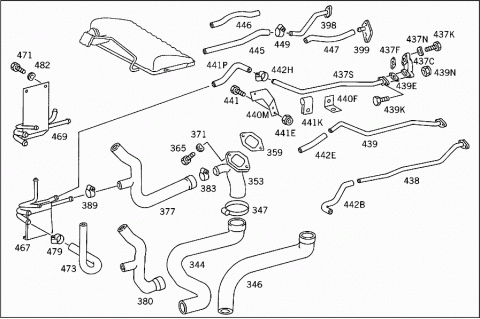

| 377 | A 6165010682 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 380 | A 6175012782 | HOSE |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 383 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 383 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 389 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 389 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 395 | A 6175000079 | FLANGE |
| HEATING AND BREATHING | ||
| 397 | A 6175000279 | FLANGE |
| HEATING AND BREATHING | ||
| 398 | A 6175000479 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 399 | A 6175000179 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 401 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 407 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 413 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 419 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| 425 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 431 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| M 6X18 | ||
| 437 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 437 | N 913004006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 437C | A 6205060161 | FLANGE |
| Repalced by: A 6205060261 | ||
| 437C | A 6205060261 | FLANGE |
| HEATING WATER LINE | ||
| 437F | N 917003022003 | GASKET |
| FLANGE TO ENGINE | ||
| 437K | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 437K | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 437K | A 0099900101 | SCREW |
| FLANGE TO ENGINE | ||
| 437N | N 000137008107 | SPRING WASHER |
| Repalced by: N 000137008204 | ||
| 437N | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 437N | N 000137008212 | SPRING WASHER |
| FLANGE TO ENGINE | ||
| 437S | A 6205003272 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 437S | A 6175002272 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 438 | A 6205003472 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 439 | A 6175002172 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 439E | N 917003022003 | GASKET |
| HEATING PIPE | ||
| 439K | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 439K | N 304017008018 | SCREW |
| HEATING PIPE | ||
| 439N | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 439N | N 913004008001 | NUT |
| HEATING PIPE | ||
| 440 | A 6205061740 | BRACKET |
| HEATING WATER LINE | ||
| 440F | A 3818320714 | BRACKET |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 440M | A 6175061040 | BRACKET |
| BEARING TUBE | ||
| 441 | N 000933006130 | SCREW |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 441 | N 000933006130 | SCREW |
| HEATING PIPE TO ANGLE | ||
| 441 | N 000933006130 | SCREW |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 441 | N 000933006130 | SCREW |
| BEARING TUBE | ||
| 441 | N 000933006130 | SCREW |
| HEATING PIPE TO BRACKET | ||
| 441E | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 441E | N 913004006001 | NUT |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 441E | N 913004006001 | NUT |
| HEATING PIPE TO ANGLE | ||
| 441E | N 913004006001 | NUT |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 441E | N 913004006001 | NUT |
| BEARING TUBE | ||
| 441E | N 913004006001 | NUT |
| HEATING PIPE TO BRACKET | ||
| 441K | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 441K | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 441K | A 3609950601 | CLAMP |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 441P | A 6205062235 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 441P | A 6175060935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 442 | A 6205062335 | HOSE |
| HEATING PIPE TO RADIATOR | ||
| 442B | A 6175014482 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 442E | A 6175060835 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 442H | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 442H | N 000000000667 | CLAMP |
| HEATING PIPE TO RADIATOR | ||
| 443 | A 6165011082 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 445 | A 6165011282 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 446 | A 6165011382 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 447 | A 6175010382 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 449 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 449 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 455 | A 6165060235 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 455 | A 6165060235 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 455 | A 6165060335 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 461 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 461 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 467 | A 6175000372 | LINE |
| HEATING;MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER | ||
| 469 | A 6175001372 | LINE |
| HEATING AND BREATHING | ||
| 471 | N 000933006130 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 473 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 479 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 479 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 482 | N 000137006204 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| 485 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 491 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| A 6205013282 | HOSE | |
| Repalced by: A 6205012882 | ||
| 491 | A 6205012882 | HOSE |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 497 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 497 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 497 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 503 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 503 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 503 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 503 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 509 | A 6175010225 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| A 6175010325 | BREATHER PIPE | |
| Repalced by: A 6205010725 | ||
| 513 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 521 | A 6175010420 | BRACKET |
| DE-AERATION LINE | ||
| 527 | N 007981005312 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 533 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 533 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 533 | N 916016008200 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 539 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 539 | N 000000001146 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X16 | ||
| 545 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 545 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 551 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 557 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 557 | N 000000000665 | CLAMP |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||

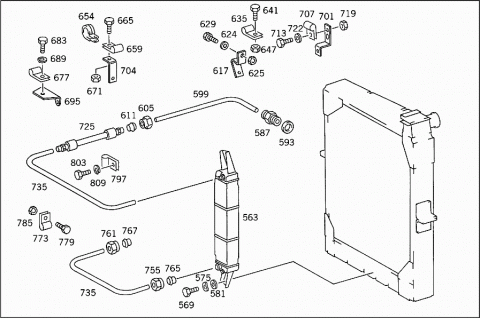

| 563 | A 0005014401 | RADIATOR |
| OIL COOLER | ||
| 569 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 569 | N 304017008016 | SCREW |
| OIL COOLER TO RADIATOR | ||
| M 8X16 | ||
| 575 | N 900055008002 | SPRING WASHER |
| OIL COOLER TO RADIATOR | ||
| 581 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 581 | N 000125008443 | WASHER |
| OIL COOLER TO RADIATOR | ||
| 587 | N 003901010001 | SCREW-IN FITTING |
| OIL LINE TO TRANSMISSION | ||
| 593 | N 007603014405 | SEAL RING |
| OIL LINE TO TRANSMISSION | ||
| 599 | A 0002610283 | OIL PIPE |
| OIL LINE BETWEEN TRANSMISSION & HOSE, FEED & RETURN | ||
| 605 | N 915017010100 | UNION NUT |
| OIL LINE BETWEEN TRANSMISSION & HOSE, FEED & RETURN | ||
| 611 | N 003861010009 | GLAND |
| OIL LINE BETWEEN TRANSMISSION & HOSE, FEED & RETURN | ||
| 617 | A 3852710940 | BRACKET |
| OIL LINE TO LONGITUDINAL INTAKE PIPE | ||
| 624 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 624 | N 000125010532 | WASHER |
| BRACKET TO LONGITUDINAL INTAKE PIPE | ||
| 625 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 625 | N 910113010000 | NUT |
| BRACKET TO LONGITUDINAL INTAKE PIPE | ||
| 629 | N 000933010328 | SCREW |
| BRACKET TO LONGITUDINAL INTAKE PIPE | ||
| 635 | A 3609950301 | CLAMP |
| OIL LINE TO BRACKET | ||
| 641 | N 000933006102 | SCREW |
| OIL LINE TO BRACKET | ||
| M 6X16 | ||
| 647 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 647 | N 913004006001 | NUT |
| OIL LINE TO BRACKET | ||
| 654 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 654 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 654 | N 000000001045 | CLAMP |
| OIL LINE TO HYDRAULIC STEERING LINE BRACKET | ||
| 659 | A 3609950101 | CLAMP |
| OIL LINE TO BRACKET | ||
| 665 | N 000933006102 | SCREW |
| OIL LINE TO BRACKET | ||
| M 6X16 | ||
| 671 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 671 | N 913004006001 | NUT |
| OIL LINE TO BRACKET | ||
| 677 | A 3609950301 | CLAMP |
| OIL LINES TO FRONT TRANSVERSE INTAKE PIPE | ||
| 683 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 683 | N 304017006018 | SCREW |
| OIL LINES TO FRONT TRANSVERSE INTAKE PIPE | ||
| M 6X12 | ||
| 689 | N 912004006102 | LOCK WASHER |
| OIL LINES TO FRONT TRANSVERSE INTAKE PIPE | ||
| 695 | A 3852700341 | BRACKET |
| OIL LINES TO FRONT TRANSVERSE INTAKE PIPE | ||
| 701 | A 3164290040 | BRACKET |
| OIL LINE TO TRANSMISSION COVER | ||
| 704 | A 3832610140 | BRACKET |
| OIL LINE TO LONGITUDINAL INTAKE PIPE BRACKET | ||
| 707 | A 3609950301 | CLAMP |
| OIL LINE TO BRACKET | ||
| 713 | N 000933006102 | SCREW |
| OIL LINE TO BRACKET | ||
| M 6X16 | ||
| 719 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 719 | N 913004006001 | NUT |
| OIL LINE TO BRACKET | ||
| 722 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 722 | N 000125010532 | WASHER |
| BRACKET TO BELL HOUSING | ||
| 725 | A 3859970982 | HOSE |
| OIL LINE CONNECTION | ||
| 725 | A 3859971382 | HOSE |
| OIL LINE CONNECTION | ||
| 735 | A 0002610283 | OIL PIPE |
| FROM HOSE TO OIL COOLER FEED PIPE SOCKET | ||
| 735 | A 0002610283 | OIL PIPE |
| FROM HOSE TO OIL COOLER RETURN PIPE SOCKET | ||
| 755 | N 915001013002 | UNION NUT |
| OIL LINE TO RADIATOR | ||
| 761 | N 915017010100 | UNION NUT |
| HOSE TO OIL LINE | ||
| 765 | N 915004013200 | SEAL CONE |
| OIL LINE TO RADIATOR | ||
| 767 | N 003861010009 | GLAND |
| HOSE TO OIL LINE | ||
| 773 | A 3609950301 | CLAMP |
| OIL LINES | ||
| 779 | N 000933006102 | SCREW |
| CLAMP MOUNTING | ||
| M 6X16 | ||
| 785 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 785 | N 913004006001 | NUT |
| CLAMP MOUNTING | ||
| 785 | N 913004006001 | NUT |
| CLAMP MOUNTING | ||
| 797 | A 3609950301 | CLAMP |
| OIL LINE TO RADIATOR | ||
| 803 | N 000933006102 | SCREW |
| OIL LINE TO RADIATOR | ||
| M 6X16 | ||
| 809 | N 912004006102 | LOCK WASHER |
| OIL LINE TO RADIATOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
