Transporto priemonė: 1222 A; VIN numerio dalis: 615247
Grupė: 42 BRAKES

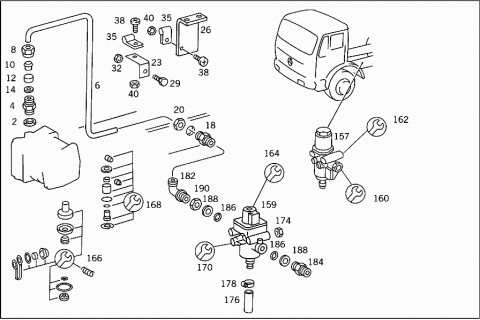

42657

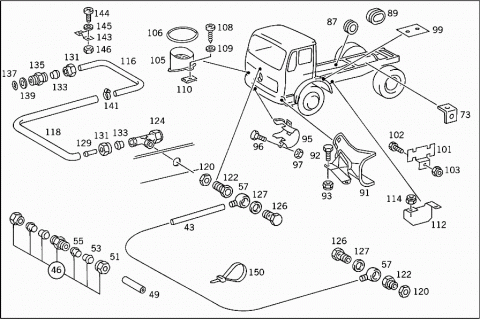

42658

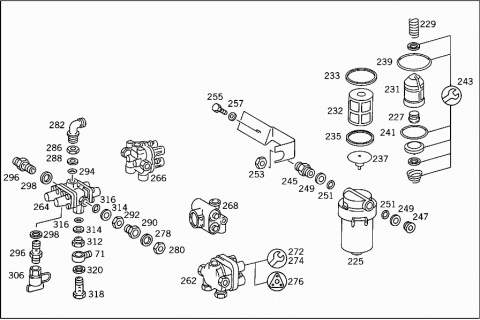

42659

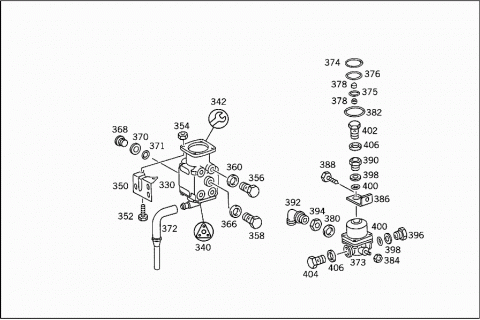

42660

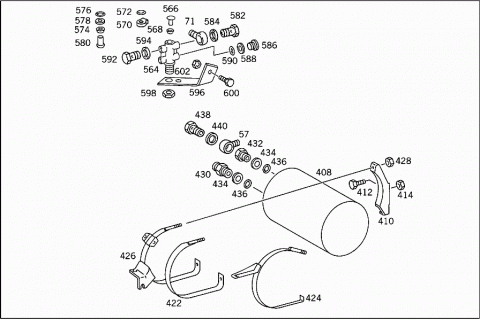

42661

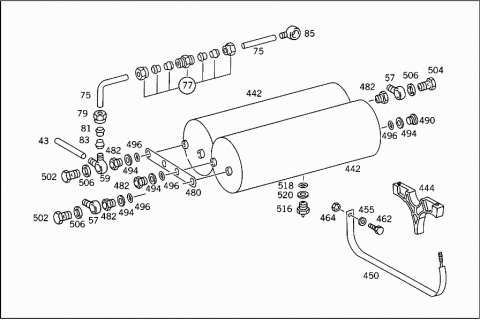

42662

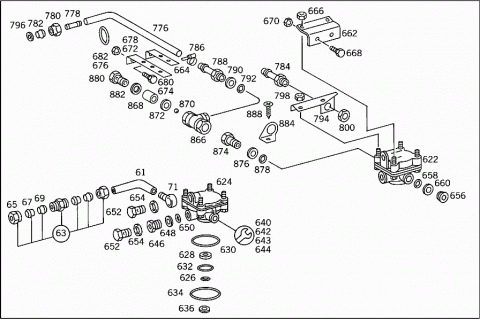

42663

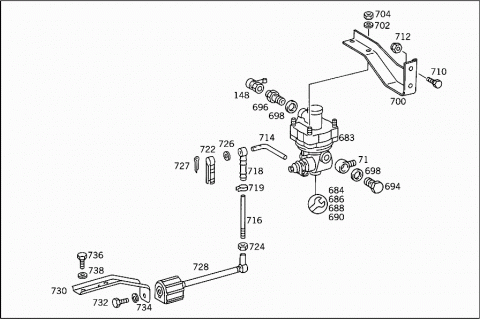

42664

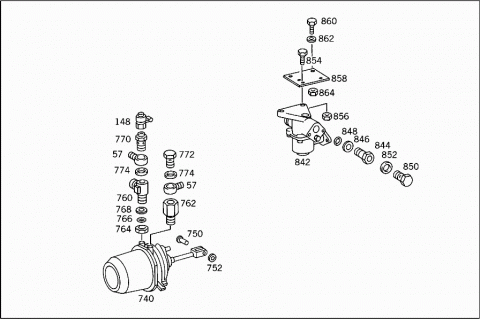

42665

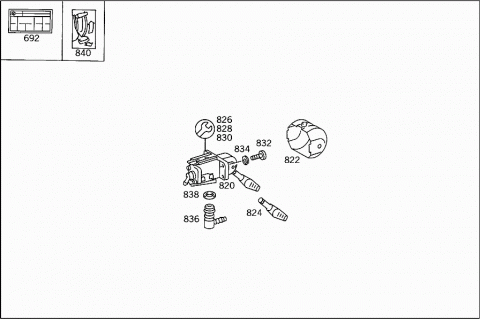

42666
# Kodas Pavadinimas
002 N 007603022102 SEAL RING
AIR COMPRESSOR,CONNECTION:
"2"
004 A 0019972172 FITTING
AIR COMPRESSOR,CONNECTION:
"2"
N 074302022405 T-FITTING
Repalced by: A 0029901970
A 0029901970 T-FITTING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
A 0004294338 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
A 6209900071 ELBOW FITTING
Repalced by: A 0039901671
A 0039901671 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
Repalced by: A 6209900071
A 6209900071 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
N 074305022202 NUT
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
N 074305026202 NUT
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
A 0139972248 SEAL RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
A 0039973848 SEAL RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
A 0004290527 THRUST RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
T YYYYYYYYYYYY PART NAME MISSING
FOR AIR COMPRESSOR CONNECTION,SEE GROUP 13
006 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, AIR CLEANER
15 MM
006 A 0004291401 LINE
FOUR-CIRCUIT PROTECTIVE VALVE,AIR RESERVOIR,CHECK VALVE
15 MM
A 0019909771 ELBOW FITTING
008 N 915018015000 UNION NUT
N 915017015100 UNION NUT
010 N 003861015004 GLAND
012 N 915065015101 THRUST RING
014 N 915045012100 SEAL RING
Repalced by: N 007603012121
014 N 007603012121 SEAL RING
A 0019909771 ELBOW FITTING
FROM AIR RESERVOIR TO CHECK VALVE
N 915052009009 BANJO UNION
FROM AIR RESERVOIR TO CHECK VALVE
A 0019972172 FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
018 A 0019972372 FITTING
COMPRESSED AIR LINE THRU LEFT SIDE MEMBER
N 003910015002 BULKHEAD FITTING
COMPRESSED AIR LINE THRU LEFT SIDE MEMBER
020 N 074305022202 NUT
COMPRESSED AIR LINE THRU LEFT SIDE MEMBER
023 A 6154290240 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR COMPRESSED-AIR LINE
026 A 6164290040 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR COMPRESSED-AIR LINE
A 6154290640 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR COMPRESSED-AIR LINE
A 3524290740 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR COMPRESSED-AIR LINE
A 6154290740 BRACKET
Repalced by: A 3434290940
A 3434290940 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR COMPRESSED-AIR LINE
A 6174291440 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR COMPRESSED-AIR LINE
029 N 000961014028 SCREW
BRACKET TO SIDE MEMBER
032 N 913004014002 NUT
Repalced by: N 910113014001
032 N 910113014001 NUT
BRACKET TO SIDE MEMBER
N 000933008116 SCREW
Repalced by: N 000933008337
N 000933008337 SCREW
Repalced by: A 0099900101
A 0099900101 SCREW
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
N 000933012064 SCREW
BRACKET TO CYLINDER BLOCK, REAR
M 12X25
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 HEXAGON HEAD BOLT
BRACKET TO CYLINDER BLOCK, REAR
M12X1.5X25
N 912004012100 LOCK WASHER
BRACKET TO CYLINDER BLOCK, REAR
A 3854290540 BRACKET
LINE MOUNTING
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
LINE MOUNTING
N 007985006145 SCREW
Repalced by: N 007985006581
N 007985006581 SCREW
LINE MOUNTING
N 000125006421 WASHER
LINE MOUNTING
Repalced by: N 000125006449
N 000125006449 WASHER
LINE MOUNTING
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
LINE MOUNTING
035 A 3609952001 CLAMP
Repalced by: A 6739950001
035 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
038 N 007985006145 SCREW
Repalced by: N 007985006581
038 N 007985006581 SCREW
CLAMP TO BRACKET
N 912004006102 LOCK WASHER
CLAMP TO BRACKET
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
CLAMP TO BRACKET
N 000125006421 WASHER
CLAMP TO BRACKET
Repalced by: N 000125006449
N 000125006449 WASHER
CLAMP TO BRACKET
040 N 913004006002 NUT
Repalced by: N 913004006001
040 N 913004006001 NUT
CLAMP TO BRACKET
043 A 0109975982 HOSE
Repalced by: A 0009872827
043 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,BRAKE VALVE,BRAKE PRESSURE REGULATOR,SPRING-LOAD ACCUMULATOR
9X12 MM
043 A 0009872827 PLASTIC PIPE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
043 A 0009872827 PLASTIC PIPE
FROM OVERFLOW VALVE TO AIR RESERVOIR
9X12 MM
043 A 0009872827 PLASTIC PIPE
FROM PROTECTIVE VALVE TO AIR RESERVOIR
9X12 MM
043 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
043 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
043 A 0009872827 PLASTIC PIPE
LOCKING VALVE
9X12 MM
046 A 0049971772 FITTING
Repalced by: A 0029906171
046 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
A 0009907378 CONNECTOR
REPAIR SIZE
049 N 040621013200 INSULATING HOSE
051 N 915017012100 UNION NUT
Repalced by: N 000000006239
051 N 000000006239 UNION NUT
053 N 003861012007 GLAND
Repalced by: A 0019901967
053 A 0019901967 SEAL CONE
055 N 915062009000 SLEEVE
057 N 915052009009 BANJO UNION
I.D., / HOSE WIDTH,
16/9 MM
059 A 0019901088 BANJO UNION
061 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
061 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
061 A 0089979082 HOSE
FROM BRAKE POWER REGULATOR TO BRAKE VALVE
6X8 MM
061 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
063 A 0039978972 FITTING
Repalced by: A 0029905971
063 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
065 N 915017008100 UNION NUT
067 N 003861008005 GLAND
069 N 915062006000 SLEEVE
071 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
071 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
071 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
073 A 3604280243 ANGLE
BREATHER LINE
075 A 0089976082 HOSE
Repalced by: A 0009872627
075 A 0009872627 PLASTIC PIPE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO FILLING VALVE
4X6 MM
075 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
4X6 MM
077 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
079 N 915017006100 UNION NUT
081 N 003861006007 GLAND
Repalced by: A 0019901667
081 A 0019901667 SEAL CONE
083 N 915062004000 SLEEVE
085 N 915052004019 BANJO UNION
HOSE WIDTH, / I.D.,
4/16 MM
087 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
089 A 3609970681 GROMMET
LINE THRU FRAME
A 6173530040 BRACKET
BREATHER LINE TO REAR AXLE
A 6173530140 BRACKET
BREATHER LINE TO FRONT AXLE
A 6179950035 CLAMP
BREATHER LINE TO REAR AXLE
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
BREATHER LINE TO FRONT AXLE
N 912004008102 LOCK WASHER
BREATHER LINE TO FRONT AXLE
A 0019978390 LOOM TIE
BREATHER LINE TO FRONT AXLE
091 A 6204201186 BRACKET
COMPRESSED AIR LINE
091 A 6204201286 BRACKET
COMPRESSED AIR LINE
092 N 000933008147 SCREW
Repalced by: N 304017008021
092 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
093 N 913004008004 NUT
Repalced by: N 913004008001
093 N 913004008001 NUT
BRACKET TO BUMPER STRUT
095 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
095 A 6154200186 BRACKET
RIGHT COMPRESSED AIR LINES
096 N 000933008153 SCREW
Repalced by: N 304017008034
096 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
097 N 913004008004 NUT
Repalced by: N 913004008001
097 N 913004008001 NUT
BRACKET TO CAB CONSOLE
099 A 6204294340 BRACKET
Repalced by: A 3604293140
099 A 3604293140 BRACKET
COMPRESSED AIR LINE TO CAB
101 A 6204293940 BRACKET
COMPRESSED AIR LINE
101 A 6204293940 BRACKET
COMPRESSED AIR LINE
A 6154290940 BRACKET
COMPRESSED AIR LINE MOUNTING
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO FRAME SIDE MEMBER
102 N 000933008152 SCREW
Repalced by: N 304017008027
102 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
103 N 913004008004 NUT
Repalced by: N 913004008001
103 N 913004008001 NUT
BRACKET TO SIDE MEMBER
103 N 913004008001 NUT
BRACKET TO FRAME SIDE MEMBER
A 0019978490 LOOM TIE
LINE MOUNTING
105 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
105 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
106 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
108 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
109 N 009021005202 WASHER
Repalced by: N 009021005205
109 N 009021005205 WASHER
BRACKET TO CAB FLOOR
110 A 0009946445 LOCK
BRACKET TO CAB FLOOR
112 A 6204295240 BRACKET
SCREENING PLATE
114 N 913004006002 NUT
Repalced by: N 913004006001
114 N 913004006001 NUT
BRACKET TO CAB
116 A 6194290801 LINE
Repalced by: A 6254293501
116 A 6254293501 LINE
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
118 N 916027011014 HOSE
FROM ADAPTER FITTING TO BRAKE LINE, LEFT AND RIGHT
120 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
122 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
122 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
124 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
126 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
127 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
129 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
131 N 915017012100 UNION NUT
Repalced by: N 000000006239
131 N 000000006239 UNION NUT
133 N 003861012007 GLAND
Repalced by: A 0019901967
133 A 0019901967 SEAL CONE
135 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
137 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
139 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
141 N 916017016000 CLAMP
Repalced by: N 000000000666
141 N 000000000666 CLAMP
LINE TO HOSE
143 A 3159955010 CLAMP
LINE TO BRACKET AT FRONT AXLE
144 N 007985006145 SCREW
Repalced by: N 007985006581
144 N 007985006581 SCREW
LINE TO BRACKET AT FRONT AXLE
145 N 000125006421 WASHER
LINE TO BRACKET AT FRONT AXLE
Repalced by: N 000125006449
145 N 000125006449 WASHER
LINE TO BRACKET AT FRONT AXLE
146 N 913004006002 NUT
Repalced by: N 913004006001
146 N 913004006001 NUT
LINE TO BRACKET AT FRONT AXLE
148 A 0004312031 TEST CONNECTION
VOSS
148 A 0004314531 TEST CONNECTION
SCHAEFER
148 A 0004314831 TEST CONNECTION
WABCO
148 A 0004316131 TEST CONNECTION
WIRA
148 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
148 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
148 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
148 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
148 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
A 0009979486 PROTECTIVE CAP
150 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
150 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
157 A 0024314906 PRESSURE REGULATOR
Repalced by: A 0034313706
157 A 0034313706 PRESSURE REGULATOR
WABCO
159 A 0024314306 PRESSURE REGULATOR
Repalced by: A 0034313506
159 A 0034313506 PRESSURE REGULATOR
BOSCH
A 0024318306 PRESSURE REGULATOR
Repalced by: A 0034313506
160 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
160 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
162 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 43 06,BOSCH 0 481 039 201
164 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
164 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
166 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
168 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
T YYYYYYYYYYYY PART NAME MISSING
TO 003 431 37 06
170 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 43 06,BOSCH 0 481 039 201
170 A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 903 09
170 A 0004300907 REPAIR KIT
TO 003 431 35 06,BOSCH
174 N 913004008004 NUT
Repalced by: N 913004008001
174 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
176 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
176 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
176 N 900271018038 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
178 N 916026016001 CLAMP
Repalced by: A 0059970190
178 A 0059970190 HOSE CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
178 N 916017020000 CLAMP
Repalced by: N 000000000667
178 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
182 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
184 A 0019972372 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
186 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
188 A 0004290227 THRUST RING
Repalced by: A 0009940203
188 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
190 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"10"
225 A 0004292595 AIR CLEANER
BOSCH
225 A 0004292695 AIR CLEANER
KNORR
225 A 0004292795 AIR CLEANER
WABCO
225 A 0004292895 AIR CLEANER
GRAU
227 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
229 A 0059930901 SPRING
TO 000 429 27 95,WABCO
231 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
232 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
232 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
233 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
233 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
235 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
235 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
237 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
237 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
239 A 0049972248 SEAL RING
Repalced by: A 0289972348
239 A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
241 A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
243 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
245 A 0019972172 FITTING
AIR CLEANER TO PRESSURE REGULATOR
A 0029978972 FITTING
AIR CLEANER TO PRESSURE REGULATOR
247 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
247 N 000908022011 SCREW PLUG
AIR CLEANER TO PRESSURE REGULATOR
249 A 0004290227 THRUST RING
Repalced by: A 0009940203
249 A 0009940203 THRUST RING
AIR CLEANER TO PRESSURE REGULATOR
251 A 0009870446 O-RING
AIR CLEANER TO PRESSURE REGULATOR
253 N 074305022202 NUT
AIR CLEANER TO PRESSURE REGULATOR
255 N 000933010128 SCREW
AIR CLEANER TO STRAP
257 N 009021010202 WASHER
Repalced by: N 009021010209
257 N 009021010209 WASHER
AIR CLEANER TO STRAP
262 A 0014319306 VALVE
Repalced by: A 0034315006
264 A 0024314006 VALVE
Repalced by: A 0034315006
266 A 0014318706 VALVE
Repalced by: A 0034315006
268 A 0024312706 VALVE
Repalced by: A 0024319106
268 A 0024319106 VALVE
Repalced by: A 0034315006
268 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
272 A 0035860943 REPAIR KIT
TO 002 431 40 06,WABCO
274 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
276 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
276 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
A 0034300981 GASKET KIT
TO 002 431 91 06,GRAU 6601
A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
278 N 000125017010 WASHER
Repalced by: N 000125017016
278 N 000125017016 WASHER
VALVE TO BRACKET
280 N 080705016003 NUT
VALVE TO BRACKET
282 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
282 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
286 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
288 A 0004290227 THRUST RING
Repalced by: A 0009940203
288 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
290 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
292 N 000439016206 NUT
Repalced by: N 308675016001
292 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
294 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
296 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
298 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
306 A 0034291044 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
306 A 0044293744 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
312 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
314 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
316 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
318 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
320 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
330 A 0024310605 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
330 A 0024311005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
330 A 0024312005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
A 0004313623 VALVE
WABCO
340 A 0004300060 REPAIR KIT
Repalced by: A 0014308460
340 A 0014308460 GASKET KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 10 05,BOSCH
342 A 0035861143 REPAIR KIT
Repalced by: A 0004306360
342 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
342 A 0004308206 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 06 05,WABCO
350 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
352 N 000933008152 SCREW
Repalced by: N 304017008027
352 N 304017008027 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
354 N 913004008004 NUT
Repalced by: N 913004008001
354 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
356 N 915036012203 HOLLOW SCREW
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
358 N 915036008202 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"4"
360 N 007603016401 SEAL RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
366 N 007603012405 SEAL RING
BRAKE VALVE,CONNECTION:
"4"
368 N 000908016001 SCREW PLUG
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
370 A 0004290927 THRUST RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
371 A 0009971548 SEAL RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
372 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
372 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
373 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
374 A 0019871746 SEALING CORD
375 A 0089970445 SEAL RING
376 A 0089978648 SEAL RING
378 A 0004313223 VALVE
380 N 007603016401 SEAL RING
382 A 0089978748 SEAL RING
A 0029900271 ELBOW FITTING
A 0029900871 ELBOW FITTING
384 N 913004008004 NUT
Repalced by: N 913004008001
384 N 913004008001 NUT
VALVE TO FLOOR
384 N 913004008001 NUT
ELBOW FITTING TO FLOOR
386 A 6204312440 BRACKET
PRESSURE RATIO VALVE
386 A 6204312540 BRACKET
PRESSURE RATIO VALVE
388 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
390 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
390 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
392 A 0004294438 ELBOW FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
394 N 080705016003 NUT
PRESSURE RATIO VALVE,CONNECTION:
"1"
396 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
398 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
400 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
402 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
402 N 915036012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"10"
404 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
404 N 915047012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"20"
406 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
406 N 007603016401 SEAL RING
ELBOW FITTING,CONNECTIONS:
"10,20"
408 A 0004324801 RESERVOIR
Repalced by: A 0014327501
408 A 0014327501 RESERVOIR
Repalced by: A 0034321201
408 A 0034321201 RESERVOIR
FRONT AIR RESERVOIR
20 L
410 A 3874320540 BRACKET
AIR RESERVOIR,FRONT
410 A 3874320540 BRACKET
AIR RESERVOIR,REAR
412 N 000933008215 SCREW
Repalced by: A 0069909301
412 A 0069909301 SCREW
BRACKET TO APPARATUS SUPPORT
414 N 913004008004 NUT
Repalced by: N 913004008001
414 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
422 A 6204300240 STRAP
FRONT AIR RESERVOIR,LEFT
424 A 6154300240 STRAP
FRONT AIR RESERVOIR,RIGHT
426 A 6204301040 STRAP
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE
426 A 6154300340 STRAP
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE
428 N 913004010008 NUT
Repalced by: N 910113010000
428 N 910113010000 NUT
AIR RESERVOIR TO BRACKET
430 A 0019972172 FITTING
AIR RESERVOIR,CONNECTIONS:
"13,33"
N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"13,23
N 915047012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
432 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
432 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
434 A 0004290227 THRUST RING
Repalced by: A 0009940203
434 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,23,33"
436 A 0009870446 O-RING
AIR RESERVOIR,CONNECTIONS:
"13,23,33"
438 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"12,23,31"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
440 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"12,23 31"
442 A 0004326101 RESERVOIR
Repalced by: A 0034323001
442 A 0034323001 RESERVOIR
INSIDE AND OUTSIDE AIR RESERVOIRS
22.5 L
444 A 6154320018 BASE
INSIDE AND OUTSIDE AIR RESERVOIRS
450 A 6154300140 STRAP
Repalced by: A 6204300040
450 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
455 A 3859901940 WASHER
INSIDE AND OUTSIDE AIR RESERVOIRS
462 N 000933010260 SCREW
STRAP TO SUPPORT
464 N 913004010008 NUT
Repalced by: N 910113010000
464 N 910113010000 NUT
STRAP TO SUPPORT
480 A 3464320073 LOCK
PROTECTION AGAINST TORSION
482 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
482 A 0009905168 FITTING
AIR RESERVOIR,CONNECTIONS:
21,31
490 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
490 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"32"
494 A 0004290227 THRUST RING
Repalced by: A 0009940203
494 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
496 A 0009870446 O-RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
502 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,42"
504 N 915047012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"23"
506 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23,42"
A 0009970934 UNION SCREW
TO M22
516 A 0004322407 VALVE
DRAIN
Repalced by: A 0004322107
516 A 0004322107 DRAIN VALVE
DRAIN
516 A 0004321107 VALVE
DRAIN
Repalced by: A 0004322407
516 A 0004322407 DRAIN VALVE
DRAIN
Repalced by: A 0004322107
516 A 0004322107 DRAIN VALVE
DRAIN
516 A 0004322107 VALVE
DRAIN
518 A 0009870446 O-RING
DRAIN VALVE TO AIR RESERVOIR
520 A 0004290227 THRUST RING
Repalced by: A 0009940203
520 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
564 A 0024299644 VALVE
(CHECK VALVE)
VOSS
564 A 0034290444 VALVE
(CHECK VALVE)
WABCO
564 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
566 A 0004290383 VALVE TAPPET
TO 002 429 64 44,VOSS
568 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
570 A 0002950320 VALVE
TO 003 429 04 44,WABCO
572 A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
574 A 0109970048 SEAL RING
13.6X2 MM; TO 003 429 12 44,SCHAEFER
576 A 0109970148 SEAL RING
15.3X2.4 MM; TO 003 429 12 44,SCHAEFER
578 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
580 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
582 N 915047012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
584 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
586 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
588 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
590 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
592 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
592 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
594 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
596 A 6204292540 BRACKET
Repalced by: A 6164290140
596 A 6164290140 BRACKET
CHECK VALVE
598 N 074305022202 NUT
CHECK VALVE TO BRACKET
600 N 000933010129 SCREW
Repalced by: N 304017010002
600 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
602 N 913004010008 NUT
Repalced by: N 910113010000
602 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
622 A 0034291644 VALVE
RELAY VALVE
BOSCH
622 A 0014296844 VALVE
RELAY VALVE
WABCO
624 A 0034295344 VALVE
RELAY VALVE
KNORR
624 A 0014299144 VALVE
RELAY VALVE
GRAU
626 A 0059972648 SEAL RING
22.3X2.4 MM; TO 001 429 91 44,GRAU
628 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
630 A 0059972748 SEAL RING
80X3 MM; TO 000 429 28 95,GRAU
632 A 0014311660 SEAL RING
28X2 MM; TO 001 429 91 44,GRAU
634 A 0014311760 SEAL RING
86X2 MM; TO 001 429 91 44,GRAU
636 A 0004311980 GASKET
34X2X6 MM; TO 001 429 91 44,GRAU
640 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
640 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
640 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
642 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
642 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
643 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
644 A 0005863542 REPAIR KIT
TO 003 429 53 44,KNORR
646 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
648 A 0004290227 THRUST RING
Repalced by: A 0009940203
648 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"1"
650 A 0009870446 O-RING
RELAY VALVE,CONNECTION:
"1"
652 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,4"
654 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,4"
656 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
658 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
660 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",LEFT
662 A 6174310640 BRACKET
RELAY VALVE
664 A 6154290440 BRACKET
Repalced by: A 3765010920
664 A 3765010920 BRACKET
Repalced by: A 6205243040
664 A 6205243040 BRACKET
COMPRESSED AIR LINES
666 N 913004008004 NUT
Repalced by: N 913004008001
666 N 913004008001 NUT
RELAY VALVE TO BRACKET
668 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
670 N 913004010008 NUT
Repalced by: N 910113010000
670 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
672 A 6205240340 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
674 N 000933008147 SCREW
Repalced by: N 304017008021
674 N 304017008021 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
676 N 913004008004 NUT
Repalced by: N 913004008001
676 N 913004008001 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
678 A 3604292040 BRACKET
Repalced by: A 3604292940
678 A 3604292940 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
680 N 000933008153 SCREW
Repalced by: N 304017008034
680 N 304017008034 SCREW
COMPRESSED AIR LINE TO SIDE MEMBER
682 N 913004008004 NUT
Repalced by: N 913004008001
682 N 913004008001 NUT
COMPRESSED AIR LINE TO SIDE MEMBER
683 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
683 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
683 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
684 A 0004307560 REPAIR KIT
TO 001 431 33 12,WABCO
686 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,BOSCH
688 A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
690 A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,BOSCH
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
692 A 6155841021 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
694 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
696 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
698 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
700 A 6154310140 BRACKET
BRAKE POWER REGULATOR
702 N 000125008418 WASHER
Repalced by: N 000125008443
702 N 000125008443 WASHER
BRAKE POWER REGULATOR TO BRACKET
704 N 913004008004 NUT
Repalced by: N 913004008001
704 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
710 N 000933010105 SCREW
BRACKET TO SIDE MEMBER
712 N 913004010008 NUT
Repalced by: N 910113010000
712 N 910113010000 NUT
BRACKET TO SIDE MEMBER
714 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
716 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
716 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
718 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
719 N 916026010000 CLAMP
Repalced by: N 000000000665
719 N 000000000665 CLAMP
CONNECTOR TO ROD
722 A 6249950065 CLAMP
CONNECTOR TO ROD
724 N 304032008006 NUT
PULL ROD TO METAL-SPRING-BELLOWS BALL JOINT
726 N 000125008418 WASHER
Repalced by: N 000125008443
726 N 000125008443 WASHER
CONNECTOR TO ROD
727 N 000094002069 COTTER PIN
CONNECTOR TO ROD
728 A 0004311218 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
728 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
728 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
730 A 6174311040 BRACKET
BRAKE POWER REGULATOR CONTROL
730 A 6204314240 BRACKET
BRAKE POWER REGULATOR CONTROL
732 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
734 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
736 N 000961012052 SCREW
Repalced by: N 308676012012
736 N 308676012012 HEXAGON HEAD BOLT
BRACKET TO REAR AXLE
736 N 000961016096 SCREW
Repalced by: N 308676016007
736 N 308676016007 SCREW
BRACKET TO REAR AXLE
738 A 3609900940 WASHER
BRACKET TO REAR AXLE
738 A 3939900240 WASHER
BRACKET TO REAR AXLE
740 A 0094200918 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
A 0004311728 DIAPHRAGM
A 0004212286 CUP
Repalced by: A 0004215286
A 0004215286 CUP
A 0004305160 REPAIR KIT
TRISTOP CYLINDER
A 6154200078 BEARING BRACKET
TRISTOP CYLINDER
N 007346012003 CLAMPING SLEEVE
N 000961016036 SCREW
Repalced by: N 308676016013
N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
N 913004016004 NUT
Repalced by: N 910113016002
N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
750 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
752 N 000433015002 WASHER
Repalced by: N 000433015005
752 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
760 A 0019905370 T-FITTING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
762 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
762 A 0069970072 FITTING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
764 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
766 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
768 A 0004290927 THRUST RING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
770 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"1,2"
770 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"2"
772 N 915036012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"1"
774 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
776 N 916027011014 HOSE
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
778 A 0004290541 FITTING
AT TRISTOP CYLINDER
780 N 915017012100 UNION NUT
Repalced by: N 000000006239
780 N 000000006239 UNION NUT
782 N 003861012007 GLAND
Repalced by: A 0019901967
782 A 0019901967 SEAL CONE
784 A 0004290641 FITTING
AT BRACKET
786 N 916017016000 CLAMP
Repalced by: N 000000000666
786 N 000000000666 CLAMP
788 N 074304016201 FITTING
790 A 0004290927 THRUST RING
FITTING TO RELAY VALVE
792 A 0009971548 SEAL RING
FITTING TO RELAY VALVE
794 A 6204292040 BRACKET
FITTING
796 A 0039975745 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
798 N 913004008004 NUT
Repalced by: N 913004008001
798 N 913004008001 NUT
BRACKET TO RELAY VALVE
800 N 080705018002 NUT
FITTING TO BRACKET
820 A 0014303681 VALVE
HAND BRAKE VALVE
BOSCH
820 A 0014306081 VALVE
HAND BRAKE VALVE
WABCO
820 A 0014307081 VALVE
Repalced by: A 0034300281
820 A 0034300281 VALVE
HAND BRAKE VALVE
KNORR
820 A 0014304581 VALVE
HAND BRAKE VALVE
BOSCH
820 A 0014306181 VALVE
HAND BRAKE VALVE
WABCO
820 A 0014307181 VALVE
Repalced by: A 0034300381
820 A 0034300381 VALVE
HAND BRAKE VALVE
KNORR
822 A 0014310887 PROTECTIVE CAP
TO 001 430 60 81,001 430 61 81,WABCO
822 A 0014311087 PROTECTIVE CAP
TO 001 430 36 81,001 430 45 81,BOSCH
822 A 0014311287 PROTECTIVE CAP
KNORR
824 A 0009972477 HANDLE
TO 001 430 60 81,001 430 61 81,WABCO
824 A 0009973477 HANDLE
TO 001 430 36 81,001 430 45 81,BOSCH
824 A 0009975577 HANDLE
KNORR
826 A 0035860843 PART NAME MISSING
Repalced by: A 0034303281
826 A 0034303281 REPAIR KIT
TO 001 430 60 81,001 430 61 81,WABCO
A 0034302781 REPAIR KIT
HAND BRAKE LEVER
WABCO
828 A 0025866343 REPAIR KIT
TO 001 430 36 81,001 430 45 81,BOSCH
A 0034302281 REPAIR KIT
TO 003 430 02 81,003 430 03 81,KNORR
830 A 0035860543 REPAIR KIT
TO 001 430 70 81,001 430 71 81,KNORR
832 N 007985008119 SCREW
VALVE TO CAB
834 N 912006008000 LOCK WASHER
VALVE TO CAB
836 A 0009976189 COUPLING
HAND BRAKE VALVE,CONNECTIONS:
"11,21,22"
838 A 0099973948 SEAL RING
840 A 6205841038 GUMMED LABEL
PARKING BRAKE ACTUATION
842 A 0004312213 VALVE
TRAILER BRAKE
A 0014313705 BRAKE VALVE
(TRAILER CONTROL VALVE)
WABCO
A 0014314805 BRAKE VALVE
(TRAILER CONTROL VALVE)
GRAU
A 0014311805 BRAKE VALVE
(TRAILER CONTROL VALVE)
BOSCH
A 0024306581 REPAIR KIT
TO 001 431 37 05
A 0025865943 REPAIR KIT
TO 001 431 48 05
A 0015868643 REPAIR KIT
Repalced by: A 0004304606
A 0004304606 BRAKE VALVE
TO 001 431 18 05
844 A 0009905168 FITTING
TRAILER BRAKE VALVE,CONNECTIONS:
"10,20,40"
846 A 0004290227 THRUST RING
Repalced by: A 0009940203
846 A 0009940203 THRUST RING
TRAILER BRAKE VALVE,CONNECTIONS:
"10,20,40"
848 A 0009870446 O-RING
TRAILER BRAKE VALVE,CONNECTIONS:
"10,20,40"
850 N 915036012203 HOLLOW SCREW
TRAILER BRAKE VALVE,CONNECTIONS:
"10,20,40"
850 N 915036012203 HOLLOW SCREW
TRAILER CONTROL VALVE,CONNECTIONS:
"10,20,43"
852 N 007603016401 SEAL RING
TRAILER BRAKE VALVE,CONNECTIONS:
"10,20,40"
852 N 007603016401 SEAL RING
TRAILER CONTROL VALVE,CONNECTIONS:
"10,20,43"
A 6233280365 PIPE SOCKET
TRAILER CONTROL VALVE,CONNECTIONS:
"41,42"
854 N 000933010157 SCREW
TRAILER BRAKE VALVE TO BRACKET
856 N 913004010008 NUT
Repalced by: N 910113010000
856 N 910113010000 NUT
TRAILER BRAKE VALVE TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
TRAILER BRAKE VALVE TO BRACKET
858 A 6154310340 BRACKET
TRAILER BRAKE VALVE
A 6154311240 BRACKET
(TRAILER CONTROL VALVE)
860 N 000933008154 SCREW
Repalced by: N 304017008021
860 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
862 N 000125008418 WASHER
Repalced by: N 000125008443
862 N 000125008443 WASHER
BRACKET TO CROSS MEMBER
864 N 913004008004 NUT
Repalced by: N 913004008001
864 N 913004008001 NUT
BRACKET TO CROSS MEMBER
866 A 0024299544 VALVE
(LOCKING VALVE)
866 A 0034292244 VALVE
(LOCKING VALVE)
866 A 0014292444 VALVE
(LOCKING VALVE)
868 A 0004291182 VALVE BODY
Repalced by: A 0004290782
868 A 0004290782 VALVE
Repalced by: A 0004291182
868 A 0004291182 VALVE BODY
TO 002 429 95 44
870 A 0029810485 BALL
TO 003 429 22 44
872 A 0004290180 GASKET
TO 003 429 22 44
874 A 0009905168 FITTING
LOCKING VALVE,CONNECTIONS:
"11,12,20"
876 A 0004290227 THRUST RING
Repalced by: A 0009940203
876 A 0009940203 THRUST RING
LOCKING VALVE,CONNECTIONS:
"11,12,20"
878 A 0009870446 O-RING
LOCKING VALVE,CONNECTIONS:
"11,12,30"
880 N 915036012203 HOLLOW SCREW
LOCKING VALVE,CONNECTIONS:
"11,12"
880 N 915036012203 HOLLOW SCREW
LOCKING VALVE,CONNECTION:
"20"
882 N 007603016401 SEAL RING
LOCKING VALVE,CONNECTIONS:
"11,12"
882 N 007603016401 SEAL RING
LOCKING VALVE,CONNECTION:
"20"
884 A 6734291340 BRACKET
LOCKING VALVE
884 A 6734291440 BRACKET
LOCKING VALVE
888 N 007983004249 SHEET METAL SCREW
Repalced by: N 007983004333
888 N 007983004333 SHEET METAL SCREW
BRACKET TO CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
