Transporto priemonė: 1222 A; VIN numerio dalis: 615247

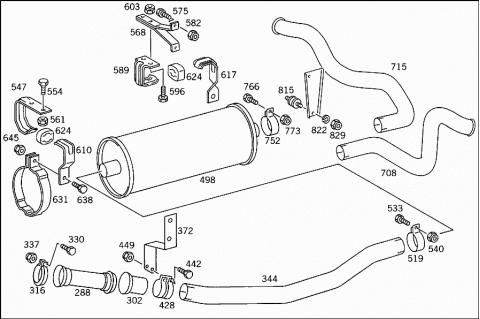

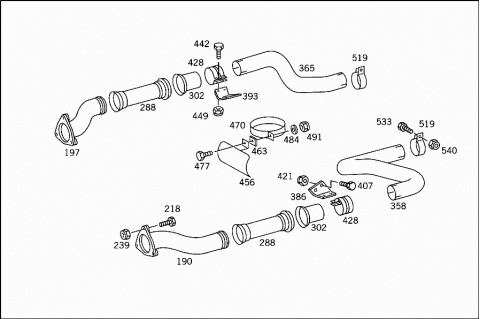

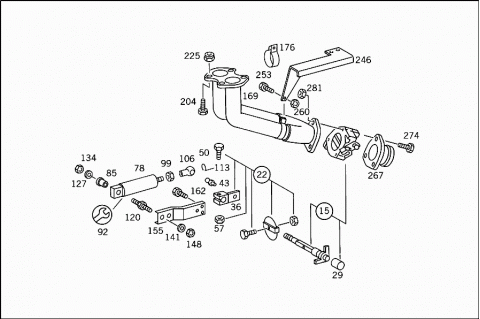

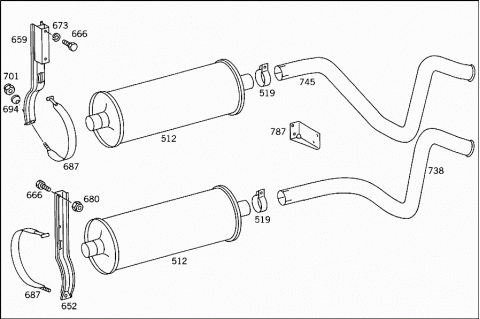

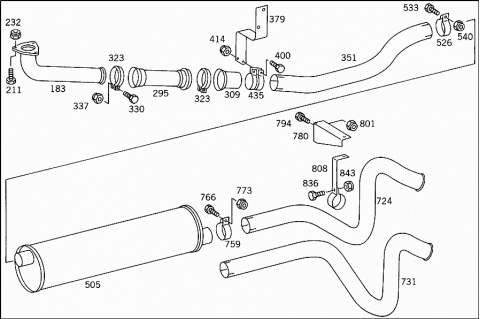

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 015 | A 3661402253 | THROTTLE HOUSING |
| 015 | A 3661402253 | THROTTLE HOUSING |
| 015 | A 3661402353 | THROTTLE HOUSING |
| Repalced by: A 3661405353 | ||
| 015 | A 3661405353 | THROTTLE HOUSING |
| PARTS KIT | ||
| 022 | A 3661401063 | VALVE |
| PARTS KIT | ||
| 022 | A 3661401063 | VALVE |
| PARTS KIT | ||
| 022 | A 3661401163 | VALVE |
| PARTS KIT | ||
| 029 | A 3521441650 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 029 | A 3521441650 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 029 | A 4031440550 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 029 | A 4761447050 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 036 | A 3661400032 | LEVER |
| Repalced by: A 3661400232 | ||
| 036 | A 3661400232 | LEVER |
| EXHAUST-BRAKE THROTTLE VALVE | ||
| 043 | N 071803013208 | BALL PIVOT |
| 050 | N 000933006124 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 050 | N 914126006025 | SCREW |
| Repalced by: N 910105006005 | ||
| 050 | N 910105006005 | SCREW |
| Repalced by: N 000000001479 | ||
| 050 | N 000000001479 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 057 | N 000934006007 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 057 | N 913017006000 | NUT |
| Repalced by: N 910112006001 | ||
| 057 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 057 | N 913023006001 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 078 | A 0004304226 | CYLINDER |
| Repalced by: A 0004303026 | ||
| 078 | A 0004303026 | CYLINDER |
| Repalced by: A 0004304826 | ||
| 078 | A 0004304826 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 078 | A 0004303226 | CYLINDER |
| Repalced by: A 0004304926 | ||
| 078 | A 0004304926 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 078 | A 0004306026 | CYLINDER |
| Repalced by: A 0004305926 | ||
| 078 | A 0004305926 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| Repalced by: A 0004307926 | ||
| 078 | A 0004307926 | WORKING CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| 085 | A 0004340550 | BUSHING |
| Repalced by: A 0004340850 | ||
| 085 | A 0004340850 | BUSHING |
| TO 000 430 30 26/32 26 | ||
| 085 | A 4421440050 | BUSHING |
| TO 000 430 48 26/49 26 | ||
| 092 | A 0004308460 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,SZ 1130 I/74963,000 430 30 26 | ||
| 092 | A 0004305426 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,000 430 48 26 | ||
| 092 | A 0015867243 | REPAIR KIT |
| Repalced by: A 0024300060 | ||
| 099 | N 000439008209 | NUT |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| 106 | A 4039910222 | BALL SOCKET |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| A 3769917022 | BALL SOCKET | |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| 113 | N 071805013402 | CIRCLIP |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| 120 | A 4221440174 | PIN |
| Repalced by: A 4421440574 | ||
| 120 | A 4421440574 | PIN |
| POWER CYLINDER TO BRACKET | ||
| A 4421440274 | PIN | |
| POWER CYLINDER TO BRACKET | ||
| 127 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 127 | N 000125008443 | WASHER |
| POWER CYLINDER TO BRACKET | ||
| 134 | N 999900008005 | NUT |
| POWER CYLINDER TO BRACKET | ||
| 141 | N 007349008003 | WASHER |
| POWER CYLINDER TO BRACKET | ||
| A 0039902940 | WASHER | |
| POWER CYLINDER TO BRACKET | ||
| 148 | N 304032008006 | NUT |
| POWER CYLINDER TO BRACKET | ||
| 155 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 155 | A 3661440440 | BRACKET |
| POWER CYLINDER | ||
| 162 | N 914126008007 | SCREW |
| BRACKET TO THROTTLE HOUSING | ||
| 169 | A 6164900319 | EXHAUST PIPE |
| CONNECTOR TO ENGINE | ||
| 169 | A 6164901019 | EXHAUST PIPE |
| CONNECTOR TO ENGINE | ||
| A 6164902219 | EXHAUST PIPE | |
| CONNECTOR TO ENGINE | ||
| 176 | N 071555050503 | CLAMP |
| Repalced by: N 000000001641 | ||
| 176 | N 000000001641 | CLAMP |
| Repalced by: A 9424310043 | ||
| 176 | A 9424310043 | CLAMP |
| 183 | A 6164900919 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| A 6164902319 | EXHAUST PIPE | |
| FRONT,FRONT PART | ||
| 190 | A 6154900125 | CONNECTOR |
| FRONT LEFT | ||
| A 6154900325 | CONNECTOR | |
| FRONT LEFT | ||
| 197 | A 6154900025 | CONNECTOR |
| FRONT RIGHT | ||
| 204 | N 000931010282 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 211 | N 000960012221 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X80 | ||
| N 000960012224 | SCREW | |
| Repalced by: N 000961012208 | ||
| N 000961012208 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X75 | ||
| 218 | N 000931012034 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X50 | ||
| N 000931012114 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X45 | ||
| 225 | A 0009906550 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 232 | N 910113012002 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 239 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 6154900225 | CONNECTOR | |
| FRONT RIGHT | ||
| 246 | A 6164921941 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 246 | A 6164922941 | BRACKET |
| FRONT EXHAUST PIPE | ||
| A 6164924241 | BRACKET | |
| FRONT EXHAUST PIPE | ||
| 253 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 253 | N 304017008034 | SCREW |
| CLAMP TO BRACKET | ||
| 260 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 260 | N 913004008001 | NUT |
| CLAMP TO BRACKET | ||
| 267 | A 6164900025 | CONNECTOR |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING | ||
| 274 | N 000960012199 | SCREW |
| Repalced by: N 308676012018 | ||
| 274 | N 308676012018 | SCREW |
| CONNECTOR | ||
| 281 | N 910113012002 | NUT |
| CONNECTOR | ||
| A 6174900730 | PROTECTIVE PLATE | |
| Repalced by: A 6524920230 | ||
| A 6524920230 | PROTECTIVE PLATE | |
| A 6764921641 | BRACKET | |
| Repalced by: A 6764901040 | ||
| A 6764901040 | BRACKET | |
| PROTECTIVE PLATE | ||
| A 4609900601 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| M 8X20 | ||
| A 0019903704 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| M 8X20 | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | HEXAGON HEAD BOLT | |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| M12X1.5X25 | ||
| 288 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 295 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 302 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 309 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 316 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 323 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 330 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 330 | N 304017008028 | SCREW |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 337 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 337 | N 913004008001 | NUT |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 344 | A 6164900920 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 344 | A 6164901920 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 351 | A 6164902320 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| A 6164902020 | EXHAUST PIPE | |
| Repalced by: A 6154901020 | ||
| 351 | A 6154901020 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 358 | A 6154900820 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 365 | A 6154900920 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 372 | A 6174925541 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 379 | A 6164900340 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 379 | A 6164900340 | BRACKET |
| FRONT EXHAUST PIPE | ||
| A 6164900540 | BRACKET | |
| Repalced by: A 6504920241 | ||
| A 6504920241 | BRACKET | |
| FRONT EXHAUST PIPE | ||
| 386 | A 6154921641 | BRACKET |
| FRONT EXHAUST PIPE,LEFT | ||
| A 6154922741 | BRACKET | |
| FRONT EXHAUST PIPE,LEFT | ||
| 393 | A 6154921741 | BRACKET |
| FRONT EXHAUST PIPE,RIGHT | ||
| A 6154922841 | BRACKET | |
| FRONT EXHAUST PIPE,RIGHT | ||
| 400 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 400 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 407 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 407 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 414 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 414 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 421 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 428 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 435 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 442 | N 000933010145 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 449 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 449 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 456 | A 3834901030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| A 6154900430 | PROTECTIVE PLATE | |
| FRONT LEFT | ||
| A 6154900530 | PROTECTIVE PLATE | |
| FRONT RIGHT | ||
| A 6224920040 | CLAMP | |
| LEFT EXHAUST PIPE TO RIGHT EXHAUST PIPE | ||
| A 3140720253 | SPACER TUBE | |
| REAR EXHAUST PIPE TO BRACKET | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| N 000931010274 | SCREW | |
| Repalced by: N 304014010004 | ||
| N 304014010009 | HEXAGON HEAD BOLT | |
| LEFT EXHAUST PIPE TO RIGHT EXHAUST PIPE | ||
| M 10X90 | ||
| N 000125015175 | WASHER | |
| LEFT EXHAUST PIPE TO RIGHT EXHAUST PIPE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| LEFT EXHAUST PIPE TO RIGHT EXHAUST PIPE | ||
| 463 | A 1204920083 | INSULATION |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 470 | N 071555075502 | CLAMP |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 477 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 477 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 477 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 477 | N 910143008005 | SCREW |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 484 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 484 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 491 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 491 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 498 | A 6174900301 | EXHAUST MUFFLER |
| 505 | A 6164900501 | EXHAUST MUFFLER |
| 512 | A 3834900201 | EXHAUST MUFFLER |
| 512 | A 6174901601 | EXHAUST MUFFLER |
| 519 | N 071555075502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 519 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 526 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 526 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 533 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 533 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 533 | N 304017010002 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 540 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 540 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 540 | N 910113010000 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 547 | A 6174911216 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 554 | N 000961012151 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 561 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 568 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 575 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 575 | N 304017010002 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 582 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 582 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 589 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 596 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 603 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 603 | N 910113010000 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 610 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 617 | A 6174923441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 624 | A 3814920082 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 631 | A 6164910040 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 638 | N 000933010094 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X40 | ||
| 645 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 645 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 652 | A 6154900240 | BRACKET |
| EXHAUST MUFFLER,LEFT | ||
| 659 | A 6154900340 | BRACKET |
| EXHAUST MUFFLER,RIGHT | ||
| A 6174911641 | BRACKET | |
| Repalced by: A 6524911141 | ||
| A 6524911141 | BRACKET | |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 666 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| M 14X1.5X40 | ||
| N 000961014050 | SCREW | |
| Repalced by: N 308676014020 | ||
| N 308676014020 | SCREW | |
| BRACKET TO FRAME | ||
| 673 | N 912004014100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 680 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 680 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 680 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 687 | A 6154900042 | STRAP |
| Repalced by: A 6174900042 | ||
| 687 | A 6174900042 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| A 6524900442 | STRAP | |
| EXHAUST MUFFLER TO BRACKET | ||
| 694 | N 006319010302 | SPHERICAL WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 694 | N 006319010302 | SPHERICAL WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 701 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 701 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 701 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| A 6164920214 | END PIECE | |
| 708 | A 6154920604 | REAR EXHAUST PIPE |
| A 6164920814 | END PIECE | |
| 715 | A 6154920704 | REAR EXHAUST PIPE |
| 724 | A 6154921604 | REAR EXHAUST PIPE |
| 731 | A 6154921704 | REAR EXHAUST PIPE |
| 738 | A 6154920404 | REAR EXHAUST PIPE |
| LEFT | ||
| 738 | A 6154921204 | REAR EXHAUST PIPE |
| LEFT | ||
| 738 | A 6154920804 | REAR EXHAUST PIPE |
| LEFT | ||
| 738 | A 6154921404 | REAR EXHAUST PIPE |
| LEFT | ||
| 745 | A 6154920504 | REAR EXHAUST PIPE |
| RIGHT | ||
| 745 | A 6154921304 | REAR EXHAUST PIPE |
| RIGHT | ||
| 745 | A 6154920904 | REAR EXHAUST PIPE |
| RIGHT | ||
| 745 | A 6154921504 | REAR EXHAUST PIPE |
| RIGHT | ||
| 752 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 759 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 759 | N 071555094502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 766 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 766 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 773 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 773 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 780 | A 6154920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 780 | A 6154921341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 787 | A 6154922141 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 787 | A 6154922241 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 794 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 794 | N 304017010002 | SCREW |
| REAR SUPPORT TO FRAME | ||
| 801 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 801 | N 910113010000 | NUT |
| REAR SUPPORT TO FRAME | ||
| 808 | A 3834922141 | BRACKET |
| Repalced by: A 3834927941 | ||
| 808 | A 3834927941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 808 | A 6154922641 | BRACKET |
| Repalced by: A 6164923241 | ||
| 808 | A 6164923241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 815 | A 0019875340 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 822 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 829 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 836 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 836 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 843 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 843 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| A 6214920341 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| A 6214920441 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| BRACKET TO SUPPORT | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO SUPPORT | ||
| A 3834921041 | BRACKET | |
| REAR EXHAUST PIPE | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| BRACKET TO EXHAUST PIPE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRACKET TO EXHAUST PIPE | ||
| A 3814920082 | DAMPING PAD | |
| BRACKET TO SUPPORT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
