Transporto priemonė: 1222 A; VIN numerio dalis: 615247

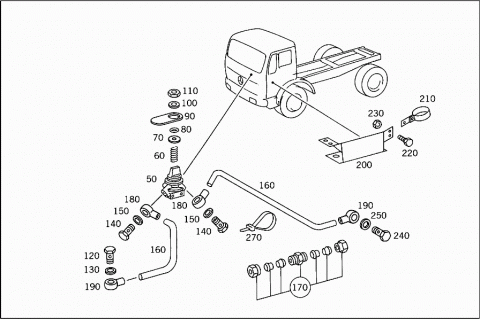

Grupė: 33 FRONT AXLE

#	Kodas	Pavadinimas
050	A 0019975036	VALVE
		TRANSVERSE DIFFERENTIAL LOCK CONTROL
		BOSCH
050	A 0019976136	VALVE
		TRANSVERSE DIFFERENTIAL LOCK CONTROL
		WABCO
050	A 0039975936	VALVE
		TRANSVERSE DIFFERENTIAL LOCK CONTROL
		KNORR
050	A 0039976036	VALVE
		TRANSVERSE DIFFERENTIAL LOCK CONTROL
		VOSS
060	A 0049937501	SPRING
		TO 001 997 61 36,WABCO
070	A 0069972648	SEAL RING
		TO 001 997 61 36,WABCO
080	A 0039979640	SEAL RING
		TO 001 997 61 36,WABCO
090	A 3855840924	SYMBOL PLATE
		TRANSVERSE DIFFERENTIAL LOCK
100	A 6239900040	WASHER
		VALVE TO ENGINE TUNNEL
110	A 3839900051	NUT
		VALVE TO ENGINE TUNNEL
120	N 915036008202	HOLLOW SCREW
		DISTRIBUTOR,CONNECTION:
		"50"
130	N 007603012405	SEAL RING
		DISTRIBUTOR,CONNECTION:
		"50"
140	N 915036006202	HOLLOW SCREW
		3/2-WAY VALVE;CONNECTIONS:
		"10,20"
150	N 007603010404	SEAL RING
		3/2-WAY VALVE;CONNECTIONS:
		"10,20"
160	A 0089976082	HOSE
	Repalced by: A 0009872627
160	A 0009872627	PLASTIC PIPE
		FROM DISTRIBUTOR TO VALVE
		4X6 MM
160	A 0009872627	PLASTIC PIPE
		FROM 3/2-WAY VALVE TO SHIFT CYLINDER
		4X6 MM
170	A 0039979172	FITTING
		(PARTS KIT),LINE RUPTURE
180	N 915052004016	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/10 MM
190	N 915052004015	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/12 MM
200	A 6173530040	BRACKET
		LINE MOUNTING
	Y YYYYYYYYYYYY	PART NAME MISSING
		.
		42
210	A 6179950035	CLAMP
		LINE MOUNTING
	Y YYYYYYYYYYYY	PART NAME MISSING
		.
		42
220	N 000933006183	SCREW
	Repalced by: N 304017006016
220	N 304017006016	SCREW
		LINE MOUNTING
	Y YYYYYYYYYYYY	PART NAME MISSING
		.
		42
230	N 913004006002	NUT
	Repalced by: N 913004006001
230	N 913004006001	NUT
		LINE MOUNTING
	Y YYYYYYYYYYYY	PART NAME MISSING
		.
		42
240	N 915036008202	HOLLOW SCREW
		SHIFTING CYLINDER,CONNECTION:
		"10"
250	N 007603012405	SEAL RING
		SHIFTING CYLINDER,CONNECTION:
		"10"
270	A 0019978390	LOOM TIE
		LINE MOUNTING
		280 MM
270	A 0019978490	LOOM TIE
		LINE MOUNTING
		376 MM
