Transporto priemonė: 1222 A; VIN numerio dalis: 615247

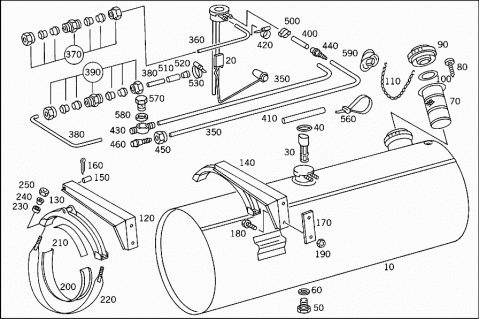

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3804700101 | FUEL TANK |
| 200 L. | ||
| 010 | A 6154700301 | FUEL TANK |
| 200 L. | ||
| 020 | A 0055423817 | SENDER UNIT |
| Repalced by: A 0085428017 | ||
| 020 | A 0085428017 | SENDER UNIT |
| FUEL TANK | ||
| 030 | A 0004710235 | FUEL STRAINER |
| AT SENDER UNIT | ||
| 040 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 050 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 050 | N 007604014110 | SCREW PLUG |
| FUEL TANK | ||
| 060 | N 007603014106 | SEAL RING |
| FUEL TANK | ||
| 070 | A 0004710435 | FUEL STRAINER |
| FILLER NECK | ||
| 080 | N 007981004245 | SHEET METAL SCREW |
| Repalced by: N 007981004339 | ||
| 080 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 080 | N 000000000459 | SHEET METAL SCREW |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 090 | A 6154700005 | FILLER CAP |
| LOCKABLE | ||
| 100 | A 3049970340 | SEAL RING |
| 110 | A 3034700031 | CHAIN |
| 120 | A 3804700642 | SUPPORT |
| Repalced by: A 6154700842 | ||
| 120 | A 6154700842 | SUPPORT |
| FRONT FUEL TANK | ||
| 130 | A 3804700842 | SUPPORT |
| FRONT FUEL TANK | ||
| 140 | A 3804700742 | SUPPORT |
| Repalced by: A 6154700942 | ||
| 140 | A 6154700942 | SUPPORT |
| REAR FUEL TANK | ||
| 150 | N 001443016204 | PIN |
| FRONT SUPPORT | ||
| 160 | N 000094004056 | COTTER PIN |
| FRONT SUPPORT | ||
| A 3804700074 | PIN | |
| FRONT SUPPORT | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| PIN TO CONSOLE | ||
| N 912004008102 | LOCK WASHER | |
| PIN TO CONSOLE | ||
| 170 | A 3804750284 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 180 | N 000961014054 | SCREW |
| FRONT SUPPORT TO SIEDE MEMBER | ||
| M 14X45 | ||
| 180 | N 000960014237 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X50 | ||
| 190 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 190 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 200 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 600 MM | ||
| 210 | A 3634750320 | PAD |
| FUEL TANK TO CONSOLE | ||
| 540 MM | ||
| 220 | A 3804700040 | STRAP |
| Repalced by: A 6174700140 | ||
| 220 | A 6174700140 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 230 | N 006319014400 | CONICAL SOCKET |
| STRAP TO SUPPORT | ||
| 240 | N 006319013303 | SPHERICAL WASHER |
| STRAP TO SUPPORT | ||
| 250 | N 000934012021 | NUT |
| STRAP TO SUPPORT | ||
| 250 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||
| 350 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 360 | A 0089979082 | HOSE |
| AERATION | ||
| 6X8 MM | ||
| 370 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 370 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 380 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 380 | A 0009872627 | PLASTIC PIPE |
| LEAK LINE | ||
| 4X6 MM | ||
| 390 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 400 | A 3054760126 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 410 | N 040621011200 | INSULATING HOSE |
| FEED LINE | ||
| A 0009872627 | PLASTIC PIPE | |
| FUEL LINE | ||
| 6X1 MM | ||
| A 0009872727 | PLASTIC PIPE | |
| FUEL LINE | ||
| 8X1 MM | ||
| A 0009872827 | PLASTIC PIPE | |
| FUEL LINE | ||
| 12X1,5 MM | ||
| A 0009872927 | PLASTIC PIPE | |
| FUEL LINE | ||
| 16X2 MM | ||
| 420 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 420 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 430 | A 0009908188 | BANJO UNION |
| FEED LINE | ||
| N 915052008016 | BANJO UNION | |
| Repalced by: N 000000000363 | ||
| N 000000000363 | BANJO UNION | |
| HOSE WIDTH, / I.D., | ||
| 8/14 MM | ||
| 440 | A 3879900078 | CONNECTOR |
| FUEL LINE | ||
| 440 | N 915062008000 | SLEEVE |
| FUEL LINE | ||
| 450 | N 915017008200 | UNION NUT |
| FUEL LINE | ||
| 450 | N 915017010201 | UNION NUT |
| RETURN LINE | ||
| 460 | A 0019975272 | FITTING |
| FUEL LINE | ||
| 460 | A 0019974972 | FITTING |
| RETURN LINE | ||
| A 6174760536 | BRACKET | |
| AT TRANSMISSION | ||
| A 3954280043 | ANGLE | |
| Repalced by: A 3604280243 | ||
| A 3604280243 | ANGLE | |
| FUEL LINE TO TRANSMISSION | ||
| N 000933010198 | SCREW | |
| FUEL LINE TO TRANSMISSION | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| FUEL LINE TO TRANSMISSION | ||
| A 3854292640 | BRACKET | |
| Repalced by: A 3604292440 | ||
| A 3604292440 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 3604292940 | BRACKET | |
| AT SIDE MEMBER | ||
| A 6154760236 | BRACKET | |
| BRACKET TO SIDE MEMBER | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 500 | A 0029978790 | CLIP |
| LEAK RETURN | ||
| 510 | N 073379006203 | HOSE |
| LEAK LINE | ||
| 520 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 530 | N 916002010100 | CLAMP |
| LEAK LINE | ||
| 560 | A 0019978490 | LOOM TIE |
| FUEL LINE | ||
| 376 MM | ||
| 560 | A 0019978390 | LOOM TIE |
| FUEL LINE | ||
| 280 MM | ||
| 570 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 570 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 580 | N 007603014405 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 590 | A 3609970681 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| A 3974290040 | BRACKET | |
| Repalced by: A 3974290140 | ||
| A 3974290140 | BRACKET | |
| Repalced by: A 6205243040 | ||
| A 6205243040 | BRACKET | |
| AT MUFFLER | ||
| N 000933012128 | SCREW | |
| BRACKET TO EXHAUST MUFFLER | ||
| N 913002012004 | NUT | |
| BRACKET TO EXHAUST MUFFLER | ||
