Transporto priemonė: 1222 A; VIN numerio dalis: 615247

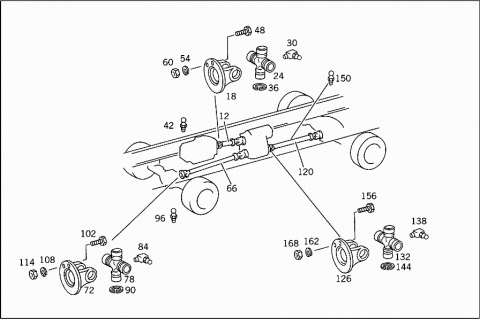

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 6744102202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 640 MM | ||
| 012 | A 3854102907 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 671 MM | ||
| 018 | A 3814110811 | DRIVE FLANGE |
| 018 | A 3854111711 | DRIVE FLANGE |
| 024 | A 6174100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004104031 | ||
| 024 | A 0004104031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 024 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 024 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 030 | N 071412008302 | GREASE NIPPLE |
| 036 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 036 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 036 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 036 | A 0039945041 | LOCK |
| Repalced by: A 0059949941 | ||
| 036 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 036 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 036 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 036 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 036 | A 0059941041 | LOCK |
| Repalced by: A 0069940441 | ||
| 036 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 036 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 036 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| A 3814110559 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 77X14.5 MM | ||
| A 0004110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 74.5X22 MM | ||
| 042 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 042 | N 071412008102 | GREASE NIPPLE |
| 048 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 048 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 048 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 048 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 048 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 054 | N 912004010102 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 054 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 060 | N 000934010010 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 060 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 066 | A 6744101502 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1108 MM | ||
| 066 | A 6744102102 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1151 MM | ||
| 072 | A 3814110811 | DRIVE FLANGE |
| 078 | A 6174100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004104031 | ||
| 078 | A 0004104031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 084 | N 071412008302 | GREASE NIPPLE |
| 090 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 090 | A 0039945041 | LOCK |
| Repalced by: A 0059949941 | ||
| 090 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 090 | A 0059941041 | LOCK |
| Repalced by: A 0069940441 | ||
| 090 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| A 3814110559 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 77X14.5 MM | ||
| A 0004110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 74.5X22 MM | ||
| A 3854110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 95X14.5 MM | ||
| 096 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 096 | N 071412008102 | GREASE NIPPLE |
| 102 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 102 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 102 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 108 | N 912004010102 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 114 | N 000934010010 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 120 | A 3854104607 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1190 MM | ||
| 120 | A 3854103007 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1750 MM | ||
| 120 | A 3854105307 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1250 MM | ||
| 120 | A 3854103107 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1825 MM | ||
| 120 | A 3974100007 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1884 MM | ||
| 126 | A 3854111711 | DRIVE FLANGE |
| 132 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 132 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 138 | N 071412008302 | GREASE NIPPLE |
| 144 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 144 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 144 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 144 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 144 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 144 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 144 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| A 3854110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 95X14.5 MM | ||
| 150 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 150 | N 071412008102 | GREASE NIPPLE |
| 156 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 156 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 162 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 168 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
