Transporto priemonė: 1222 A; VIN numerio dalis: 615247
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

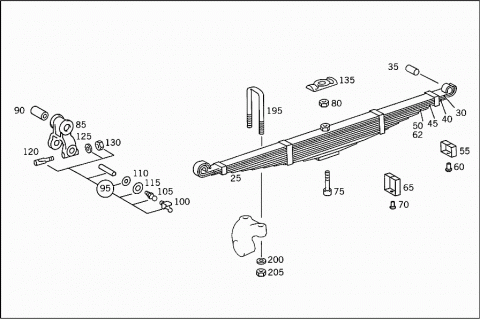

| 025 | A 3853202202 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "10" | ||
| 030 | A 3833201294 | SPRING LEAF |
| NO. 1 | ||
| 035 | A 3523220050 | BUSHING |
| 035 | A 3853220050 | BUSHING |
| 040 | A 3833212012 | SPRING LEAF |
| NO. 2 | ||
| 045 | A 3853210813 | SPRING LEAF |
| NO. 3 | ||
| 050 | A 3853203494 | SPRING LEAF |
| NO.4 | ||
| 055 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 060 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 062 | A 3853210814 | SPRING LEAF |
| Repalced by: A 3853203494 | ||
| 062 | A 3853203494 | SPRING LEAF |
| NO.4 | ||
| 065 | A 3123240633 | SPRING CLAMP |
| INSIDE;AT NO.9 SPRING LEAF | ||
| 065 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.5 | ||
| 070 | N 910006008013 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 075 | N 004626012120 | SPRING BOLT |
| 080 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 080 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 085 | A 6173200163 | SHACKLE |
| Repalced by: A 6173250120 | ||
| 085 | A 6173250120 | SHACKLE |
| FRONT SPRING,REAR | ||
| 090 | A 3523220050 | BUSHING |
| SHACKLE | ||
| 090 | A 3853220050 | BUSHING |
| SHACKLE | ||
| 095 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 100 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 105 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 110 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 110 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 110 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 115 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 120 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 125 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 125 | N 000125010532 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 130 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 130 | N 910113010000 | NUT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 135 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||

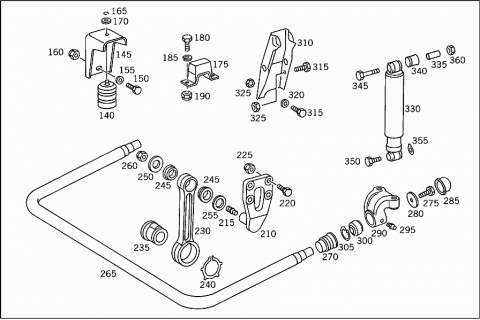

| 140 | A 3853200077 | RUBBER SPRING |
| (HELPER SPRING) | ||
| 145 | A 3853250040 | BRACKET |
| RUBBER SPRING | ||
| 150 | N 000961014119 | SCREW |
| Repalced by: A 9429901304 | ||
| 150 | A 9429901304 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 155 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 155 | N 000125015019 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 160 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 160 | N 910113014000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 165 | N 912002012001 | LOCK |
| RUBBER SPRING TO BRACKET | ||
| 170 | N 000125013008 | WASHER |
| 175 | A 3853300075 | RUBBER MOUNTING |
| 180 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE,LEFT | ||
| M 10X25 | ||
| 180 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE,RIGHT | ||
| M 10X20 | ||
| 185 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT AXLE,RIGHT | ||
| 190 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 190 | N 910113010000 | NUT |
| RUBBER MOUNTING TO FRONT AXLE,LEFT | ||
| 195 | A 3523310625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 195 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 260 MM | ||
| 200 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 205 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 6163260263 | BEARING BRACKET | |
| Repalced by: A 6163260163 | ||
| 210 | A 6163260163 | BEARING BRACKET |
| FRONT AXLE TORSION BAR | ||
| 210 | A 6163260163 | BEARING BRACKET |
| FRONT AXLE TORSION BAR | ||
| 215 | N 000939016033 | STUD BOLT |
| BEARING BRACKET | ||
| 220 | N 000960014229 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 14X55 | ||
| 220 | N 000960014237 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 220 | N 000960012261 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X55 | ||
| 220 | N 000960012261 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X55 | ||
| 220 | N 000960012162 | SCREW |
| Repalced by: N 000961012205 | ||
| 220 | N 000961012205 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X50 | ||
| 220 | N 000961012205 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X50 | ||
| 225 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 225 | N 910113014000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 225 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 225 | N 910113012003 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 225 | N 910113012003 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 225 | N 910113012003 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 230 | A 6173230016 | LINK |
| TORSION BAR MOUNTING | ||
| 235 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR TO SHACKLE | ||
| 240 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 245 | A 0003232150 | BUSHING |
| LINK TO BEARING BRACKET | ||
| 250 | A 3933260152 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 255 | A 3873230052 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 260 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 260 | N 910113016002 | NUT |
| LINK TO BEARING BRACKET | ||
| N 000961016081 | SCREW | |
| LINK TO BEARING BRACKET | ||
| 265 | A 6163230065 | TORSION BAR |
| FRONT AXLE | ||
| 270 | A 3833230092 | BOOT |
| LINK TO TORSION BAR | ||
| 275 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 275 | N 308676012012 | HEXAGON HEAD BOLT |
| LINK TO TORSION BAR | ||
| 280 | A 3529900640 | WASHER |
| LINK TO TORSION BAR | ||
| 285 | A 6173230038 | DUST CAP |
| LINK TO TORSION BAR | ||
| 290 | A 3853230263 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 295 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 295 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 300 | A 0009816131 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 300 | A 0009817431 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 305 | N 000472055000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 310 | A 3833200478 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 310 | A 3853200678 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 315 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M12X40 | ||
| 315 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 315 | N 308676012012 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M12X1.5X25 | ||
| 320 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 320 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 325 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 330 | A 0023237600 | SHOCK ABSORBER |
| Repalced by: A 0043237100 | ||
| 330 | A 0043237100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 330 | A 0043233300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 330 | A 0043239500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 330 | A 0053230400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 335 | A 0003233150 | SPACER RING |
| TO 002 323 76 00,004 323 71 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 95 00,005 323 04 00 | ||
| 335 | A 0003235250 | BUSHING |
| TO 004 323 33 00 | ||
| 340 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 76 00,004 323 71 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 95 00,005 323 04 00 | ||
| 340 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 340 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 33 00 | ||
| Repalced by: A 0003238085 | ||
| 340 | A 0003238085 | RUBBER MOUNTING |
| TO 004 323 33 00 | ||
| 345 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 16X90 | ||
| 350 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 16X80 | ||
| 355 | N 000093017001 | LOCK PLATE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 360 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 360 | N 910113016002 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||

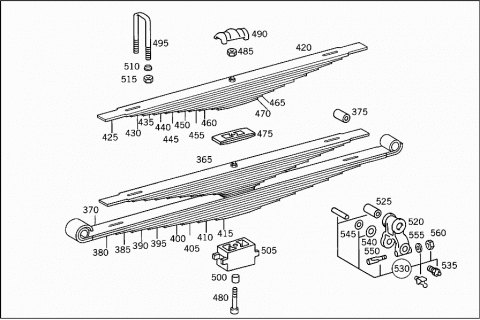

| 365 | A 3813200208 | REAR SPRING |
| 9-LEAF,WITH 10-LEAF HELPER SPRING | ||
| 370 | A 3813201093 | SPRING LEAF |
| NO. 1 | ||
| 375 | A 3523250150 | BUSHING |
| 375 | A 3853250050 | BUSHING |
| 380 | A 3813241112 | SPRING LEAF |
| NO. 2 | ||
| 385 | A 3813240213 | SPRING LEAF |
| NO. 3 | ||
| 390 | A 3813240214 | SPRING LEAF |
| NO. 4 | ||
| 395 | A 3813240215 | SPRING LEAF |
| NO. 5 | ||
| 400 | A 3813240216 | SPRING LEAF |
| NO. 6 | ||
| 405 | A 3813240217 | SPRING LEAF |
| NO. 7 | ||
| 410 | A 3813240218 | SPRING LEAF |
| NO. 8 | ||
| 415 | A 3813240019 | SPRING LEAF |
| NO.9 | ||
| 420 | A 3813200110 | HELPER SPRING |
| 425 | A 3813240240 | SPRING LEAF |
| NO. 1 | ||
| 430 | A 3813240241 | SPRING LEAF |
| NO. 2 | ||
| 435 | A 3813240242 | SPRING LEAF |
| NO. 3 | ||
| 440 | A 3813240243 | SPRING LEAF |
| NO. 4 | ||
| 445 | A 3813240244 | SPRING LEAF |
| NO. 5 | ||
| 450 | A 3813240245 | SPRING LEAF |
| NO. 6 | ||
| 455 | A 3813240146 | SPRING LEAF |
| NO. 7 | ||
| 460 | A 3813240147 | SPRING LEAF |
| NO. 8 | ||
| 465 | A 3583240148 | SPRING LEAF |
| NO. 9 | ||
| 470 | A 3813240049 | SPRING LEAF |
| NO.10 | ||
| 475 | A 3583240035 | SPACER |
| 480 | A 6173241871 | SPRING BOLT |
| 485 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 485 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 490 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 490 | A 6173250331 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 495 | A 3853512025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 450 MM | ||
| 495 | A 3853512925 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 470 MM | ||
| 495 | A 6173511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 460 MM | ||
| 500 | A 6179910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 505 | A 6173250884 | SHIM |
| Repalced by: A 6173251484 | ||
| 505 | A 6173250984 | SHIM |
| Repalced by: A 6173251484 | ||
| 505 | A 6173251484 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| A 3853250031 | PLATE | |
| REAR SPRING TO REAR AXLE | ||
| 510 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 515 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 515 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 515 | N 308674020000 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 520 | A 3523200163 | SHACKLE |
| Repalced by: A 3523250120 | ||
| 520 | A 3523250120 | SHACKLE |
| REAR SPRING | ||
| 525 | A 3523250150 | BUSHING |
| 525 | A 3853250050 | BUSHING |
| 530 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 535 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 540 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 540 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 545 | A 0029973040 | SEAL RING |
| SPRING SUSPENSION | ||
| 550 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 555 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 555 | N 000125010532 | WASHER |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 560 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 560 | N 910113010000 | NUT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 580 | A 6153200078 | CONSOLE |
| Repalced by: A 6153260063 | ||
| 580 | A 6153260063 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 585 | N 000939016033 | STUD BOLT |
| 590 | A 6173260127 | INTERMEDIATE PIECE |
| 595 | N 308676012010 | HEXAGON HEAD BOLT |
| INTERMEDIATE PIECE AND HELPER SPRING BRACKET TO FRAME | ||
| 600 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 600 | N 308676016006 | SCREW |
| INTERMEDIATE PIECE AND HELPER SPRING BRACKET TO FRAME | ||
| 605 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 605 | N 000137012206 | SPRING WASHER |
| INTERMEDIATE PIECE AND HELPER SPRING BRACKET TO FRAME | ||
| 610 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 610 | N 910113016001 | NUT |
| INTERMEDIATE PIECE AND HELPER SPRING BRACKET TO FRAME | ||
| 615 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 615 | N 308676016006 | SCREW |
| BEARING BRACKET TO INTERMEDIATE PIECE | ||
| 620 | N 000137016202 | SPRING WASHER |
| BEARING BRACKET TO INTERMEDIATE PIECE | ||
| 625 | A 3633260147 | SHACKLE |
| TORSION BAR,REAR | ||
| 630 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 635 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 640 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 645 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 645 | N 910113016002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| N 000961016081 | SCREW | |
| SHACKLE TO BEARING BRACKET | ||
| 650 | A 3833260365 | TORSION BAR |
| REAR STABILIZER | ||
| 655 | A 0009810831 | JOINT BEARING |
| TORSION BAR | ||
| 655 | A 0009811231 | JOINT BEARING |
| TORSION BAR | ||
| 660 | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 665 | N 071412008200 | GREASE NIPPLE |
| TORSION BAR | ||
| A 6173260050 | BUSHING | |
| TORSION BAR | ||
| 670 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR TO SHACKLE | ||
| 675 | A 6173200028 | REPAIR KIT |
| Repalced by: A 6173200228 | ||
| 675 | A 6173200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 680 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 685 | A 3603230860 | SEAL RING |
| TORSION BAR TO BEARING BRACKET | ||
| 690 | A 3523260153 | SPACER TUBE |
| TORSION BAR TO BEARING BRACKET | ||
| 695 | N 070852035000 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 700 | N 070952035101 | LOCK PLATE |
| TORSION BAR TO BEARING BRACKET | ||
| 705 | A 3853260200 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE | ||
| 710 | A 0003230785 | RUBBER MOUNTING |
| SHOCK ABSORBER,BOTTOM | ||
| TO 003 326 95 00,004 326 12 00 | ||
| 710 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 710 | A 0003233144 | RUBBER BUFFER |
| SHOCK ABSORBER,BOTTOM | ||
| TO 004 326 18 00,004 326 22 00 | ||
| Repalced by: A 0003238085 | ||
| 710 | A 0003238085 | RUBBER MOUNTING |
| SHOCK ABSORBER,BOTTOM | ||
| TO 004 326 18 00,004 326 22 00 | ||
| 715 | A 0003230553 | SPACER TUBE |
| SHOCK ABSORBER,BOTTOM | ||
| 720 | A 3173260167 | RETAINER |
| SHOCK ABSORBER,TOP | ||
| 725 | A 3853230253 | SPACER TUBE |
| SHOCK ABSORBER,TOP | ||
| 730 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER,TOP | ||
| 735 | A 3543260067 | RETAINER |
| SHOCK ABSORBER,TOP | ||
| 740 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 740 | N 910113016002 | NUT |
| SHOCK ABSORBER,TOP | ||
| 745 | A 3833261240 | BRACKET |
| SHOCK ABSORBER AND STABILIZER,LEFT | ||
| 745 | A 3833261340 | BRACKET |
| SHOCK ABSORBER AND STABILIZER,RIGHT | ||
| 750 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 750 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 755 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 760 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 765 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 765 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
