Transporto priemonė: 1222/L; VIN numerio dalis: 615028
Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL: | ||
| 750.4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL: | ||
| 750.8 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 750.8 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL: | ||
| 750.5 | ||

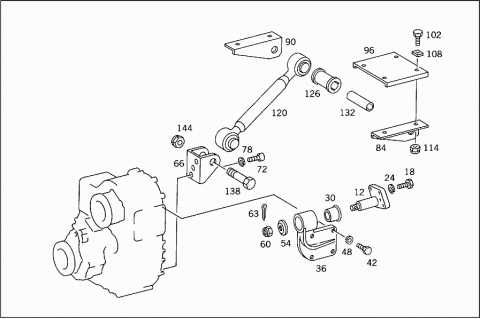

| 012 | A 3832850015 | CARRYING PIN |
| TRANSFER CASE SUSPENSION | ||
| 018 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 018 | N 308676012015 | SCREW |
| CARRYING PIN TO CROSS MEMBER | ||
| 024 | N 912004012100 | LOCK WASHER |
| CARRYING PIN TO CROSS MEMBER | ||
| 030 | A 3602850082 | RUBBER MOUNTING |
| TRANSFER CASE SUSPENSION | ||
| 036 | A 3852850840 | BRACKET |
| TRANSFER CASE SUSPENSION,LEFT | ||
| 036 | A 3852850940 | BRACKET |
| TRANSFER CASE SUSPENSION,RIGHT | ||
| 042 | N 000960014190 | SCREW |
| BRACKET TO TRANSFER CASE | ||
| 048 | N 912004014100 | LOCK WASHER |
| BRACKET TO TRANSFER CASE | ||
| 054 | A 3602850062 | THRUST WASHER |
| CARRYING PIN TO BRACKET | ||
| 060 | N 000935020005 | NUT |
| CARRYING PIN TO BRACKET | ||
| 063 | N 000094004065 | COTTER PIN |
| CARRYING PIN TO BRACKET | ||
| 066 | A 3852800085 | SUPPORT |
| ROD TO TRANSFER CASE | ||
| 068 | A 6172800085 | SUPPORT |
| ROD TO TRANSFER CASE | ||
| 068 | A 6172800085 | SUPPORT |
| ROD TO TRANSFER CASE | ||
| 072 | N 000912014053 | SCREW |
| SUPPORT TO TRANSFER CASE | ||
| 078 | N 912004014100 | LOCK WASHER |
| SUPPORT TO TRANSFER CASE | ||
| 079 | A 6152850084 | SHIM |
| BRACKET TO TRANSFER CASE | ||
| 080 | N 000960014094 | SCREW |
| BRACKET TO TRANSFER CASE | ||
| M 14X85 | ||
| 080 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 080 | N 308676014013 | SCREW |
| BRACKET TO TRANSFER CASE | ||
| M 14X65 | ||
| 081 | N 912004014100 | LOCK WASHER |
| BRACKET TO TRANSFER CASE | ||
| 081 | N 912004014100 | LOCK WASHER |
| BRACKET TO TRANSFER CASE | ||
| 081 | N 912004014100 | LOCK WASHER |
| BRACKET TO TRANSFER CASE | ||
| 081 | N 912004014100 | LOCK WASHER |
| BRACKET TO TRANSFER CASE | ||
| 084 | A 3852850440 | BRACKET |
| ROD TO CROSS MEMBER | ||
| 090 | A 3852850540 | BRACKET |
| ROD TO CROSS MEMBER | ||
| 096 | A 3852850095 | REINFORCEMENT |
| ROD TO CROSS MEMBER | ||
| 102 | N 000933010260 | SCREW |
| BRACKET AND REINFORCEMENT TO CROSS MEMBER | ||
| 108 | A 3854130111 | REINFORCEMENT |
| BRACKET AND REINFORCEMENT TO CROSS MEMBER | ||
| 114 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 114 | N 910113010000 | NUT |
| BRACKET AND REINFORCEMENT TO CROSS MEMBER | ||
| 116 | A 6172800185 | SUPPORT |
| Repalced by: A 6152800385 | ||
| 116 | A 6152800385 | SUPPORT |
| RIGHT | ||
| 116 | A 6152800385 | SUPPORT |
| RIGHT | ||
| 116 | A 6172800285 | SUPPORT |
| Repalced by: A 6152800285 | ||
| 116 | A 6152800285 | SUPPORT |
| LEFT | ||
| 117 | A 6172850040 | BRACKET |
| ROD TO SIDE MEMBER | ||
| 118 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 118 | N 308676014008 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 118 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 118 | N 308676014003 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X30 | ||
| 118 | N 308676014003 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X30 | ||
| 118 | N 308676014003 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X30 | ||
| 119 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 119 | N 910113014000 | NUT |
| BRACKET TO FRAME | ||

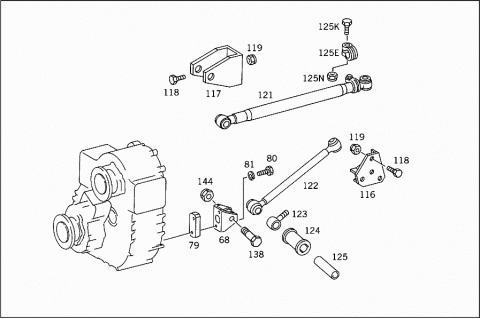

| 119 | N 910113014000 | NUT |
| BRACKET TO FRAME | ||
| 119 | N 910113014000 | NUT |
| BRACKET TO FRAME | ||
| 119 | N 910113014000 | NUT |
| BRACKET TO FRAME | ||
| 120 | A 6172850155 | ROD |
| TRANSFER CASE TO FRAME | ||
| 120 | A 6172850255 | ROD |
| TRANSFER CASE TO FRAME,RIGHT | ||
| 121 | A 6212850055 | ROD |
| TRANSFER CASE TO FRAME,LEFT | ||
| 121 | A 6212850955 | ROD |
| TRANSFER CASE TO FRAME,LEFT | ||
| 122 | A 6152850255 | ROD |
| TRANSFER CASE TO FRAME,RIGHT | ||
| 122 | A 6152850255 | ROD |
| TRANSFER CASE TO FRAME,RIGHT | ||
| 123 | A 0002850035 | JOINT |
| TO 621 285 00 55 | ||
| 124 | A 0002420250 | BUSHING |
| TO 621 285 00 55 | ||
| 125 | A 0002420350 | BUSHING |
| TO 621 285 00 55 | ||
| A 0009950544 | CLAMP | |
| Repalced by: A 0009957044 | ||
| 125E | A 0009957044 | CLAMP |
| TO 621 285 00 55 | ||
| 125K | N 000960010023 | SCREW |
| TO 621 285 00 55 | ||
| 125N | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 125N | N 910113010002 | NUT |
| TO 621 285 00 55 | ||
| 126 | A 0002420250 | BUSHING |
| 132 | A 0002420350 | BUSHING |
| 138 | A 3602850174 | PIN |
| Repalced by: A 3603850074 | ||
| 138 | A 3602850074 | PIN |
| ROD TO SUPPORT AND TO BRACKET | ||
| 138 | A 3602850074 | PIN |
| PULL ROD TO BRACKET ON FRAME | ||
| 138 | A 3602850074 | PIN |
| ROD TO SUPPORT AND TO BRACKET | ||
| 138 | A 6172850274 | PIN |
| ROD TO SUPPORT AND TO BRACKET | ||
| 138 | A 6172850274 | PIN |
| PULL ROD TO BRACKET ON FRAME | ||
| 144 | N 913004022003 | NUT |
| Repalced by: N 910113022001 | ||
| 144 | N 910113022001 | NUT |
| ROD TO SUPPORT AND TO BRACKET | ||
| 144 | N 910113022001 | NUT |
| PULL ROD TO BRACKET ON FRAME | ||
| 144 | N 910113022001 | NUT |
| ROD TO SUPPORT AND TO BRACKET | ||

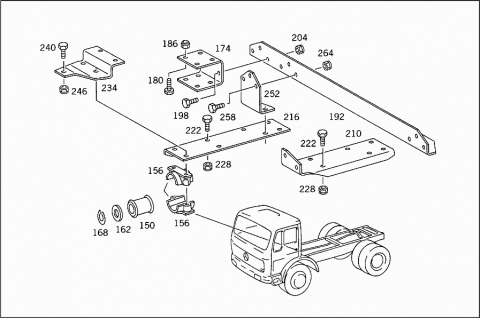

| 150 | A 3222850082 | RUBBER MOUNTING |
| TRANSFER CASE TO CROSS MEMBER | ||
| 156 | A 3122801386 | BEARING |
| TRANSFER CASE TO CROSS MEMBER | ||
| 162 | A 3229901940 | WASHER |
| Repalced by: A 3129902840 | ||
| 162 | A 3129902840 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 168 | A 0009947941 | LOCK |
| BRACKET TO CROSS MEMBER | ||
| 174 | A 3802851540 | BRACKET |
| AT CROSS MEMBER | ||
| 180 | N 000961010037 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X22 | ||
| 186 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 186 | N 910113010002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 192 | A 3803120027 | CROSS MEMBER |
| 198 | N 308676012012 | SCREW |
| CROSS MEMBER TO FRAME | ||
| M 12X25 | ||
| 204 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 204 | N 910113012003 | NUT |
| CROSS MEMBER TO FRAME | ||
| 210 | A 3802851340 | BRACKET |
| LEFT | ||
| 216 | A 3802851440 | BRACKET |
| RIGHT | ||
| 222 | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 222 | N 000961012208 | SCREW |
| TRANSFER CASE TO CROSS MEMBER | ||
| M 12X75 | ||
| 228 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 228 | N 910113012003 | NUT |
| TRANSFER CASE TO CROSS MEMBER | ||
| 234 | A 3802851240 | BRACKET |
| FRONT RIGHT | ||
| 240 | N 000933010164 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X22 | ||
| 246 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 246 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 252 | A 3802851640 | BRACKET |
| REAR RIGHT | ||
| 258 | N 308676012012 | SCREW |
| TRANSFER CASE TO CROSS MEMBER | ||
| M 12X25 | ||
| 264 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 264 | N 910113012003 | NUT |
| TRANSFER CASE TO CROSS MEMBER | ||

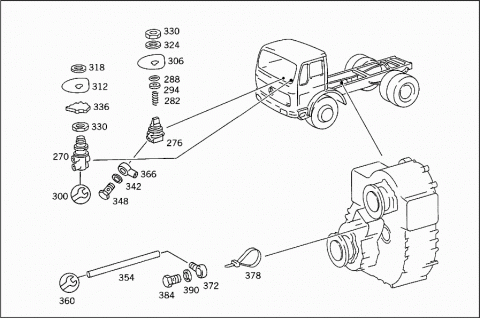

| 270 | A 0019977936 | VALVE |
| ON-ROAD/OFF-ROAD SPEED ACTUATION | ||
| BOSCH | ||
| 270 | A 0019977936 | VALVE |
| ON-ROAD/OFF-ROAD SPEED ACTUATION | ||
| BOSCH | ||
| 270 | A 0019979136 | VALVE |
| ON-ROAD/OFF-ROAD SPEED ACTUATION | ||
| WABCO | ||
| 270 | A 0019979136 | VALVE |
| ON-ROAD/OFF-ROAD SPEED ACTUATION | ||
| WABCO | ||
| 276 | A 0019976136 | VALVE |
| ACTUATION OF LONGITUDINAL DIFFERENTIAL LOCK | ||
| WABCO | ||
| 276 | A 0019975036 | VALVE |
| ACTUATION OF LONGITUDINAL DIFFERENTIAL LOCK | ||
| BOSCH | ||
| 276 | A 0039975936 | VALVE |
| ACTUATION OF LONGITUDINAL DIFFERENTIAL LOCK | ||
| KNORR | ||
| 276 | A 0039976036 | VALVE |
| ACTUATION OF LONGITUDINAL DIFFERENTIAL LOCK | ||
| VOSS | ||
| 282 | A 0049937501 | SPRING |
| TO 001 997 61 36 | ||
| 288 | A 0069972648 | SEAL RING |
| TO 001 997 61 36 | ||
| 294 | A 0039979640 | SEAL RING |
| TO 001 997 61 36 | ||
| 300 | A 0025860943 | REPAIR KIT |
| TO 001 997 91 36 | ||
| 306 | A 3855844124 | UNIT IDENTIFICATION PLATE |
| ON-ROAD/OFF-ROAD SPEED | ||
| 306 | A 3855844124 | UNIT IDENTIFICATION PLATE |
| ON-ROAD/OFF-ROAD SPEED | ||
| 312 | A 3855844324 | UNIT IDENTIFICATION PLATE |
| LONGITUDINAL DIFFERENTIAL LOCK | ||
| 318 | A 3859901640 | WASHER |
| VALVE TO FLOOR | ||
| 324 | A 6239900040 | WASHER |
| VALVE TO FLOOR | ||
| 324 | A 6239900040 | WASHER |
| VALVE TO FLOOR | ||
| 330 | A 3839900051 | NUT |
| VALVE TO FLOOR | ||
| 330 | A 3839900051 | NUT |
| VALVE TO FLOOR | ||
| 330 | A 3839900051 | NUT |
| VALVE TO FLOOR | ||
| 336 | A 0009970577 | HANDLE |
| VALVE | ||
| 336 | A 0009970577 | HANDLE |
| VALVE | ||
| 342 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 342 | N 007603010110 | SEAL RING |
| VALVE | ||
| 348 | N 915036006202 | HOLLOW SCREW |
| VALVE | ||
| 348 | N 915047006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10" | ||
| 348 | N 915047006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10" | ||
| 354 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 354 | A 0009872627 | PLASTIC PIPE |
| FROM DISTRIBUTOR TO VALVE | ||
| 4X6 MM | ||
| 354 | A 0009872627 | PLASTIC PIPE |
| FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 360 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 366 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 372 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 378 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 384 | N 915036008202 | HOLLOW SCREW |
| TRANSFER CASE CYLINDER | ||
| 384 | N 915036008202 | HOLLOW SCREW |
| TRANSFER CASE CYLINDER | ||
| 384 | N 915036008202 | HOLLOW SCREW |
| TRANSFER CASE CYLINDER | ||
| 390 | N 007603012405 | SEAL RING |
| TRANSFER CASE CYLINDER | ||
| 390 | N 007603012405 | SEAL RING |
| TRANSFER CASE CYLINDER | ||
| 390 | N 007603012405 | SEAL RING |
| TRANSFER CASE CYLINDER | ||
