Transporto priemonė: 1222/L; VIN numerio dalis: 615028

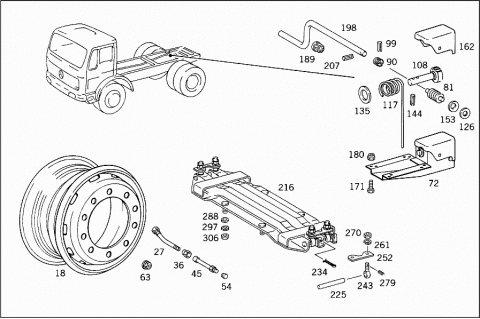

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 018 | A 3814000902 | DISC WHEEL |
| Repalced by: A 0004017005 | ||
| 018 | A 0004017005 | RIM |
| 6.00X22.5 | ||
| 018 | A 0004018405 | RIM |
| 6.00X22.5 | ||
| 018 | A 0004019405 | RIM |
| 6.00X22.5 | ||
| 018 | A 3834001002 | DISC WHEEL |
| Repalced by: A 0004017105 | ||
| 018 | A 0004017105 | RIM |
| 6.75X22.5 | ||
| 018 | A 0004019505 | RIM |
| 6.75X22.5 | ||
| 018 | A 3834000602 | DISC WHEEL |
| Repalced by: A 0004017305 | ||
| 018 | A 0004017305 | RIM |
| 7.50X22.5 | ||
| 018 | A 0004018605 | RIM |
| Repalced by: A 0004014602 | ||
| 018 | A 0004014602 | DISC WHEEL |
| 7.50X22.5 | ||
| 018 | A 0004019705 | RIM |
| 7.50X22.5 | ||
| 018 | A 0034012601 | DISC WHEEL |
| Repalced by: A 0004017205 | ||
| 018 | A 0004017205 | RIM |
| 6.75X22.5 | ||
| 018 | A 0004018505 | RIM |
| Repalced by: A 0004002802 | ||
| 018 | A 0004002802 | DISC WHEEL |
| 6.75X22.5 | ||
| 018 | A 0004019605 | RIM |
| 6.75X22.5 | ||
| 027 | A 0004012913 | VALVE |
| Repalced by: A 0004017113 | ||
| 027 | A 0004017113 | VALVE |
| 27 DEGREES | ||
| 036 | A 0004010272 | NUT |
| VALVE TO DISC WHEEL | ||
| 045 | A 3854010013 | VALVE |
| EXTENSION | ||
| 045 | A 3854010113 | VALVE |
| EXTENSION | ||
| 054 | N 007757008600 | VALVE CAP |
| 063 | A 3854000124 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 063 | A 0004010672 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 072 | A 3814001739 | BRACKET |
| Repalced by: A 3814001639 | ||
| 072 | A 3814001639 | SPARE WHEEL HOIST |
| SPARE WHEEL HOIST | ||
| 081 | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 081 | A 6204030085 | WORM |
| SPARE WHEEL HOIST | ||
| 090 | A 3814030250 | BUSHING |
| SPARE WHEEL HOIST | ||
| 099 | N 001481006027 | CLAMPING SLEEVE |
| BUSHING TO WORM | ||
| 6X24 MM | ||
| 108 | A 3814030183 | STOP GEAR |
| Repalced by: A 6204030483 | ||
| 108 | A 6204030483 | STOP GEAR |
| SPARE WHEEL HOIST | ||
| 117 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 117 | N 083334008000 | WIRE CABLE |
| SPARE WHEEL HOIST | ||
| 126 | A 3819900340 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 126 | A 6179900540 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 135 | A 3819900140 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 144 | N 001481008038 | CLAMPING SLEEVE |
| Repalced by: N 308752008000 | ||
| 144 | N 308752008000 | CLAMPING PIN |
| WORM AND SHAFT TO BRACKET | ||
| 8X50 MM | ||
| 153 | N 002093031201 | DISC SPRING |
| WORM AND SHAFT TO BRACKET | ||
| 162 | A 3814030044 | COVER PLATE |
| SPARE WHEEL HOIST | ||
| 171 | N 000933010128 | SCREW |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 180 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 180 | N 910113010000 | NUT |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 189 | A 3814030150 | BUSHING |
| AT FRAME | ||
| 198 | A 3814030045 | CRANK |
| SPARE WHEEL HOIST | ||
| 207 | N 001481006027 | CLAMPING SLEEVE |
| CRANK TO BUSHING | ||
| 6X24 MM | ||
| 216 | A 3814002639 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 225 | A 3874030074 | PIN |
| SPARE WHEEL CARRIER | ||
| 234 | N 000094004065 | COTTER PIN |
| 243 | A 3859900023 | SCREW |
| Repalced by: A 6519900023 | ||
| 243 | A 6519900023 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 252 | A 3874030319 | BASE BLOCK |
| SPARE WHEEL CARRIER TO FRAME | ||
| 261 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 270 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 270 | N 308673016001 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 279 | N 007346004016 | CLAMPING SLEEVE |
| SPARE WHEEL CARRIER TO FRAME | ||
| 4X20 MM | ||
| 288 | N 007349021001 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 297 | N 912004020100 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 306 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 306 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 306 | N 308674020000 | NUT |
| SPARE WHEEL TO BRACKET | ||
