Transporto priemonė: 1322 LS - 1329 LS; VIN numerio dalis: 974263

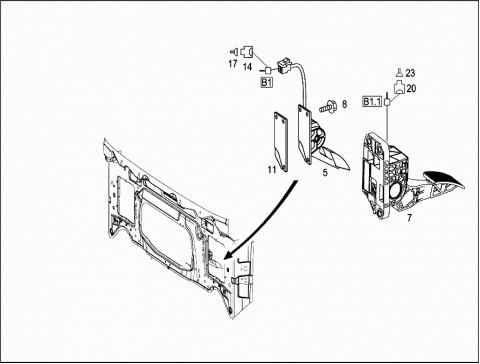

Grupė: 30 CONTROL - 140 ELECTRONIC ACCELERATOR PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9703000304 | ACCELERATOR PEDAL |
| 005 | A 9703000004 | ACCELERATOR PEDAL |
| WITH KICKDOWN | ||
| 007 | A 9403000004 | ACCELERATOR PEDAL |
| ACCELERATOR MODULE | ||
| Repalced by: A 9603000004 | ||
| 007 | A 9603000004 | ACCELERATOR PEDAL |
| ACCELERATOR MODULE | ||
| 008 | N 910105008014 | SCREW |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| M 8X35 | ||
| 008 | N 910143008005 | SCREW |
| ACCELERATOR MODULE | ||
| 011 | A 9703010004 | PLATE |
| (MOUNTING PLATE) | ||
| 014 | A 0265459728 | PLUG HOUSING |
| ACCELERATOR PEDAL | ||
| B1, 9 PIN | ||
| 017 | A 0355452428 | FLAT PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 0.5-1.0 MM2 | ||
| 017 | A 0355452528 | FLAT PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 1.0-2.5 MM2 | ||
| 020 | A 2105403681 | PIN BUSHING HOUSING |
| ACCELERATOR PEDAL | ||
| B1.1, 6 PIN, CODE A | ||
| 023 | A 0085456326 | CONTACT BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 0.75 MM2 | ||
