Transporto priemonė: 1322 LS - 1329 LS; VIN numerio dalis: 974263

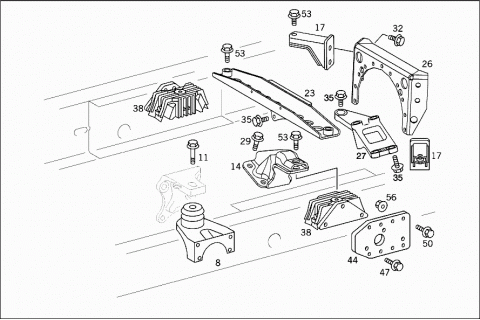

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 9702400317 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 9732400317 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 9702400417 | RUBBER MOUNTING |
| FRONT | ||
| 011 | N 910105016007 | SCREW |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| M 16X1.5X45 | ||
| 011 | N 910105016007 | SCREW |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| M 16X1.5X45 | ||
| 011 | N 910105016012 | SCREW |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| M 16X1.5X50 | ||
| 014 | A 9702400105 | SUPPORTING ARM |
| ENGINE REAR MOUNTING | ||
| 014 | A 9702400105 | SUPPORTING ARM |
| ENGINE REAR MOUNTING | ||
| 017 | A 9702400205 | SUPPORTING ARM |
| ENGINE REAR MOUNTING | ||
| 017 | A 9702400405 | SUPPORTING ARM |
| ENGINE REAR MOUNTING | ||
| 017 | A 9702400305 | SUPPORTING ARM |
| ENGINE REAR MOUNTING | ||
| 023 | A 9702400140 | BRACKET |
| ENGINE REAR MOUNTING | ||
| 023 | A 9762400040 | BRACKET |
| ENGINE REAR MOUNTING | ||
| 023 | A 9702400340 | BRACKET |
| ENGINE REAR MOUNTING | ||
| 026 | A 9702400240 | BRACKET |
| TRANSMISSION SUSPENSION,REAR | ||
| 027 | A 9402423405 | SUPPORTING ARM |
| ENGINE LEFT REAR MOUNTING | ||
| 027 | A 9402423505 | SUPPORTING ARM |
| ENGINE RIGHT REAR MOUNTING | ||
| 029 | N 910105016037 | HEXAGON HEAD BOLT |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M16X40 | ||
| 029 | N 910105016037 | HEXAGON HEAD BOLT |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M16X40 | ||
| 032 | N 910105016003 | SCREW |
| BRACKET TO SUPPORTING ARM | ||
| M 16X1.5X35 | ||
| 032 | N 910105016013 | SCREW |
| BRACKET TO SUPPORTING ARM | ||
| M 16X1.5X30 | ||
| 032 | N 910105016013 | SCREW |
| BRACKET TO SUPPORTING ARM | ||
| M 16X1.5X30 | ||
| 035 | N 910105012025 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| M 12X35 | ||
| 035 | N 910105012025 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| M 12X35 | ||
| 035 | N 910105010006 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| M10X20 | ||
| 035 | N 910105014023 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| M 14X40 | ||
| 035 | N 304017016006 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X60 | ||
| 038 | A 9702400318 | RUBBER MOUNTING |
| REAR | ||
| 038 | A 9732400318 | RUBBER MOUNTING |
| REAR | ||
| 038 | A 9732400418 | RUBBER MOUNTING |
| REAR | ||
| 038 | A 9732400418 | RUBBER MOUNTING |
| REAR | ||
| 038 | A 9702400418 | RUBBER MOUNTING |
| REAR | ||
| 044 | A 9732400031 | PLATE |
| Repalced by: A 9732420023 | ||
| 044 | A 9732400131 | PLATE |
| Repalced by: A 9732420023 | ||
| 044 | A 9732420023 | PLATE |
| Repalced by: A 9732420323 | ||
| 044 | A 9732420323 | PLATE |
| 047 | N 910105016013 | SCREW |
| PLATE TO RUBBER MOUNTING | ||
| M 16X1.5X30 | ||
| 050 | N 910105012020 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 050 | N 910105012020 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 050 | N 910105012020 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 050 | N 910105012020 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 050 | N 910105012020 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 050 | N 910105012020 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 050 | N 910105012017 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X70 | ||
| 050 | N 910105012019 | HEXAGON HEAD BOLT |
| Repalced by: A 6709900304 | ||
| 050 | A 6709900304 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X65 | ||
| 050 | N 910105012010 | SCREW |
| Repalced by: N 910105012047 | ||
| 050 | N 910105012047 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X40 | ||
| 050 | N 000000001672 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X40 | ||
| 050 | N 910105012015 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X45 | ||
| 050 | N 910105012015 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X45 | ||
| 050 | N 910105016004 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X40 | ||
| 050 | N 910105016004 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X40 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016013 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X30 | ||
| 050 | N 910105016012 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X1.5X50 | ||
| 053 | N 910105018022 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| M18X1.5X50 | ||
| 053 | N 910105018022 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| M18X1.5X50 | ||
| 056 | N 913023012002 | NUT |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| 056 | N 913023012002 | NUT |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| 056 | N 913023012002 | NUT |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| 056 | N 913023012002 | NUT |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| 056 | N 913023016001 | NUT |
| RUBBER MOUNTING TO SIDE MEMBER | ||
