Transporto priemonė: 1322 LS - 1329 LS; VIN numerio dalis: 974263

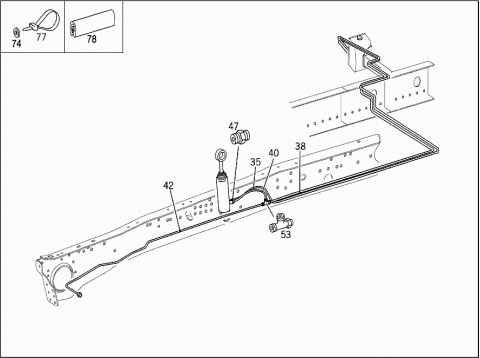

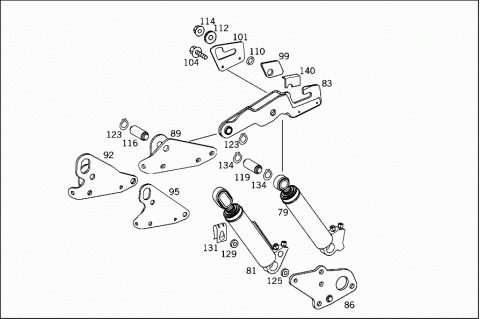

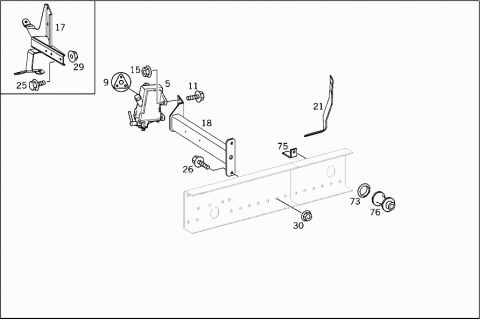

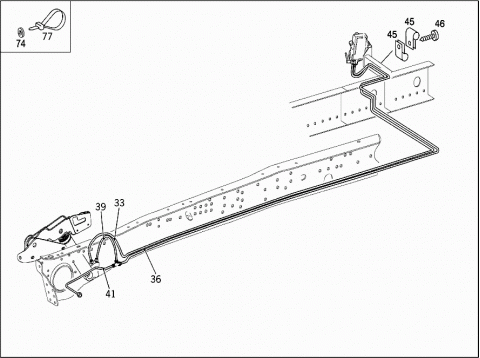

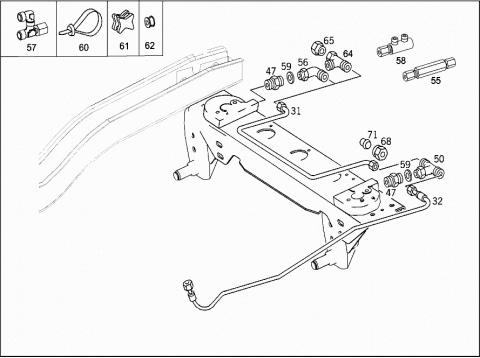

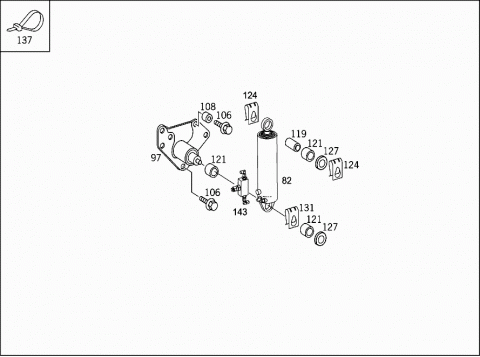

Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9735530401 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 005 | A 9735530301 | PUMP |
| Repalced by: A 9735530401 | ||
| 005 | A 9735530401 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 005 | A 9735530401 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 005 | A 9735530401 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 007 | A 9765530001 | PUMP |
| Repalced by: A 9765530201 | ||
| 007 | A 9765530201 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 009 | A 0005505683 | GASKET KIT |
| HAND PUMP | ||
| 009 | A 0005505683 | GASKET KIT |
| HAND PUMP | ||
| 009 | A 0005505683 | GASKET KIT |
| HAND PUMP | ||
| 009 | A 0005504483 | GASKET KIT |
| HAND PUMP | ||
| 009 | A 0005502683 | GASKET KIT |
| HAND PUMP | ||
| 011 | N 910105010001 | HEXAGON HEAD BOLT |
| HAND PUMP TO BRACKET | ||
| M10X30 | ||
| 011 | N 910105010001 | HEXAGON HEAD BOLT |
| HAND PUMP TO BRACKET | ||
| M10X30 | ||
| 011 | N 910105010001 | HEXAGON HEAD BOLT |
| HAND PUMP TO BRACKET | ||
| M10X30 | ||
| 012 | N 910105010040 | SCREW |
| HAND PUMP TO BRACKET | ||
| M 10X16 | ||
| 013 | N 000125010532 | WASHER |
| HAND PUMP TO BRACKET | ||
| 015 | N 913023010002 | NUT |
| HAND PUMP TO BRACKET | ||
| 015 | N 913023010002 | NUT |
| HAND PUMP TO BRACKET | ||
| 015 | N 913023010002 | NUT |
| HAND PUMP TO BRACKET | ||
| 015 | N 913023010002 | NUT |
| HAND PUMP TO BRACKET | ||
| 017 | A 9735500340 | BRACKET |
| Repalced by: A 9735500440 | ||
| 017 | A 9735500340 | BRACKET |
| Repalced by: A 9735500440 | ||
| 018 | A 9735500440 | BRACKET |
| HAND PUMP | ||
| 018 | A 9735500440 | BRACKET |
| HAND PUMP | ||
| 018 | A 9735500440 | BRACKET |
| HAND PUMP | ||
| 019 | A 9735500840 | BRACKET |
| HAND PUMP | ||
| 020 | A 9735500940 | BRACKET |
| HAND PUMP | ||
| 021 | A 9705530040 | BRACKET |
| HIGH PRESSURE LINES | ||
| 021 | A 9705530040 | BRACKET |
| HIGH PRESSURE LINES | ||
| 023 | A 9733171940 | BRACKET |
| HAND PUMP | ||
| 025 | N 910105008039 | SCREW |
| Repalced by: N 910143008002 | ||
| 025 | N 910105008039 | SCREW |
| Repalced by: N 910143008002 | ||
| 025 | N 910143008002 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X25 | ||
| 025 | N 910143008002 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X25 | ||
| 025 | N 910105010009 | SCREW |
| BRACKET TO SUPPORT | ||
| M 10X25 | ||
| 026 | N 910105012012 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORT | ||
| M12X1.5X80 | ||
| 026 | N 910105012020 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORT | ||
| M 12X35 | ||
| 027 | N 910105010015 | SCREW |
| BRACKET TO SUPPORT | ||
| M10 X 110 MM | ||
| 028 | A 9705230053 | SPACER TUBE |
| BRACKET TO SUPPORT | ||
| 029 | N 913023008003 | NUT |
| BRACKET TO SUPPORT | ||
| 029 | N 913023008003 | NUT |
| BRACKET TO SUPPORT | ||
| 029 | N 913023010002 | NUT |
| BRACKET TO SUPPORT | ||
| 030 | N 913023012002 | NUT |
| BRACKET TO SUPPORT | ||
| 030 | N 913023012002 | NUT |
| BRACKET TO SUPPORT | ||
| 031 | A 9735530382 | HOSE |
| FROM LOCKING MECHANISM ON LOCKING MECHANISM | ||
| 031 | A 9425530282 | HOSE |
| Repalced by: A 9405530482 | ||
| 031 | A 9405530482 | HOSE |
| FROM LOCKING MECHANISM ON LOCKING MECHANISM | ||
| 031 | A 9425530182 | HOSE |
| FROM LOCKING MECHANISM ON LOCKING MECHANISM | ||
| 1370 MM | ||
| 032 | A 9735530482 | HOSE |
| FROM CYLINDER ON LOCKING DEVICE | ||
| 2070 MM | ||
| 032 | A 9705530082 | HOSE |
| CAB LOCKING MECHANISM TO CHASSIS MOUNTED | ||
| 2020 MM | ||
| 032 | A 9705530182 | HOSE |
| CAB LOCKING MECHANISM TO CHASSIS MOUNTED | ||
| 2510 MM | ||
| 032 | A 9705530982 | HOSE |
| CAB LOCKING MECHANISM TO CHASSIS MOUNTED | ||
| 2840 MM | ||
| 033 | A 9705530282 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 033 | A 9705530282 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 033 | A 9705530682 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 033 | A 9705530682 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 033 | A 9705530682 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 034 | A 9735530682 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 035 | A 9735531082 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 035 | A 9735531782 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 035 | A 9735531982 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 035 | A 9735532082 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 035 | A 9735532282 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 035 | A 9735532582 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 035 | A 9735532682 | HOSE |
| FROM HAND PUMP TO TILT CYLINDER (LIFT) | ||
| 035 | A 9735533082 | HOSE |
| FROM HAND PUMP TO TILT CYLINDER (LIFT) | ||
| 035 | A 9735533382 | HOSE |
| FROM HAND PUMP TO TILT CYLINDER (LIFT) | ||
| 036 | A 9705530382 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 036 | A 9705530382 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 036 | A 9705530782 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 036 | A 9705530782 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 036 | A 9705530782 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 036 | A 9705531382 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 036 | A 9735532282 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 037 | A 9735530582 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 037 | A 9735531282 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 038 | A 9735530982 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 038 | A 9735531482 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 038 | A 9735531882 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 038 | A 9705531982 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 039 | A 9705530482 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 039 | A 9705530482 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 039 | A 9705530482 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 039 | A 9705531482 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 039 | A 9705531582 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 040 | A 9705531482 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 040 | A 9705531582 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 041 | A 9705530582 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 041 | A 9705530582 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 041 | A 9705530882 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 041 | A 9705530882 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 041 | A 9705530882 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 041 | A 9705531882 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 041 | A 9705532082 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 041 | A 9735532382 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 041 | A 9735532482 | HIGH-PRESSURE HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 041 | A 9705531582 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 041 | A 9705531682 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 042 | A 9735530782 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 042 | A 9735531182 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 042 | A 9735530882 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 042 | A 9735531382 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 042 | A 9735532782 | HOSE |
| FROM HAND PUMP TO CAB SEPARATION POINT | ||
| 042 | A 9735532882 | HOSE |
| FROM HAND PUMP TO CAB SEPARATION POINT | ||
| 042 | A 9735532982 | HOSE |
| FROM HAND PUMP TO CAB SEPARATION POINT | ||
| 042 | A 9735533182 | HOSE |
| FROM HAND PUMP TO CAB SEPARATION POINT | ||
| 042 | A 9735533282 | HOSE |
| FROM HAND PUMP TO CAB SEPARATION POINT | ||
| 042 | A 9735533482 | HOSE |
| FROM HAND PUMP TO CAB SEPARATION POINT | ||
| 043 | A 9705531282 | HOSE |
| FOR FIRE-TRUCKS | ||
| 044 | A 0039979172 | FITTING |
| FOR FIRE-TRUCKS | ||
| 045 | A 3609950101 | CLAMP |
| Repalced by: A 3129951401 | ||
| 045 | A 3129951401 | CLAMP |
| HIGH PRESSURE HOSE TO SUPPORT | ||
| 046 | N 000000000460 | SHEET METAL SCREW |
| HIGH PRESSURE HOSE TO SUPPORT | ||
| 4.8X13 | ||
| 047 | A 0029979871 | THREADED SLEEVE |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 047 | A 0039972072 | FITTING |
| 047 | A 0039972072 | FITTING |
| 047 | N 003901006002 | SCREW-IN FITTING |
| 050 | A 0019900170 | T-FITTING |
| 053 | A 0009903470 | T-FITTING |
| Repalced by: N 000000006204 | ||
| 053 | N 000000006204 | FITTING |
| 053 | A 0009903470 | T-FITTING |
| Repalced by: N 000000006204 | ||
| 053 | N 000000006204 | FITTING |
| 053 | A 0009903470 | T-FITTING |
| Repalced by: N 000000006204 | ||
| 053 | N 000000006204 | FITTING |
| 055 | A 9765530007 | PRESSURE LIMITING VALVE |
| AT CAB TELESCOPING TILT CYLINDER CONNECTION | ||
| Repalced by: A 9765530107 | ||
| 055 | A 9765530107 | PRESSURE LIMITING VALVE |
| AT CAB TELESCOPING TILT CYLINDER CONNECTION | ||
| 056 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO POWER CYLINDER | ||
| 056 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO POWER CYLINDER | ||
| Repalced by: N 000000006197 | ||
| 056 | N 000000006197 | FITTING |
| HIGH PRESSURE HOSE TO POWER CYLINDER | ||
| 057 | A 0029973171 | HOLLOW SCREW FITTING |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 058 | A 9309970171 | DOUBLE FITTING |
| HIGH PRESSURE HOSE TO POWER CYLINDER | ||
| 059 | N 007603022102 | SEAL RING |
| 060 | A 0069973090 | LOOM TIE |
| AT CAB TELESCOPING TILT CYLINDER CONNECTION | ||
| 1140 X 8.9 MM | ||
| 061 | A 9414290152 | SPACER WASHER |
| 062 | A 9419900340 | WASHER |
| LINE MOUNTING | ||
| 18 MM / 11.5 MM | ||
| 064 | N 915043006101 | SCREW CONNECTION |
| Repalced by: A 0009974776 | ||
| 064 | A 0009974776 | SCREW FITTING |
| 065 | A 9709900082 | THREADED UNION |
| 068 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 068 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 071 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 6 MM | ||
| 071 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 6 MM | ||
| 073 | A 9709970081 | GROMMET |
| HIGH PRESSURE HOSE THRU FRAME | ||
| 60/53/7 MM | ||
| 073 | A 9709970081 | GROMMET |
| HIGH PRESSURE HOSE THRU FRAME | ||
| 60/53/7 MM | ||
| 074 | A 3609902340 | WASHER |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 10 MM | ||
| 074 | A 3609902340 | WASHER |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 10 MM | ||
| 074 | A 3609902340 | WASHER |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 10 MM | ||
| 074 | A 3609902340 | WASHER |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 10 MM | ||
| 075 | A 3873020140 | BRACKET |
| HIGH PRESSURE HOSE TO FRAME | ||
| 076 | A 9739900040 | WASHER |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 30 MM / 13.5 MM | ||
| 076 | A 9739900040 | WASHER |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 30 MM / 13.5 MM | ||
| 076 | A 9739900040 | WASHER |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 30 MM / 13.5 MM | ||
| 077 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO BRACKET AND TO FRAME | ||
| 376 X 7.6 MM | ||
| 077 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO BRACKET AND TO FRAME | ||
| 376 X 7.6 MM | ||
| 077 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO BRACKET AND TO FRAME | ||
| 376 X 7.6 MM | ||
| 077 | A 0059976290 | CABLE STRAP |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 260X3.3MM | ||
| 077 | A 0059976290 | CABLE STRAP |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 260X3.3MM | ||
| 077 | A 0059976290 | CABLE STRAP |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 260X3.3MM | ||
| 077 | A 0059976290 | CABLE STRAP |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 260X3.3MM | ||
| 077 | A 0059976290 | CABLE STRAP |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 260X3.3MM | ||
| 077 | A 0069971190 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375 X 7.6 MM | ||
| 077 | A 0069971190 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375 X 7.6 MM | ||
| 077 | A 0069971190 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375 X 7.6 MM | ||
| 077 | A 0069971190 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375 X 7.6 MM | ||
| 077 | A 0069971190 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375 X 7.6 MM | ||
| 077 | A 0069971190 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375 X 7.6 MM | ||
| 077 | A 0069971190 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375 X 7.6 MM | ||
| 077 | A 0029972490 | CABLE TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 077 | A 0029972490 | CABLE TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 077 | A 0029972490 | CABLE TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 077 | A 0029975890 | CABLE TIE |
| CABLE HARNESS MOUNTING | ||
| 375X8.4MM | ||
| 077 | A 0029975890 | CABLE TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375X8.4MM | ||
| 077 | A 0029975890 | CABLE TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375X8.4MM | ||
| 078 | A 9416950589 | EDGE GUARD SECTION |
| CAB SUSPENSION | ||
| 1300 MM | ||
| 078 | A 9416950089 | EDGE GUARD SECTION |
| CAB SUSPENSION | ||
| 150 MM | ||
| 078 | A 3816940085 | EDGE GUARD SECTION |
| CAB SUSPENSION | ||
| 2230 MM | ||
| 078 | A 3816940085 | EDGE GUARD SECTION |
| CAB SUSPENSION | ||
| 2230 MM | ||
| 079 | A 9705530105 | CYLINDER |
| Repalced by: A 9705530205 | ||
| 079 | A 9705530205 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 081 | A 9735530005 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 081 | A 9735530005 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 082 | A 9765530005 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 082 | A 9765530105 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 083 | A 9705500238 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 083 | A 9735500338 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 083 | A 9735500338 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 086 | A 9735500038 | SUPPORT |
| Repalced by: A 9735501638 | ||
| 086 | A 9735500038 | SUPPORT |
| Repalced by: A 9735501638 | ||
| 086 | A 9735501638 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 086 | A 9735501638 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 089 | A 9705500038 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 089 | A 9705500538 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 089 | A 9735500138 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 089 | A 9735501138 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 092 | A 9705500438 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 095 | A 9735500538 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 097 | A 9735530738 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 099 | A 9735530241 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 099 | A 9735530241 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 099 | A 9735530241 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 101 | A 9735530341 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 101 | A 9735530341 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 101 | A 9735530341 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 104 | N 910105008011 | SCREW |
| PLATE TO SUPPORT | ||
| 8X20 | ||
| 104 | N 910105008011 | SCREW |
| PLATE TO SUPPORT | ||
| 8X20 | ||
| 104 | N 910105008011 | SCREW |
| PLATE TO SUPPORT | ||
| 8X20 | ||
| 106 | N 910105012013 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X1,5X25 | ||
| 106 | N 910105012047 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X1,5X40 | ||
| 108 | H WA4604660150 | BUSHING |
| BEARING BRACKET TO FRAME | ||
| 110 | A 0059974145 | SEAL RING |
| SUPPORT ON CAB BOLT | ||
| 112 | A 9735530376 | WASHER |
| SUPPORT ON CAB BOLT | ||
| 112 | A 9735530376 | WASHER |
| SUPPORT ON CAB BOLT | ||
| 112 | A 9734010001 | WASHER |
| SUPPORT ON CAB BOLT | ||
| 112 | A 9734010001 | WASHER |
| SUPPORT ON CAB BOLT | ||
| 114 | N 913023012002 | NUT |
| SUPPORT ON CAB BOLT | ||
| 114 | N 913023012002 | NUT |
| SUPPORT ON CAB BOLT | ||
| 114 | N 913023010004 | NUT |
| SUPPORT ON CAB BOLT | ||
| M 10X1 | ||
| 114 | N 913023010004 | NUT |
| SUPPORT ON CAB BOLT | ||
| M 10X1 | ||
| 116 | A 9735530474 | PIN |
| Repalced by: A 9735530874 | ||
| 116 | A 9735530474 | PIN |
| Repalced by: A 9735530874 | ||
| 116 | A 9735530874 | PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 116 | A 9735530874 | PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 119 | A 9735530374 | PIN |
| HYDRAULIC CYLINDER SUPPORT | ||
| 119 | A 9735530374 | PIN |
| HYDRAULIC CYLINDER SUPPORT | ||
| 119 | A 9735530574 | PIN |
| Repalced by: A 9735530974 | ||
| 119 | A 9735530974 | PIN |
| HYDRAULIC CYLINDER SUPPORT | ||
| 121 | A 9735530350 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 123 | N 000471025002 | LOCK RING |
| PIN TO BRACKET | ||
| 123 | N 000471025002 | LOCK RING |
| PIN TO BRACKET | ||
| 123 | N 900055025302 | LOCK RING |
| PIN TO BRACKET | ||
| TO 973 553 05 74 | ||
| 124 | N 000000003588 | CLIP |
| PIN TO BRACKET | ||
| TO 973 553 09 74 | ||
| 125 | A 0059974145 | SEAL RING |
| PIN TO BRACKET | ||
| 125 | A 0059974145 | SEAL RING |
| PIN TO BRACKET | ||
| 125 | A 0059974145 | SEAL RING |
| PIN TO BRACKET | ||
| 127 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 127 | N 009021017201 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 129 | N 000125021006 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 975 553 04 74 | ||
| 129 | N 000125021006 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 975 553 04 74 | ||
| 131 | N 000000003588 | CLIP |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 975 553 04 74 | ||
| 131 | N 000000003588 | CLIP |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 975 553 04 74 | ||
| 131 | N 000000003588 | CLIP |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 975 553 04 74 | ||
| 134 | N 912001024001 | LOCK |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 973 553 08 74 | ||
| 134 | N 912001024001 | LOCK |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 973 553 08 74 | ||
| 134 | N 912001024001 | LOCK |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 973 553 08 74 | ||
| 137 | A 0019978490 | LOOM TIE |
| 376 X 7.6 MM | ||
| 140 | A 9735531195 | WEB |
| MOSS TYPE RUBBER | ||
| 140 | A 9735531195 | WEB |
| MOSS TYPE RUBBER | ||
| 143 | A 9765530107 | PRESSURE LIMITING VALVE |
| PRE-TENSION VALVE AT TELESCOPIC CYLINDER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
