Transporto priemonė: 1413; VIN numerio dalis: 383002
Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

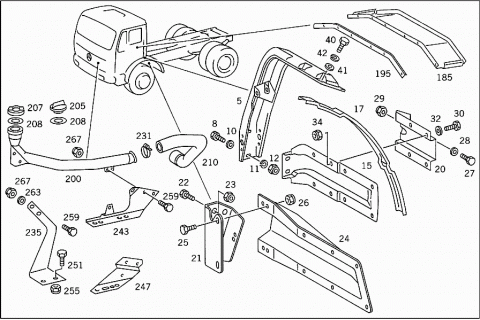

| FRONT FENDER MOUNTING | ||
| A 3815200033 | SUPPORT | |
| Repalced by: A 3815201433 | ||
| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| A 3815200333 | SUPPORT | |
| Repalced by: A 3815202333 | ||
| 005 | A 3815202333 | SUPPORT |
| EXPANSION TANK | ||
| 008 | N 308676012010 | SCREW |
| M12X1.5X40 | ||
| 008 | N 000961012106 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M12X1.5X35 | ||
| 008 | N 000961012151 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M12X1.5X30 | ||
| 008 | N 000961012122 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 010 | N 000125013008 | WASHER |
| 011 | N 912004012100 | LOCK WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 012 | N 910113012002 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 015 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 015 | A 6575210140 | BRACKET |
| FENDER | ||
| 017 | A 3815200026 | FENDER STAY |
| RIGHT | ||
| 017 | A 3815200026 | FENDER STAY |
| RIGHT | ||
| 020 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 020 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 020 | A 6575200033 | SUPPORT |
| FENDER | ||
| 021 | A 3875211640 | BRACKET |
| LEFT FENDER | ||
| 021 | A 3875211740 | BRACKET |
| RIGHT FENDER | ||
| 022 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 022 | N 308676014020 | SCREW |
| BRACKET TO FRAME | ||
| 023 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 023 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 024 | A 3875212040 | BRACKET |
| LEFT FENDER | ||
| 024 | A 3875212140 | BRACKET |
| RIGHT FENDER | ||
| 025 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 025 | N 308676012012 | SCREW |
| BRACKET TO BRACKET | ||
| 026 | N 910113012002 | NUT |
| BRACKET TO BRACKET | ||
| 027 | N 000961014028 | SCREW |
| FENDER BRACKET TO SIDE MEMBER | ||
| 028 | A 3609901840 | WASHER |
| FENDER BRACKET TO SIDE MEMBER | ||
| 029 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 029 | N 910113014001 | NUT |
| FENDER BRACKET TO SIDE MEMBER | ||
| 030 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 030 | N 304017008034 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X25 | ||
| 030 | N 304017008034 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X25 | ||
| 030 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 030 | N 304017008021 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X22 | ||
| 030 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 030 | N 304017008034 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X25 | ||
| N 000933008150 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X35 | ||
| 032 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 032 | A 6312670276 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 034 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 034 | N 913004008001 | NUT |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 034 | N 913004008001 | NUT |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 040 | N 000933008145 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X18 | ||
| 040 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 040 | N 304017008027 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X30 | ||
| 040 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 040 | N 304017008027 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X30 | ||
| 040 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 040 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 040 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 040 | N 910143008005 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 041 | N 000433008406 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 042 | N 912004008102 | LOCK WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

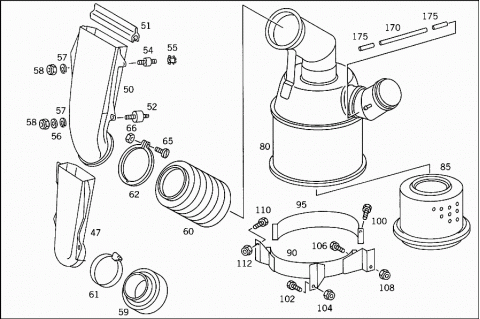

| AIR CLEANER | ||
| 047 | A 3875200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 047 | A 3875200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 047 | A 3875200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 047 | A 3875200301 | AIR INTAKE PIPE |
| LEFT | ||
| 047 | A 3875200301 | AIR INTAKE PIPE |
| LEFT | ||
| 047 | A 3875200301 | AIR INTAKE PIPE |
| LEFT | ||
| 050 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 050 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 050 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 050 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 050 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 050 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 051 | A 3875280076 | BINDING RAIL |
| AIR INTAKE PIPE | ||
| 052 | A 3879880011 | BUFFER |
| AIR DUCT TO CAB | ||
| 052 | A 3879880011 | BUFFER |
| AIR DUCT TO CAB | ||
| 054 | A 3879880111 | BUFFER |
| AIR DUCT TO CAB | ||
| 055 | A 0019901791 | NUT RETAINER |
| AIR DUCT TO CAB | ||
| 056 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 056 | N 000125008443 | WASHER |
| AIR DUCT TO CAB | ||
| 057 | N 912004008102 | LOCK WASHER |
| AIR DUCT TO CAB | ||
| 058 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 058 | N 913004008001 | NUT |
| AIR DUCT TO CAB | ||
| 059 | A 3855280391 | BOOT |
| TO OIL BATH AIR CLEANER | ||
| 060 | A 3815280191 | BOOT |
| TO OIL BATH AIR CLEANER | ||
| 061 | A 0029972790 | LOOM TIE |
| BOOT TO AIR DUCT | ||
| 062 | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT | ||
| 065 | N 000084004423 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 066 | N 000934004006 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| A 0080946002 | AIR CLEANER | |
| Repalced by: A 0090944902 | ||
| 080 | A 0090944902 | AIR CLEANER |
| MANN & HUMMEL | ||
| A 0080946102 | AIR CLEANER | |
| Repalced by: A 0090945002 | ||
| 080 | A 0090945002 | AIR CLEANER |
| KNECHT | ||
| 080 | A 0090945002 | AIR CLEANER |
| KNECHT | ||
| A 0080946202 | AIR CLEANER | |
| Repalced by: A 0090945102 | ||
| 080 | A 0090945102 | AIR CLEANER |
| MANN & HUMMEL | ||
| A 0080946302 | AIR CLEANER | |
| Repalced by: A 0090945202 | ||
| 080 | A 0090945202 | AIR CLEANER |
| KNECHT | ||
| 080 | A 0090945202 | AIR CLEANER |
| KNECHT | ||
| A 0010946504 | FILTER ELEMENT | |
| Repalced by: A 0010949404 | ||
| 085 | A 0010949404 | FILTER ELEMENT |
| TO 008 094 60 02,008 094 61 02 | ||
| 085 | A 0010949404 | FILTER ELEMENT |
| TO 008 094 62 02,008 094 63 02 | ||
| 085 | A 0010949404 | FILTER ELEMENT |
| TO 009 094 49 02,009 094 50 02 | ||
| 085 | A 0010949404 | FILTER ELEMENT |
| TO 009 094 51 02,009 094 52 02 | ||
| 090 | A 3815200733 | SUPPORT |
| AIR CLEANER | ||
| 090 | A 3815200833 | SUPPORT |
| AIR CLEANER | ||
| 095 | A 3815280421 | STRAP |
| AIR CLEANER | ||
| 100 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 100 | N 304017008021 | SCREW |
| STRAP WITH AIR CLEANER TO SUPPORT | ||
| 100 | N 304017008021 | SCREW |
| STRAP WITH AIR CLEANER TO SUPPORT | ||
| 102 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 102 | N 308676014020 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 14X35 MM | ||
| 104 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 104 | N 910113014001 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 106 | N 000961012122 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| M 12X40 | ||
| 106 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 106 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| M 12X35 | ||
| 108 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 110 | N 000933010128 | SCREW |
| STRAP WITH AIR CLEANER TO SUPPORT | ||
| M 10X20 | ||
| 112 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 112 | N 910113010000 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||

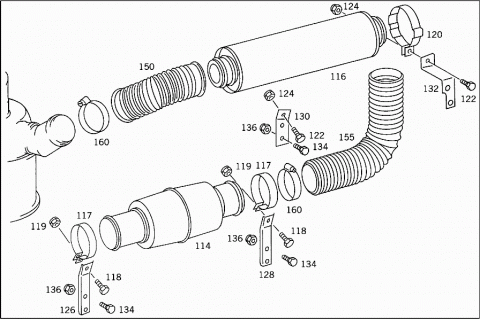

| 114 | A 0080944802 | MUFFLER |
| MUFFLER TO BRACKET | ||
| 116 | A 3520900004 | AIR CLEANER |
| 117 | A 3529950135 | CLAMP |
| Repalced by: A 3189950135 | ||
| 117 | A 3189950135 | CLAMP |
| MUFFLER TO BRACKET | ||
| 118 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 118 | N 304017008034 | SCREW |
| MUFFLER TO BRACKET | ||
| 119 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 119 | N 913004008001 | NUT |
| MUFFLER TO BRACKET | ||
| 120 | A 3815200167 | STRAP |
| Repalced by: A 6155200067 | ||
| 120 | A 6155200067 | STRAP |
| 122 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 122 | N 304017010002 | SCREW |
| 124 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 124 | N 910113010000 | NUT |
| A 3815281940 | BRACKET | |
| MUFFLER TO SIDE MEMBER | ||
| 126 | A 3815282340 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 128 | A 3815282040 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 130 | A 3815284440 | BRACKET |
| Repalced by: A 3815202041 | ||
| 130 | A 3815202041 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 132 | A 3815283740 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 134 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 134 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 134 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 136 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 136 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 136 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||

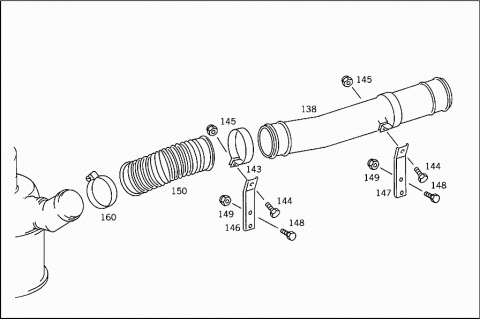

| 138 | A 3815280108 | AIR INTAKE PIPE |
| Repalced by: A 3815280208 | ||
| 138 | A 3815280208 | AIR INTAKE PIPE |
| AIR INTAKE PIPE TO BRACKET | ||
| 143 | A 3529950135 | CLAMP |
| Repalced by: A 3189950135 | ||
| 143 | A 3189950135 | CLAMP |
| AIR INTAKE PIPE TO BRACKET | ||
| 144 | N 000933010105 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| M 10X25 | ||
| 145 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 145 | N 910113010000 | NUT |
| AIR INTAKE PIPE TO BRACKET | ||
| A 3815282140 | BRACKET | |
| AIR INTAKE PIPE TO SUPPORT | ||
| 146 | A 3815282440 | BRACKET |
| AIR INTAKE PIPE TO SUPPORT | ||
| 147 | A 3815282240 | BRACKET |
| AIR INTAKE PIPE TO SUPPORT | ||
| 148 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 148 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 149 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 149 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 150 | A 3810940108 | ACCORDION TUBE |
| FROM AIR CLEANER TO MUFFLER | ||
| A 3810940008 | ACCORDION TUBE | |
| Repalced by: A 3815280082 | ||
| A 3810940008 | ACCORDION TUBE | |
| 155 | A 3815280082 | HOSE |
| FROM MUFFLER TO INTAKE FITTING | ||
| 155 | A 3815280082 | HOSE |
| FROM MUFFLER TO INTAKE FITTING | ||
| 160 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 160 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 160 | A 0059972990 | CLAMP |
| AIR CLEANER AND AIR INTAKE PIPE | ||
| 170 | A 0109977082 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 175 | N 073379006203 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 185 | A 3835240529 | COVER |
| ENGINE COVERING | ||
| 195 | A 3875240084 | SHIM |
| COVERING | ||
| N 007981005306 | SHEET METAL SCREW | |
| COVER PLATE TO CAB REAR PANEL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| OIL REFILLING | ||
| 200 | A 4010101664 | OIL FILLER NECK |
| 200 | A 4010101564 | OIL FILLER NECK |
| THREADED | ||
| A 3520100168 | CAP | |
| Repalced by: A 0000180702 | ||
| 205 | A 0000180702 | CAP |
| OIL REFILLING | ||
| 205 | A 1020180302 | CAP |
| OIL REFILLING | ||
| 205 | A 1020180402 | CAP |
| OIL REFILLING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 208 | ||
| 207 | A 3520100468 | CAP |
| THREADED | ||
| 208 | A 3520180180 | GASKET |
| TO 352 010 01 68 | ||
| A 0000180180 | GASKET | |
| Repalced by: A 1020180080 | ||
| 208 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 208 | A 1020180380 | GASKET |
| 210 | A 3520181082 | HOSE |
| OIL REFILLING | ||
| 231 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 231 | N 000000000671 | CLAMP |
| HOSE TO SCOOP | ||
| 235 | A 4010182540 | BRACKET |
| FRONT | ||
| 243 | A 4010182840 | BRACKET |
| REAR | ||
| 247 | A 4010182940 | BRACKET |
| REAR | ||
| 251 | N 000933010105 | SCREW |
| BRACKET MOUNTING | ||
| 255 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 255 | N 910113010000 | NUT |
| BRACKET MOUNTING | ||
| 259 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 259 | N 304017006020 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 263 | N 000125006421 | WASHER |
| OIL FILLER NECK TO BRACKET | ||
| 267 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 267 | N 913004006001 | NUT |
| OIL FILLER NECK TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
