Transporto priemonė: 1414; VIN numerio dalis: 616007

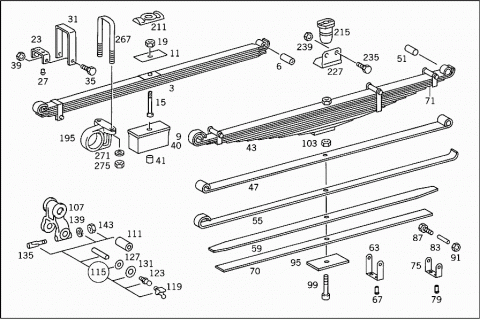

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 6163200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 006 | A 3523220050 | BUSHING |
| 006 | A 3853220050 | BUSHING |
| 009 | A 3813220584 | SHIM |
| Repalced by: A 6173221184 | ||
| 011 | A 6163210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 015 | N 004626012171 | SPRING BOLT |
| M 12 X 150 | ||
| 015 | N 004626012172 | SPRING BOLT |
| M 12X95 | ||
| 019 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 019 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 023 | A 6163210035 | CLAMP |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 027 | N 910006008024 | RIVET |
| CLAMP TO SPRING LEAF | ||
| 031 | A 6163210033 | SPRING CLAMP |
| 035 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 035 | N 304017008027 | SCREW |
| SPRING CLAMP TO CLAMP | ||
| 039 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 039 | N 913004008001 | NUT |
| SPRING CLAMP TO CLAMP | ||
| 040 | A 6173221184 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 041 | A 3449917260 | DOWEL PIN |
| (CENTERING CONE) | ||
| 043 | A 3833200402 | FRONT SPRING |
| 8-LEAF | ||
| 043 | A 3833202202 | FRONT SPRING |
| 8-LEAF | ||
| 047 | A 3833201294 | SPRING LEAF |
| NO.1 | ||
| 047 | A 3853202994 | SPRING LEAF |
| NO.1 | ||
| 051 | A 3523220050 | BUSHING |
| 051 | A 3853220050 | BUSHING |
| 055 | A 3833212012 | SPRING LEAF |
| NO.2 | ||
| 055 | A 3853212512 | SPRING LEAF |
| NO.2 | ||
| 059 | A 3833200194 | SPRING LEAF |
| NO.3 | ||
| 059 | A 3833201894 | SPRING LEAF |
| NO.3 | ||
| 063 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 063 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 067 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 067 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 070 | A 3833210513 | SPRING LEAF |
| AT SPRING LEAF NO.3 | ||
| NO.3 | ||
| 071 | A 3833210614 | SPRING LEAF |
| NO.4 | ||
| 071 | A 3833210614 | SPRING LEAF |
| NO.4 | ||
| 075 | A 3123240633 | SPRING CLAMP |
| TO LEAF NO.7 | ||
| 075 | A 3123240633 | SPRING CLAMP |
| TO LEAF NO.7 | ||
| 075 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 079 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 083 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 083 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 087 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 087 | N 304014008009 | SCREW |
| FOR SPRING CLAMPS | ||
| 091 | N 304032008006 | NUT |
| FOR SPRING CLAMPS | ||
| 095 | A 3143221084 | SHIM |
| 095 | A 3833220084 | SHIM |
| 099 | N 004626012120 | SPRING BOLT |
| M 12X145 | ||
| 099 | N 004626012127 | SPRING BOLT |
| M 12X145 | ||
| 103 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 103 | N 910113012005 | NUT |
| 107 | A 6173200163 | SHACKLE |
| Repalced by: A 6173250120 | ||
| 107 | A 6173250120 | SHACKLE |
| FRONT SPRING | ||
| 111 | A 3523220050 | BUSHING |
| 111 | A 3853220050 | BUSHING |
| 115 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 119 | N 071412010300 | GREASE NIPPLE |
| SHACKLE | ||
| 123 | N 071412010100 | GREASE NIPPLE |
| SHACKLE | ||
| 127 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 127 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 127 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 131 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 135 | A 3529900337 | BOLT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 139 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 139 | N 000125010532 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 143 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 143 | N 910113010000 | NUT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||

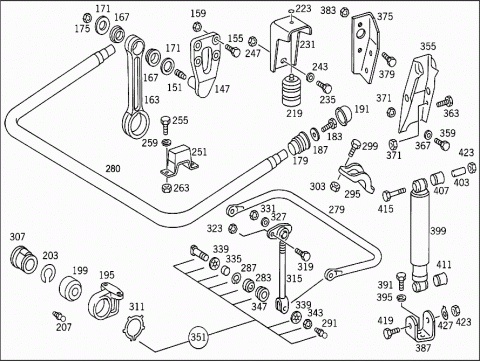

| 147 | A 6163260263 | BEARING BRACKET |
| Repalced by: A 6163260163 | ||
| 147 | A 6163260163 | BEARING BRACKET |
| FRONT AXLE TORSION BAR | ||
| 151 | N 000939016033 | STUD BOLT |
| BEARING BRACKET | ||
| 155 | N 000960014237 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 155 | N 000960014229 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 14X55 | ||
| 155 | N 000960012261 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X55 | ||
| 155 | N 000960012261 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X55 | ||
| 155 | N 000960012162 | SCREW |
| Repalced by: N 000961012205 | ||
| 155 | N 000961012205 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X50 | ||
| 159 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 159 | N 910113014000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 159 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 159 | N 910113012003 | HEXAGON NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 159 | N 910113012003 | HEXAGON NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 163 | A 6173230016 | LINK |
| TORSION BAR | ||
| 167 | A 0003232150 | BUSHING |
| LINK TO BEARING BRACKET | ||
| 171 | A 3853260052 | SPACER WASHER |
| Repalced by: A 3933260152 | ||
| 171 | A 3933260152 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 171 | A 3873230052 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 175 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 175 | N 910113016002 | NUT |
| LINK TO BEARING BRACKET | ||
| N 000961016081 | SCREW | |
| LINK TO BEARING BRACKET | ||
| 179 | A 3833230092 | BOOT |
| TORSION BAR,REAR | ||
| 183 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 183 | N 308676012012 | HEXAGON HEAD BOLT |
| TORSION BAR TO BEARING BRACKET | ||
| 187 | A 3529900640 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 191 | A 6173230038 | DUST CAP |
| TORSION BAR,REAR | ||
| 195 | A 3853230263 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 195 | A 6163230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 199 | A 0009816131 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 199 | A 0009817431 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 203 | N 000472055000 | LOCK RING |
| JOINT BEARING TO BEARING BRACKET | ||
| 207 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 207 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR BEARING | ||
| 211 | A 3833220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 211 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 215 | A 3833240008 | HELPER SPRING |
| RUBBER BUFFER TO FRAME | ||
| 215 | A 3833240008 | HELPER SPRING |
| LEFT AND RIGHT SIDE MEMBERS | ||
| 219 | A 3853200077 | RUBBER SPRING |
| (HELPER SPRING) | ||
| 223 | N 912002012001 | LOCK |
| RUBBER SPRING TO BRACKET | ||
| N 000125013008 | WASHER | |
| 227 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 231 | A 3853250040 | BRACKET |
| HELPER SPRING | ||
| 235 | N 000933010145 | SCREW |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 235 | N 000961014119 | SCREW |
| Repalced by: A 9429901304 | ||
| 235 | A 9429901304 | SCREW |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 235 | A 9429901304 | SCREW |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 235 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 235 | N 308676014012 | SCREW |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 239 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 239 | N 910113010000 | NUT |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 243 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 243 | N 000125015019 | WASHER |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 247 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 247 | N 910113014000 | NUT |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 251 | A 3853300075 | RUBBER MOUNTING |
| FRONT AXLE | ||
| 255 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| M 10X25 | ||
| 255 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| M 10X20 | ||
| 259 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 263 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 263 | N 910113010000 | NUT |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 267 | A 3603310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 267 | A 3603310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 267 | A 3523310625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 267 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 260 MM | ||
| 271 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 275 | A 0029903551 | NUT |
| Repalced by: N 000934018001 | ||
| 275 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 279 | A 6173260065 | TORSION BAR |
| FRONT AXLE | ||
| 280 | A 6163230065 | TORSION BAR |
| FRONT AXLE | ||
| 283 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 283 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 283 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 283 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 283 | A 0019814631 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 283 | A 0019814831 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 287 | N 000472035000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 291 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 291 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 295 | A 6173230040 | BRACKET |
| TORSION BAR | ||
| 299 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 299 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO TORSION BAR | ||
| 303 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 307 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR BEARING | ||
| 311 | N 000983068000 | LOCK RING |
| RUBBER MOUNTING | ||
| 315 | A 6173200089 | ROD |
| (ARTICULATED ROD) | ||
| 319 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 319 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 323 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 327 | N 006796016101 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 331 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 331 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 335 | A 3603230153 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 339 | N 006797021201 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 339 | N 006797021101 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 343 | N 000936020010 | NUT |
| ROD TO TORSION BAR | ||
| 347 | A 3603230460 | SEAL RING |
| ROD TO TORSION BAR | ||
| 351 | A 6173200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 355 | A 3833200278 | CONSOLE |
| Repalced by: A 6173200078 | ||
| 355 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 355 | A 3833200478 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 355 | A 3833200378 | CONSOLE |
| Repalced by: A 6173200178 | ||
| 355 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 355 | A 3833200578 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 359 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 363 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 363 | N 308676012012 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M12X1.5X25 | ||
| 367 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 367 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 371 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 375 | A 3853230695 | REINFORCEMENT |
| LEFT | ||
| 375 | A 3853230795 | REINFORCEMENT |
| RIGHT | ||
| 379 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 379 | N 308676014020 | SCREW |
| REINFORCEMENT TO FRAME | ||
| 383 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 383 | N 910113014001 | NUT |
| REINFORCEMENT TO FRAME | ||
| 387 | A 3833231863 | BEARING BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 391 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 391 | N 308676012012 | HEXAGON HEAD BOLT |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 395 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 399 | A 0033238800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 399 | A 0033238900 | SHOCK ABSORBER |
| Repalced by: A 0043233700 | ||
| 399 | A 0043233700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 399 | A 0023238600 | SHOCK ABSORBER |
| Repalced by: A 0043236400 | ||
| 399 | A 0043236400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 399 | A 0023238700 | SHOCK ABSORBER |
| Repalced by: A 0043235200 | ||
| 399 | A 0043235200 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 399 | A 0023237600 | SHOCK ABSORBER |
| Repalced by: A 0043237100 | ||
| 399 | A 0043237100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 399 | A 0023238400 | SHOCK ABSORBER |
| Repalced by: A 0043233300 | ||
| 399 | A 0043233300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| A 0003232550 | BUSHING | |
| Repalced by: A 0003233150 | ||
| 403 | A 0003233150 | SPACER RING |
| TO 003 323 88 00,003 323 89 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 86 00,002 323 76 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 64 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 87 00,002 323 84 00 | ||
| 403 | A 0003235250 | BUSHING |
| TO 004 323 33 00,004 323 37 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 52 00 | ||
| 407 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 407 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 88 00,003 323 89 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 86 00,002 323 76 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 64 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 87 00,002 323 84 00 | ||
| 411 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 411 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 33 00,004 323 37 00, | ||
| Repalced by: A 0003238085 | ||
| 411 | A 0003238085 | RUBBER MOUNTING |
| TO 004 323 33 00,004 323 37 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 52 00 | ||
| 415 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 16X65 | ||
| 419 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 419 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 16X85 | ||
| 419 | N 000960016056 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 16X90 | ||
| 423 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 423 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 427 | N 000093017002 | LOCK PLATE |
| SHOCK ABSORBER TO BEARING BRACKET | ||

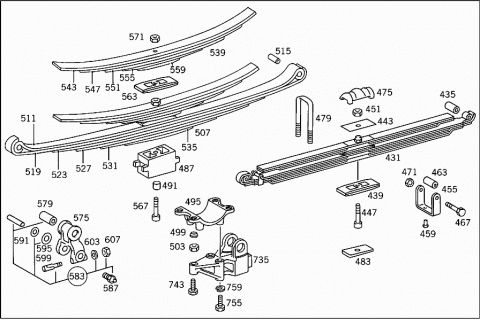

| 431 | A 6163200208 | REAR SPRING |
| (PARABOLIC SPRING),3-LEAF; WITH 2-LEAF HELPER SPRING | ||
| A 3273255050 | BUSHING | |
| Repalced by: A 3523250150 | ||
| 435 | A 3523250150 | BUSHING |
| 435 | A 3853250050 | BUSHING |
| 439 | A 3523240135 | SPACER |
| 443 | A 3853210384 | SHIM |
| Repalced by: A 3963210084 | ||
| 443 | A 3963210084 | SHIM |
| 447 | A 6173241071 | SPRING BOLT |
| 451 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 451 | N 910113012005 | NUT |
| 455 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 455 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 455 | A 6173210333 | SPRING CLAMP |
| 459 | N 910006008023 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 463 | A 3033210153 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 463 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 467 | N 000960012371 | SCREW |
| SPRING CLAMP | ||
| 471 | N 000934012022 | NUT |
| SPRING CLAMP | ||
| 475 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 475 | A 6173250331 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 479 | A 3853512425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 350 MM | ||
| 479 | A 3853513025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 330 MM | ||
| 479 | A 6173510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 380 MM | ||
| 479 | A 3853511725 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 420 MM | ||
| 479 | A 6173511025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 440 MM | ||
| 479 | A 3853512025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 450 MM | ||
| 479 | A 6173511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 460 MM | ||
| 483 | A 3853510728 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 483 | A 3853510528 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 483 | A 3853510628 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 487 | A 6173250984 | SHIM |
| Repalced by: A 6173251484 | ||
| 487 | A 6173251484 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 491 | A 6179910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 495 | A 3853250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 499 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 503 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 503 | N 913004020003 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 507 | A 3853200108 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 507 | A 3833200208 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 511 | A 3853201993 | SPRING LEAF |
| NO.1 | ||
| 511 | A 3833200993 | SPRING LEAF |
| NO.1 | ||
| 515 | A 3523250150 | BUSHING |
| 515 | A 3853250050 | BUSHING |
| 519 | A 3853242012 | SPRING LEAF |
| NO.2 | ||
| 519 | A 3833241012 | SPRING LEAF |
| NO.2 | ||
| 523 | A 3853240113 | SPRING LEAF |
| NO.3 | ||
| 523 | A 3833240213 | SPRING LEAF |
| NO.3 | ||
| 527 | A 3853240014 | SPRING LEAF |
| NO.4 | ||
| 527 | A 3833240214 | SPRING LEAF |
| NO.4 | ||
| 531 | A 3853240015 | SPRING LEAF |
| NO.5 | ||
| 531 | A 3833240215 | SPRING LEAF |
| NO.5 | ||
| 535 | A 3853240016 | SPRING LEAF |
| NO.6 | ||
| 535 | A 3833240216 | SPRING LEAF |
| NO.6 | ||
| 539 | A 3853200010 | HELPER SPRING |
| 5-LEAF | ||
| 539 | A 3833200010 | HELPER SPRING |
| 5-LEAF | ||
| 543 | A 3853240140 | SPRING LEAF |
| NO.1 | ||
| 543 | A 3833240240 | SPRING LEAF |
| NO.1 | ||
| 547 | A 3853240141 | SPRING LEAF |
| NO.2 | ||
| 547 | A 3833240241 | SPRING LEAF |
| NO.2 | ||
| 551 | A 3853240042 | SPRING LEAF |
| NO.3 | ||
| 551 | A 3833240242 | SPRING LEAF |
| NO.3 | ||
| 555 | A 3853240043 | SPRING LEAF |
| NO.4 | ||
| 555 | A 3833240243 | SPRING LEAF |
| NO.4 | ||
| 559 | A 3853240044 | SPRING LEAF |
| NO.5 | ||
| 559 | A 3833240244 | SPRING LEAF |
| NO.5 | ||
| 563 | A 3523240135 | SPACER |
| 567 | A 6173241771 | SPRING BOLT |
| M 12X230 | ||
| 567 | A 6173241671 | SPRING BOLT |
| M 12X220 | ||
| 571 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 571 | N 910113012005 | NUT |
| 575 | A 3523200163 | SHACKLE |
| Repalced by: A 3523250120 | ||
| 575 | A 3523250120 | SHACKLE |
| REAR SPRING | ||
| A 3273255050 | BUSHING | |
| Repalced by: A 3523250150 | ||
| 579 | A 3523250150 | BUSHING |
| 579 | A 3853250050 | BUSHING |
| 583 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 587 | N 071412010100 | GREASE NIPPLE |
| SHACKLE | ||
| 591 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 591 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 595 | A 0029973040 | SEAL RING |
| SPRING SUSPENSION | ||
| 599 | A 3529900337 | BOLT |
| SPRING SUSPENSION | ||
| 603 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 603 | N 000125010532 | WASHER |
| SPRING SUSPENSION | ||
| 607 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 607 | N 910113010000 | NUT |
| SPRING SUSPENSION | ||

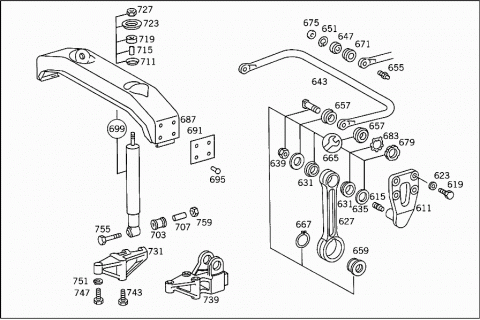

| 611 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 611 | A 3933261163 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 615 | N 000939016033 | STUD BOLT |
| 619 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 619 | N 308676016020 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X35 | ||
| 619 | N 000961016108 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X30 | ||
| 623 | N 000137016202 | SPRING WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 627 | A 3873260647 | SHACKLE |
| TORSION BAR,REAR | ||
| 627 | A 3633260147 | SHACKLE |
| TORSION BAR,REAR | ||
| 631 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 635 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 635 | A 3853260052 | SPACER WASHER |
| Repalced by: A 3933260152 | ||
| 635 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 639 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 639 | N 910113016002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| N 000961016081 | SCREW | |
| SHACKLE TO BEARING BRACKET | ||
| 643 | A 3833260365 | TORSION BAR |
| REAR AXLE | ||
| 647 | A 0009810831 | JOINT BEARING |
| TORSION BAR | ||
| 647 | A 0009811231 | JOINT BEARING |
| TORSION BAR | ||
| 651 | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 655 | N 071412008200 | GREASE NIPPLE |
| TORSION BAR | ||
| 657 | A 6173260050 | BUSHING |
| TORSION BAR | ||
| 659 | A 3873260281 | RUBBER MOUNTING |
| SHACKLE TO TORSION BAR | ||
| 665 | A 6173200028 | REPAIR KIT |
| Repalced by: A 6173200228 | ||
| 665 | A 6173200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 667 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 671 | A 3603230860 | SEAL RING |
| TORSION BAR TO BEARING BRACKET | ||
| 675 | A 3523260153 | SPACER TUBE |
| TORSION BAR TO BEARING BRACKET | ||
| 679 | N 070852035000 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 683 | N 070952035101 | LOCK PLATE |
| TORSION BAR TO BEARING BRACKET | ||
| 687 | A 3853100440 | CROSS MEMBER |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 687 | A 3853100140 | CROSS MEMBER |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 691 | A 3853120084 | SHIM |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 695 | N 910005012080 | RIVET |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 12X42 MM | ||
| 695 | N 910005012080 | RIVET |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 12X42 MM | ||
| 699 | A 6173260000 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 699 | A 3853260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 699 | A 3853260200 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 703 | A 0003230785 | RUBBER MOUNTING |
| SHOCK ABSORBER,BOTTOM | ||
| TO 003 326 92 00,003 326 95 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 326 14 00,003 326 15 00 | ||
| 703 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 703 | A 0003233144 | RUBBER BUFFER |
| SHOCK ABSORBER,BOTTOM | ||
| TO 004 326 18 00,003 326 45 00 | ||
| Repalced by: A 0003238085 | ||
| 703 | A 0003238085 | RUBBER MOUNTING |
| SHOCK ABSORBER,BOTTOM | ||
| TO 004 326 18 00,003 326 45 00 | ||
| 707 | A 0003230553 | SPACER TUBE |
| 711 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 715 | A 3853230253 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 719 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 723 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 727 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 727 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 731 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 731 | A 3833260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 735 | A 3833261240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 739 | A 3833261340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 743 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 747 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 751 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 755 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 759 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 759 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
