Transporto priemonė: 1414; VIN numerio dalis: 616007

Grupė: 28 TRANSFER CASE

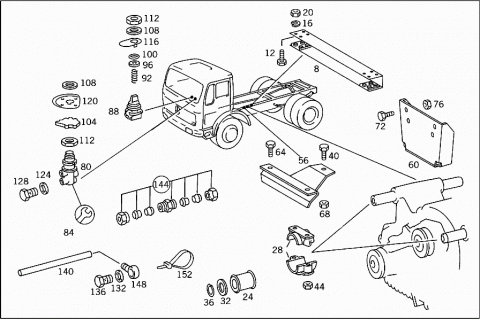

#	Kodas	Pavadinimas
	T YYYYYYYYYYYY	PART NAME MISSING
		FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL:
		750.5
008	A 3833101037	CROSS MEMBER
		TRANSFER CASE
		NO.4
012	N 000933010164	SCREW
		TRANSFER CASE CROSS MEMBER TO CROSS MEMBER
		M 10X22
012	N 000933010129	SCREW
	Repalced by: N 304017010002
012	N 304017010002	SCREW
		TRANSFER CASE CROSS MEMBER TO CROSS MEMBER
		M 10X30
016	N 912004010102	LOCK WASHER
		TRANSFER CASE CROSS MEMBER TO CROSS MEMBER
020	N 913004010008	NUT
	Repalced by: N 910113010000
020	N 910113010000	NUT
		TRANSFER CASE CROSS MEMBER TO CROSS MEMBER
024	A 3222850082	RUBBER MOUNTING
		TRANSFER CASE TO CROSS MEMBER
028	A 3122801386	BEARING
		TRANSFER CASE TO CROSS MEMBER
032	A 3229901940	WASHER
	Repalced by: A 3129902840
032	A 3129902840	WASHER
		BEARING TO TRANSFER CASE
036	A 0009947941	LOCK
		BEARING TO TRANSFER CASE
040	N 000960012221	SCREW
		MOUNTING TO BRACKET
		M 12X80
040	N 000960012184	SCREW
		MOUNTING TO BRACKET
		M 12X85
044	N 910113012002	NUT
		MOUNTING TO BRACKET
044	N 910113012002	NUT
		MOUNTING TO BRACKET
056	A 3802800085	SUPPORT
		FRONT
060	A 3802850140	BRACKET
		REAR
064	N 000933010164	SCREW
		BRACKET TO CROSS MEMBER
		M 10X22
064	N 000933010105	SCREW
		BRACKET TO CROSS MEMBER
		M 10X25
068	N 913004010008	NUT
	Repalced by: N 910113010000
068	N 910113010000	NUT
		BRACKET TO CROSS MEMBER
072	N 000961012052	SCREW
	Repalced by: N 308676012012
072	N 308676012012	HEXAGON HEAD BOLT
		BRACKET TO TRANSFER CASE CROSS MEMBER
		M12X1.5X25
076	N 913002012004	NUT
		BRACKET TO TRANSFER CASE CROSS MEMBER
080	A 0019977936	VALVE
		FROM SHIFT LEVER TO TRANSFER CASE
		BOSCH
080	A 0019979136	VALVE
		FROM SHIFT LEVER TO TRANSFER CASE
		WABCO
084	A 0025860943	REPAIR KIT
088	A 0019976136	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		WABCO
088	A 0019975036	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		BOSCH
088	A 0039975936	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		KNORR
088	A 0039976036	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		VOSS
092	A 0049937501	SPRING
		TO 001 997 61 36,WABCO
096	A 0069972648	SEAL RING
		TO 001 997 61 36,WABCO
100	A 0039979640	SEAL RING
		TO 001 997 61 36,WABCO
104	A 0009970577	HANDLE
		VALVE
108	A 6239900040	WASHER
		VALVE WITH UNIT IDENTIFICATION PLATE TO CAB
112	A 3839900051	NUT
		VALVE WITH UNIT IDENTIFICATION PLATE TO CAB
116	A 3855844324	UNIT IDENTIFICATION PLATE
		LONGITUDINAL DIFFERENTIAL LOCK
120	A 3855844124	UNIT IDENTIFICATION PLATE
		TRANSFER CASE
124	N 007603010103	SEAL RING
	Repalced by: N 007603010110
124	N 007603010110	SEAL RING
		VALVE
128	N 915047006202	HOLLOW SCREW
		VALVE
132	N 007603012405	SEAL RING
		DISTRIBUTOR
136	N 915039008202	HOLLOW SCREW FITTING
		DISTRIBUTOR
140	A 0089976082	HOSE
	Repalced by: A 0009872627
140	A 0009872627	PLASTIC PIPE
		FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER
		4X6 MM
144	A 0039979172	FITTING
		(PARTS KIT),LINE RUPTURE
148	N 915052004015	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/12 MM
148	N 915052004016	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/10 MM
152	A 0019978390	LOOM TIE
		COMPRESSED AIR LINE TO FRAME
		280 MM
